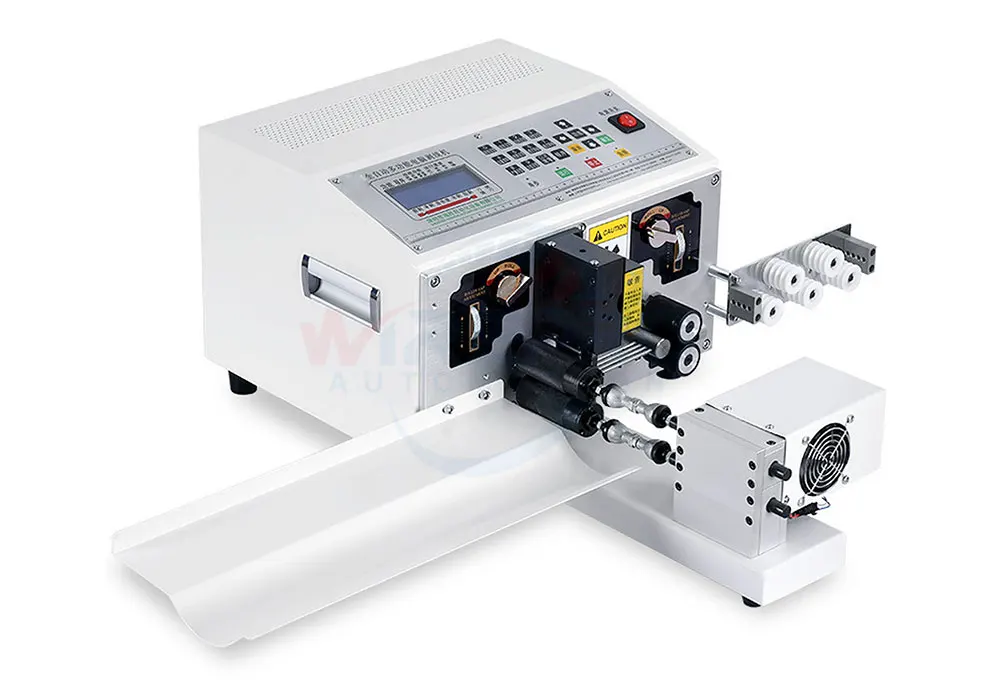

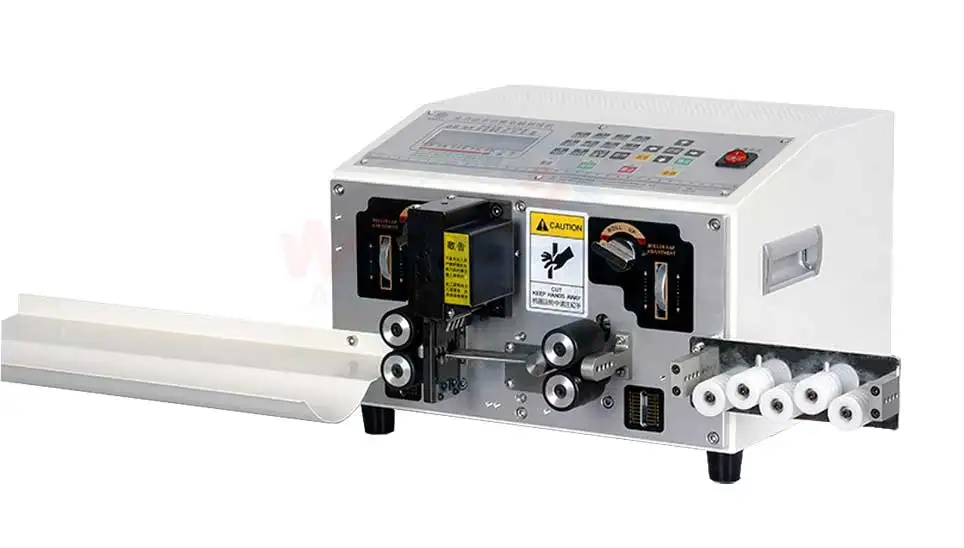

SU A44 high speed one time four wires cutting stripping machine

Product Overview

Description

WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^







Small Wire Gauge Wire Cutting and Stripping Machines



	Cut to length	This series machine are designed for small wire  0.1 - 35mm2 fully automatic cutting & stripping.   This serie machines are the most commonly used stripping machine in wire harness processing. This serie  machines are simple to operate, durable, and cost-effective.
	Full stripping
	Discrete wire stripping
	Wire stripping and copper twisting
	Multi-step stripping
	Round sheathed cable jacket stripping







SU-A44 Festures:



1.  LCD display, support Chinese and English, all buttons and processing program desiged based on automatic computer programming, easy to operate.
2.  Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.
3.  Processing four wires at the same, greatly improves production efficiency and saves labor and time costs.
4. Four-wire straightener to ensure the wire feeding stability, wires will be straighter and more accurate. Effectively improve work efficiency and product quality.
5.  Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating, longer service life.
6.  Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.
7.  Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire, etc., complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.

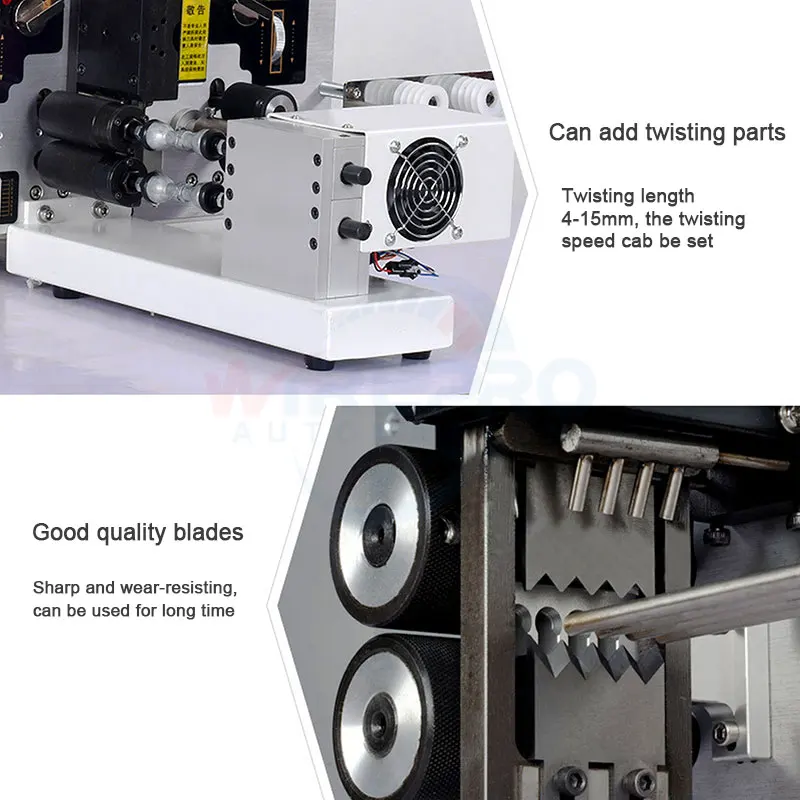

8.  Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen. Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.





Model	SU-A41	SU-A42	SU-A44	SU-T41	SU-T42
Features	One wire stripping	Two wires stripping	Four wiresstripping	One wire stripping & twisting	Two wires stripping & twisting
Conductor Cross-Section *	0.1-4.5mm²	Single 0.1-4.5mm² Double 0.1-2mm²	Single 0.1-4.5mm² Four 0.1-2mm²	0.1-4.5mm²	Single 0.1-4.5mm² Double 0.1-2.5mm²
Stripping Length	0-35mm	0-35mm	0-35mm	0-30mm	0-30mm
Cutting Length	1-9999.9mm
Cutting Length Tolerances	±(0.002*L)mm
Intermediate Stripping	Max 15 sections
Display Screen	Chinese / English LCD Screen
Wire Feed Method	Roller feeding
Drive Method	4 wheels drive
Power Supply	220V/110V
Conduit Dia *	Φ5mm	Φ5mm	Φ4mm	Φ5mm	Φ5mm
Production Rate	3000-6000pcs/h	5000-10000pcs/h	5000-18000pcs/h	4000-8000pcs/h	4000-8000pcs/h
Power	400W	430W	450W	500W	550W
Weight	28kg	32kg	34kg	32kg	35kg
Dimensions	42*40*28cm	42*40*28cm	42*42*28cm	70*40*28cm	70*40*28cm
Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample.













One core wire stripping samples







A. Big Gauge Cable Cutting and Stripping Machine







Big One core wire stripping samples









B. Multi-cores Cable Cutting and Stripping Machine







Multi cores wire stripping samples







C. WIREPRO also has wire pre feeder and wire collector like coiler and stacker to work with the wire cutting and stripping machine, welcome your inquiry!







1.  What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO.

2.  Operation panel and user manual language? English and Chinese are optional.

3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.   Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.   Transportation: Support shipping via air, sea, and railway many transportation modes.

4. How do we install and operate the machine? Machines, accessories, and manuals will be packed and delivered together, we provide operation and maintenance instructions and parts catalog.   Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).   Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.   We also welcome you to come to our factory for more training.

5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days.
