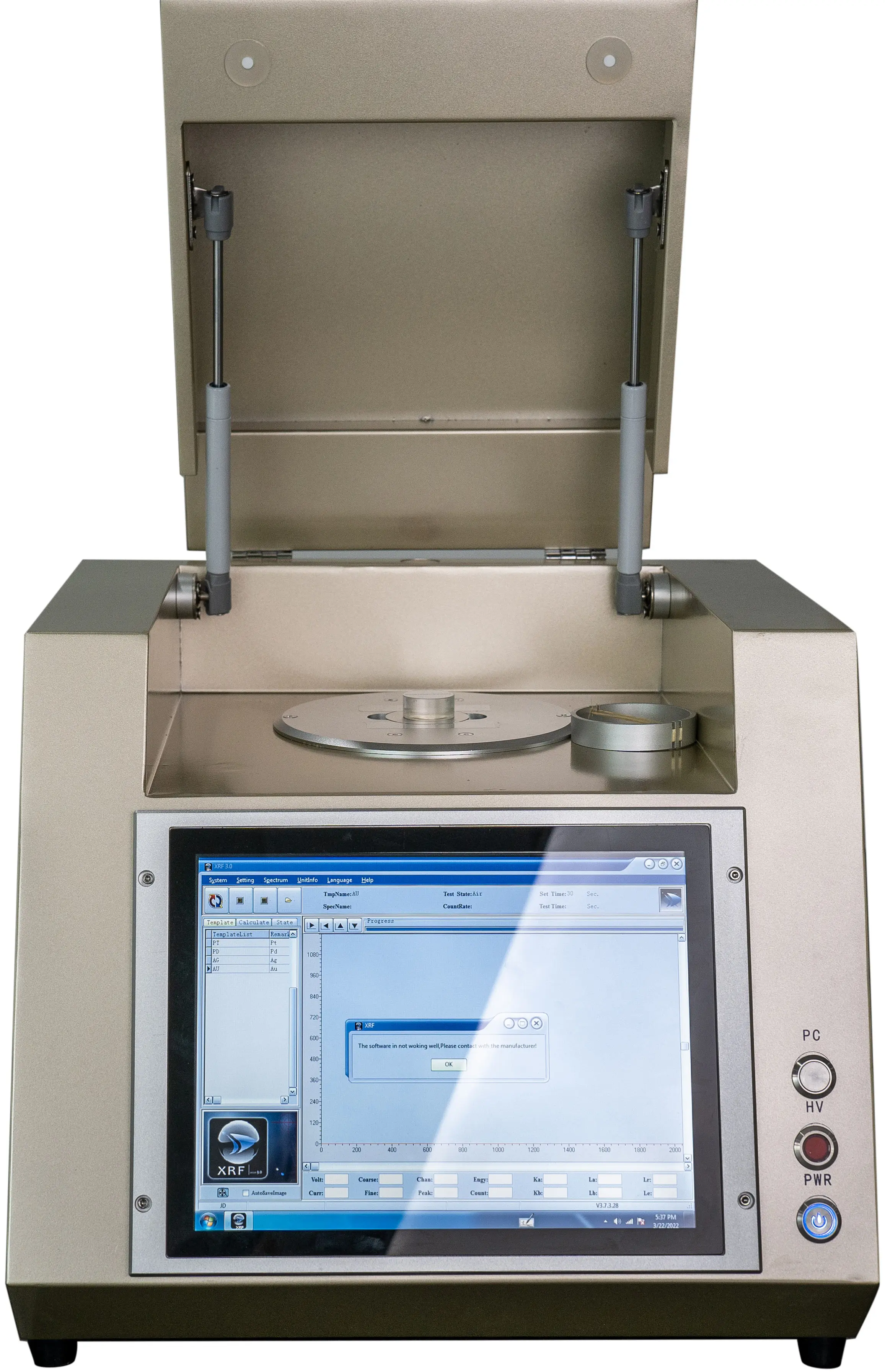

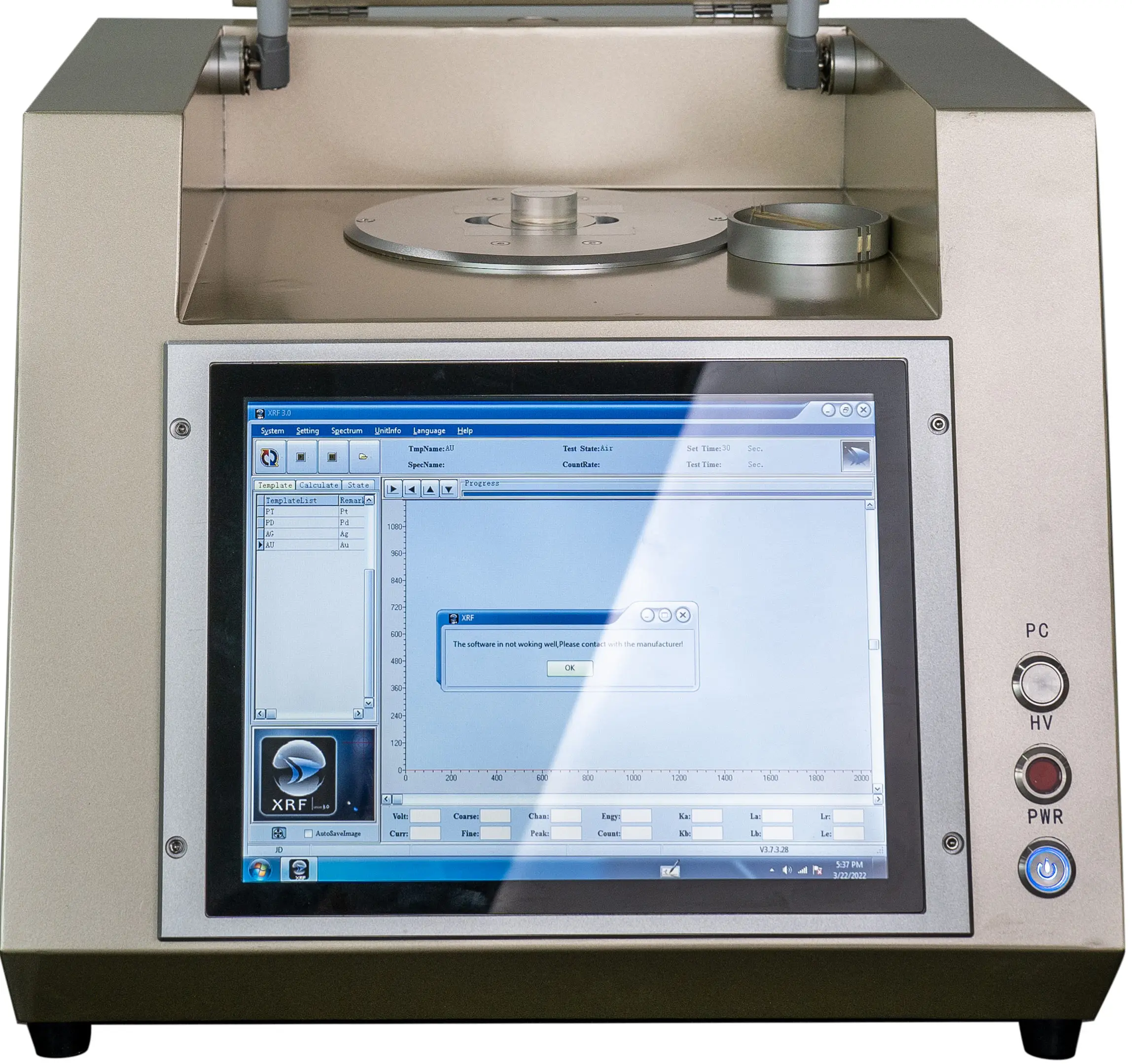

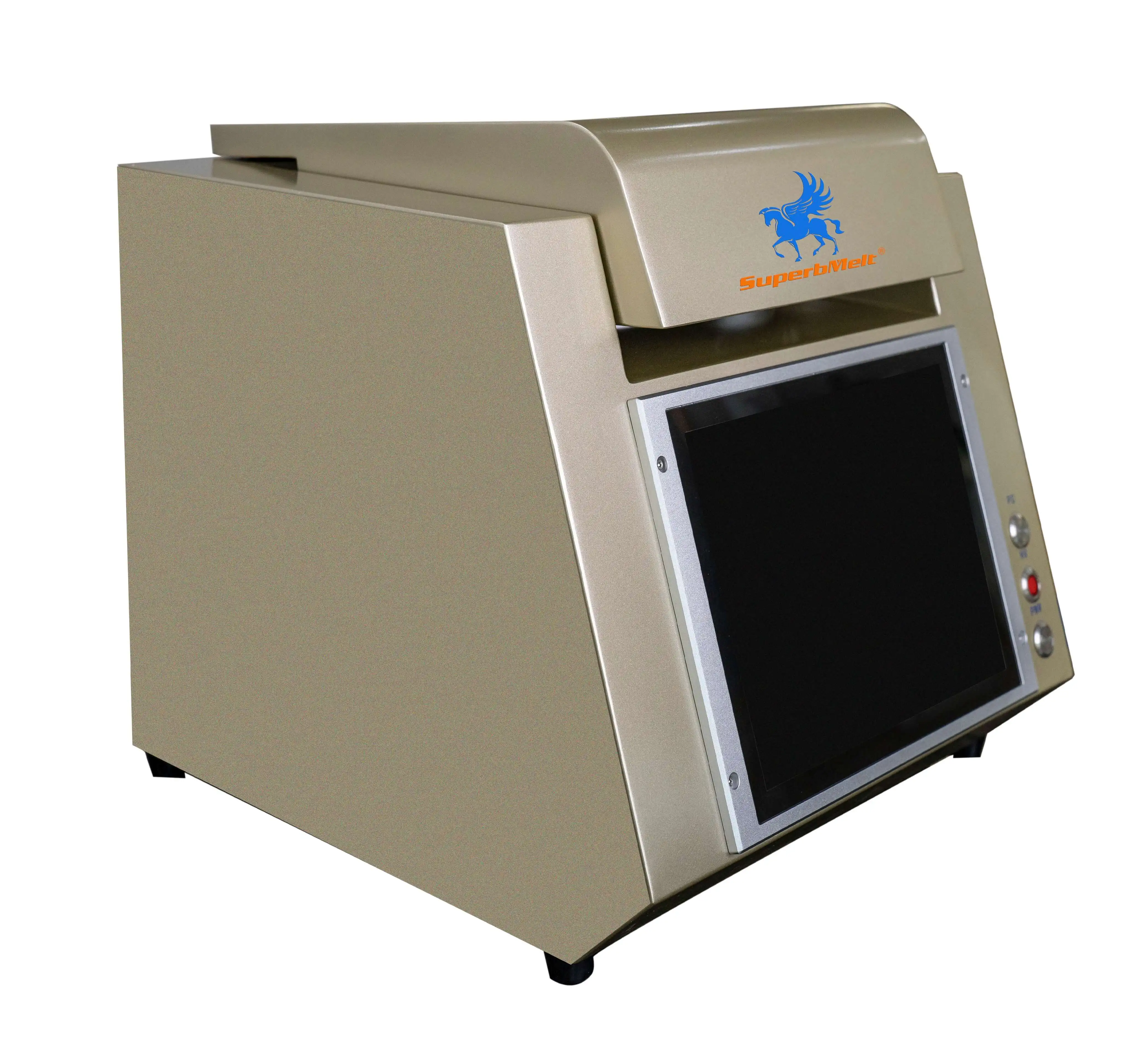

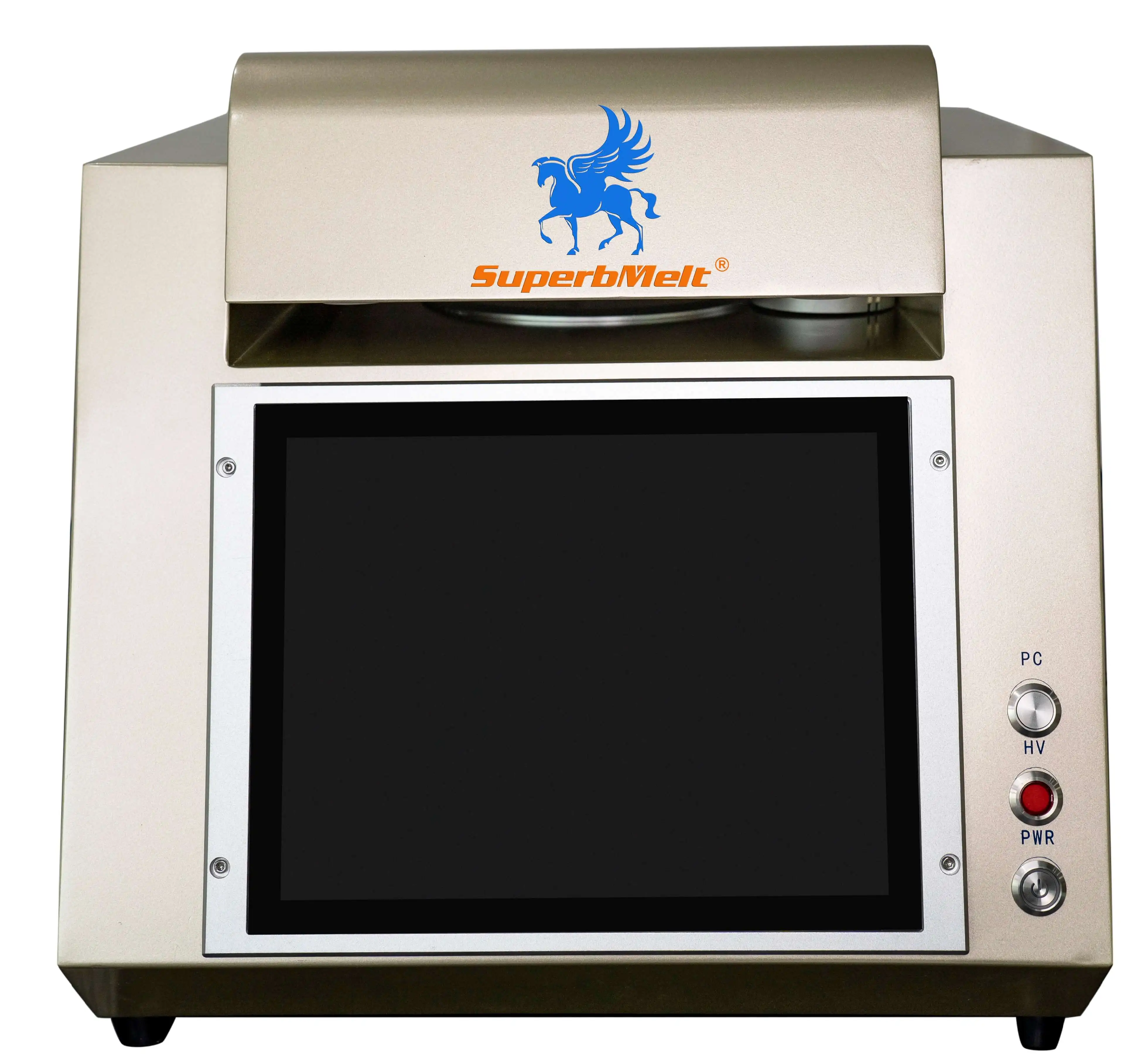

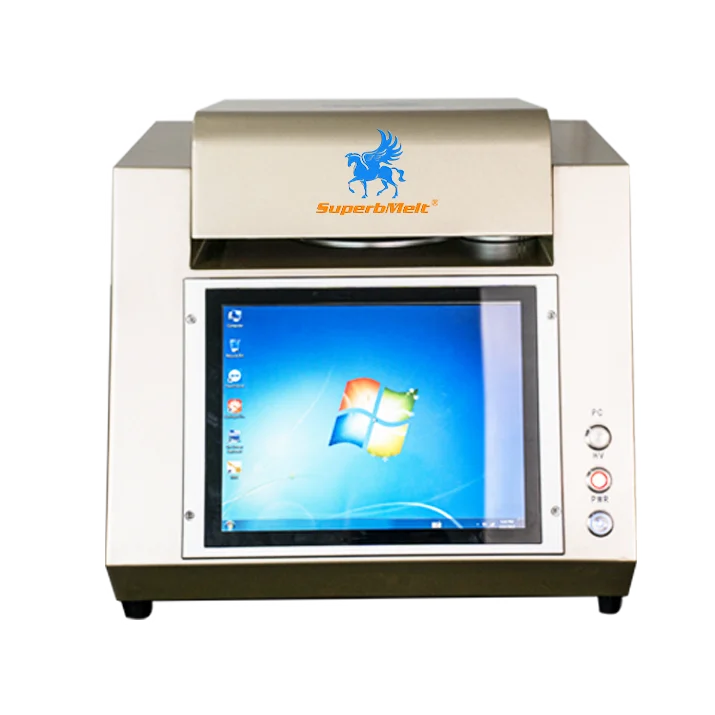

SuperbMelt X Ray Electronic Metal Purity Analysis Desktop XRF Gold Testing Analyzer
- Category: >>>
- Supplier: Longgang Superb Electromachinery Co. Ltd.
Share on (1600536946030):
Product Overview
Description
Products Description
Model | SPB-XR1200 |
Analysis Range | ppm to 99.99% |
Accuracy | 0.01%-0.03%(Average) |
Sample Form | Solid, powder, liquid |
Tube Voltage | 5KV ~ 50KV |
High Voltage Power Supply | 0 ~ 50KV |
Camera | HD camera |
Filters | Selectable customized switches |
Detector Type | Si-pin (Amptek, USA) -Multichannel |
Analyzer | Multi channel simulation |
Sample Chamber Size | 380 *380 * 60 (mm) |
Test Time | 5sec ~ 60sec |
Detection Elements Range | Au, Ag, Pt, Pd, Cu.(Zn and Ni will be in Cu; Cd in Ag) |
Standard Accessory | Jewelry holder*1, power cable*1, calibration samples*1 |
Analysis Software | Qualitative and quantitative analysis software |
External Dimensions | 480 * 480 * 390 (mm) |
Weight | 38Kg |

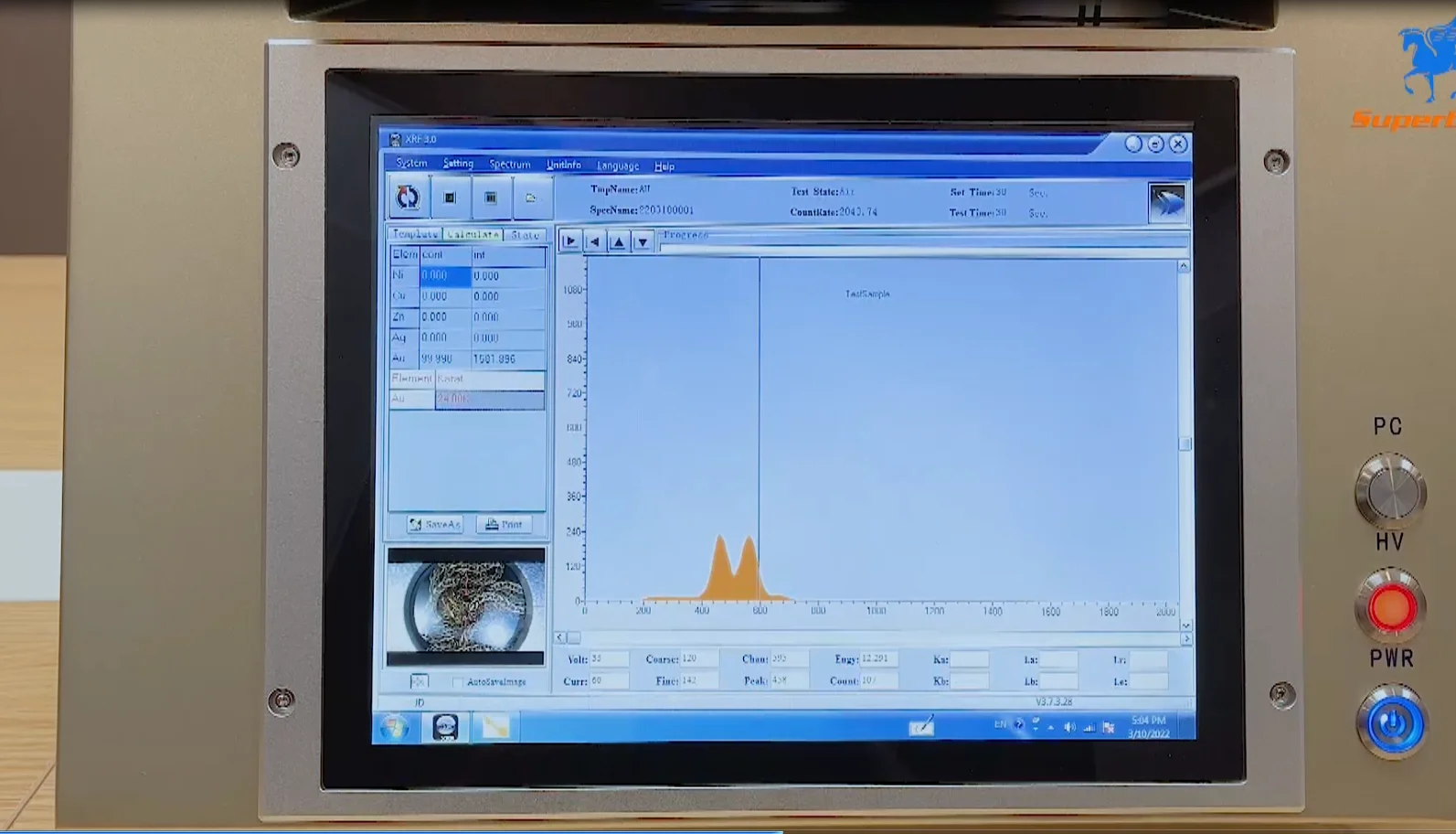

Equipped with a camera so that you can view the x-ray spot position on your computer screen during an analysis of metals.
Accurate analysis of precious metal purity, such as gold, silver, platinum and palladium, at an analytical tolerance
range of 0.01% to 0.03%.
range of 0.01% to 0.03%.
Testing and analysis time with the XRF gold tester is very fast, analysis is usually completed within 5 to 60 seconds.

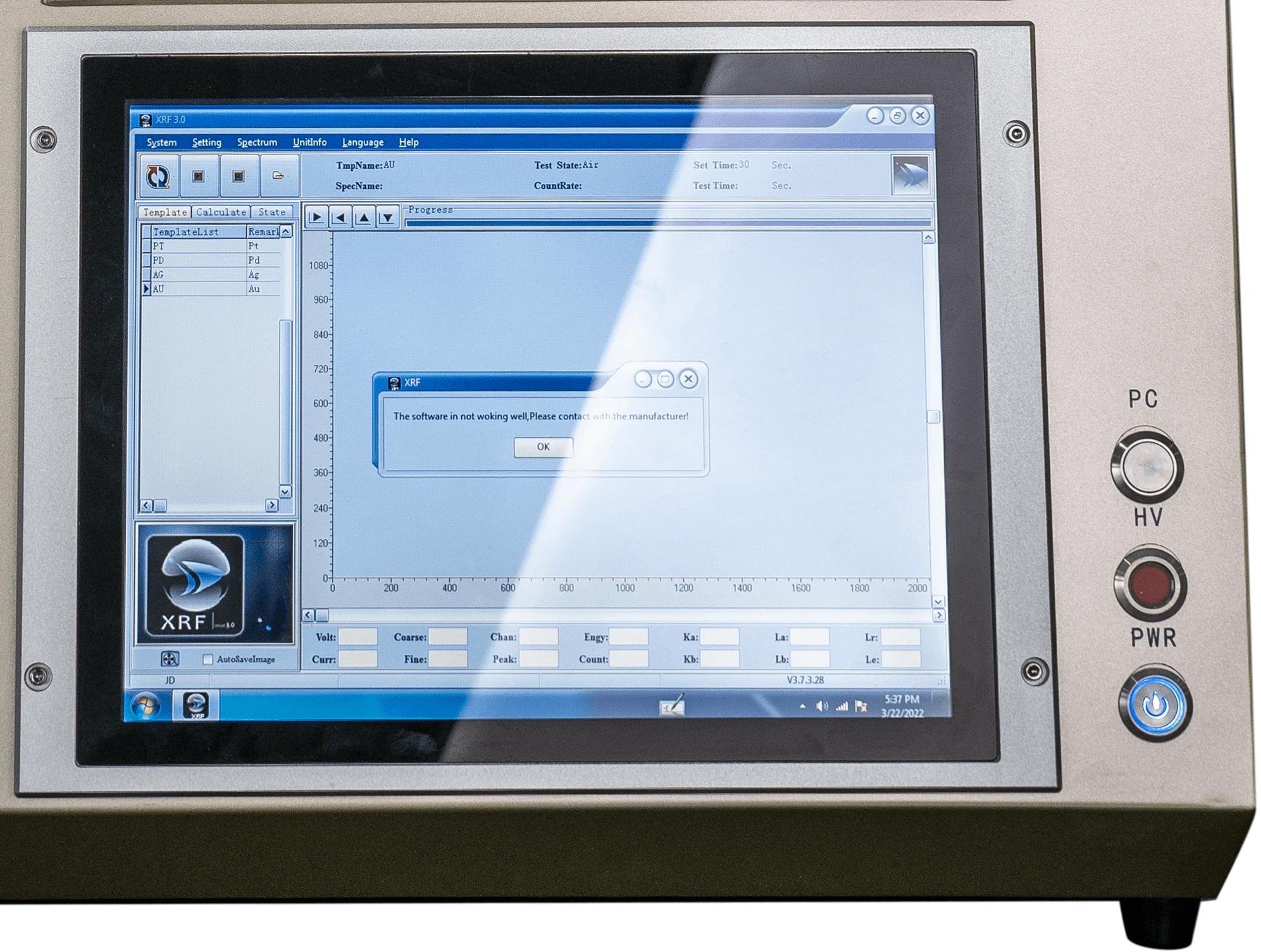

All-in-one with an inbuilt controlling computer
Superbmelt XRF gold tester for sale has an inbuilt controlling computer, which makes the XRF analyzer for jewellery easy to use and transport.
Performance Features
* The process of testing and analysis is very simple. At the start of the Superbmelt XRF analyzer for jewellery, just press “
measurement start” and testing begins automatically.
* At Superbmelt, we are concerned about the safety of our customer, hence, the Superbmelt XRF gold tester has a seal that ensures user’s safety.
* Superbmelt jewellery spectrometer is also equipped with multilevel safety protection systems that include: Ultra-low- power x-ray tube, fully enclosed testing chamber, automatic x-ray switch off, inner cover with stepped construction, etc.
* Superbmelt best XRF analyzer uses a unique optical technology and calculation method that ensures accuracy of results.
* Superbmelt XRF analyzer for jewellery is equipped with a collimator measuring 1 to 2 mm, but we can design it for you according to your requirements.
* Superbmelt jewellery spectrometer can measure different sizes and shapes of metal. Which makes it suitable for use in pawn shops, jewelry making industries, scrap recycling, etc.
* The compact design (with a dimension of 48*48*39cm and weight of 38kg) means the Superbmelt best XRF analyzer occupies minimal space, is easy to transport and requires low maintenance.
*Superbmelt XRF analyzer for jewellery has innovative hardware and software that meets the different needs of users.
measurement start” and testing begins automatically.
* At Superbmelt, we are concerned about the safety of our customer, hence, the Superbmelt XRF gold tester has a seal that ensures user’s safety.
* Superbmelt jewellery spectrometer is also equipped with multilevel safety protection systems that include: Ultra-low- power x-ray tube, fully enclosed testing chamber, automatic x-ray switch off, inner cover with stepped construction, etc.
* Superbmelt best XRF analyzer uses a unique optical technology and calculation method that ensures accuracy of results.
* Superbmelt XRF analyzer for jewellery is equipped with a collimator measuring 1 to 2 mm, but we can design it for you according to your requirements.
* Superbmelt jewellery spectrometer can measure different sizes and shapes of metal. Which makes it suitable for use in pawn shops, jewelry making industries, scrap recycling, etc.
* The compact design (with a dimension of 48*48*39cm and weight of 38kg) means the Superbmelt best XRF analyzer occupies minimal space, is easy to transport and requires low maintenance.
*Superbmelt XRF analyzer for jewellery has innovative hardware and software that meets the different needs of users.
Applications

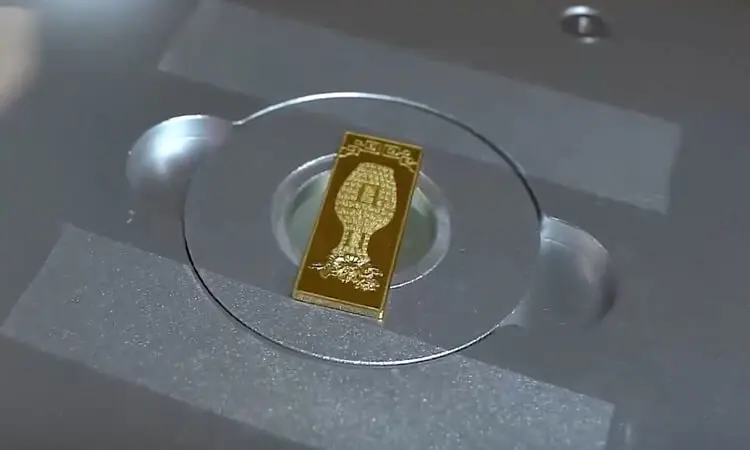

For gold bar testing
For jewelry chain testing
For jewelry ring testing
