Product Overview
Description
Technical Specification
Solar charge controller M2410 Specification
Content | Model | Unit | ||
M1280 | M2410 | |||
Battery type | Lead acid battery/Lithium battery① | - | ||
Rated system voltage | 12 | Lead acid(auto identified)12/24，lithium(need to be set) | V | |
Max. charge current | 10 | A | ||
Charge voltage range | 0～15 | 0～30 | V | |
Temperature compensation coefficient | -4mV/℃/2V② | - | ||
Max. PV input voltage | 25 | 55 | V | |
Solar panel Max. Power | 130 | 130(12V)，260(24V) | W | |
MPPT voltage range | 15≤Vmp≤25 | 15≤Vmp≤25(12V) 30≤Vmp≤50(24V) | V | |
Turn on lamp PV voltage | ≤5 | ≤5(12V), ≤10(24V) | V | |
Output current range | 50～4000 | mA | ||
Output voltage range | 16～35 | 16～50V(12V) | V | |
32～50V(24V) | ||||
Max. output power | 80 | 80(12V), 100(24V) | W | |
Output current accuracy | ≤3%FS | - | ||
Output dimming range | 0～100 | % | ||
MPPT efficiency | ≥99.9 | % | ||
Self consumption current | ≤0.12(BT) | ≤0.20(BT)；≤0.22(2.4G) | W | |
≤0.16(2.4G) | ||||
Communication | 2.4G, Bluetooth | - | ||
Operating temperature range | -35～60 | ℃ | ||
Relative humidity range | 0～100% | RH | ||
Max. operating altitude | 3000 | m | ||
Degree of protection | IP68(1.5m,72h) | - | ||
Product Feature-Solar charge controller of solar street lighting system
1. MPPT efficiency ≥99.9%, system power generation efficiency up to 98%, improve system efficiency and reduce system cost
2. IP68 protection level, further improve waterproof reliability
3. Five time periods control
4. Support 2.4G wireless communication,Infrared communication
5. Battery low voltage protection
3. Five time periods control
4. Support 2.4G wireless communication,Infrared communication
5. Battery low voltage protection

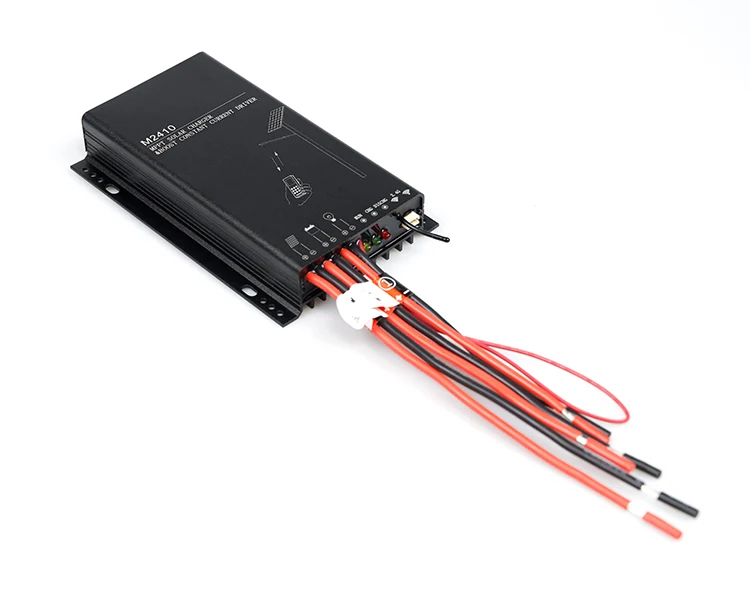

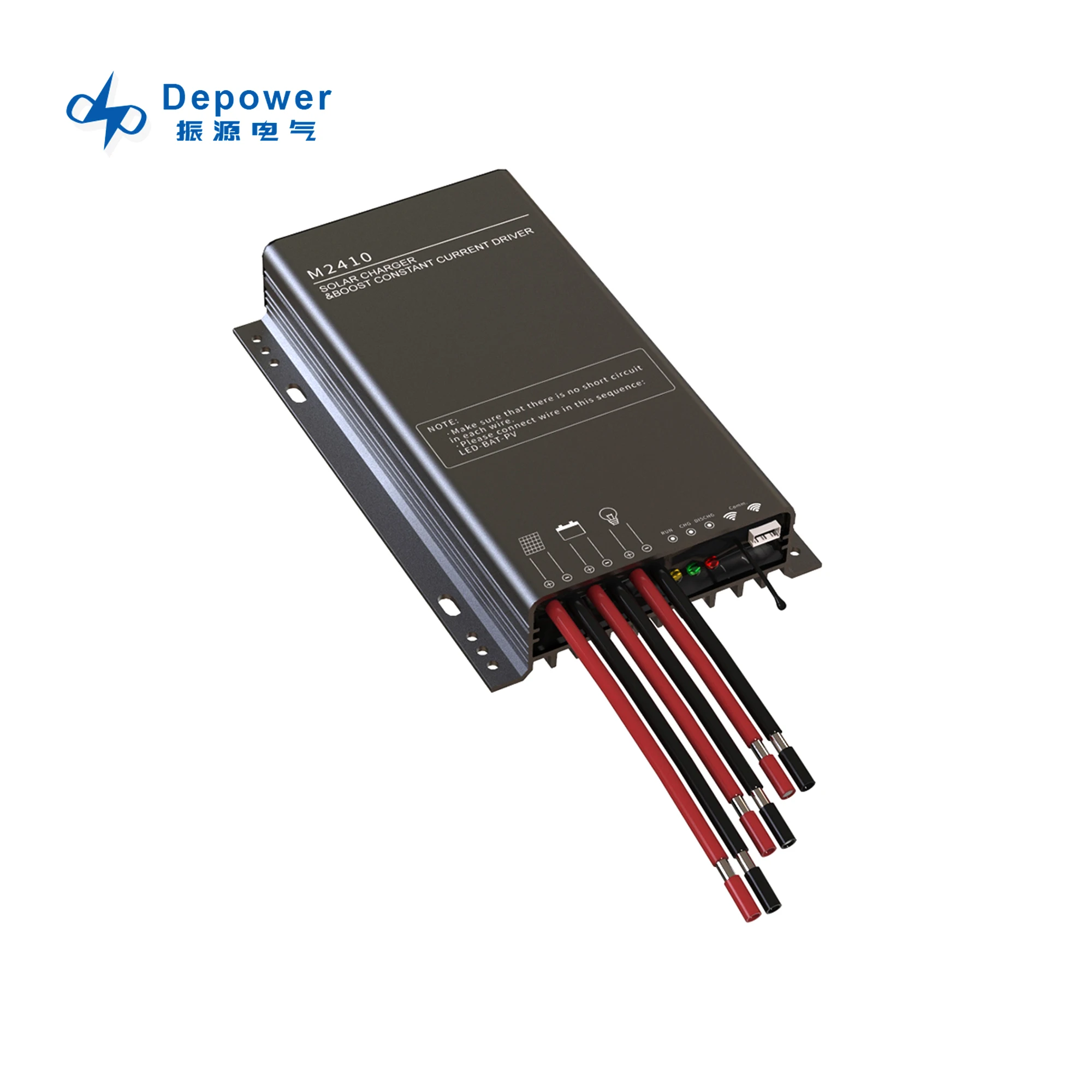

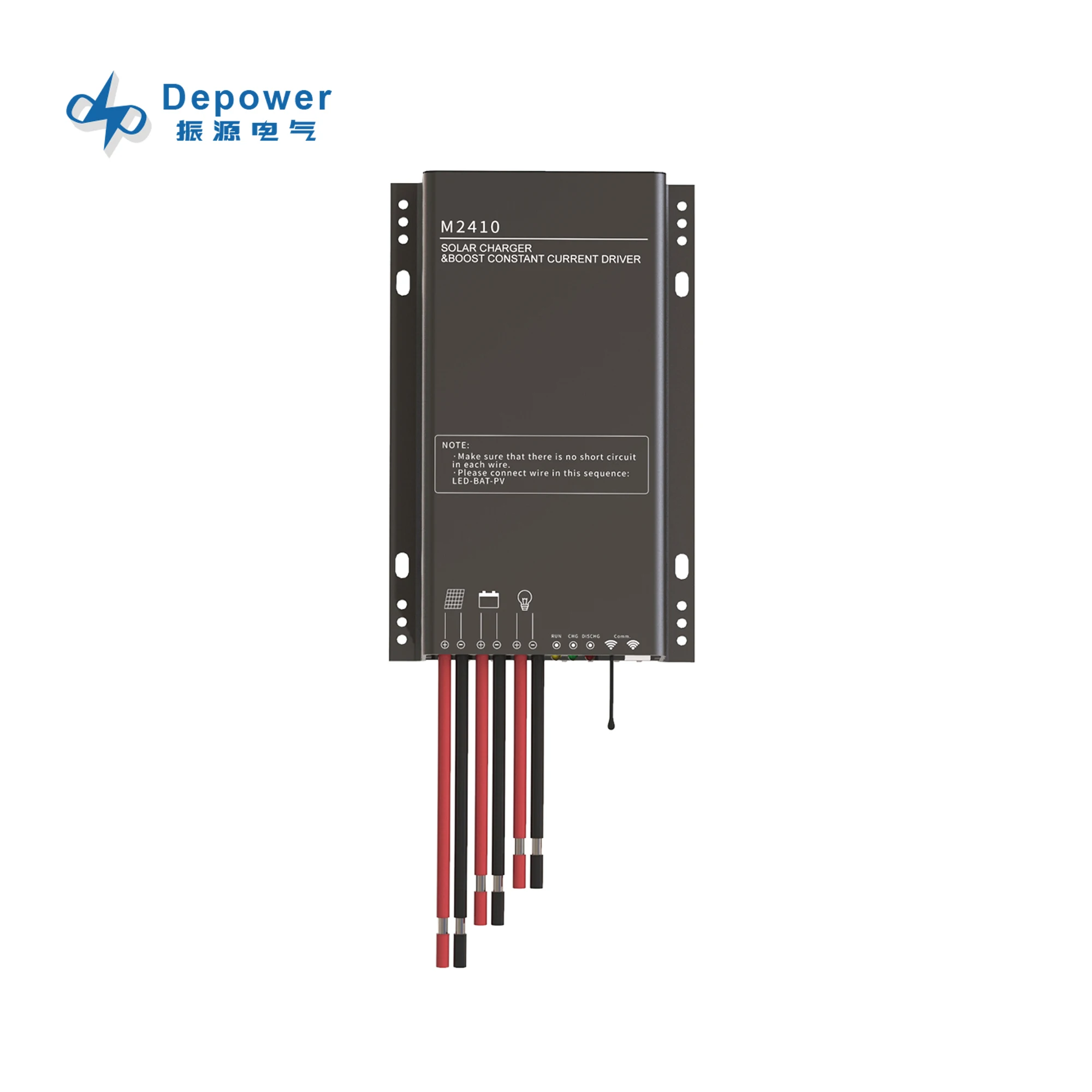

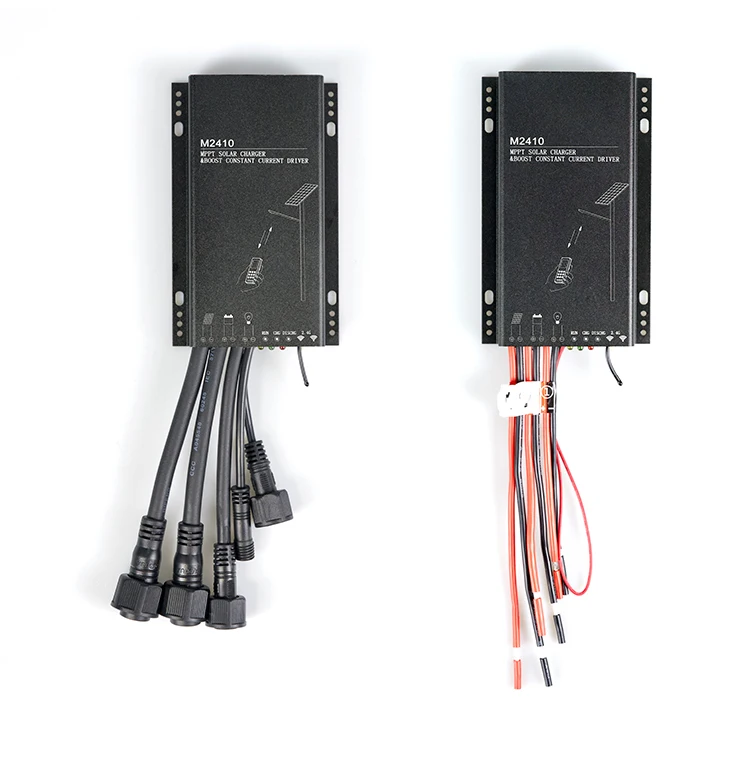

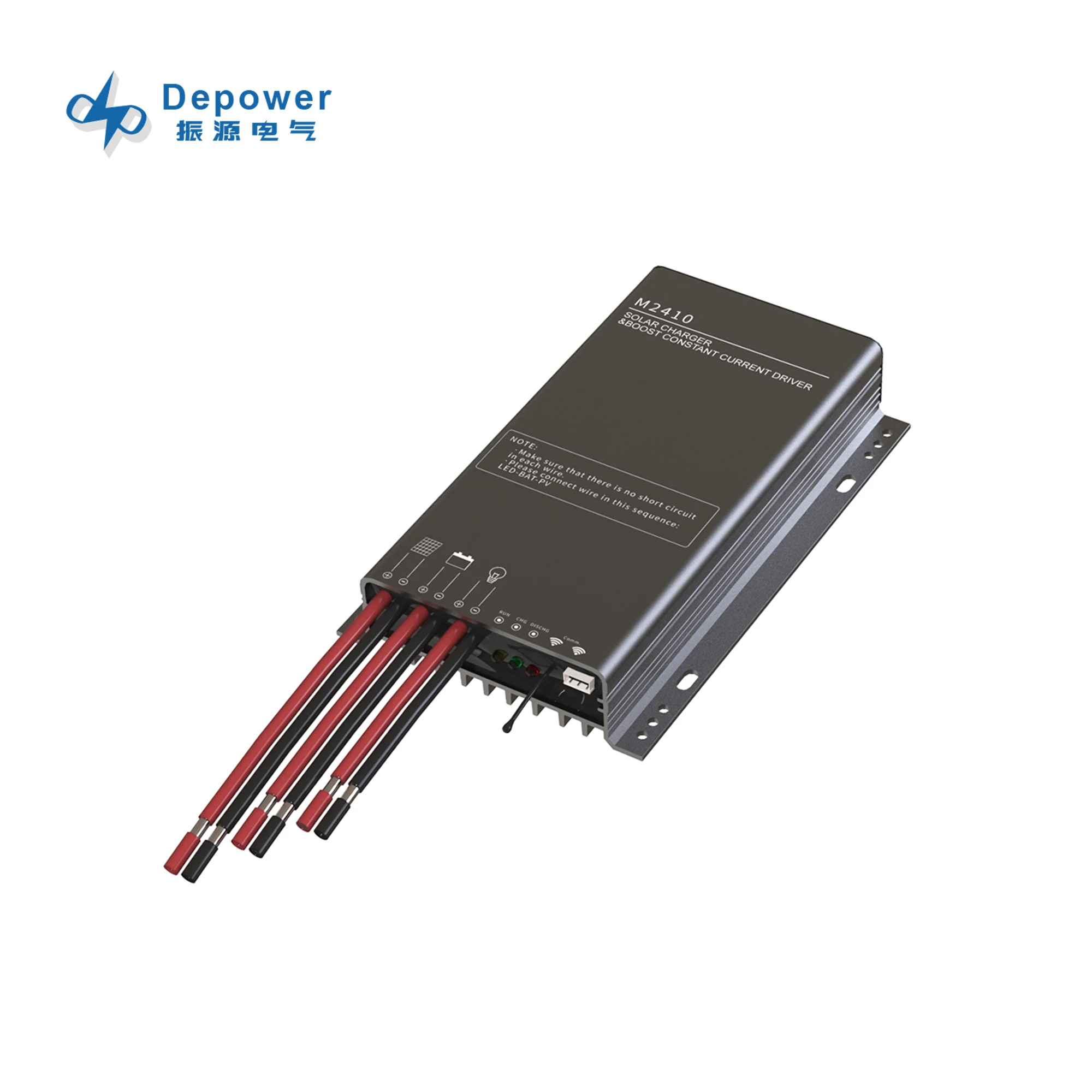

MPPT solar charge controller M2410
