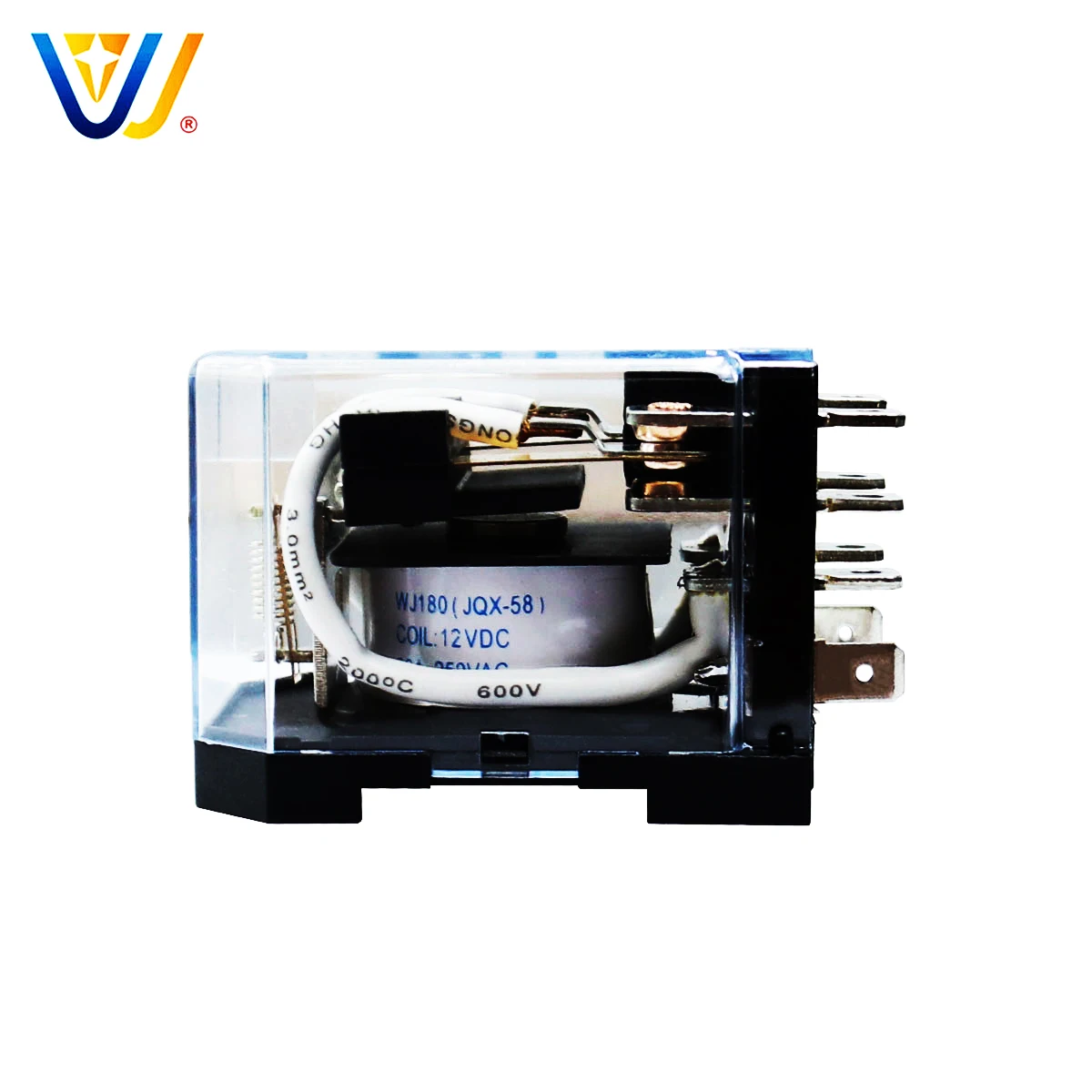

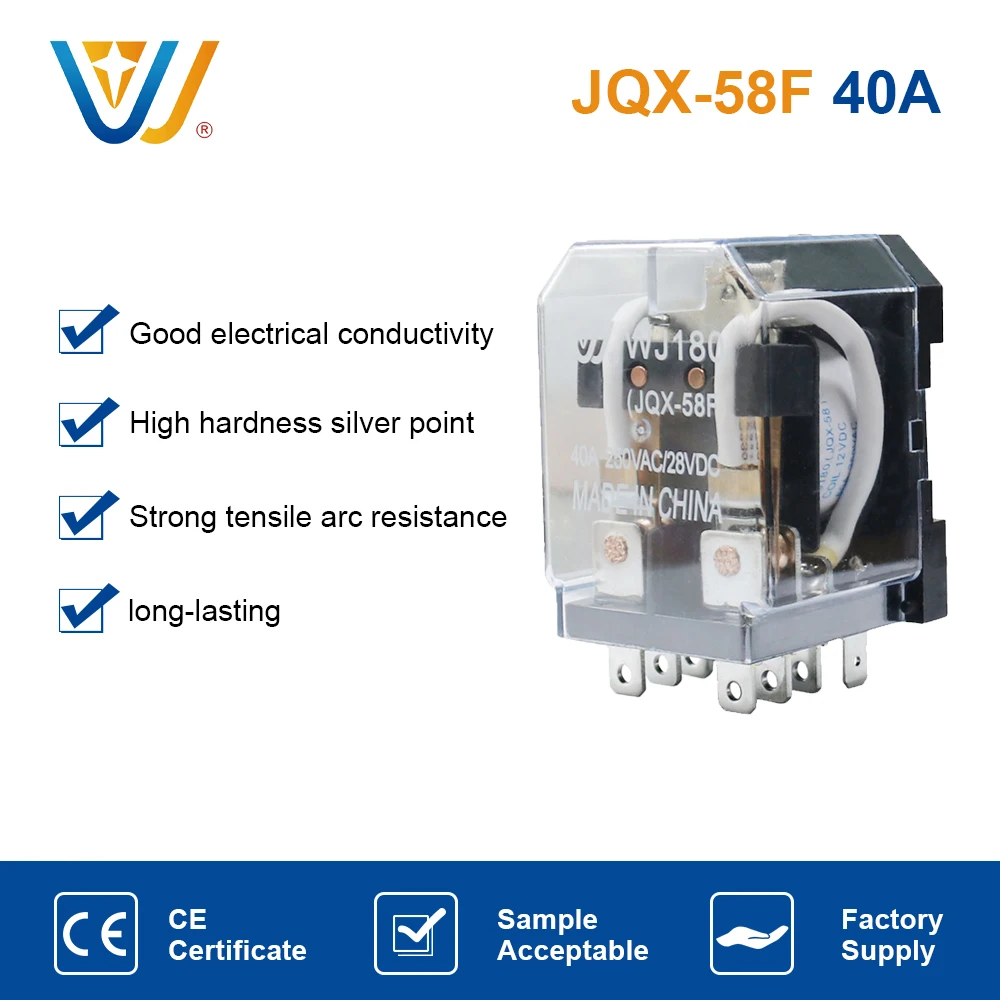

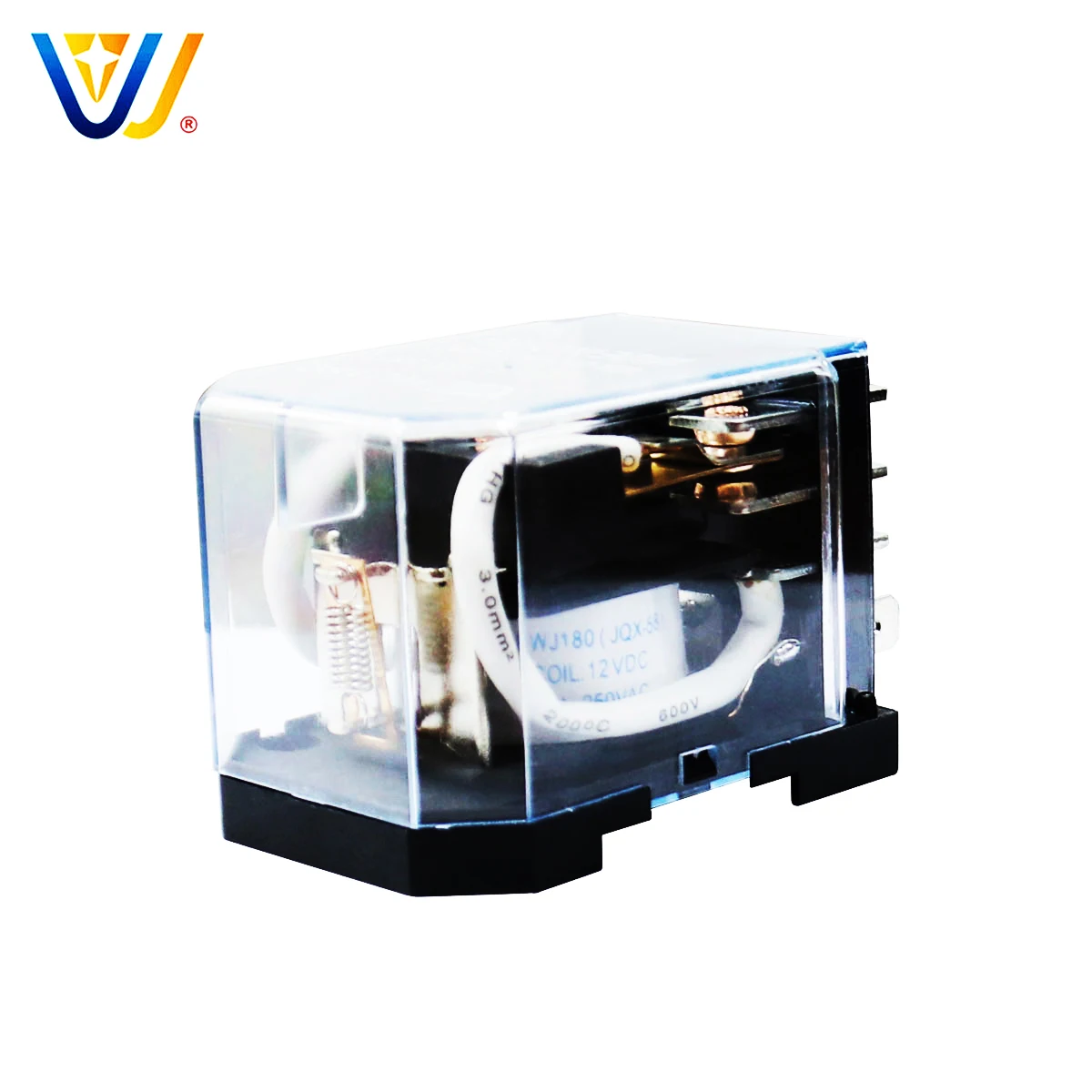

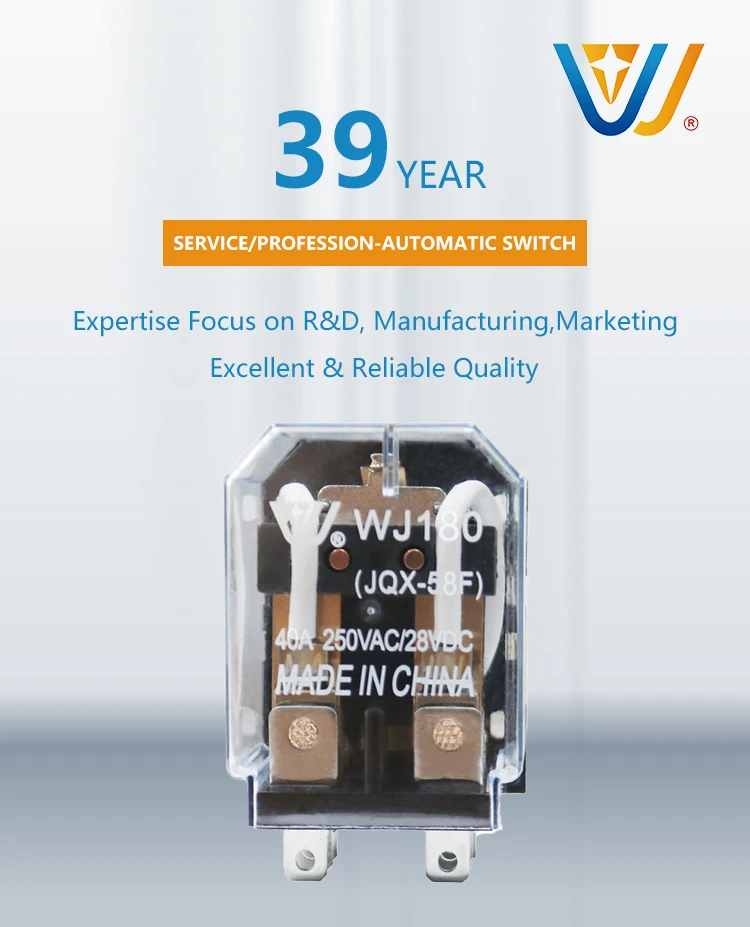

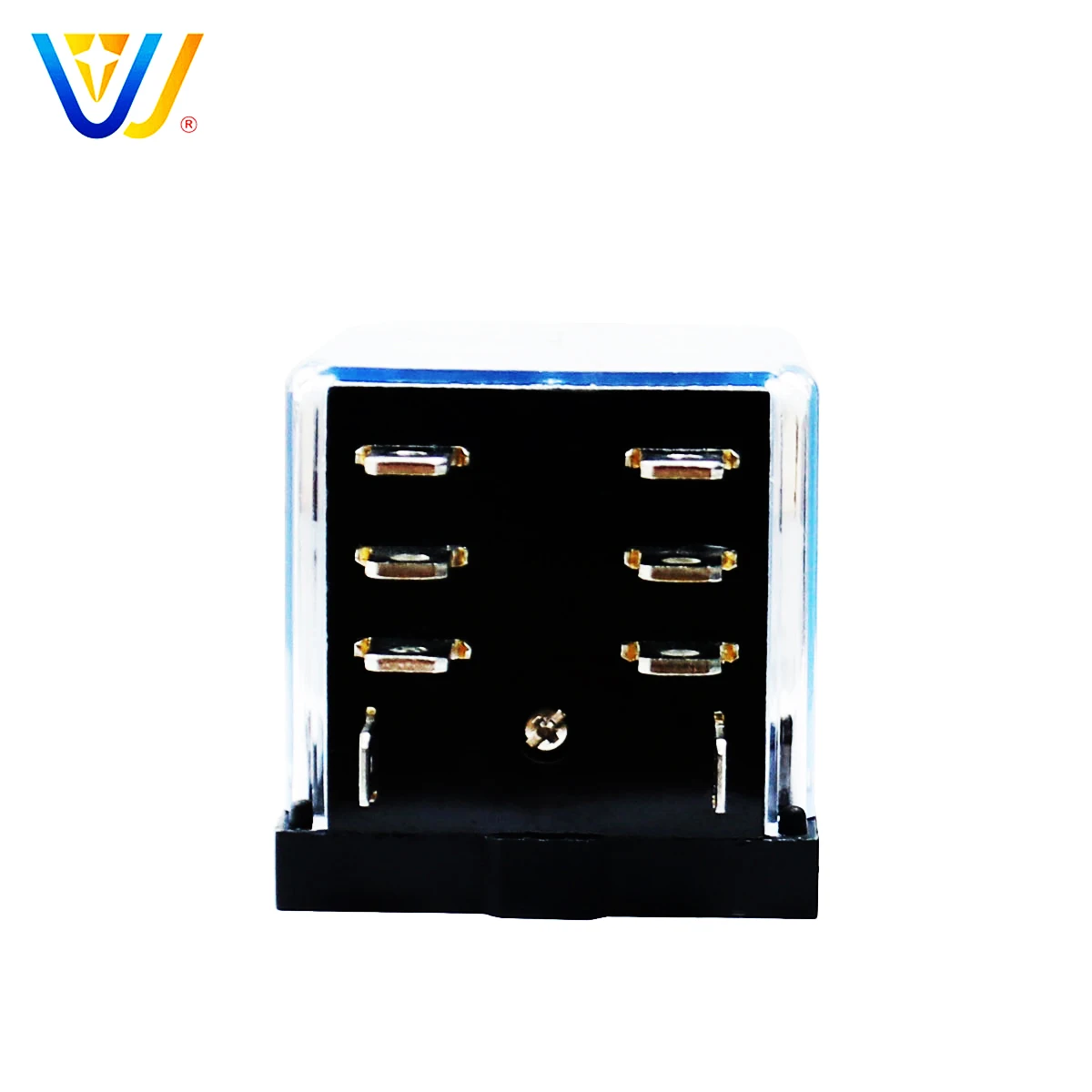

safety relay jqx 58f 2 group relay 24vdc relay Plug spring wiring & welding wire
- Category: >>>
- Supplier: Ivy Metering Co. Ltd.
Share on (1600536999102):

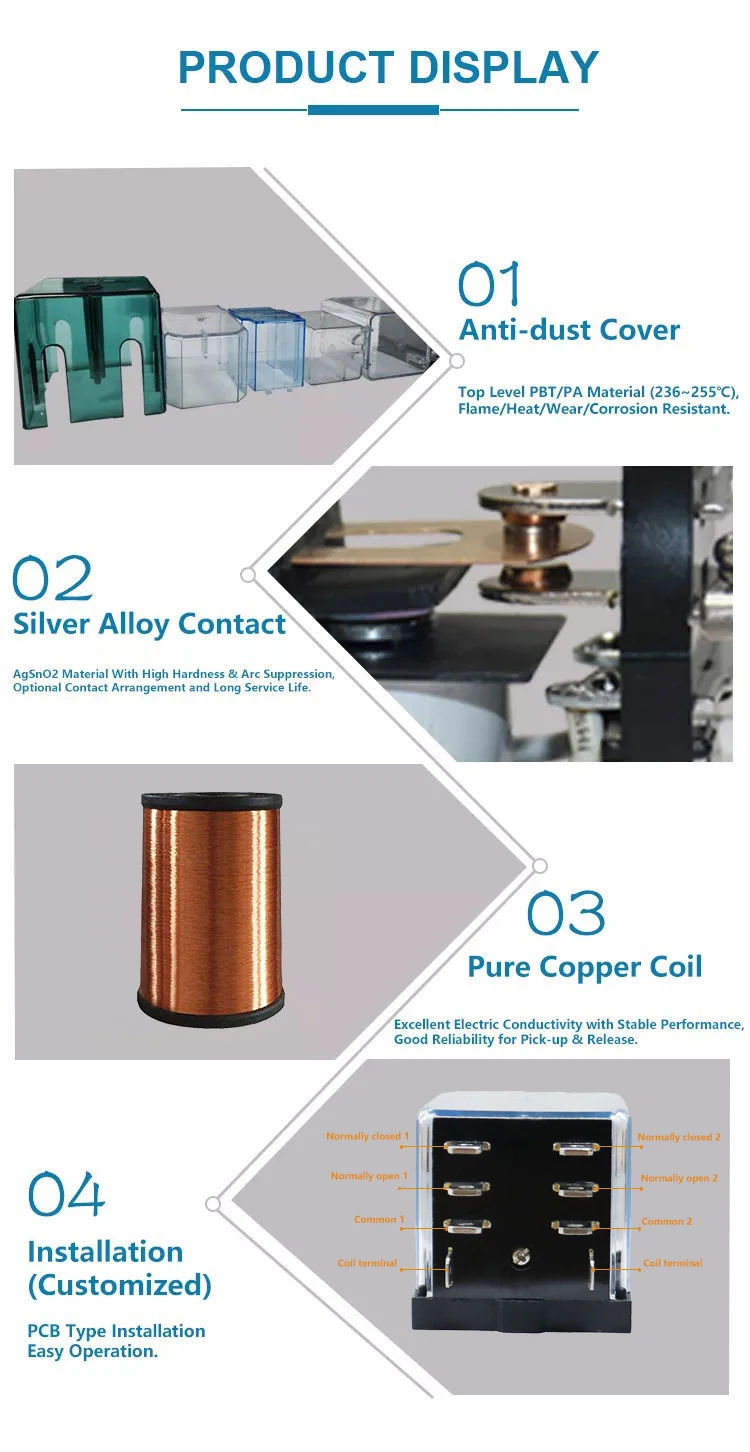

Product Overview
Description
Main Parameters | ||||
Contact Arrangement | 2A、2B、2C | |||
Contact Material | Silver Alloy | |||
Contact Resistance | Max.50mΩ | |||
40A 250VAC | ||||
40A 28VDC | ||||
Max. Switching Voltage | 28VDC/250VAC | |||
Max. Switching Current | 40A | |||
Max. Switching Power | 1120W/10000VA | |||
Electrical Life | 2×104 | |||
Mechanical Life | 1×106 | |||
DC | 3.0W | |||
AC | 5.5VA | |||
DC | 6～220VDC | |||
AC | 6～380VAC | |||
Other Parameters | ||||||
Pick-up Time | Max.25ms | |||||
Release Time | Max.25ms | |||||
Coil Contacts | 2500VAC,(50/60Hz),1 min. | |||||
Open Contacts | 1500VAC,(50/60Hz),1 min. | |||||
Insulation Resistance | Min. 1000MΩ (500 VDC) | |||||
Environment Temperature | -40℃～+55℃ | |||||
Operation Humidity | 45%~85% RH | |||||
Functional | Min. 10G | |||||
Destructive | Min. 100G | |||||
Functional | 1.5mm（DA）10~55 Hz | |||||
Destructive | 1.5mm（DA）10~55 Hz | |||||
Weight | ≤180g | |||||
