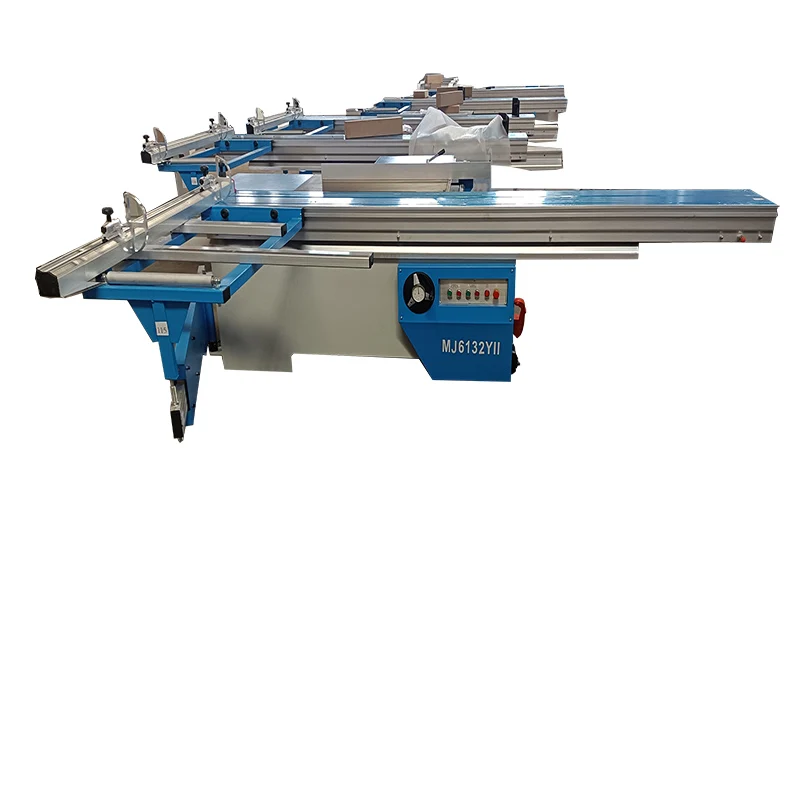

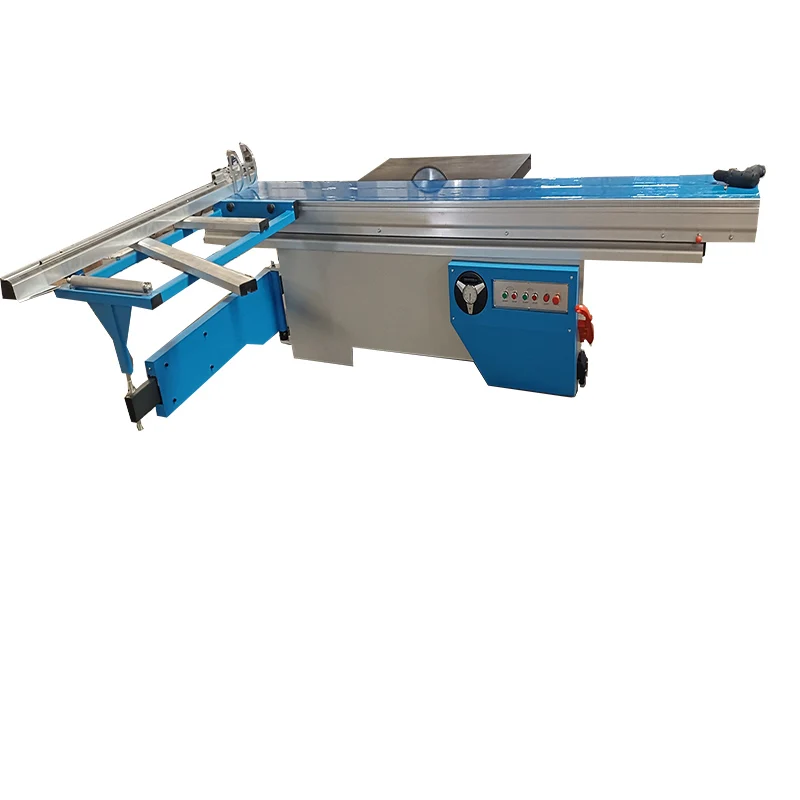

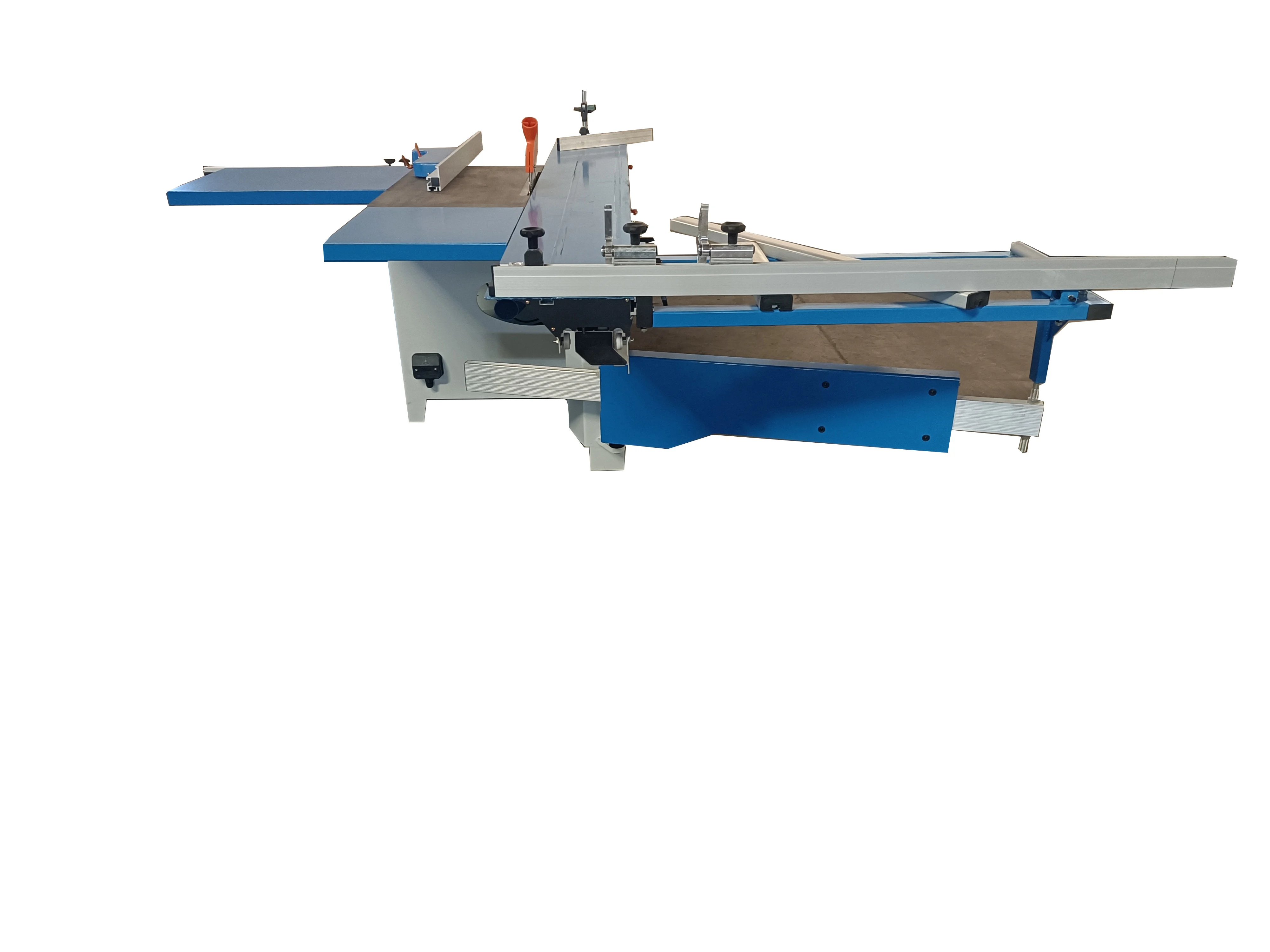

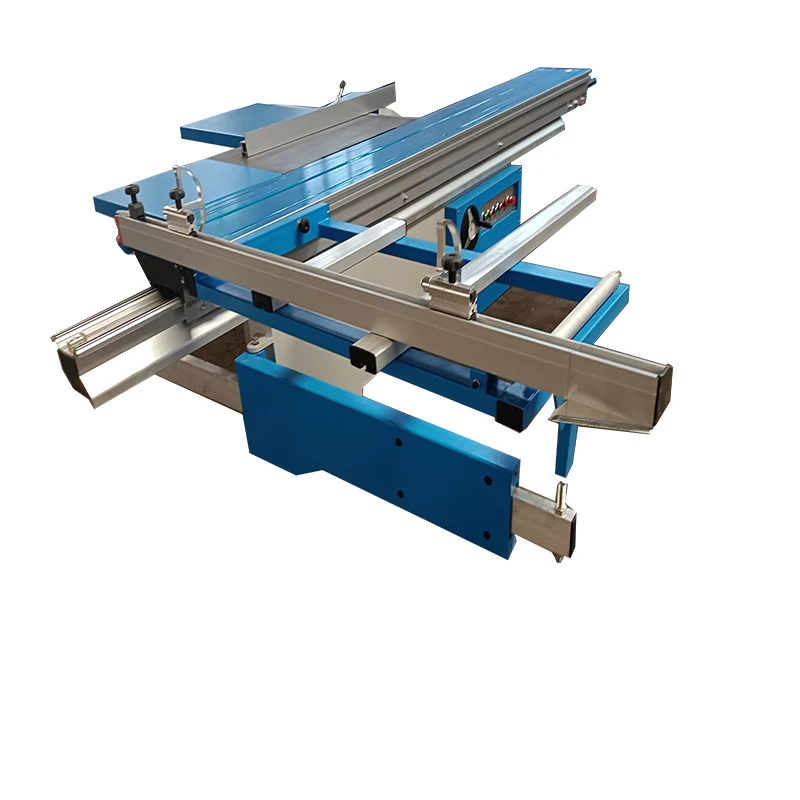

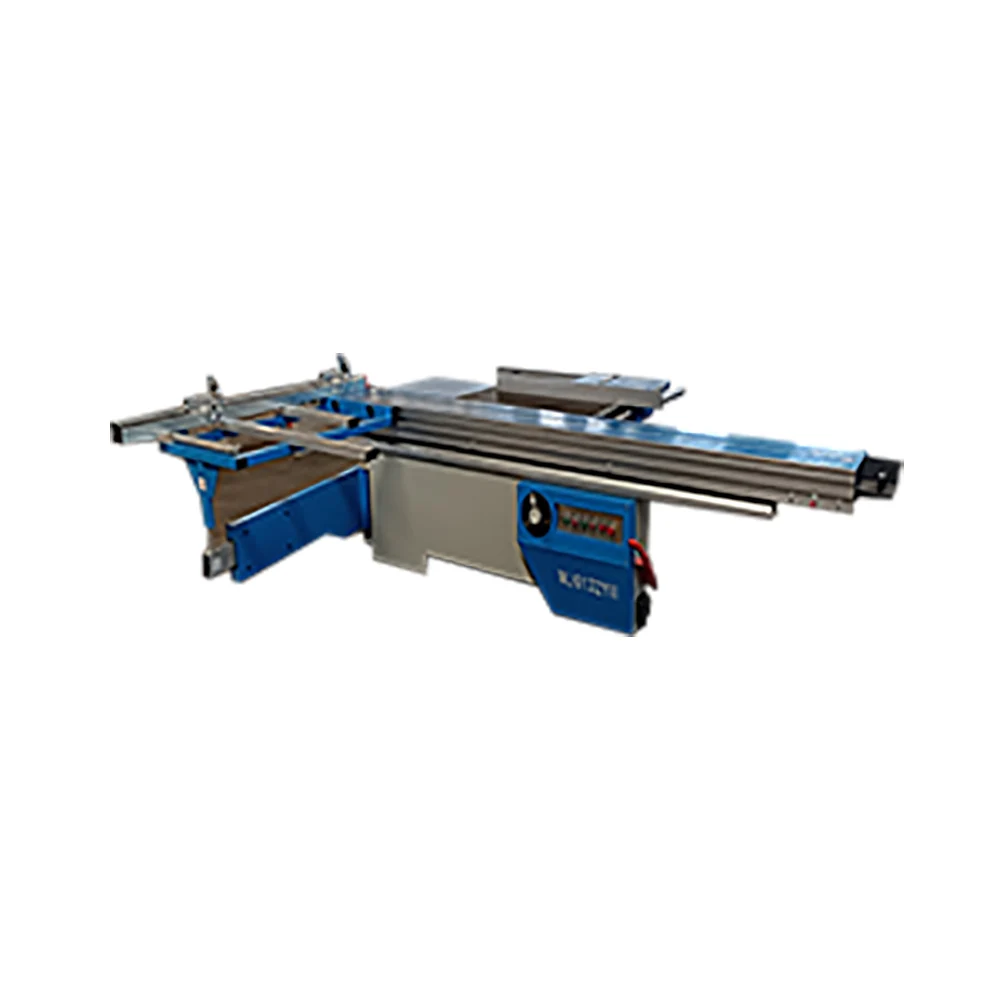

6132 Woodworking sliding table panel saw/precision panel saw/ cnc panel saw wood cutting machine with 45 /90 degree
- Category: >>>
- Supplier: Qingdao Longdexiang Machinery Co. Ltd.
Share on (1600537002913):
Product Overview
Description
Product Description
Sliding table size | 2800*320mm |
President of cutting ability | 2800mm |
Saw blades and rip fence between cutting width | 1250mm |
Saw blade diameter | 300mm(250-300) |
The cutting height (diameter: 300 mm) | 85mm |
45 Angle cutting saw blade 300 mm height | 55mm |
The main spindle speed | 4000/6000 |
The spindle diameter | 30mm |
Inclined blade | 90 |
Main motor | 5.5kw |
Line saw blade diameter | 120mm |
Line speed of saw blade | 8000Revolutions per minute |
Score the spindle diameter | 20mm |
Scoring motor | 0.75kw |
The net weight | 800kg |
Gross weight (including wood packaging) | 950kg |
Overall dimensions | 2800*3150*900mm |

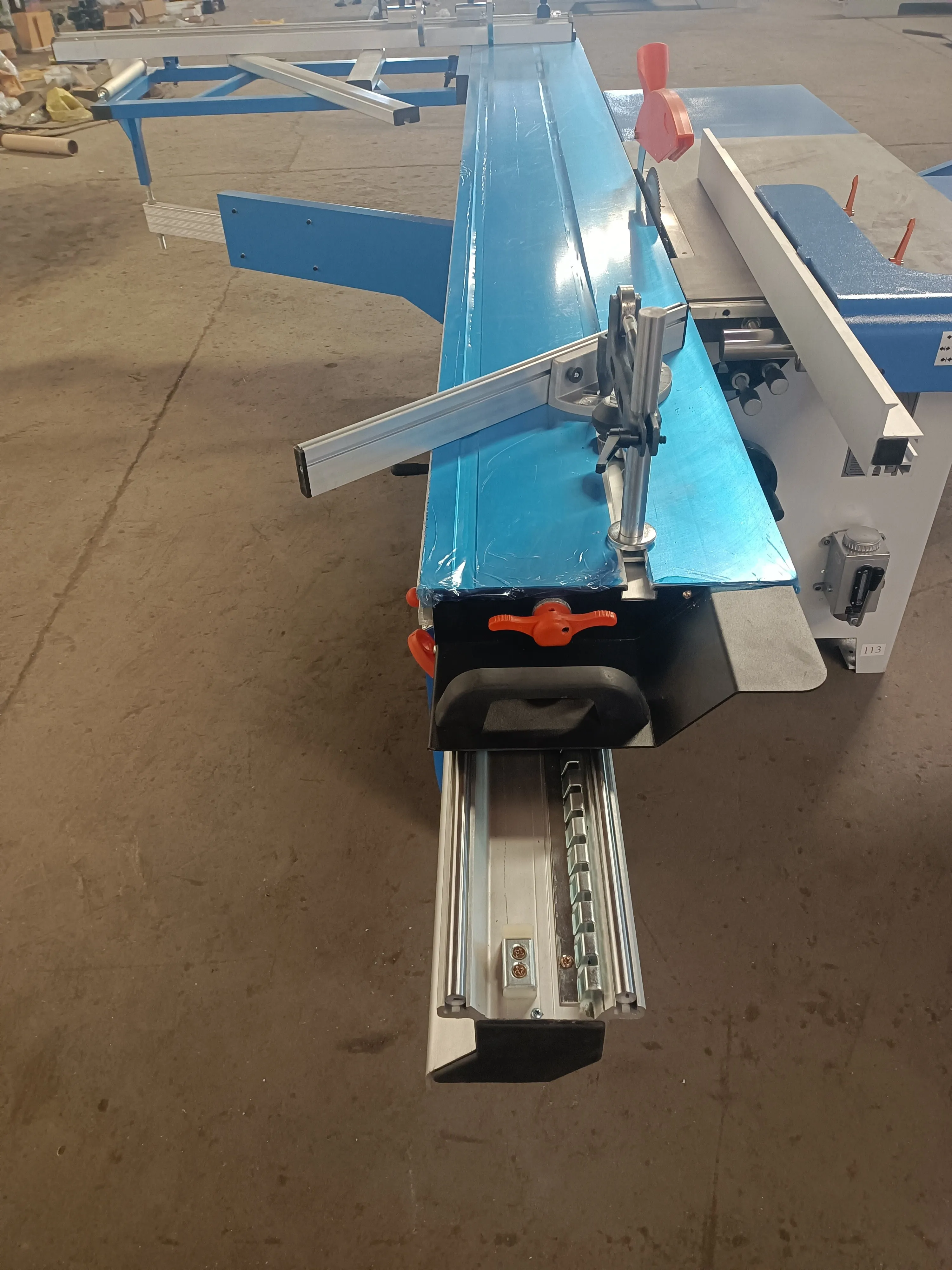

Round rod guide rail station
Widening thickening machine guide rail, precision is higher, more stable cutting and easy maintenance, durable
Widening thickening machine guide rail, precision is higher, more stable cutting and easy maintenance, durable

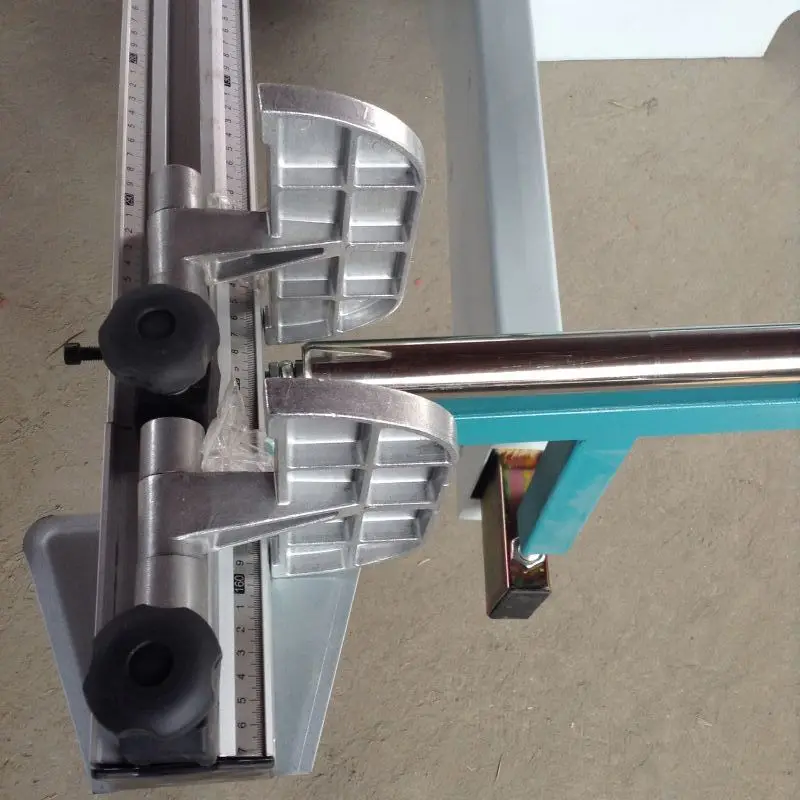

Angle of the dial
Angle of the dial with handle, easy to use, accurate and stable
Angle of the dial with handle, easy to use, accurate and stable

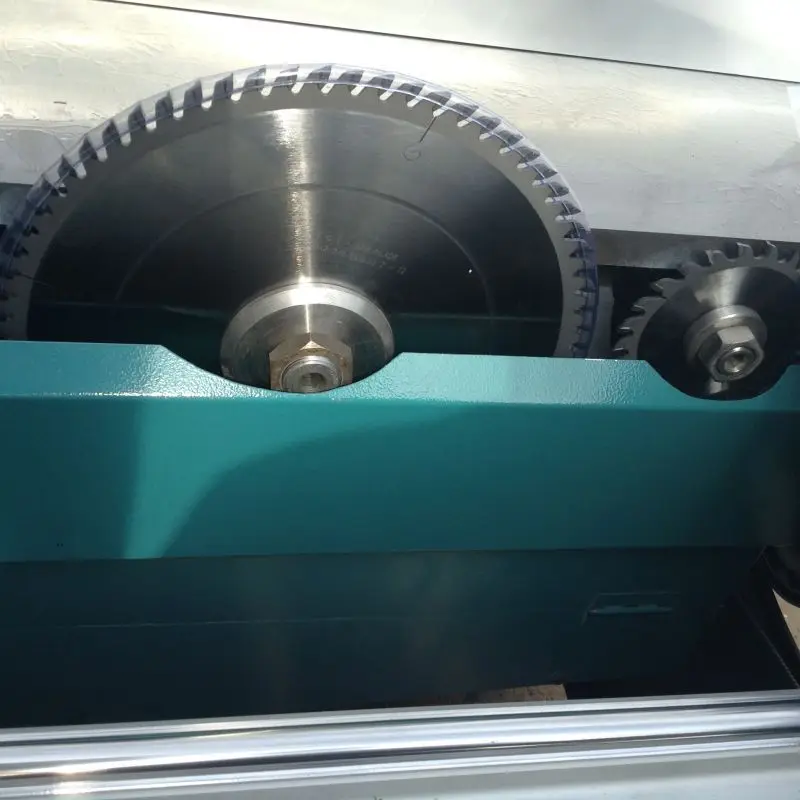

The double blade
Using principal machine, double saw blades, the main saw blade cutting, a clear division of responsibilities, cutting and orderly, effective to prevent the occurrence of burr, plate edge collapse, the problem such as craze, guarantee the cutting quality
Using principal machine, double saw blades, the main saw blade cutting, a clear division of responsibilities, cutting and orderly, effective to prevent the occurrence of burr, plate edge collapse, the problem such as craze, guarantee the cutting quality
European big on foot
Selection of European big feet, stable and prevent shift, can be stretched, homework space increases, effectively guarantee the accuracy and materials be clear at a glance, more accurate data, is more efficient to cutting
Selection of European big feet, stable and prevent shift, can be stretched, homework space increases, effectively guarantee the accuracy and materials be clear at a glance, more accurate data, is more efficient to cutting

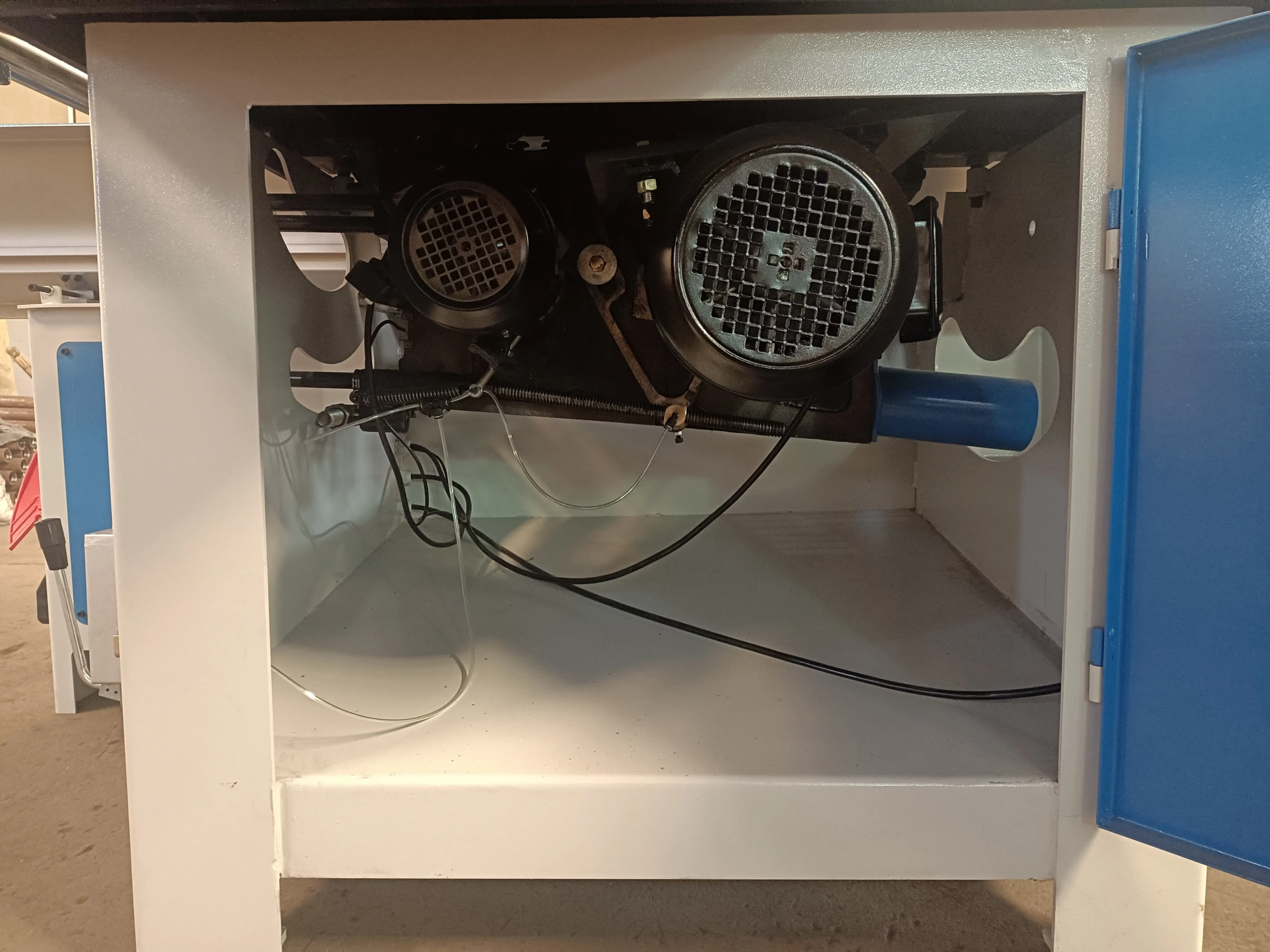

Pure copper motor
Machine adopt national standard pure copper motor, the main motor 4 KW, vice motor 0.75 KW, such as hard wood to cut wood, are free to customize motor 5.5 KW + 1.1 KW
Widening thickening machine
Using 320 * 2800 mm pushed Taiwan 90 degrees
45 degrees with 375 * 3000 units
Plate cutting makes the running stability is good
