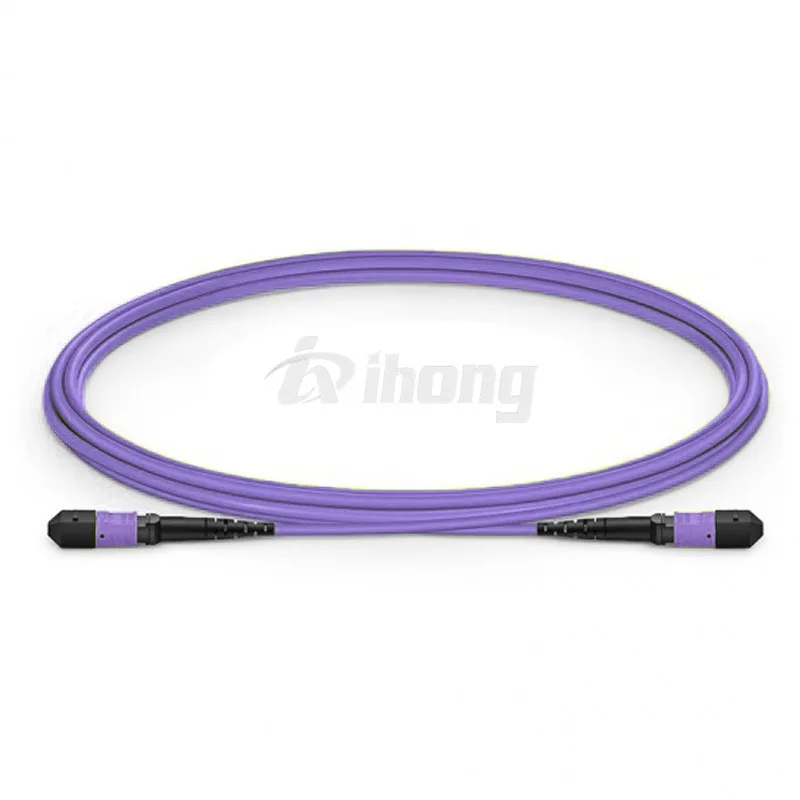

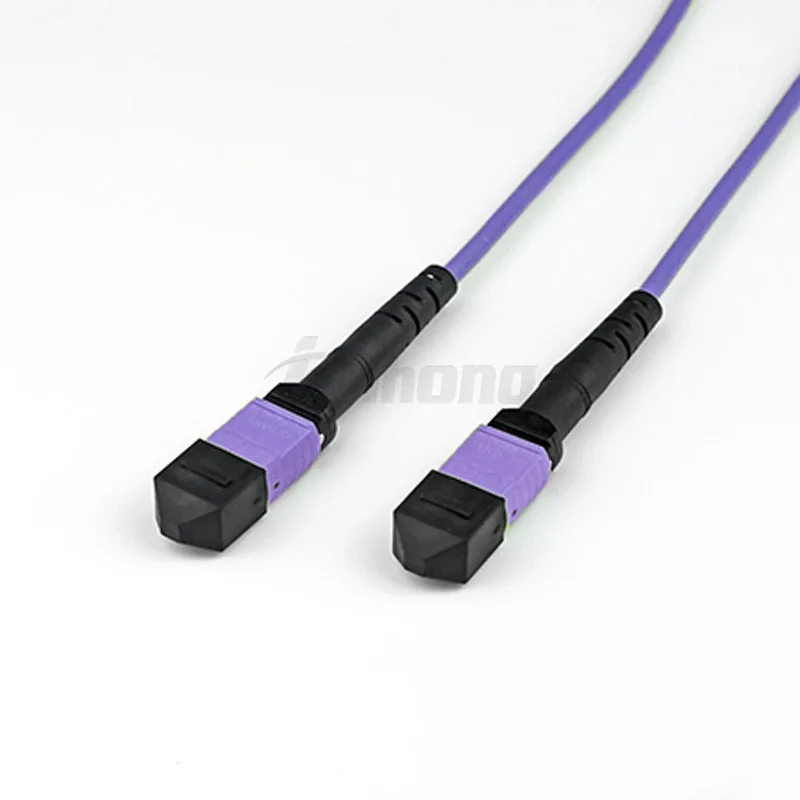

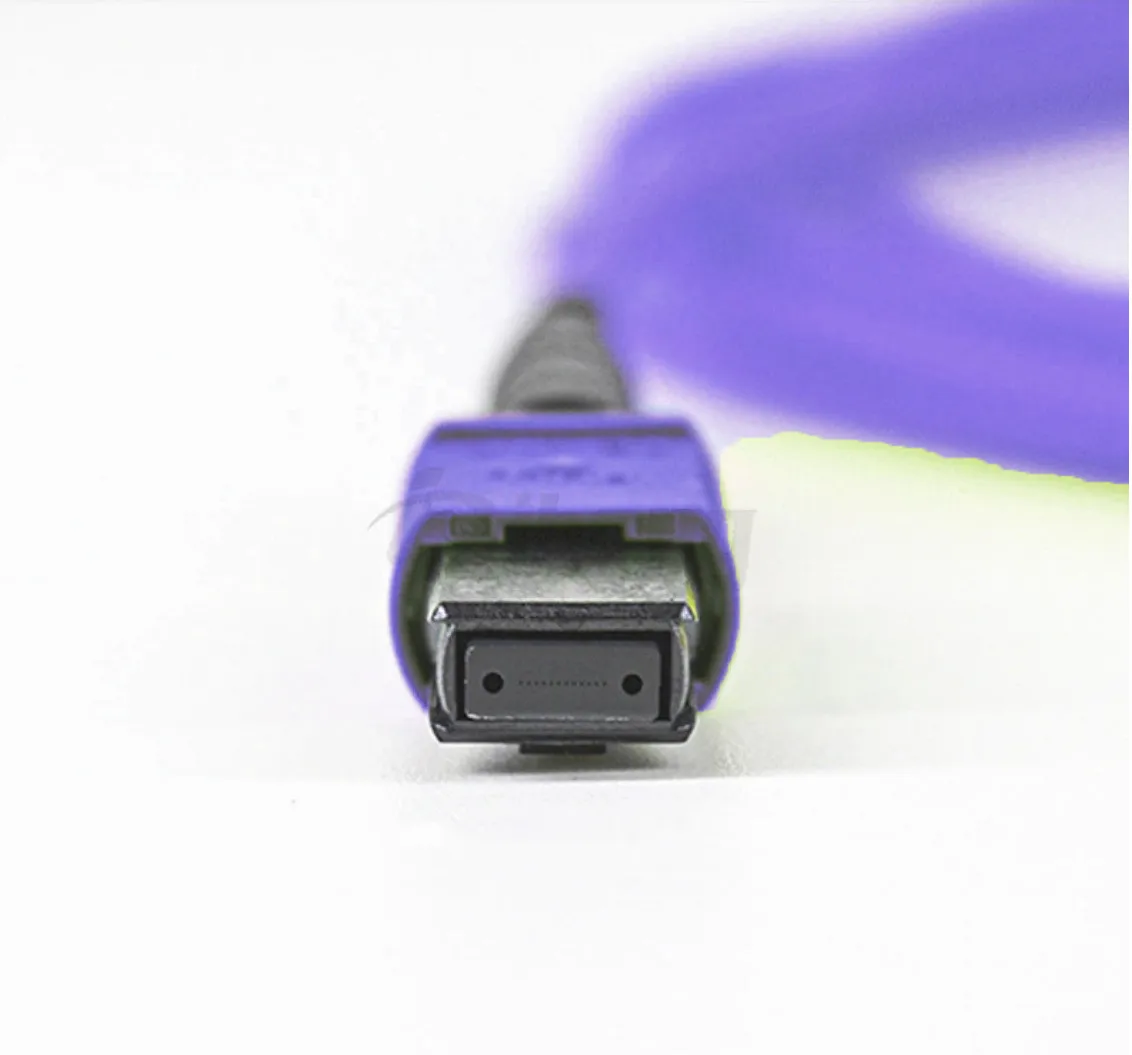

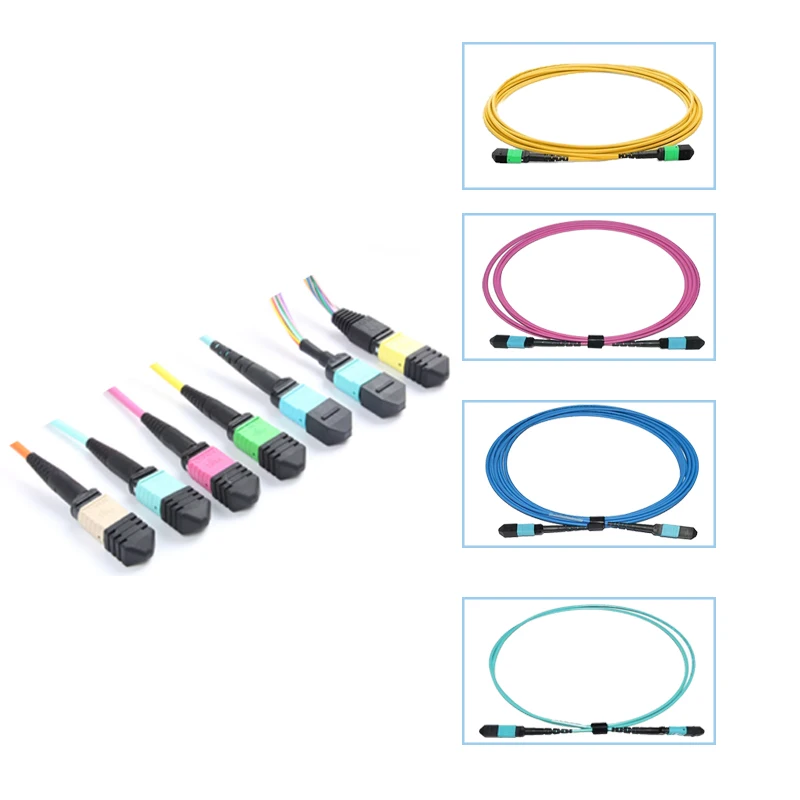

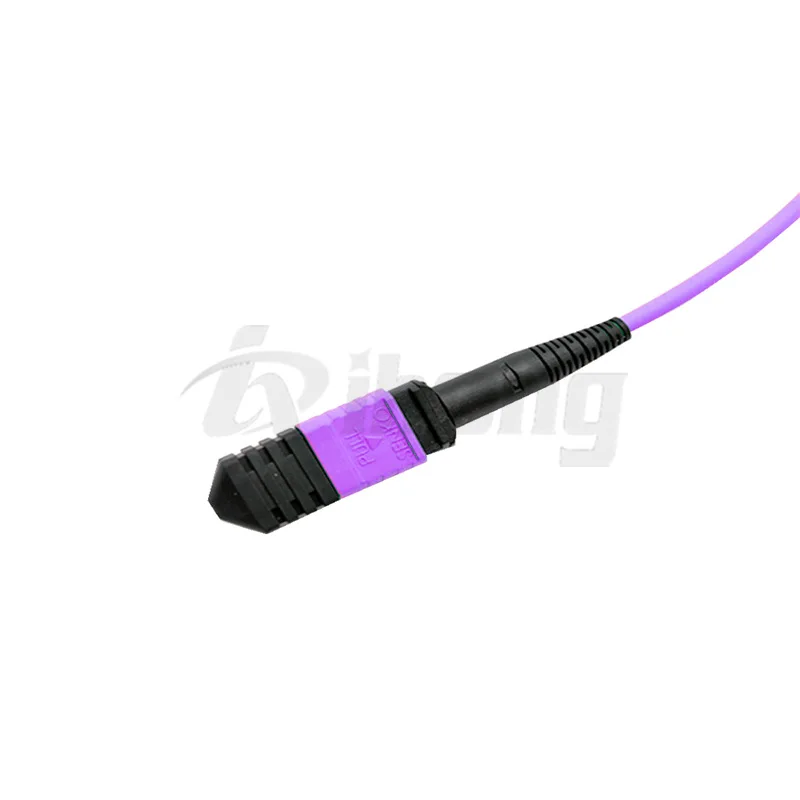

Factory Price High Density 100G MPO/MTP 16cores Multimode OM4 MPO/MTP Trunk Cable
- Category: >>>
- Supplier: Shenzhen Ih Optics Co. Ltd.
Share on (1600537010044):
Product Overview
Description
Products Description

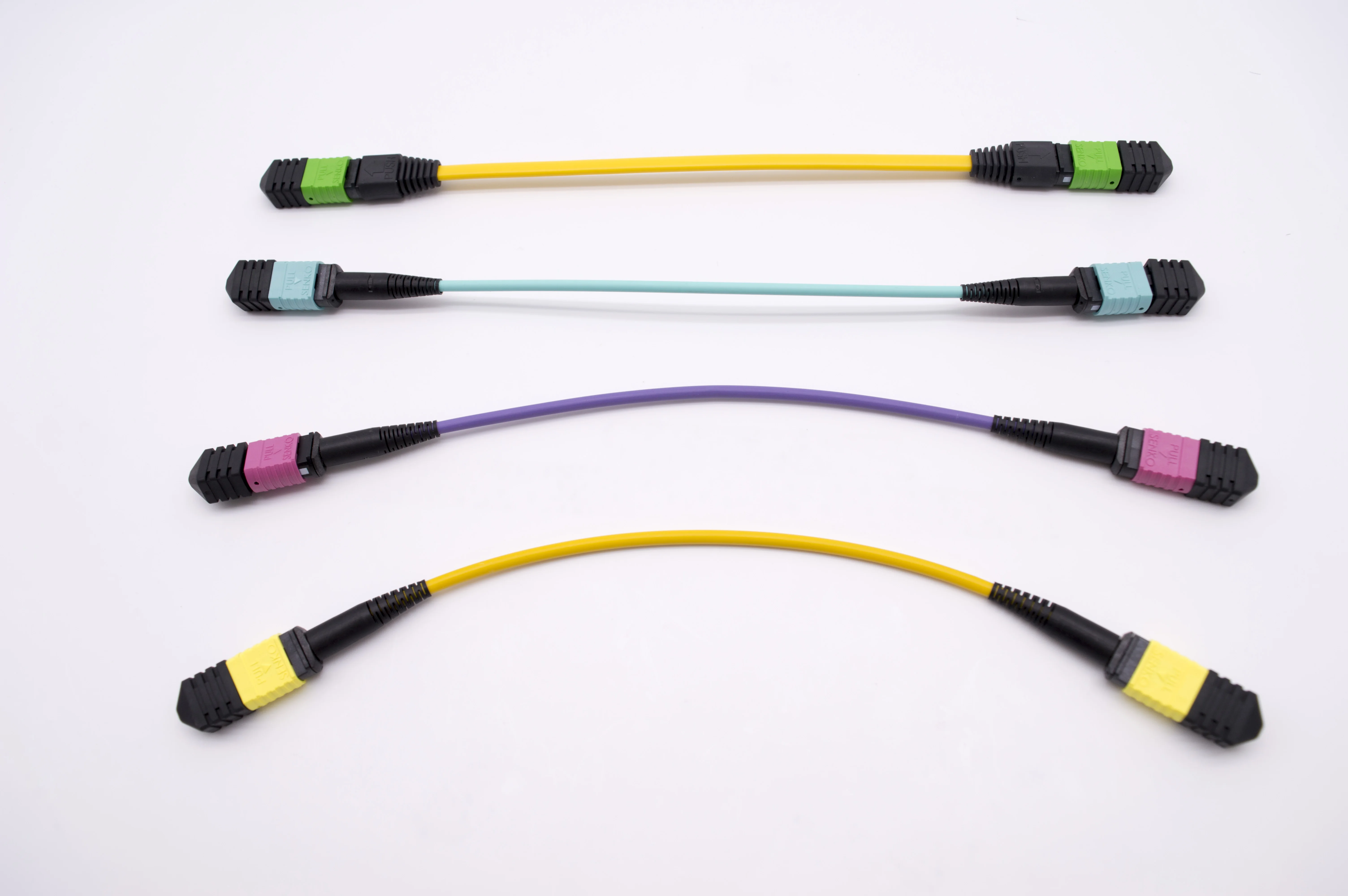

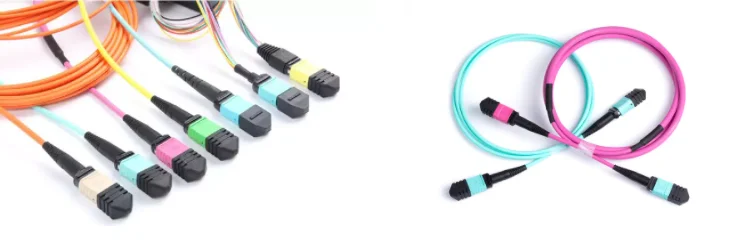

MTP cable assemblies are multi-fiber patch cords suitable for high-density back plane and PCB solutions. MTP brand Fan-Out, Interconnect and Trunk cable offer up to 36 times the density (based on a 72 fiber ferrule) of traditional patch cords, providing significant space and cost savings. There are several configurations for MTP brand cable assemblies. The most popular is a MTP brand connector to MTP connector interconnect patch and trunk cable that connects an MTP brand cassette to another MTP brand cassette. MTP brand adapter panel is installed in a patch panel,then an MTP brand
cable to MTP brand can be used as well.
AIFIBER’s MTP/MPO interconnect, Fan-Out and trunk cable are factory controlled and tested to deliver optical performance and reliability. Low loss MTP/MPO Elite for demanding power budget high speed networks.
Multi-fiber technology will eventually replace the standards for fiber optics as we know it. MTP brand cassettes, cables,
connectors and adapters are essential to backbone infrastructure. The high fiber count in one connector creates endless possibilities. Imagine a 1U rack mount patch panel that can supply data to run an entire 288-port switch. With today's increasing demand for higher through-put, ST, SC, MTRJ, LC, FC, etc, will all be a thing of the past.
Application
connectors and adapters are essential to backbone infrastructure. The high fiber count in one connector creates endless possibilities. Imagine a 1U rack mount patch panel that can supply data to run an entire 288-port switch. With today's increasing demand for higher through-put, ST, SC, MTRJ, LC, FC, etc, will all be a thing of the past.
Feature
* MTP/MPO standard compliant array connector or Elite® MTP®

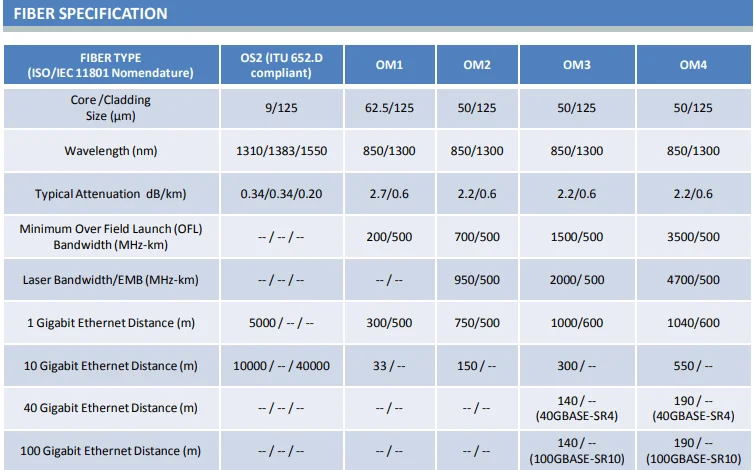

* OS2, G657A1, OM1, OM2, OM3, OM4 fiber
* 12, 24, 48, 72, 96 and 144 fiber versions
* Polarity A (standard), B or C
* High performance USconec® MTP connector

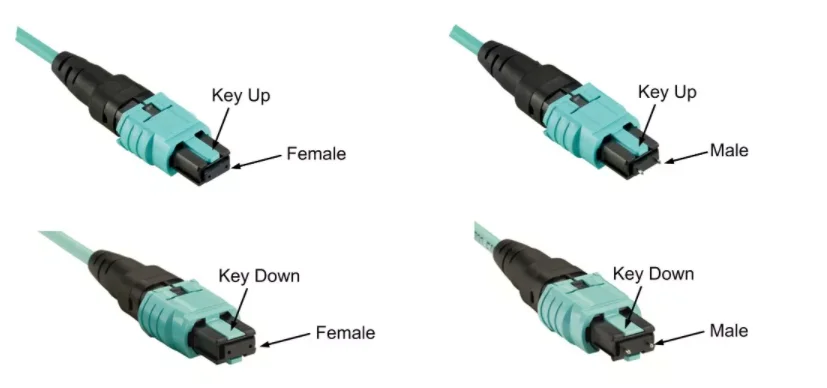

* Female/Un-Pinned and Male/ Pinned MTP/MPO® connectors
* LSZH, OFNR(Riser), OFNP(Plenum) cable jackets
* High Quality - * Factory terminated and tested (100% IL/RL, Interferometer tested)
* Next Generation Network Proof - 40/100GParallel Optics compatible
* MTP/MPO interface. MTP/MPO components feature superior optical and mechanical properties.
* Optimised performance. Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fiber grade assures low insertion losses and power penalties in tight power budget, high-speed network environments.
* High density. Multi-fiber connector and compact dimension of ruggedized Micro cable improves space management in costly data center environments.
* Reliability. 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standard.
* MTP/MPO standard compliant array connector or Elite® MTP®
* OS2, G657A1, OM1, OM2, OM3, OM4 fiber
* 12, 24, 48, 72, 96 and 144 fiber versions
* Polarity A (standard), B or C
* High performance USconec® MTP connector
* Female/Un-Pinned and Male/ Pinned MTP/MPO® connectors
* LSZH, OFNR(Riser), OFNP(Plenum) cable jackets
* High Quality - * Factory terminated and tested (100% IL/RL, Interferometer tested)
* Next Generation Network Proof - 40/100GParallel Optics compatible
* MTP/MPO interface. MTP/MPO components feature superior optical and mechanical properties.
* Optimised performance. Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fiber grade assures low insertion losses and power penalties in tight power budget, high-speed network environments.
* High density. Multi-fiber connector and compact dimension of ruggedized Micro cable improves space management in costly data center environments.
* Reliability. 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standard.
Application
* Data center infrastructure
* Storage area network - fiber channel
* Parallel Optics
* Compliant to IEC-61754-7 &EIA/TIA-604-5
* Fiber type ISO/IEC11801
* Meets TIA/EIA 604-5 Type MPO
* Structured cabling per TIA-568-C.3
* 10G Fiber Channel Compliant
* 40G and 100G IEEE 802.3
* Storage area network - fiber channel
* Parallel Optics
* Compliant to IEC-61754-7 &EIA/TIA-604-5
* Fiber type ISO/IEC11801
* Meets TIA/EIA 604-5 Type MPO
* Structured cabling per TIA-568-C.3
* 10G Fiber Channel Compliant
* 40G and 100G IEEE 802.3

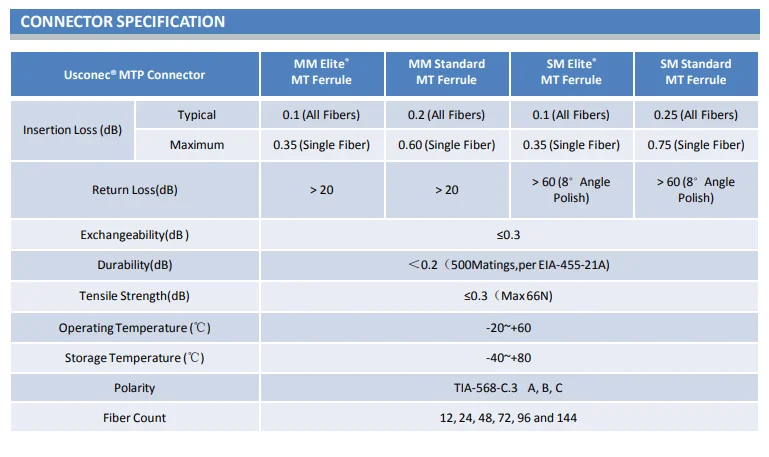

MPO Connector | standard SM MT Ferrule | Low loss SM MT Ferrule | standard MM MT Ferrule | Low loss MM MT Ferrule | |||||||||
Polish | UPC | APC | UPC | APC | UPC | APC | |||||||
Insertion Loss（dB) | Typical | 0.5 | 0.5 | 0.3 | 0.3 | 0.5 | 0.3 | ||||||
Maximum | 0.7 | 0.7 | 0.5 | 0.5 | 0.7 | 0.5 | |||||||
Return Loss (dB) | 45 | 60 | 60 | 45 | 20 | 20 | |||||||
Exchangeability (dB) | ≤0.3 | ||||||||||||
Durability (dB) | ＜0.2 （500 Matings, per EIA-455-21A) | ||||||||||||
Tensile strength (dB) | ≤0.3 （Max 66N) | ||||||||||||
Operating temperature | -20~60℃ | ||||||||||||
storage temperature | -40~80℃ | ||||||||||||
Related Product
Contact Us
Packing&Delivery

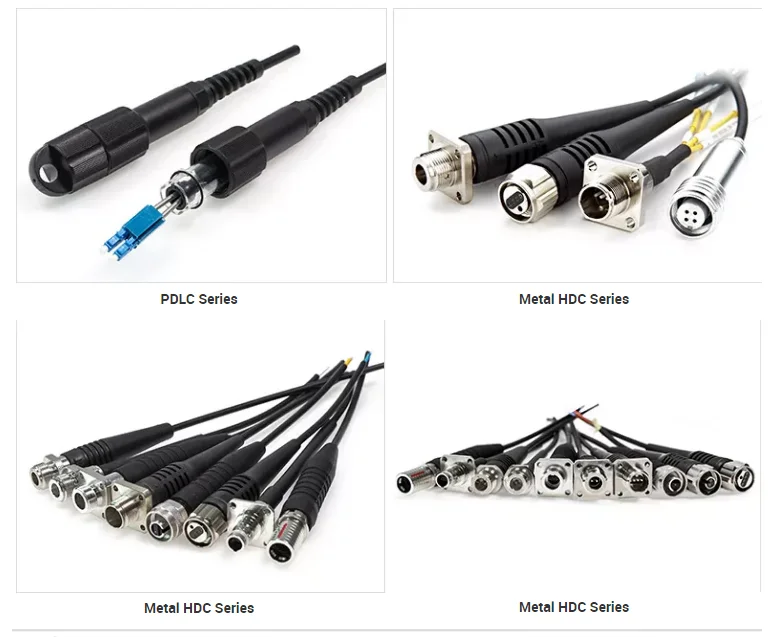

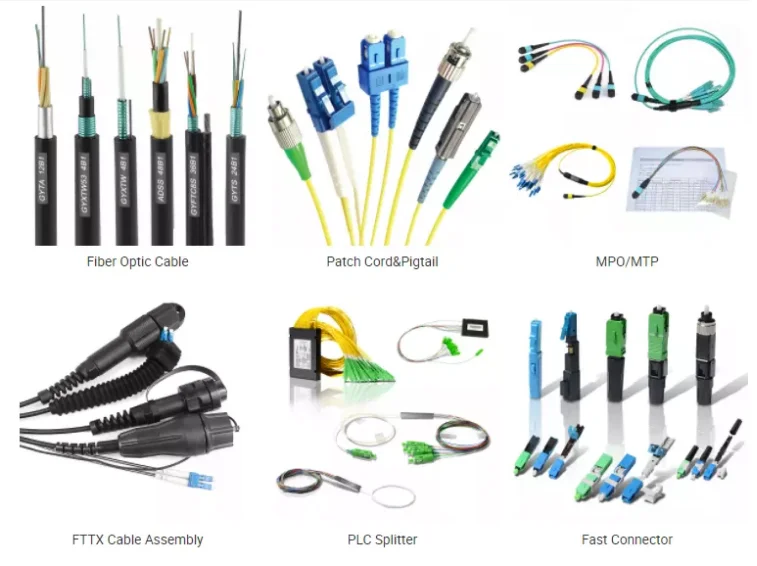

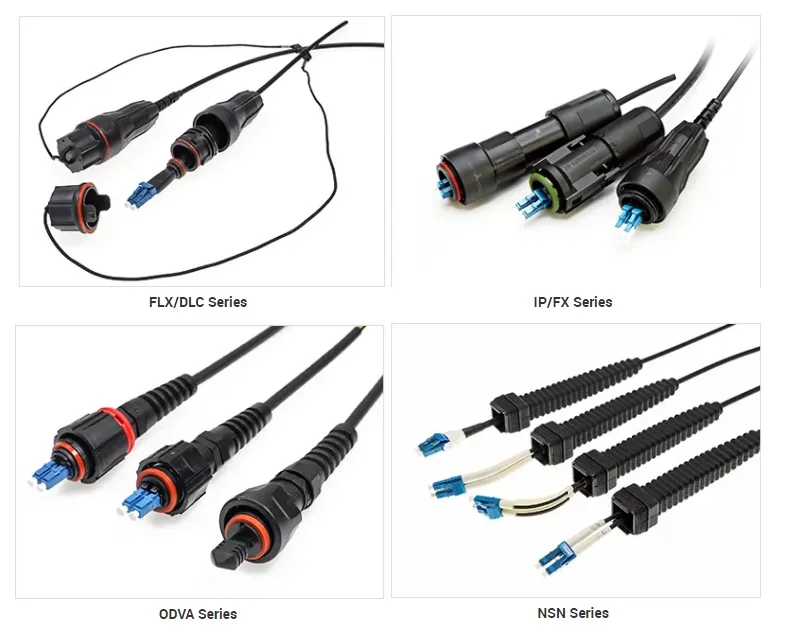

Product Line
