automatic press machine Q35Y 20 hydraulic combined punching and shearing ironworker
- Category: >>>
- Supplier: Anhui Zhongyi Machine Tool Manufacturing Co. Ltd.
Share on (1600537011912):
Product Overview
Description
Product Description

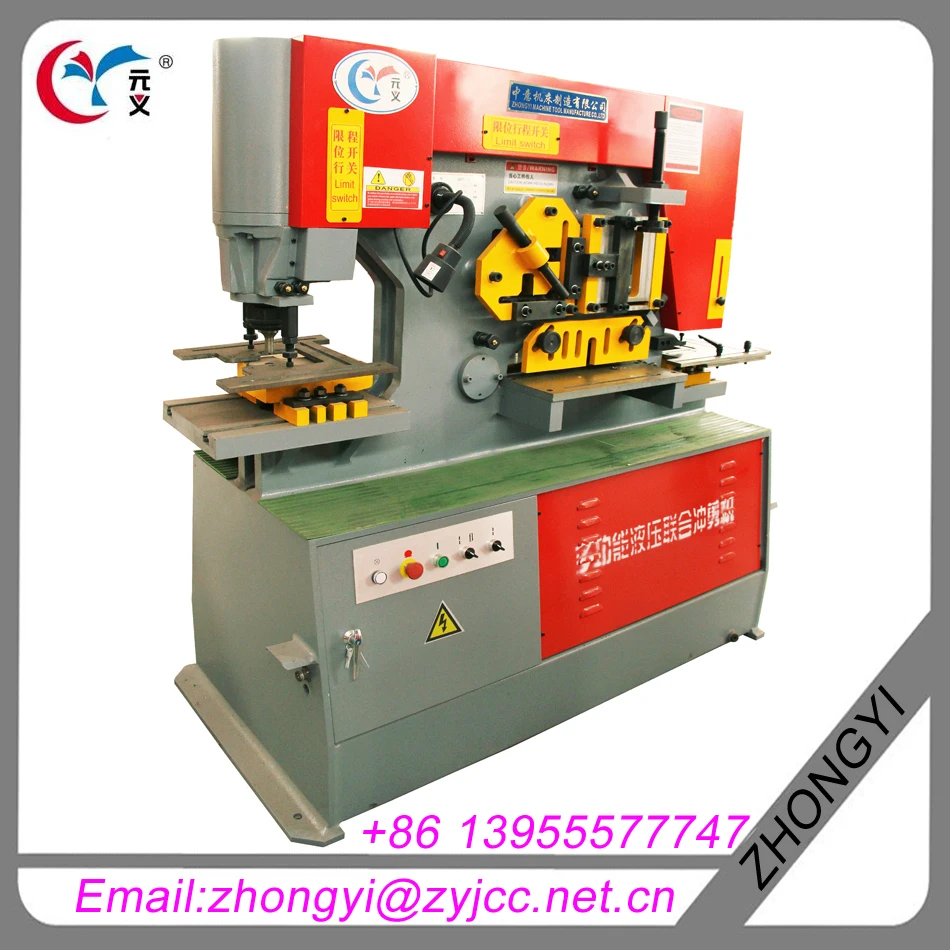

Multi-function iron worker goes along with Automatic Holding System and Temperature Cooling System.Hydraulic iron worker can punch,cut,notch and bend for flat bar,square bar,round bar,equal angle,channel.It is the latest product of the punching and shearing machine at home and abroad.
Model | Q35Y-20 |
Punching Pressure (T) | 90T |
Max. cutting thickness of sheet plates (mm) | 20 |
Material strength (N/mm²) | ≤450 |
Angle of Shear (°) | 8º |
Flat bar shearing (T×W)(mm) | 20×330 10×480 |
Max. length of cylinder stroke (mm) | 80 |
Trips frequency (times/min) | 12-20 |
Depth of throat (mm) | 355 |
Punch depth (mm) | 20 |
Max. punching diameter (mm) | 30 |
Motor power (KW) | 7.5 |
Overall dimensions (L×W×H)(mm) | 1950×900×1950 |
Weight (kg) | 2400 |
The machine is mainly used for cutting flat bar , profile, punching hole and notching.
It can widely used in Shipyard ,Electric, Bridge, Automobile, Hoisting＆Transportation, Metal Construction and other machinery factories etc.
Description of application effect
Flat bar cutting ,punching hole and notching work can be performed on the machine within the rated specification .
With extra equipment,the machine is able to cut, punch and bend in special shape . The machine adopted hydraulic driving system and has a performance and overload protecting device .
Product Paramenters
Profile | Q35Y-20 | ||
Round Bar | 50 | ||
Square Bar | 50×50 | ||
Equal Angle | 90ºShearing | 140×140×12 | |
45ºShearing | 70×70×10 | ||
T-Bar | 90ºShearing | 140×140×12 | |
45ºShearing | 70×70×10 | ||
I-beam | 160×88×6 | ||
Channel | 160×63×6.5 | ||
Details Images

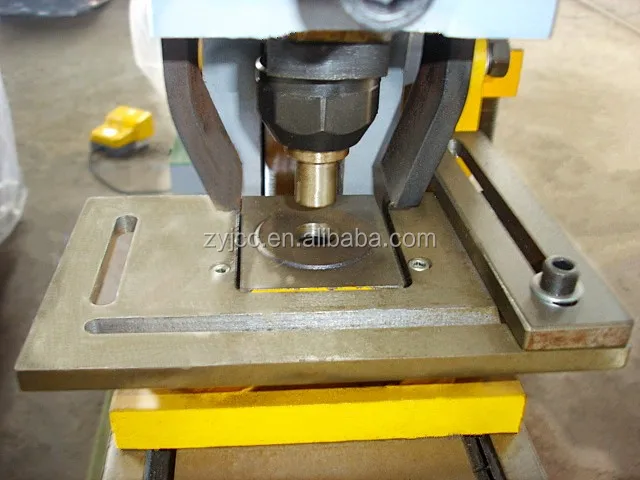

Visual safety protection device :
Punching part equipped with a 360 degree visual rotary safety device . Punch more safe .
And also have movable feeder
And also have movable feeder
Electric :
Main electric is Schneider .
Equipped with open door automatic power-off protection device , more safe .
Equipped with open door automatic power-off protection device , more safe .
CNC System :
CNC control , can automatic pressing material .
Automatic control switch , control the backgauge .
Multi - station cnc control system.
Automatic control switch , control the backgauge .
Multi - station cnc control system.
Automatic Backgauge :
Ball screw automatic backgauge device
Scale positioning , automatic cut .
Work table multi-angle engraved positioning , can cut high precision , reduce manual measurement .
Scale positioning , automatic cut .
Work table multi-angle engraved positioning , can cut high precision , reduce manual measurement .
Temperature control device :
Visual pressure gauge .
Integral fuel tank and Temperature control fan , can control the oil temperature . Increase working hours, improve work performance.
Integral fuel tank and Temperature control fan , can control the oil temperature . Increase working hours, improve work performance.
Packing&Shipping
Packaging Details
The normal package is plastic film packaging or wooden box , we will pack it according to customers special request.
The normal package is plastic film packaging or wooden box , we will pack it according to customers special request.
Company Introduction
ZHONGYI Industrial hydraulic iron worker have been designed and built to the highest quality standards in the industry.This profitable machine will serve any grueling fabrication shop for decades to come.
The machine by the European Union CE certification and ISO quality system certification
The machine by the European Union CE certification and ISO quality system certification
Our Services & Strength
After-sales service:
Machine is simple, generally, user can understand how to operate. There is operation instruction and disc.
Welcome to our factory to learn how to operate our machine, we will give good training and it's for free.
Our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user.
Machine is simple, generally, user can understand how to operate. There is operation instruction and disc.
Welcome to our factory to learn how to operate our machine, we will give good training and it's for free.
Our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user.
Certifications
Why Choose Us
Long History
Our company was founded in 2002,has a history of nearly 20 years.
We have been in a leading position in China's machinery manufacturing industry.
We are the first enterprise in Anhui province to produce hydraulic ironworker machines.
We are the first enterprise in Anhui province to produce hydraulic ironworker machines.
Factory Direct Sale
We have a large factory and all the machines are sold directly from the factory. Ensuring the quality of each machine.
In addition,we have a complete after-sales service system.
Good Reputation
Alibaba assessed 12 years Gold Supplier for ironworker.
Inspected by the Inspection Institution of Bureau Veritas Certification.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Inspected by the Inspection Institution of Bureau Veritas Certification.
100% QC inspection Before Shipment.
