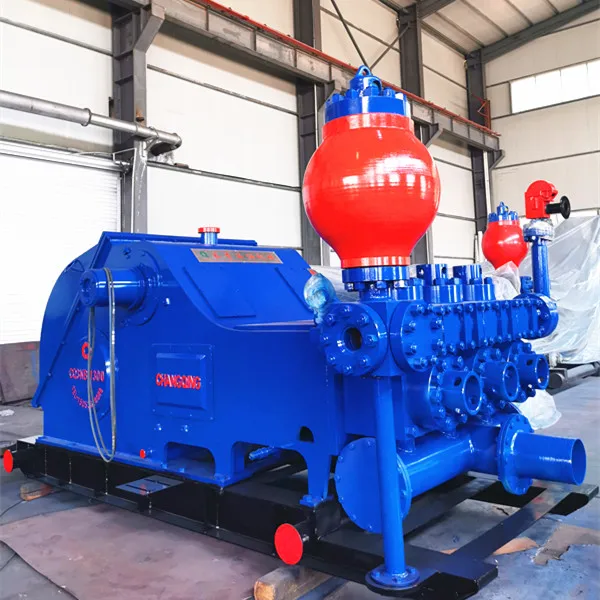

Factory price F500 500HP Water Well Drill Mud Pump Piston Pump
- Category: >>>
- Supplier: Qingzhou Honorsun Heavy Industry Co. Ltd.
Share on (1600537018973):
Product Overview
Description

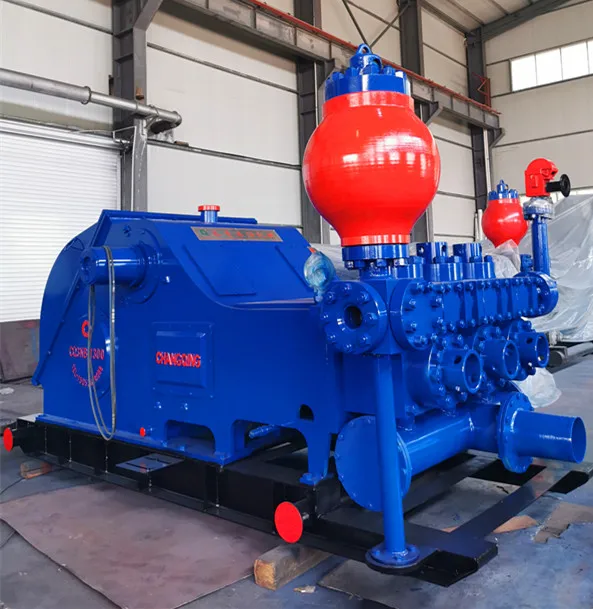

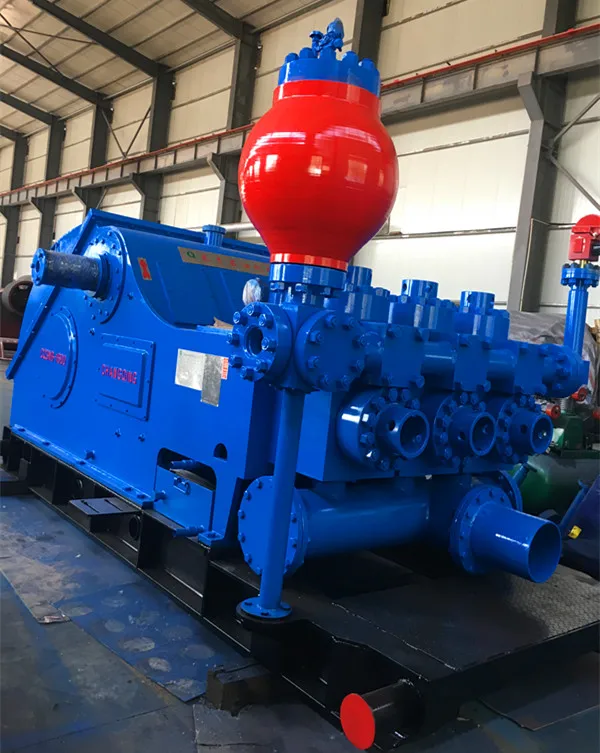

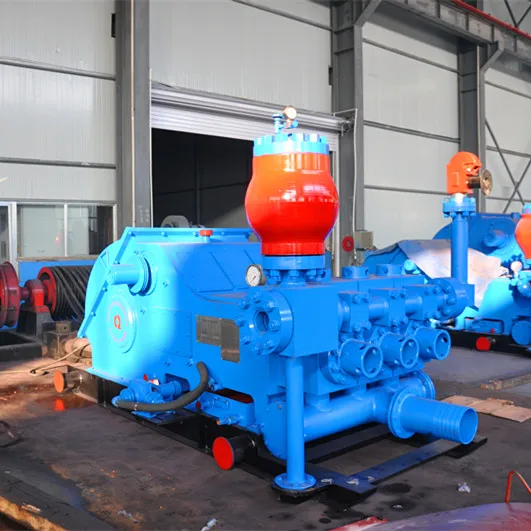

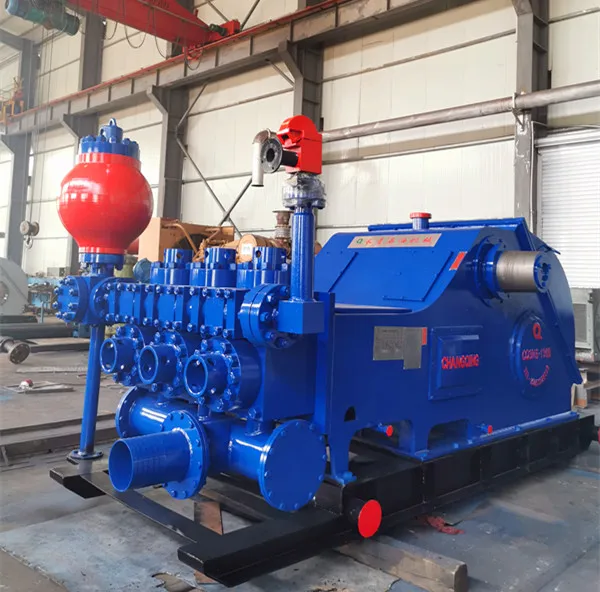

Factory price F500 500HP Water Well Drill Mud Pump Piston Pump
Product Description
Triplex mud pumps and triplex mud pump parts are already our featured products ever since start of our business. We supply quality EMSCO F-series mud pumps including F-500, F-800, F-1000, F-1300, F-1600, and China National 3NB series mud pump, including 3NB350, 3NB500, 3NB-1000, 3NB1300A, 3NB1600A. The full range of products can well satisfy any need from the clients.
Technical Parameters
Model | F500 | F800 | F1000 | F1300 | F1600 |
Power rating HP(kw) | 500(373) | 800(597) | 1000(746) | 1300(969) | 1600(1193) |
Stroke rating SPM | 165 | 150 | 140 | 120 | 120 |
Stroke length (in/mm) | 7.5"/190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 |
Gear ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 |
Inlet dia. (in/mm) | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 |
Outlet dia. (in) | 4" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi |
Valve | API 5# | API 6# | API 6# | API 7# | API 7# |

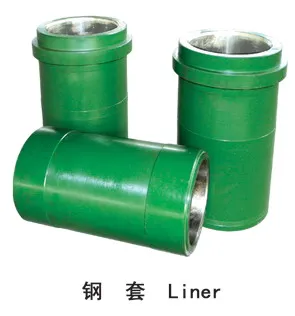

Max. liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 |
Overall dimension L*W*H (mm) | 3658*2709*2231 | 3963*3025*2410 | 4267*3167*2580 | 4617*3260*2600 | 4615*3276*2688 |
Approx.weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 |

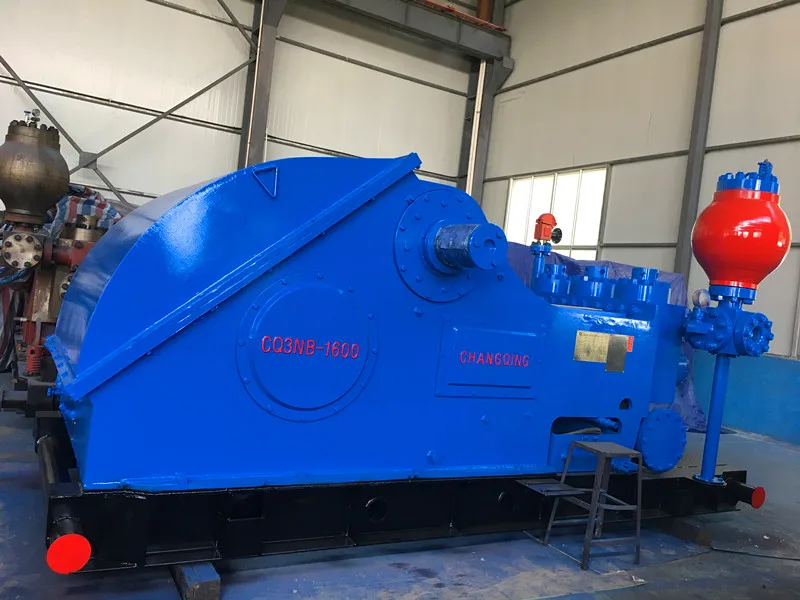

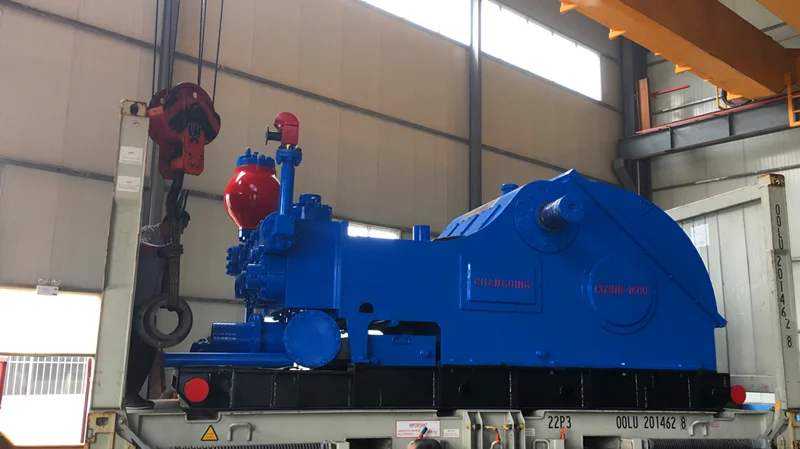

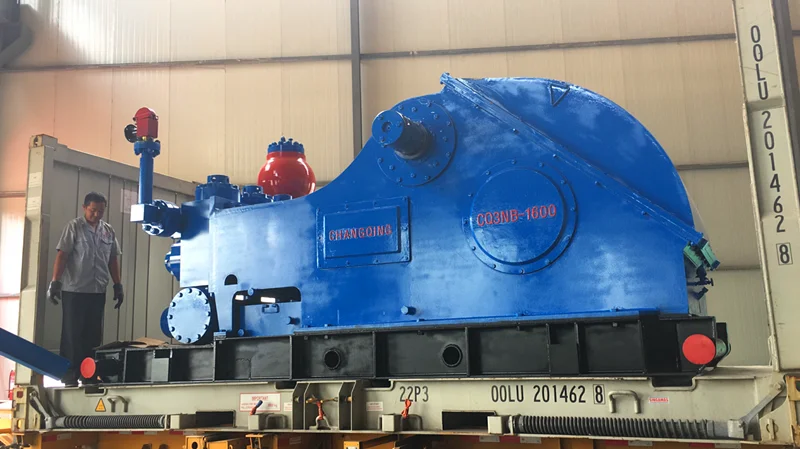

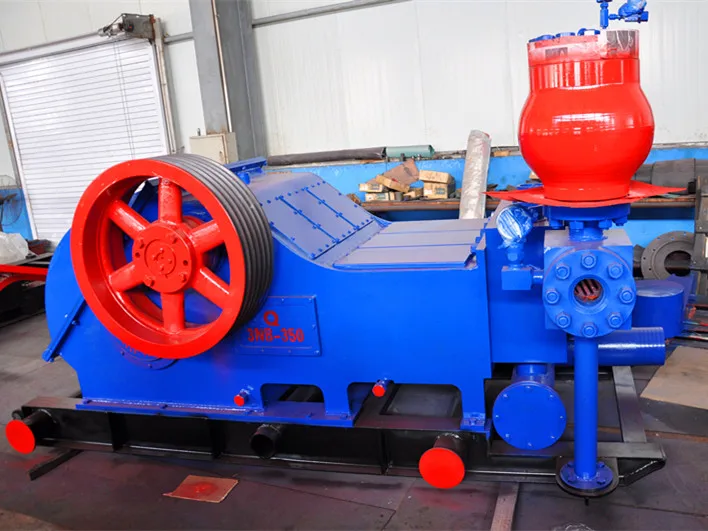

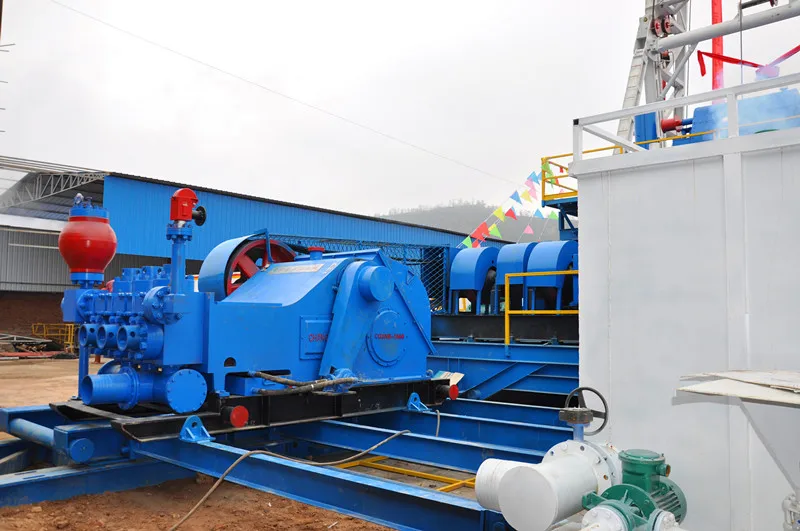

Model | CQ3NB-350 | CQ3NB-500 | CQ3NB-1000 | CQ3NB-1300A | CQ3NB-1600A |
Power rating HP(kw) | 350(275) | 500(368) | 1000(735) | 1300(956) | 1600(1176) |
Stroke rating SPM | 120 | 120 | 110 | 120 | 120 |
Stroke length (in/mm) | 7″(180 mm) | 7″(180 mm) | 10"(273mm) | 12″( 305 mm) | 12″( 305 mm) |

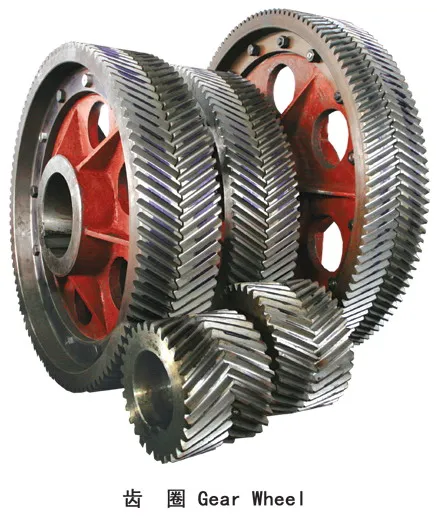

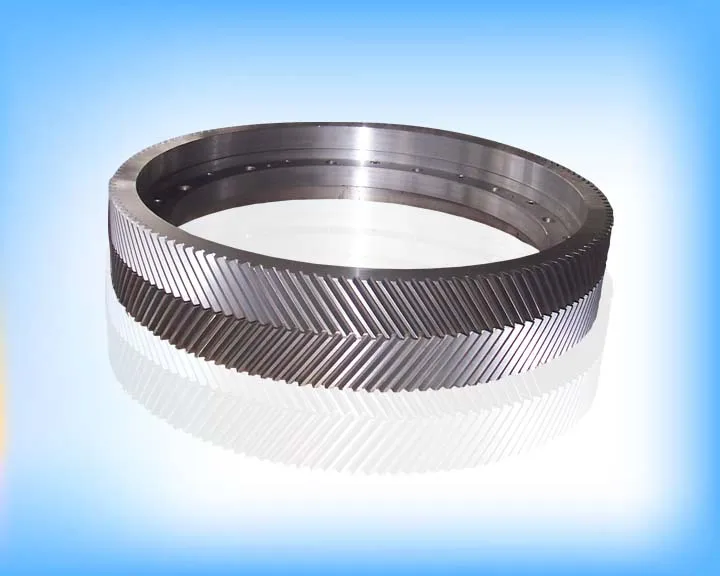

Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
Gear ratio | 4.483:1 | 4.696:1 | 3.482:1 | 3.657:1 | 3.657:1 |
Lubrication | Splash | Splash | Splash | Forced & Splash | Forced & Splash |
Valve Pot | API 5# | API 5# | API 6# | API 6# | API 7 # |
Suction Inlet | 8" ( 203 mm) | 8" ( 203 mm) | 10" (254 mm) | 12" ( 305 mm) | 12" ( 305 mm) |
Discharge Inlet | 3" flange 5000 psi | 3" flange 5000 psi | 4" flange 5000 psi | 4" flange 5000 psi | 4" flange 5000 psi |
Overall dimension L*W*H (mm) | 3100*2080*2015 | 3345*2280*2080 | 3750 *2155*2052 | 4300*2050*2447 | 4720*2822*2660 |
Approx.weight (kg) | 8058 | 9484 | 15800 | 20800 | 27100 |
