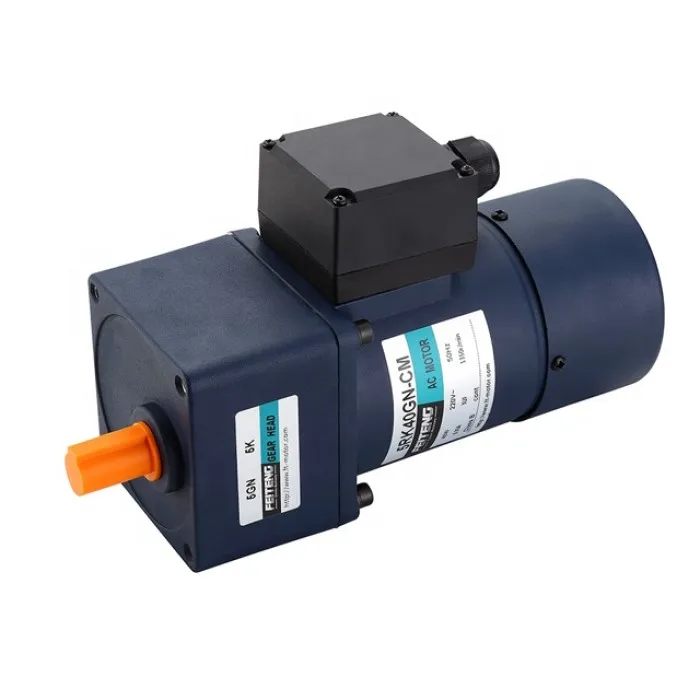

1350rpm 1ph220v 5IK40GN Gear Motor 90mm 40w AC Induction Motor with Reduction Gear Box
- Category: >>>
- Supplier: Chuanhe Power Technology (Dongguan) Co. Ltd.
Share on (1600537113726):
Product Overview
Description

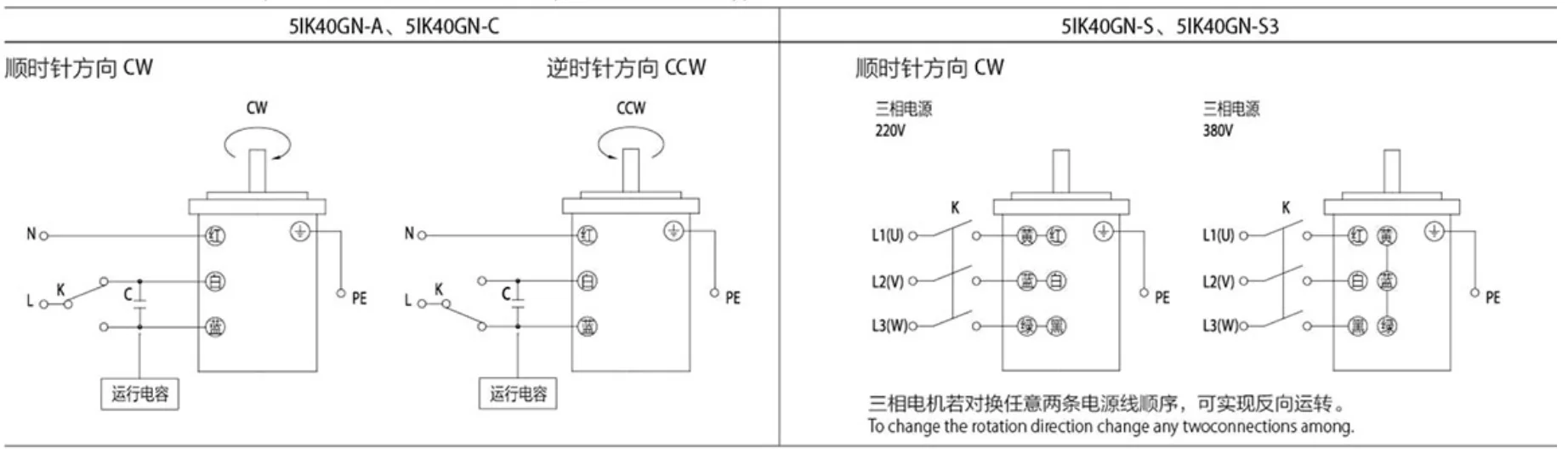

Wiring Diagram of the gear motor
Pinion Shaft | Round Shaft | Output Power | Voltage | Frequency | Current | Rated Speed(r/min) | Rated Torque(mN.m) | Starting Torque(mN.m) | Capacitor(μF/VAC) |
5IK40GN-C | 5IK40A-C | 40W | 1ph220v | 50Hz | 0.35A | 1350 | 294 | 194 | 2.5/450 |
60Hz | 0.35A | 1550 | 232 | 196 | |||||
5IK40GN-A | 5IK40A-A | 40W | 1ph110v | 50Hz | 0.64A | 1350 | 286 | 226 | 10.0/250 |
60Hz | 0.66A | 1350 | 234 | 231 | |||||
5IK40GN-S | 5IK40A-S | 40W | 3ph220v | 50Hz | 0.32A | 1350 | 284 | 1130 | / |
60Hz | 0.28A | 1350 | 241 | 846 | |||||
5IK40GN-S3 | 5IK40A-S3 | 40W | 3ph380v | 50Hz | 0.18A | 1350 | 284 | 1086 | / |
60Hz | 0.16A | 1350 | 241 | 837 |
Product Display

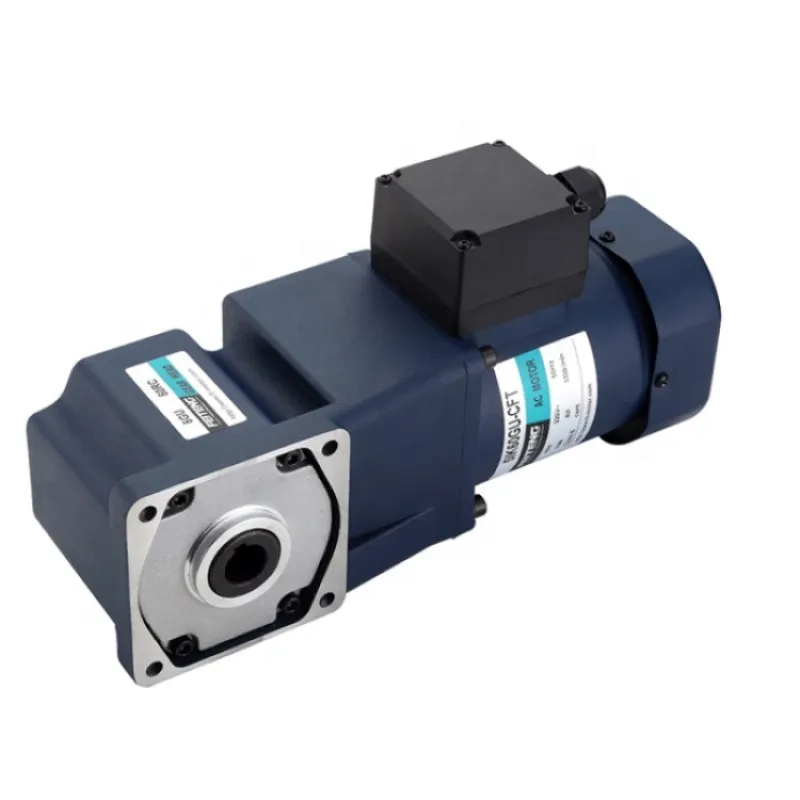

Induction Gear Motor
1.Coaxial helical gear motor has compact structure, small volume, beautiful shape and strong overload capacity.
2.Low energy consumption, superior performance, reducer efficiency up to 96%, low vibration, low noise.
