RH thermal fuse plastic 10A 250V thermal links Non resettable thermal cut off fuse for household appliance
- Category: >>>
- Supplier: Yangzhou Baozhu Electric Appliance Co. Ltd.
Share on (1600537115835):
Product Overview
Description
Product Description
1. Products structure
The thermal fuse is composed of plastic case, low melting point alloy wire, special resin, lead wire and sealing resin.2 .Apperance
Printing marks must be clear, sealing resin should be filled with ministry and uniform, lead tin plated layer is good,no black spot damage, the shell without damage scar, perforation, etc.
Product Name | RH01 series thermal fuse |
Remarks | Can customized according to customer requirements |

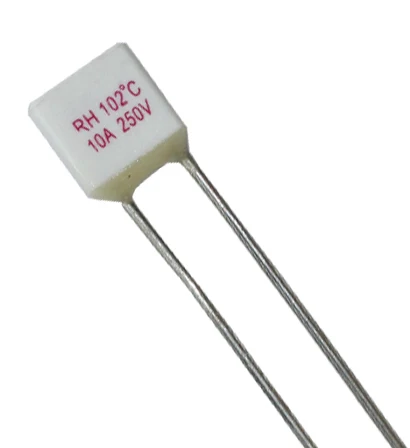

Products Show

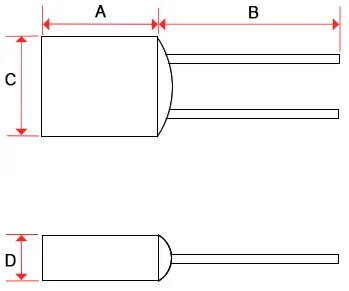

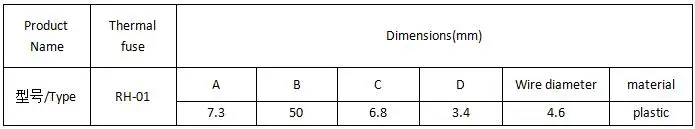

Size

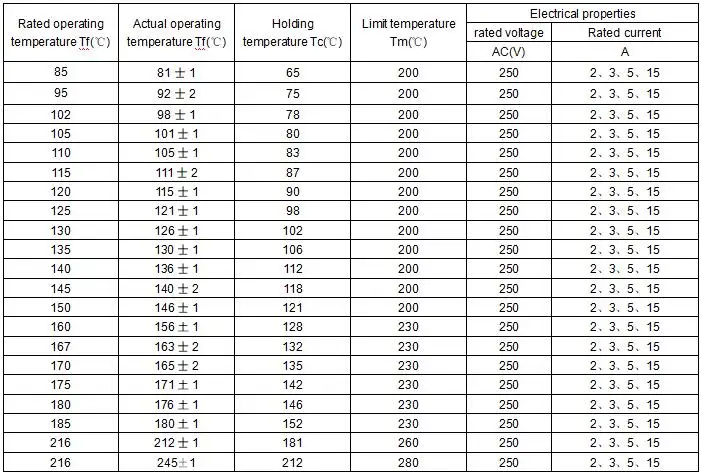

Table of temperature parameters
Package and label
Transparent plastic bags size:
115mm wide * 160mm long or 198mm wide * 275mm.
Shipping mark size:
100mm wide * 150mm long.
Shipping mark size:
100mm wide * 150mm long.
Certifications:VDE:40050455
Our Service
Free sample
Our company can provide 10 free samles for your testing.
Our Company
Factory
Headquarters
Workshop
Our Workshop
Chengnan Branch
Jinghe branch
Warehouse
Our Warehouse
Equipmen
Our Part equipment
Packing & Delivery
Samples Packing Details : File pocket
Order Packing Details :
1000pcs in one plastic bag
5000pcs in one export carton(26*18*22cm)
10000pcs in one export carton (carton size:32*26*22cm)
Delivery Details : 7-15 days
Decide delivery time according to order quantity and requirement.
Our Certifications
Certificates of our products include CE, CQC, ROHS, UL, VDE, etc.
Please contact me if you need relevant certificates.
