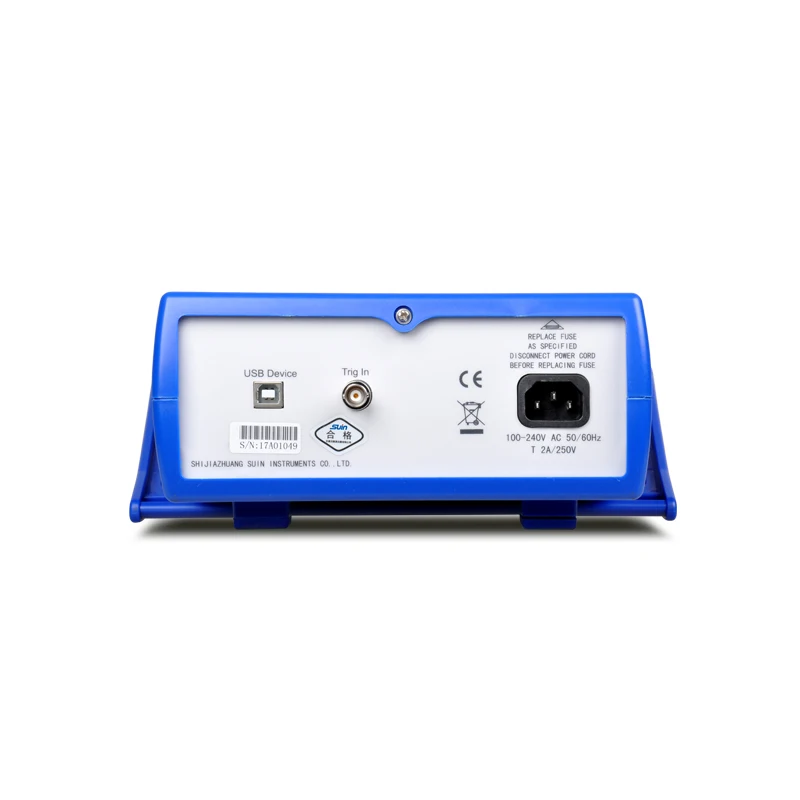

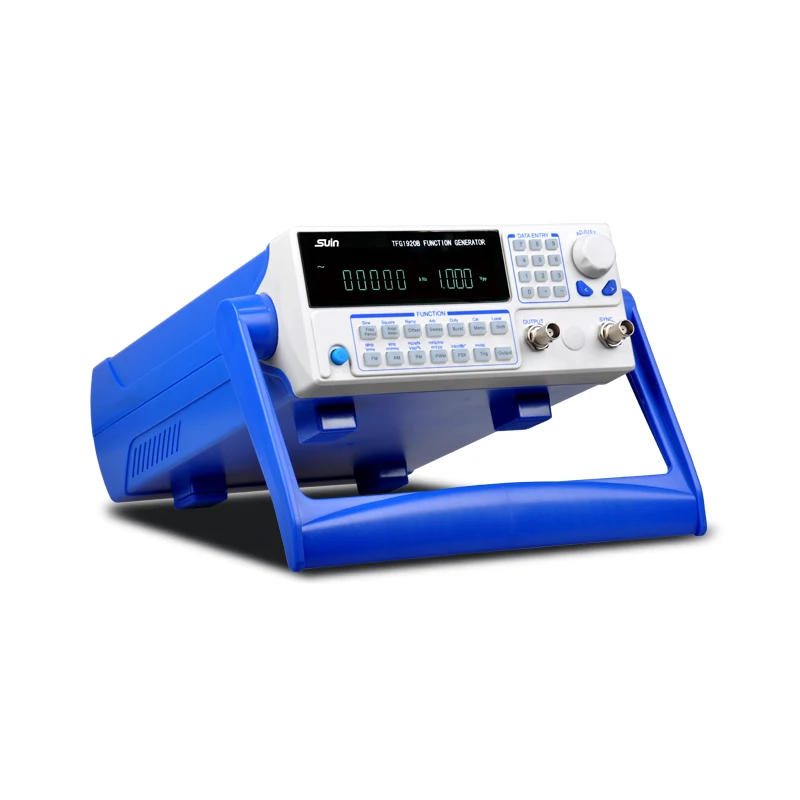

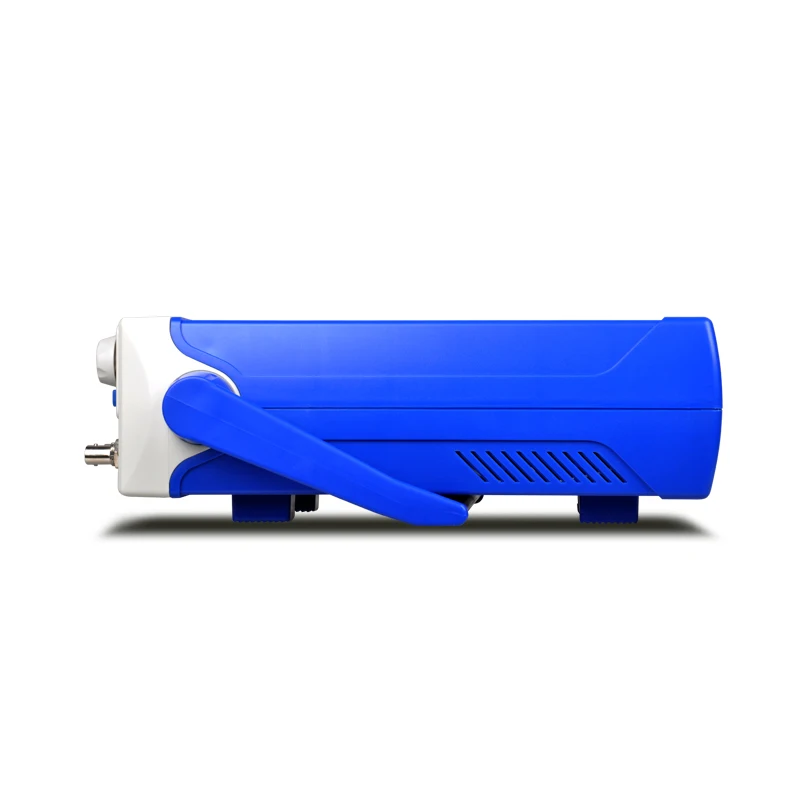

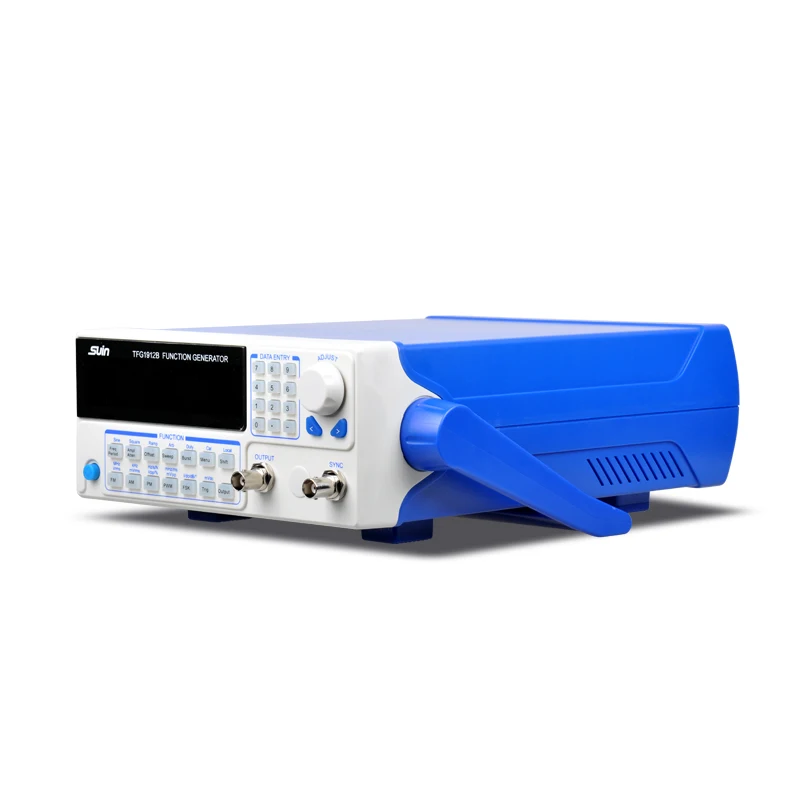

Suin TFG1900B Series DDS signal function generator 3MHz 20MHz with power amplifier option
- Category: >>>
- Supplier: Shijiazhuang Suin Instruments Co. Ltd.
Share on (1600537119710):
Product Overview
Description
Product Description
Features
* Simple structure and highly cost-effective
* Output 16 waveforms
* AM,FM,PM,PWM and FSK modulation
* Provide frequency sweep and burst
* Standard configuration interface: USB Device
* Output 16 waveforms
* AM,FM,PM,PWM and FSK modulation
* Provide frequency sweep and burst
* Standard configuration interface: USB Device
Specification
TFG1903B | TFG1905B | TFG1910B | TFG1920B | |||||||
Frequency | ||||||||||
Range | Sine | 10μHz~3MHz | 10μHz~5MHz | 10μHz~10MHz | 10μHz~20MHz | |||||
Square | 10μHz ~ 5MHz | |||||||||
Others | 10μHz ~ 1MHz | |||||||||
Resolution | 10μHz | |||||||||
Accuracy | ±50ppm | |||||||||
Waveform | ||||||||||
Type | 16 waveform, Sine, Square, Ramp, Exp, Log, Noise, etc. | |||||||||
Length | 1024 points | |||||||||
Sampling Rate | 100 MSa/s | |||||||||
Vertical Resolution | 8 bits | |||||||||
Sine | Harmonic Distortion | ≤-40dBc(≤5MHz); | ||||||||
≤-35dBc(>5MHz) | ||||||||||
Total Distortion | ≤0.5% (20Hz ~ 20kHz, 20Vpp) | |||||||||
Square | Rise/Fall Edge Time | ≤35ns Overshoot: ≤ 10 % | ||||||||
Duty Cycle | 0.1% ~ 99.9% | |||||||||
Ramp | Symmetry | 0.0% ~100.0% | ||||||||
Amplitude | ||||||||||
Range | Frequency≤8MHz | 0 ~ 10Vpp(50Ω),0 ~ 20Vpp(Open circuit) | ||||||||
Frequency>8MHz | 0 ~ 9Vpp(50Ω), 0 ~ 18Vpp(Open circuit) | |||||||||
Resolution | 5mVpp(Amplitude>2Vpp) | |||||||||
0.5mVpp(Amplitude≤2Vpp) | ||||||||||
DC Offset (Ampl. 0Vpp) | ||||||||||
Range | ±5Vdc (50Ω), ±10Vdc (Open circuit) | |||||||||
Resolution | 5mVdc | |||||||||
Modulation | ||||||||||
FM,AM, | Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. | ||||||||
(only Pulse for PWM) | ||||||||||
PM,PWM | Modulating Waveform | 16 waveforms, Sine, Square, Ramp, etc. | ||||||||
Modulating Frequency | 40mHz ~ 20kHz | |||||||||
FSK | Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. | ||||||||
Modulating Waveform | Square | |||||||||
FSK Rate | 40mHz ~ 100kHz | |||||||||
Frequency Sweep | ||||||||||
Type | Linear or Logarithmic | |||||||||
Sweep Time | 50ms ~ 500s | |||||||||
Trigger Source | Internal/External/Manual | |||||||||
Burst | ||||||||||
Burst Waveform | 16 waveforms, Sine, Square, Ramp, etc. | |||||||||
Burst Count | 1 ~ 1000000 | |||||||||
Internal Period | 1μs ~ 20s | |||||||||
Start Phase | 0° ~ 360° | |||||||||
Trigger Source | Internal/External/Manual | |||||||||
SYNC Output | ||||||||||
Electrical Level | TTL compatible | |||||||||
Waveform Characteristic | Square, edge time ≤ 20ns | |||||||||
Output Level | low level<0.3V, high level>4V | |||||||||
General Characterisctics | ||||||||||
Power | AC 100 ~ 240V, 45 ~ 65Hz, < 20VA | |||||||||
Display | LCD display | |||||||||
Dimension & Weight | 322×256×102mm, Approx.1.5kg | |||||||||
Packing & Delivery
Company Profile
SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.

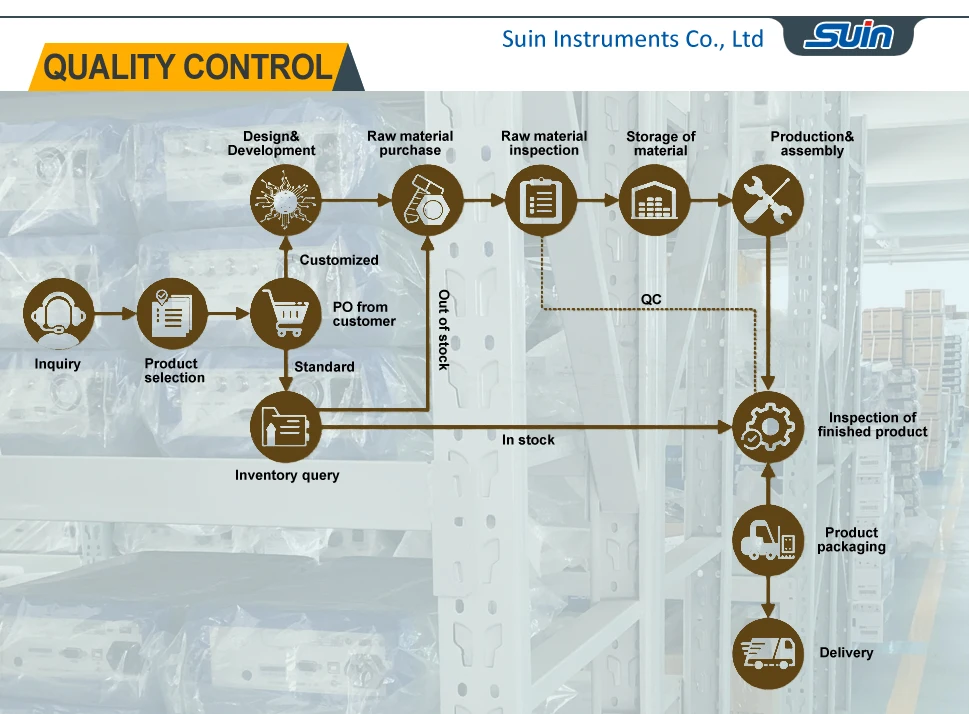

Quality Control
