92/8 TGIC Polyester Resin for Thermal Transfer Powder Coatings
- Category: >>>
- Supplier: Guangzhou Kinte Industrial Co. Ltd.
Share on (1600537129165):
Product Overview
Description
Products Description
Introduction
NH-9205 is a carboxyl polyester resin designed for 92/8 polyester/TGIC powder coatings to be cured at 200℃. Suitable for heat transfer printing powder coatings.
Powder coatings do not contain organic solvents and are widely used in construction machinery, automobiles, building materials, and other outdoor facilities due to their environmental friendliness, high efficiency, economy, and excellent performance, that is, the advantages of 4E. However, due to the influence of natural factors such as air temperature, humidity, and high ultraviolet rays, powder coatings have high requirements for weather resistance, especially for special outdoor use.
In the formula of polyester resin powder coating, polyester resin is one of the main film-forming substances, accounting for more than 50%, and the performance of polyester resin is the key to realizing the performance of powder coating. Therefore, polyester resins for ultra-weather-resistant powder coatings with excellent weather resistance and good mechanical properties are very necessary.
Powder coatings do not contain organic solvents and are widely used in construction machinery, automobiles, building materials, and other outdoor facilities due to their environmental friendliness, high efficiency, economy, and excellent performance, that is, the advantages of 4E. However, due to the influence of natural factors such as air temperature, humidity, and high ultraviolet rays, powder coatings have high requirements for weather resistance, especially for special outdoor use.
In the formula of polyester resin powder coating, polyester resin is one of the main film-forming substances, accounting for more than 50%, and the performance of polyester resin is the key to realizing the performance of powder coating. Therefore, polyester resins for ultra-weather-resistant powder coatings with excellent weather resistance and good mechanical properties are very necessary.
Basic Features
Excellent weathering resistance
Excellent anti-yellowing and water boiling resistance
Good mechanical properties
Good storage stability
Recommend Formulation
NH9205—TGIC
NH-9205 | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
552 | 48 | 383 | 8 | 4 | 5 |
Specifications I

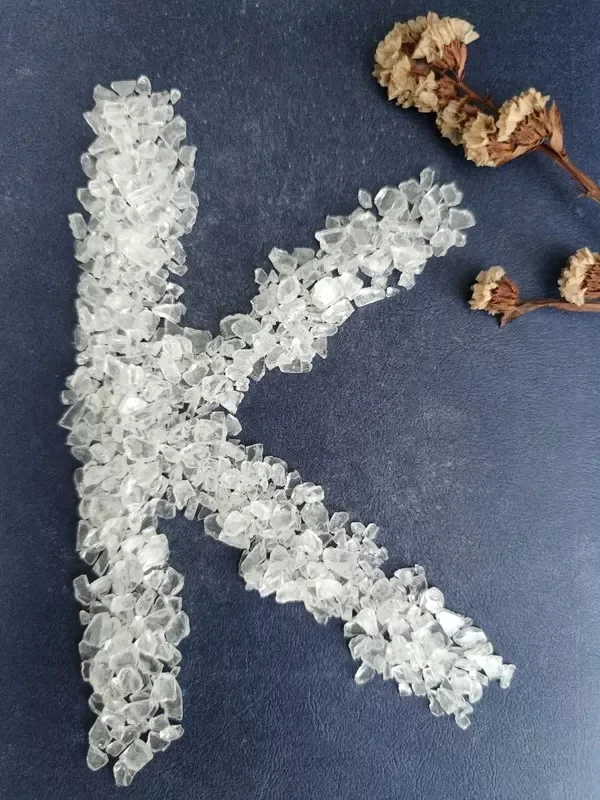

Appearance | Light yellow or white transparent flakes |
Color (50% DMF) | max:3 |
Acid Number (mgKOH/g) | 40～45 |
Softening Point (℃) | 103～113 |
Glass Transition Temp. (℃) | ～63 |
Melting Viscosity (200℃, cone/plate, mPa·s) | 3100～4100 |
Reactivity at 180℃ (s, 8% TGIC) | 140～260 |
Curing Requirement | 200℃×10 min |

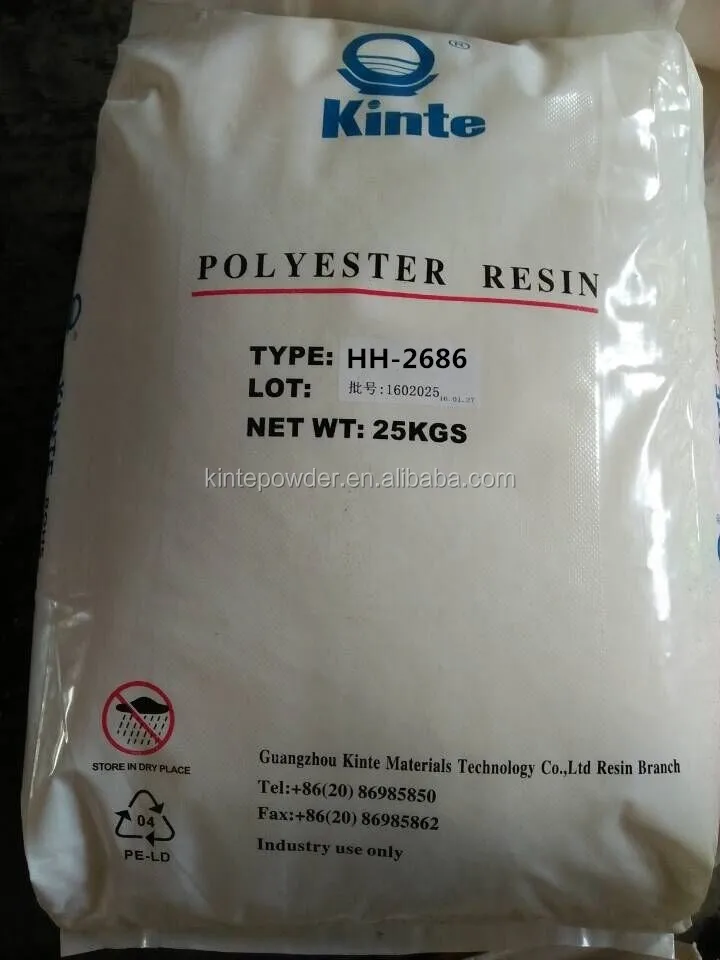

Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
Specifications II
Extrusion Condition | Two-screw Extruder | ||
Zone I: 90～110℃ | Zone II: 110～120℃ | ||
Speed of Revolution | 500～1200rpm | ||
Fineness of Powder | ＜100μm | ||
Application Condition | Electrostatic Spraying With | 40～70KV | |
Coating Film Thickness | 50～70μm | ||
Degreased Cold-rolled Steel | 0.5mm | ||
Film Properties | Gel Time (180℃, sec) | 240~360 | |
Horizontal Flow (180℃, mm) | 24~30 | ||
Gloss (60°) | ≥85% | ||
Bending (φ1mm) | Pass | ||
Adhesive (1mm, grade) | 0 | ||
Pencil Hardness | ≥1H | ||
Impact (direct) | pass 40 kg·cm | ||
More Codes
Code | Ratio | Cure Cycle | Acid Value (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
NH9205 | 92/8 | 200℃*10min | 40~45 | 3000~4000 | ~63 | 140-260 | Especially suitable for heat transfer print super durable powder coatings. |
NH9001 | 90/10 | 200℃*10min | 46~54 | 4300~5900 | ~65 | 25-75 | Dry-blended for low gloss super durable powder coatings with good anti-yellowing. It could be used in HAA system also. |
NH9508 | 95/5 | 200℃*10min | 19~25 | 4500~5500 | ~63 | 90-170 | |
NH9307 | 93/7 | 200℃*10min | 30~36 | 3500~6500 | ~65 | 90-170 | For super durable powder coatings with excellent outdoor durability, anti-yellowing and boiling water resistance. |
NH9306 | 93/7 | 200℃*10min | 30~36 | 3500~6500 | ~65 | 90-170 | For super durable powder coatings with excellent outdoor durability, mechanical properties, anti-yellowing and boiling water resistance. |
NH9362 | 93/7 | 160℃*15min | 30~36 | 4000~6000 | ~60 | 40-120 | For low bake super durable powder coatings with excellent outdoor durability, anti-yellowing and boiling water resistance. |
Remarks
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
Package and Transportation

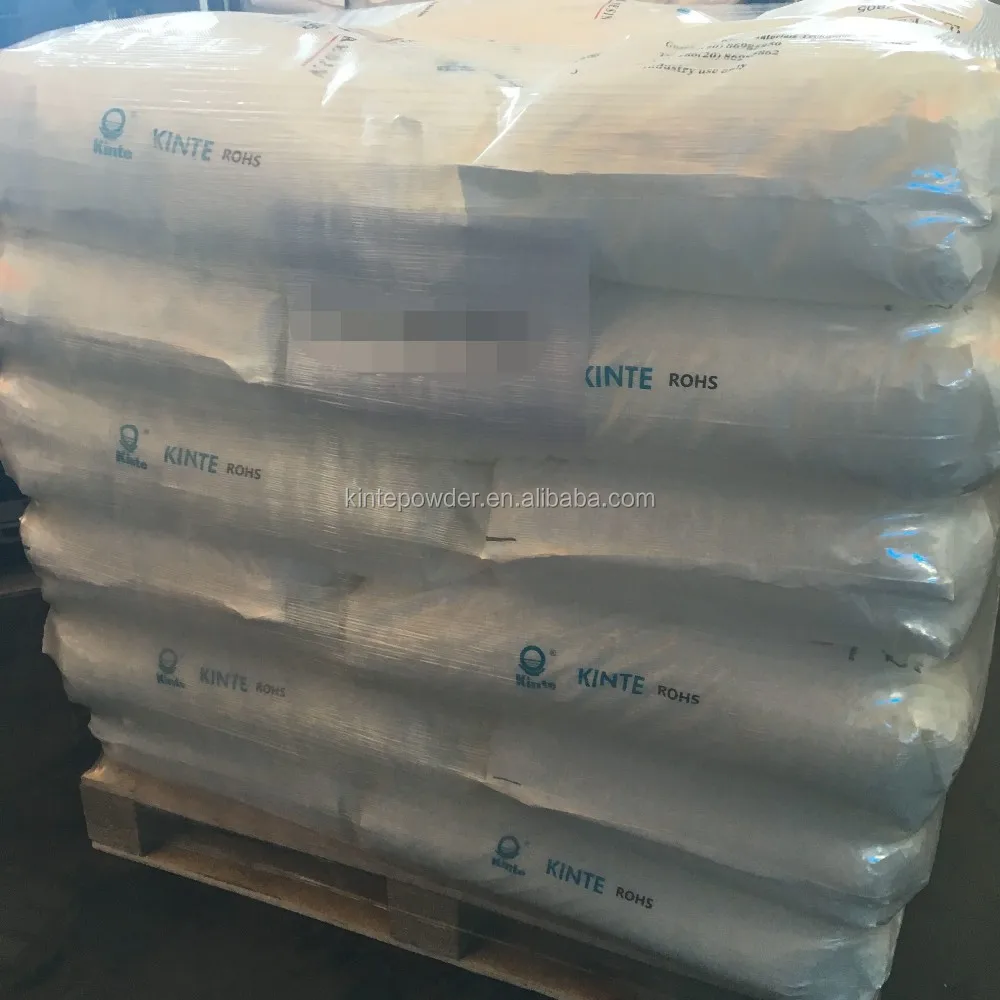

PE Bags, Net Weight 25kg ± 0.1kg / bag, 875Kg/Pallet, 17,500Kg/20GP
Non-dangerous goods, no special transportation requirements.
