3.9mm 3.4mm 2.8mm 2.7mm Lawn Mower Cable
US $0.10-$10.00
YY PVC Insulated and Sheathed Flexible Control Cable
- Category: Control Cables >>>
- Supplier: Henan Huadong Cable Co. Ltd.
Share on (1600537135694):
Product Overview
Description
Product Description

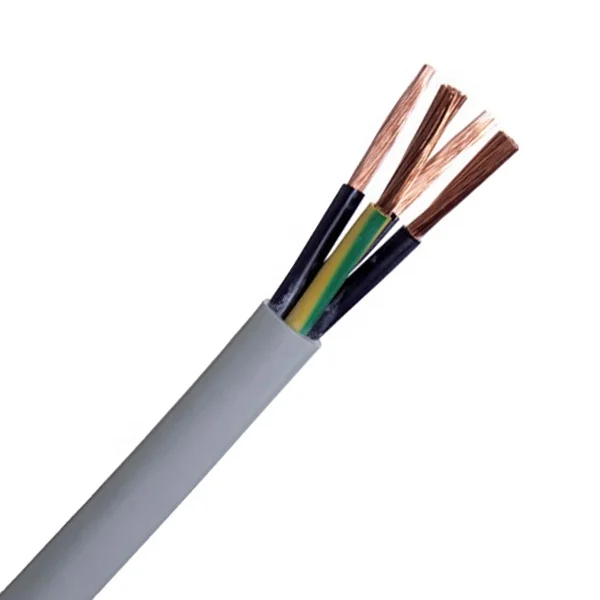

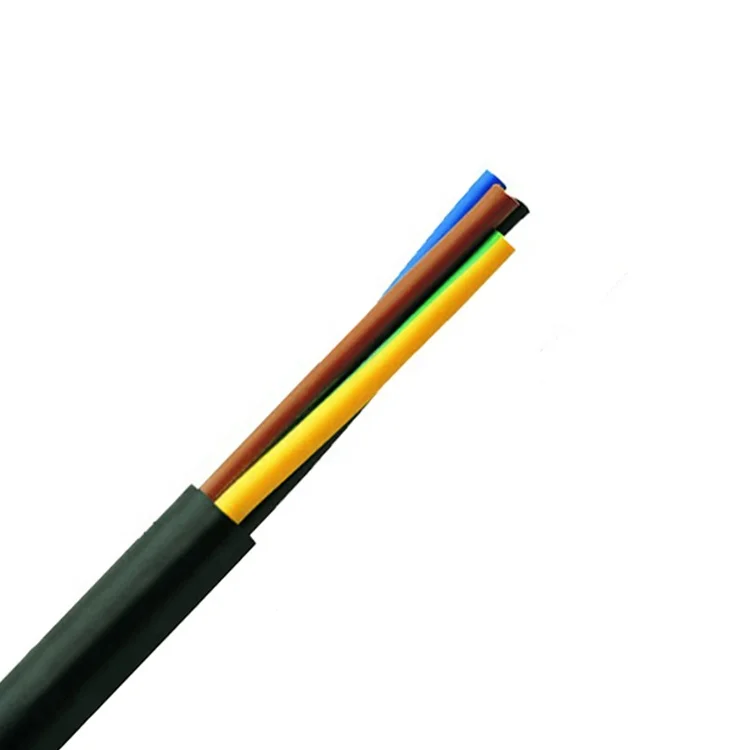

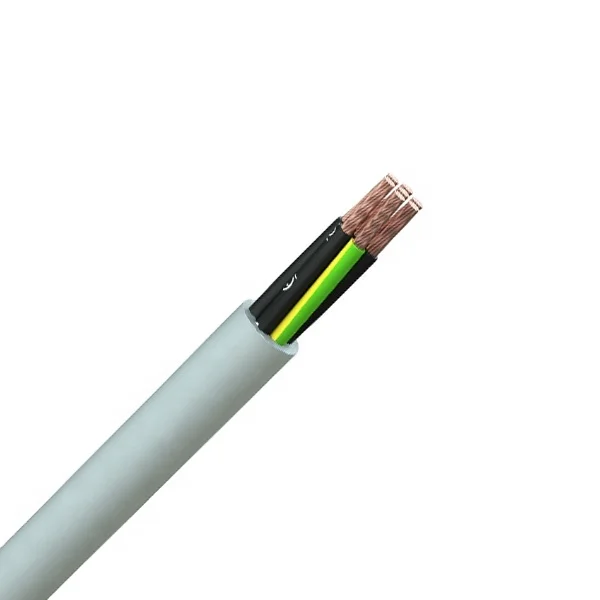

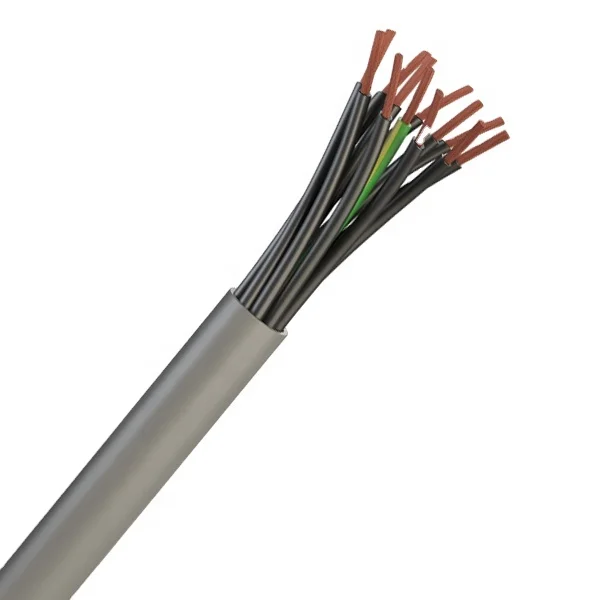

YY Control Cable
Plain Annealed Flexible Copper Conductors / PVC Insulated / PVC Sheathed.
300/500V
The cable is designed to be used as an interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.
Due to the flexibility of YY cable, electricians commonly use YY for linking fixed and mobile equipment. If protected correctly electricians have found that YY can be useful in outdoor projects - however it is recommended and most commonly used for indoor projects in dry or moist conditions.
Specifications
| Reference Number | Nominal Cross Sectional Area of Conductor (mm2) | Nominal Stranding of Conductor (mm) | Nominal Radial Thickness of insulation (mm) | Nominal Radial Thickness of sheath (mm) | Approximate Overall Diameter Lower Limit (mm) | Approximate Overall Diameter Upper Limit (mm) | Approximate Weight (kg/km) |
|---|---|---|---|---|---|---|---|
| YY0.752C | 0.75 | 24/0.2 | 0.5 | 0.6 | 4.8 | 6.8 | 49 |
| YY1.02C | 1.0 | 32/0.2 | 0.5 | 0.6 | 5.2 | 7.2 | 58 |
| YY1.52C | 1.5 | 30/0.25 | 0.5 | 0.6 | 5.8 | 7.8 | 72 |
| YY2.52C | 2.5 | 50/0.25 | 0.5 | 0.6 | 6.6 | 8.6 | 99 |
| YY0.53C | 0.5 | 16/0.2 | 0.5 | 0.6 | 4.7 | 6.7 | 48 |
| YY0.753C | 0.75 | 24/0.2 | 0.5 | 0.6 | 5.2 | 7.2 | 59 |
| YY1.03C | 1.0 | 32/0.2 | 0.5 | 0.6 | 5.6 | 7.6 | 70 |
| YY1.53C | 1.5 | 30/0.25 | 0.5 | 0.6 | 6.2 | 8.2 | 89 |
| YY2.53C | 2.5 | 50/0.25 | 0.5 | 0.6 | 7.0 | 9.0 | 125 |
| YY4.03C | 4.0 | 56/0.3 | 0.5 | 0.6 | 8.3 | 10.3 | 185 |
| YY6.03C | 6.0 | 84/0.3 | 0.5 | 0.8 | 10.3 | 12.3 | 256 |
| YY7103C | 10.0 | 80/0.4 | 0.6 | 0.8 | 12.6 | 14.6 | 443 |
| YY0.54C | 0.5 | 16/0.2 | 0.5 | 0.6 | 5.2 | 7.2 | 58 |
| YY0.754C | 0.75 | 24/0.2 | 0.5 | 0.6 | 5.7 | 7.7 | 74 |
| YY1.04C | 1.0 | 32/0.2 | 0.5 | 0.6 | 6.2 | 8.2 | 87 |
| YY1.54C | 1.5 | 30/0.25 | 0.5 | 0.6 | 6.8 | 8.8 | 111 |
| YY2.54C | 2.5 | 50/0.25 | 0.5 | 0.6 | 7.8 | 9.8 | 157 |
| YY4.04C | 4.0 | 56/0.3 | 0.5 | 0.6 | 9.3 | 11.3 | 240 |
| YY6.04C | 6.0 | 84/0.3 | 0.5 | 0.8 | 11.4 | 13.4 | 326 |
| YY7104C | 10.0 | 80/0.4 | 0.6 | 0.8 | 14.1 | 16.1 | 532 |
| YY7164C | 16.0 | 126/0.4 | 0.6 | 0.8 | 17.7 | 19.7 | 849 |
| YY7254C | 25.0 | 196/0.4 | 0.7 | 0.8 | 20.6 | 22.6 | 1275 |
| YY0.55C | 0.5 | 16/0.2 | 0.5 | 0.6 | 5.8 | 7.8 | 63 |
| YY0.755C | 0.75 | 24/0.2 | 0.5 | 0.6 | 6.3 | 8.3 | 80 |
| YY1.05C | 1.0 | 32/0.2 | 0.5 | 0.6 | 6.8 | 8.8 | 98 |
| YY1.55C | 1.5 | 30/0.25 | 0.5 | 0.6 | 7.6 | 9.6 | 127 |
| YY2.55C | 2.5 | 50/0.25 | 0.5 | 0.6 | 8.7 | 10.7 | 181 |
| YY4.05C | 4.0 | 56/0.3 | 0.5 | 0.6 | 10.3 | 12.3 | 267 |
| YY6.05C | 6.0 | 84/0.3 | 0.5 | 0.8 | 12.6 | 14.6 | 373 |
| YY7105C | 10.0 | 80/0.4 | 0.6 | 0.8 | 15.6 | 17.6 | 675 |
| YY7165C | 16.0 | 126/0.4 | 0.6 | 0.8 | 22.1 | 24.1 | 1067 |
Company Information
Henan Huadong Cable Co., Ltd. is a joint stock enterprise integrated in cable production, and domestic & international trade, founded in 2005, located in Xiuwu Industrial Zone, Jiaozuo and occupied 66,000 square meters, with advanced 20 sets equipments and 25 sets testing machines, annual production capacity is over 15 million kilometers. Our collaborated cocompany is Henan Huadong Cable Co., Ltd. located in Zhengzhou city, which is well-known for convenient transportation.
YY PVC Insulated and Sheathed Flexible Control Cable
We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced (ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-35kV power cables (including XLPE insulated cables, PVC insulated cables, SWA/STA a rmored cables), (XLPE/PVC insulated ABC cable), control cables, welding cables, rubber cables, mining cables and electrical wires (PVC sheathed flexible cable). These cables can be used for power transmission in air, underground and industry, such as power station, railway, agriculture, and estate. We strictly according to GB, IEC, BS, ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.
YY PVC Insulated and Sheathed Flexible Control Cable
We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia, Oceania countries. We are adhering reliable quality and professional service to make our Huadong Cable be famous in domestic and oversea. Thanks for your supporting and trusting! Huadong Cables welcomes your inquiry and visiting, we are at your service !
Quality Inspection
Packaging & Shipping
Trade Shows
Certifications
FAQ
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
