HD Veterinary fiber gastroscope Colonoscope video endoscope all in one machine
- Category: >>>
- Supplier: Wuhan Easy Vision Technology Co. Ltd.
Share on (1600537143159):
Product Overview
Description
Product Overview
Medical fiber HD Resolution Video Gastroscope and Colonoscope
Application: Gastroscopy, Colonoscopy, Gastrointestinal
Our Advantages
1. EMV-3000S Electronic Endoscope Image Processing Cold-Light Source Integrated Machine is applied to electronic endoscope, can support Rigid endoscopy connection too.
2. The image processor transforms the input analog signals into digital signals by sampling, and then converts it into analog video signal output through gaining, vascular enhancement, freezing and playback of digital signals.
3. The image processor has adjustable color and brightness, with the functions like manual white balance, gain, image freeze and playback. And the authentic images can be obtained by working together with the electronic endoscope.
2. The image processor transforms the input analog signals into digital signals by sampling, and then converts it into analog video signal output through gaining, vascular enhancement, freezing and playback of digital signals.
3. The image processor has adjustable color and brightness, with the functions like manual white balance, gain, image freeze and playback. And the authentic images can be obtained by working together with the electronic endoscope.
Specifications

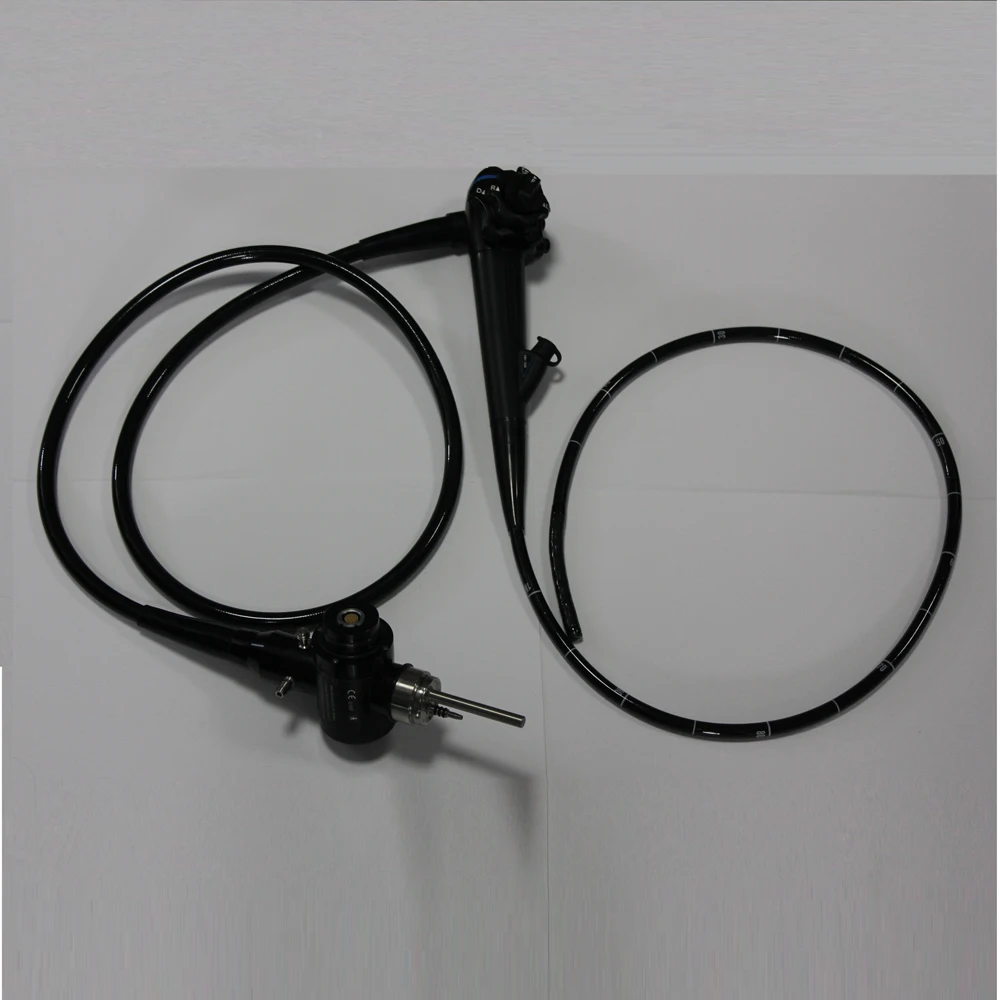

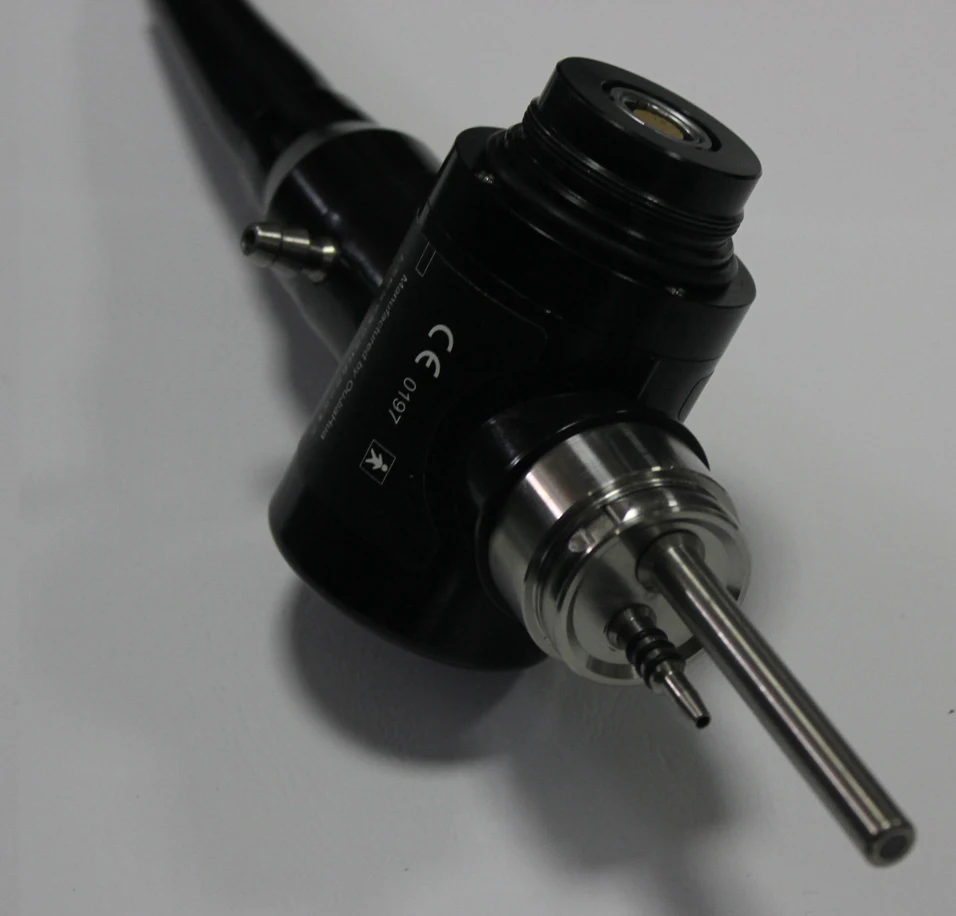

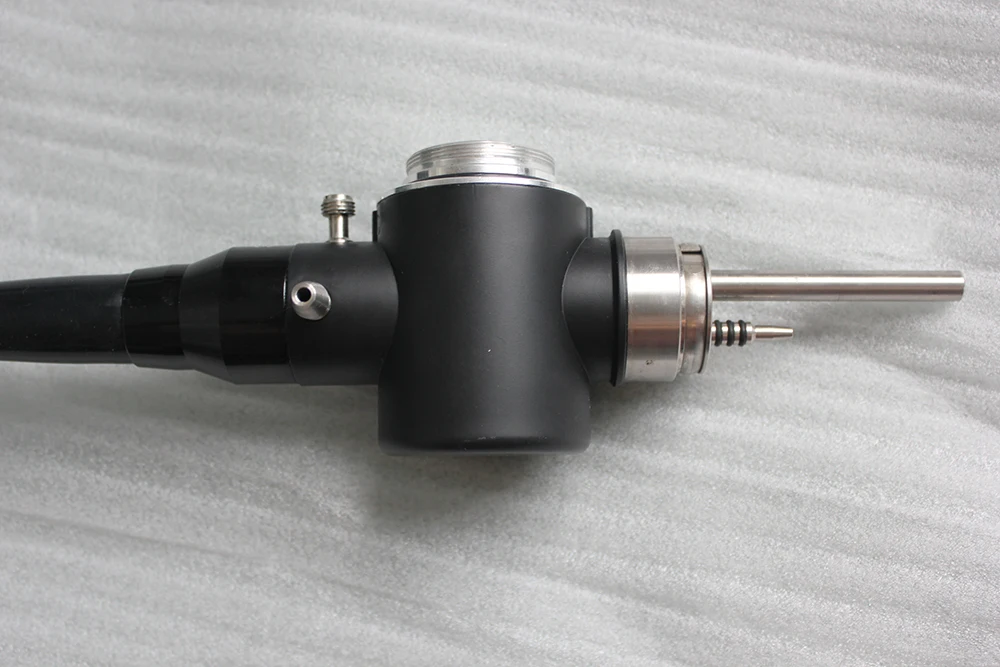

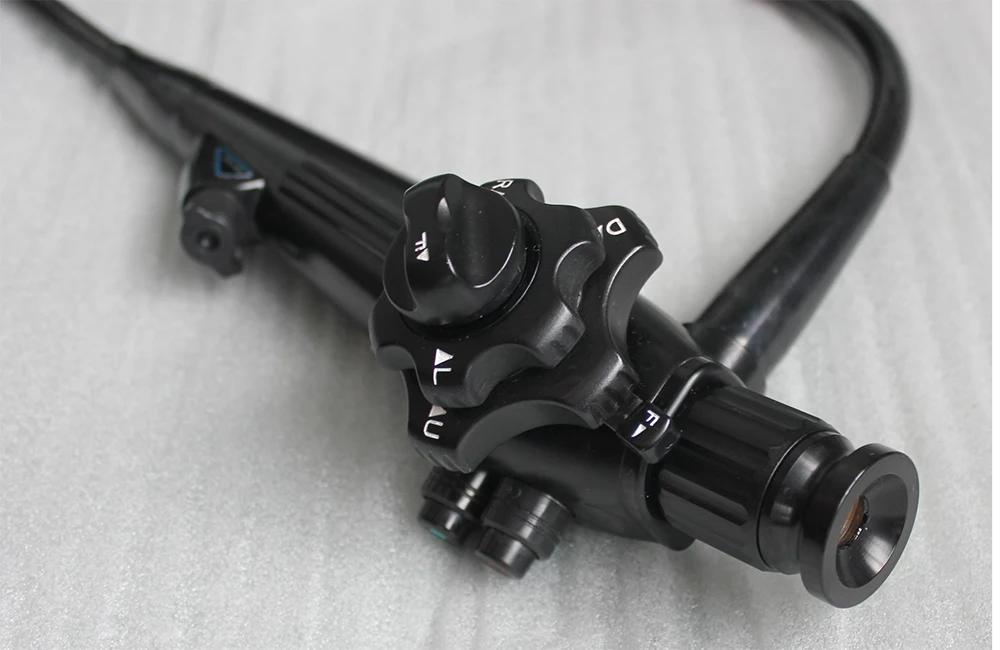

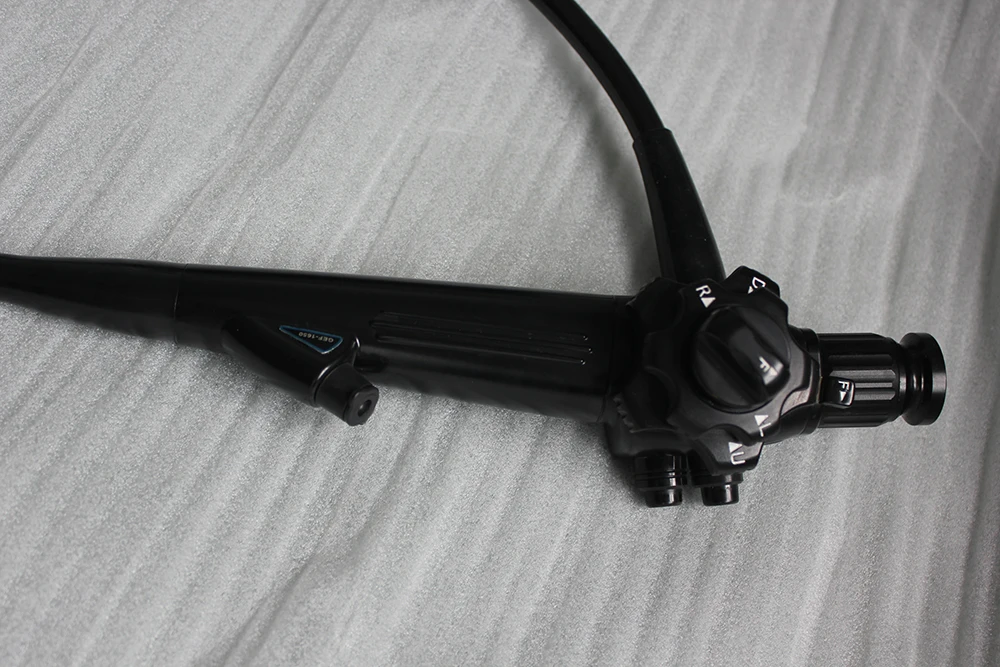

About the Gastroscope&Colonoscope | ||||
Item | Video Colonoscope | Video Gastroscope | ||
Diameter of distal- end | Φ13.0mm | Φ9.8mm | ||
Diameter of insert tube | Φ12.8mm | Φ9.6mm | ||
Clamp aperture | Φ 3.8mm | Φ2.8mm | ||
Working length | 1330mm | 1030 mm | ||
Total length | 1630mm | 1330 mm | ||
View of field | 140 º | |||
Depth of view | 3-100mm | |||
Resolution | Sony 480,000 Pixels high resolution Photosensitive 1/6 CCD | |||
Tip deflection | up 180° down 180°L/R 160° | up 210° down 90° L/R 100° | ||
Notice | The technical specs above are adjustable | |||

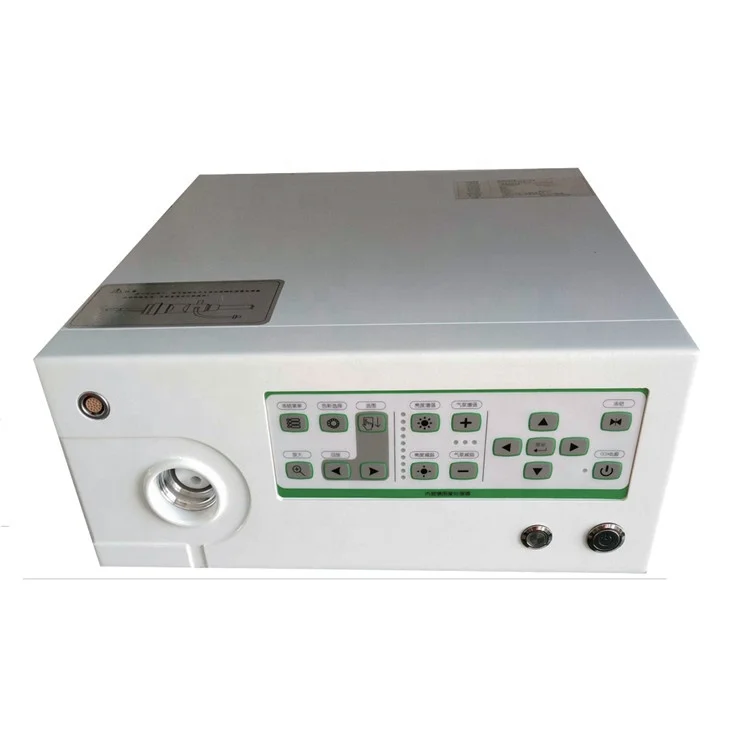

Image Processor with Built-in LED Light Source | ||
Lamp | LED light (80W white) | |
Power | 220-240V; 50-60HZ | |
Illuminance | ≥200,000 lx | |
Color temperature | ≥5300K | |
Video signal output | CVBS , S-VIDEO , RGB , DVI | |
Sharpness adjustment | 0-30 grade | |
Brightness adjustment | 0-10 grade | |
Color setting | Red , Blue (0-128 grade) | |
White balance | Auto white balance/ Manually white balance | |
Gain function | 1-5 grade | |
Air pump pressure | 30-60Mpk | |
Air flow | 4-10 L/min | |
Image mode | Horizontal / Vertical image | |
Metering mode | Peck metering / average metering | |
Image enhancement | 1-4 grade | |
Main Function | Support vascular enhancement function | |
16 pcs Image frozen and playback and images can be saved in SD card directly | ||
Main Function | Personalized parameter storage and adjustment function | |
Rigid & flexible endoscopy connection | ||
Details Images
