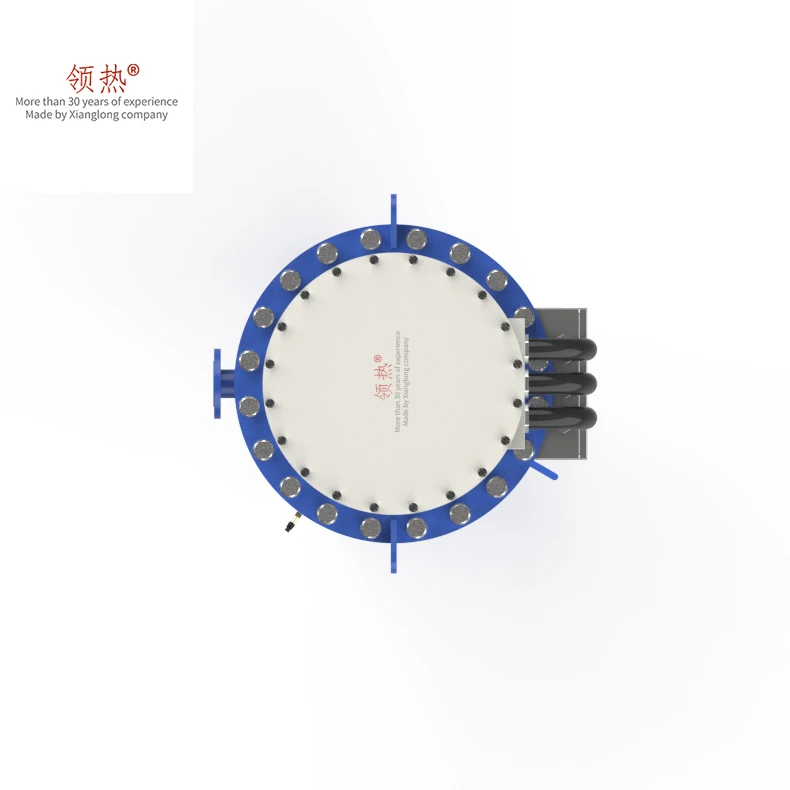

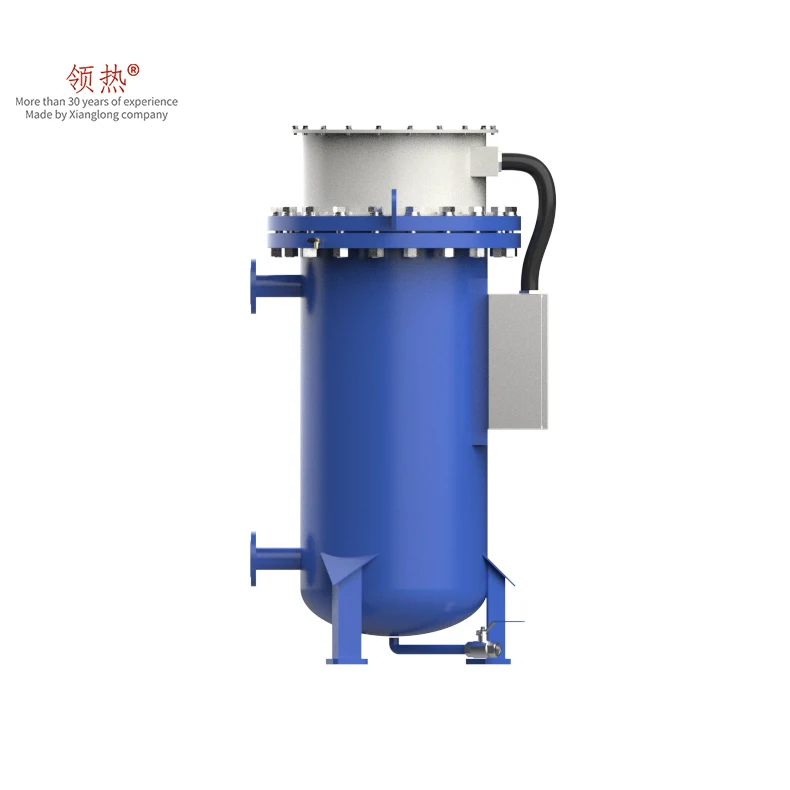

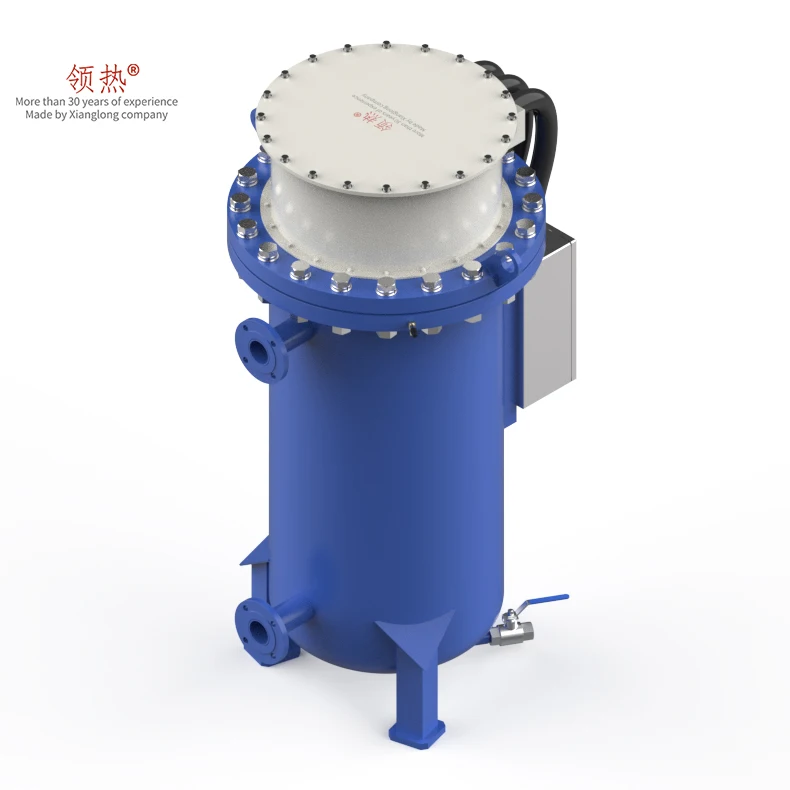

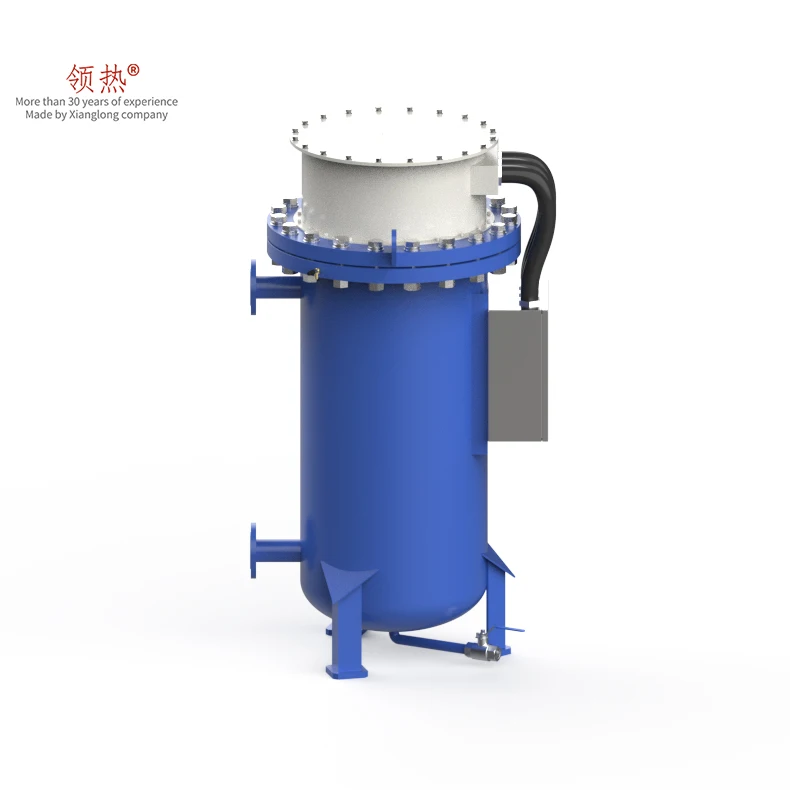

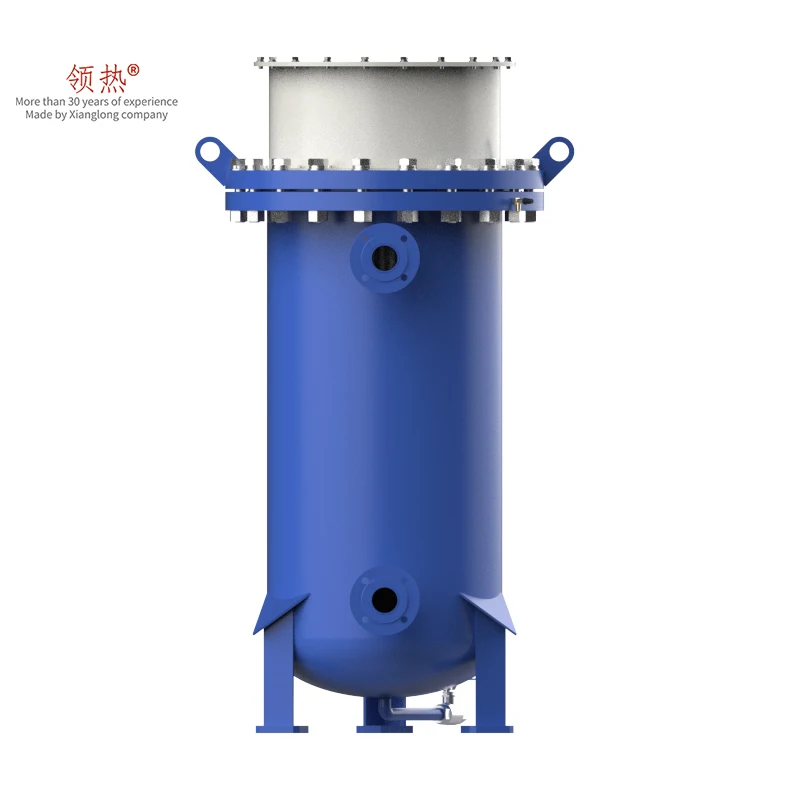

manufactory direct 191KW horizontal electric industrial thermal oil circulation heaters liquid gas heater
- Category: >>>
- Supplier: Yangzhong Xianglong Electrical Equipment Co. Ltd.
Share on (1600537144567):
Product Overview
Description
PRODUCT DETAILS
Model | XL-600-690/191-3 | Power（KW） | 191 |
Voltage（V） | 690 | Wiring Form | Y Type |
Frequency（Hz） | 50/60 | Cold Insulation Resistance(Ω) | ≥5 |
Wiring Group | 3 | Over-temperature Protection Switch (yes/no) | Thermocouple |
Total Current（A） | 159.82 | Per Group Current（A） | 53.27 |
Interphase Resistance(Ω) | 14.96 | Surface Load(W/cm²) | 1.47 |
Heating Medium | ISOVG220 Lubricants | Material of Heating Tube | S30408 |
Standard of Flange | HG/T 20592-2009 DN600 PN25 | Material of Flange | S30408 |
Design Pressure（Mpa） | 1.6 | Operating Pressure（Mpa） | 1.6 |
Design Tempreture（℃） | 100 | Operating temperature（℃） | 50 |
Protection Grade | IP55 | Explosion-proof Grade | / |
Design Standards | JB/T 2379-2016 | Heating Tube Diameter（mm） | 16 |
Length of Heating Tubes Under The Flange（mm） | 1050 | Cold Zone Length of Heating Tubes Under The Flange（mm） | 200 |
Center Distance of Heating Tube（mm） | 50 | Quantity of Heating Tubes（支） | 150 |
Product Dimensions For Reference（mm） | 1750*1150*950 | Weight For Reference（KG） | / |
INTRODUCTION OF CIRCULATION HEATERS:
We have two types:
horizontal circulation heaters and vertical circulation heaters.
And their differences are the ways of installation.
And their differences are the ways of installation.
Circulation heater are composed of flange or a screw plug immersion heater and a pressure vessel or a pipe body . The liquid and gas can go through the tank by inlet and outlet to reach designed temperature.
ADVANTAGES-1
Circulation heaters are the perfect solution for generating heat and enhancing normal immersion heaters performance. They are designed to heat pressurized circulating fluids to provide effective, controlled heating to water, oil, steam and other gases.
ADVANTAGES-2
Smaller size, same power rating, faster heating rate，long service life and high efficiency compared to conventional heaters.
ADVANTAGES-3
There are many options for the electrical protection device of the heater, they are respectively ( outdoor, explosion-proof area, Acidic and basic capacity environment, etc.).
ADVANTAGES-4
Special sizes, power and materials are available upon request.
PRODUCT INSTALLATION AND USAGE FIELDS
APPLICATION:
The main application occasions of circulation heaters are:
1.Chemical industry of chemical materials heating.
2.Hydrocarbon heating, including petroleum crude oil, heavy oil, fuel oil, heat conduction oil, lubricating oil, stone wax, etc
3.Process water, superheated steam, molten salt, nitrogen (air) gas,
4.Due to the use of advanced explosion-proof structure, the equipment can be widely used in chemical industry, military industry, oil, natural gas, offshore platforms, ships, mining areas and other explosion-proof sites.
1.Chemical industry of chemical materials heating.
2.Hydrocarbon heating, including petroleum crude oil, heavy oil, fuel oil, heat conduction oil, lubricating oil, stone wax, etc
3.Process water, superheated steam, molten salt, nitrogen (air) gas,
4.Due to the use of advanced explosion-proof structure, the equipment can be widely used in chemical industry, military industry, oil, natural gas, offshore platforms, ships, mining areas and other explosion-proof sites.
