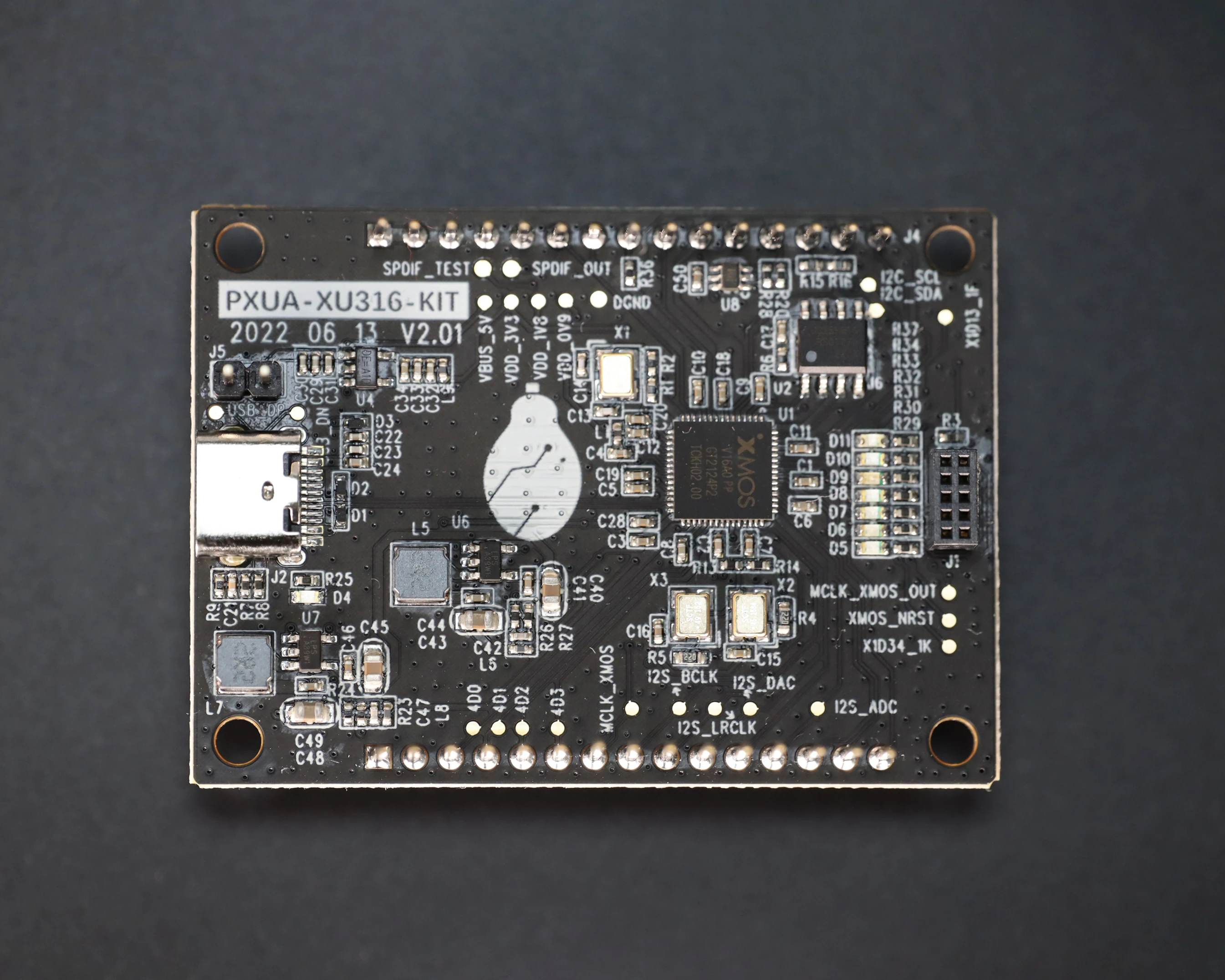

  • [XMOS]PXUA XU316 KIT Board, USB Audio HiFi Sound Card Solution for HiFi Res Audio & Audio decoder
[XMOS]PXUA XU316 KIT Board, USB Audio HiFi Sound Card Solution for HiFi Res Audio & Audio decoder
[XMOS]PXUA-XU316-KIT Board, USB Audio HiFi Sound Card Solution for HiFi-Res Audio & Audio decoder
[XMOS]PXUA-XU316-KIT Board, USB Audio HiFi Sound Card Solution for HiFi-Res Audio & Audio decoder
[XMOS]PXUA-XU316-KIT Board, USB Audio HiFi Sound Card Solution for HiFi-Res Audio & Audio decoder
[XMOS]PXUA-XU316-KIT Board, USB Audio HiFi Sound Card Solution for HiFi-Res Audio & Audio decoder
[XMOS]PXUA-XU316-KIT Board, USB Audio HiFi Sound Card Solution for HiFi-Res Audio & Audio decoder
[XMOS]PXUA-XU316-KIT Board, USB Audio HiFi Sound Card Solution for HiFi-Res Audio & Audio decoder

[XMOS]PXUA XU316 KIT Board, USB Audio HiFi Sound Card Solution for HiFi Res Audio & Audio decoder

Share on (1600537158612):


Price:$60.00 - $75.00

Quantity:


Product Overview

Description



Products Description

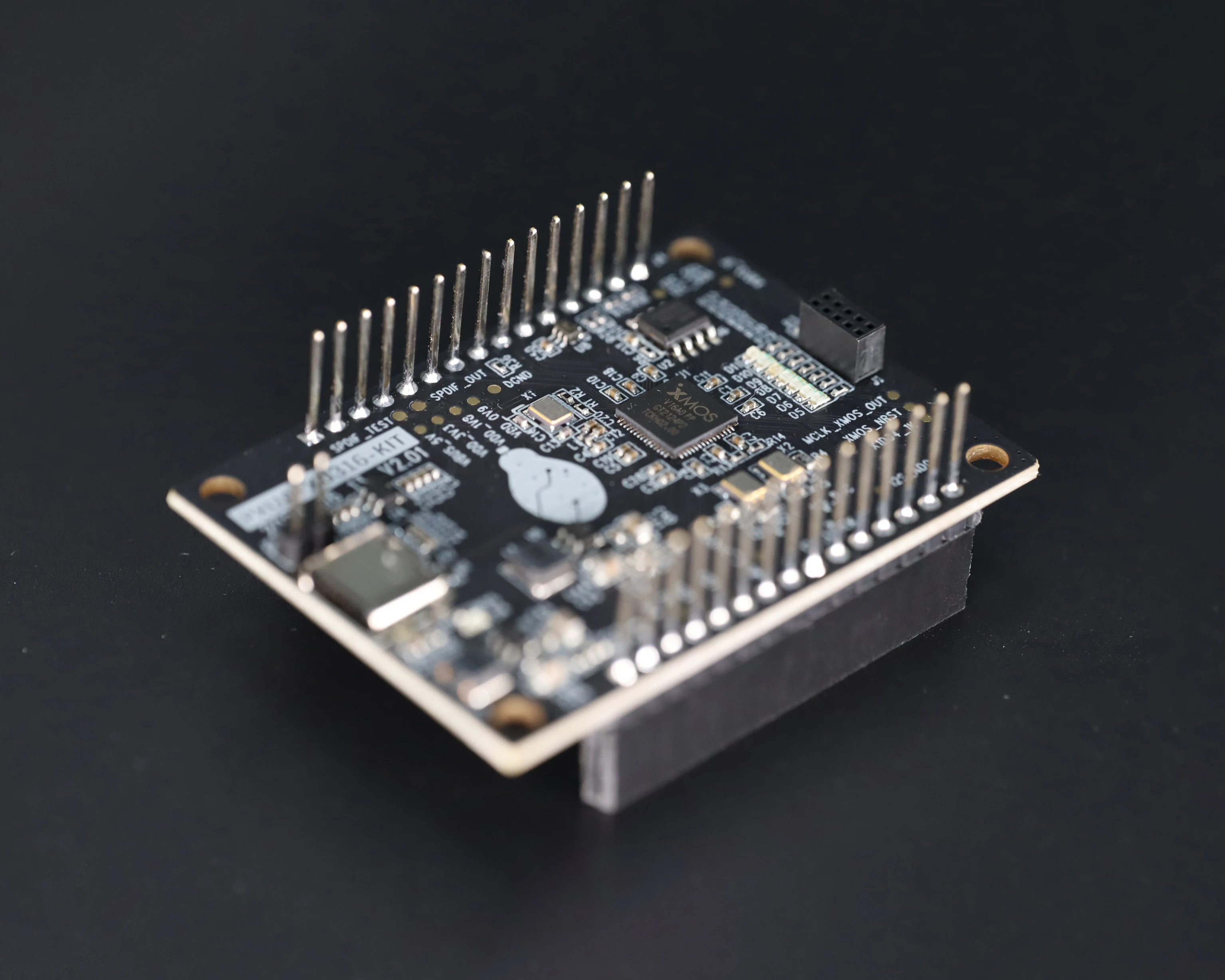

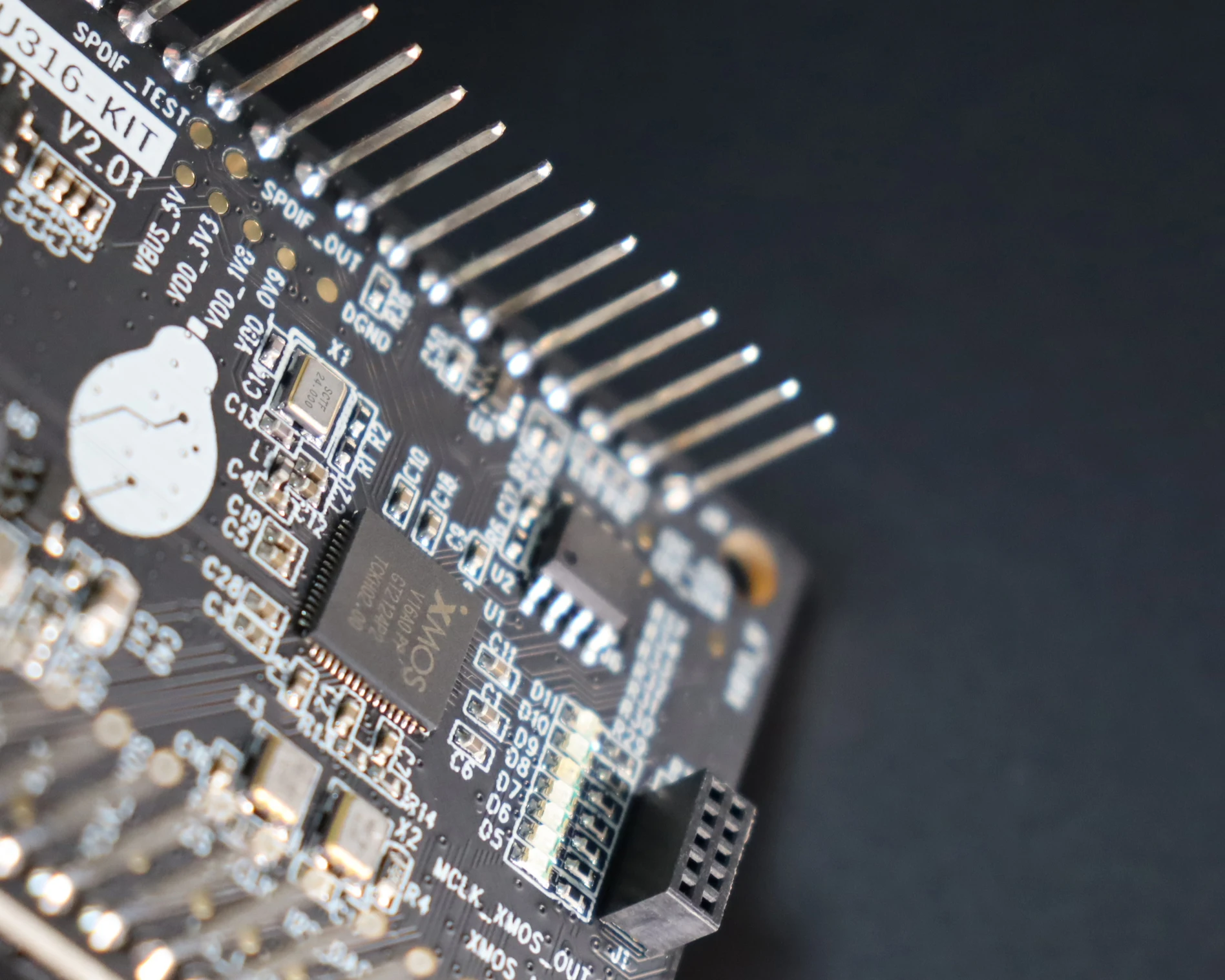

PXUA-XU316-KIT Overview

XMOS USB Audio HiFi sound card is the leader in the audio field with features including excellent USB compatibility, HD decoding, low latency, low jitter, and high flexibility to achieve stable PCM 768KHz, DSD 512 high specification HiFi performance requirements.

The XMOS USB Audio solution offers USB AUdio sound card devices compatible with both full-speed and high-speed USB 2.0 interfaces. The PXUA-XU316-KIT evaluation board supports UAC 2.0 and UAC 1.0; in USB 2.0 asynchronous mode, it is capable of supporting sample rates up to 768 KHz.

View more: https://www.pawpaw.cn/solutions/XMOS-USB-HiFi-Audio/




Usage Guide

The PXUA-XU316-KIT is an XMOS USB Audio high performance and multi-functional evaluation board, which mainly implements UAC 2.0(USB Audio Class 2.0) output with HD resolution audio. PXUA-XU316-KIT evaluation board is an XMOS USB AUDIO high performance solution based on XMOS chip XU316-1024-QF60B-PP24.

Login to Pawpaw Technology website to see more：
https://docs.pawpaw.ltd/docs/docs/PXUA-XU316-KIT/PXUA-XU316-KIT_usage





Features

● Support USB Audio Class 2.0 (UAC 2.0)

- USB 2.0 (Full-speed and High-speed)

- USB Audio Class 1.0

- USB Audio Class 2.0

- USB Firmware Upgrade (DFU)

- USB Midi Device Class 1.0

● Support multiple audio interfaces

- I2S/TDM

- S/PDIF

- ADAT

- Direct Stream Digital (DSD)

- MID
● Multiple audio sample rates supported

- PCM: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768KHz

- DSD: DSD 64 ,DSD 128, DSD 256,

- DOP: DOP 64 ,DOP 128

● UAC 2.0 protocol

- support ASIO
- support multiple operating systems such as Windows , Linux , Android , MAC OS and IOS etc.



Specifications


Main chip
XU316-1024-QF60B-PP24
QSPI Flash
UC25HQ16
Power
USB 5V
Size
41mm x 57 mm
Power Consumption
5V, 120mA (Max)
UAC 2.0 Audio Transmission
USB UAC 2.0 asynchronous mode
Sample rate
up to 768 KHz
Brand Name
Pawpaw
OEM/ODM
Highly Welcome
Custom
Other size PCBA
Product type
PCBA

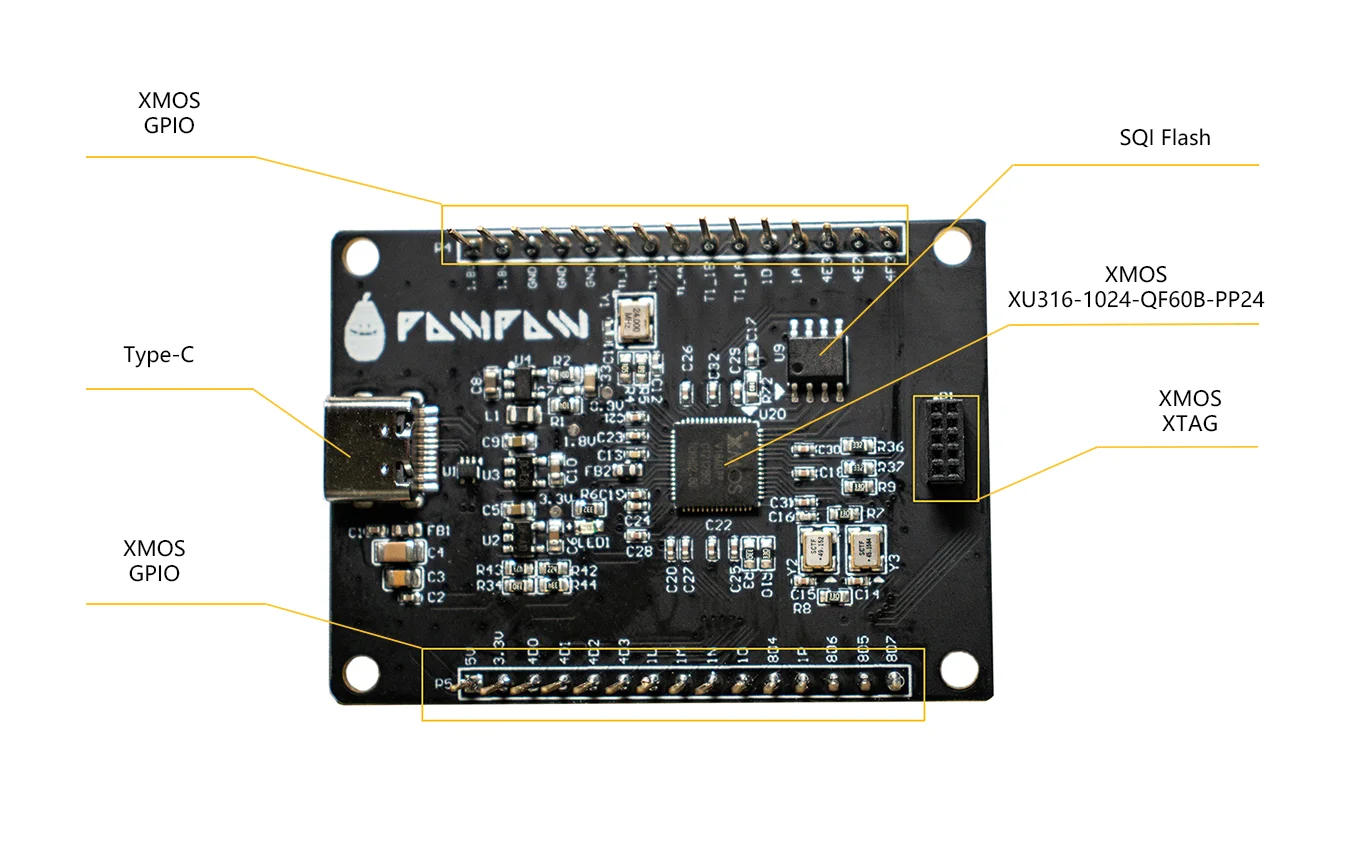

Hardware Overview

● XMOS XU316-1024-QF60B-PP24 : Integrated USB PHY; 16 logic cores, 1MB SRAM ( 512KB per tile)

● USB: 5V power supply, UAC 2.0 Audio, DFU interface

● SQI Flash: UC25HQ40, storing XU316 firmware

● XMOS XTAG: XMOS dedicated debug tool XA-XTAG interface with 2x5 1.27mm terminal design

● XMOS GPIO: XU316 extended GPIO for I²S/TDM, DSD, MIDI, etc.

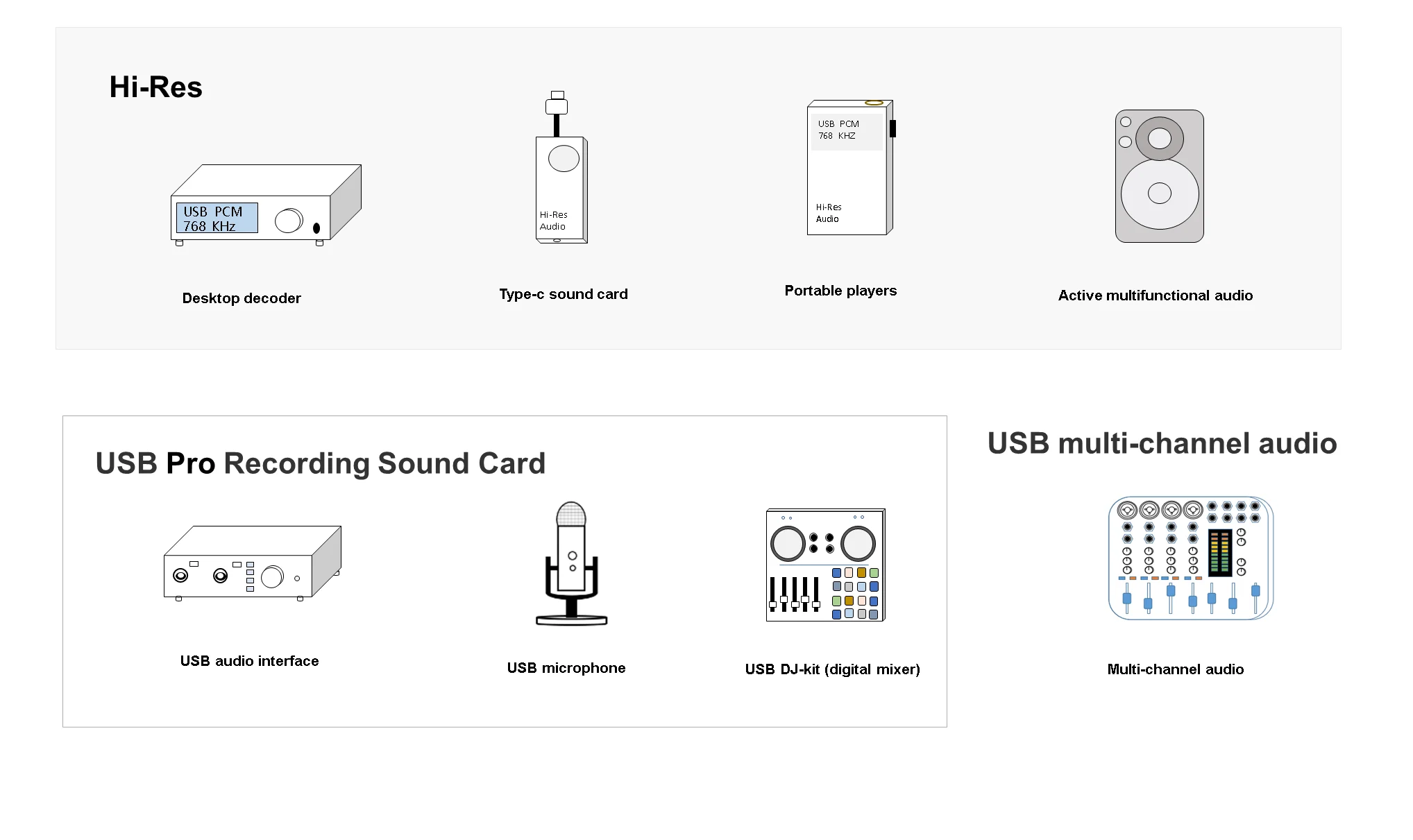

Applications

The PXUA-XU316-KIT can be used for the evaluation of various project solutions such as HiFi sound cards, USB multi-channel audio, MQA decoding.Hi-Res, USB Pro Recording Sound Card.




Packing information: PXUA316-KIT*1, USB cable*1
