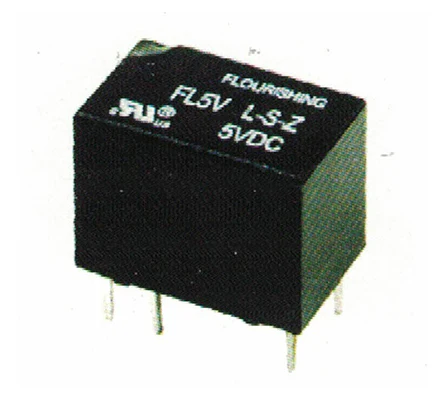

Telecom relay 2A 3V 5V 6V 9V 12V 24V 1C relay for computer peripherals video recording security applications FL5V ROHS
- Category: >>>
- Supplier: Ningbo V-Star Imp.&Exp. Co. Ltd.
Share on (1600537165505):
Product Overview
Description
Products Description
◆ Outline LXWXH
29.5X13X20.6
◆ Features:
1.Designed for thermostat modem,computer
peripherals,video recording and security
applications
2.Surge Strength 15000VFCC68
3.Low coil power requirement for IC
compatibility
4.Terminals arranged on gird pattern
5.Designed for compact, high density
mounting
◆ CONTACT DATA | ||||||||
Contact Form | 1C | |||||||
Contact Material | Silver Alloy | |||||||
Contact Ratings | 2A 120AC / 2A 24VDC | |||||||
Max Switching Voltage | 125VAC / 60VDC | |||||||
Max Switching Current | 2A | |||||||
Contact Resistance | 100mΩ (at 1A 6VDC) | |||||||
Contact Life | 1X105Ops (30Ops/min) | |||||||
Electrical Life | 1X107Ops (300Ops/min) | |||||||
◆ GENERAL DATA | ||||||||
Insulation Resistance | 100mΩ , 500VDC | |||||||
Dielectric Strength | Between coil and contacts | 1000VAC 1min | ||||||
Between open contacts | 400VAC 1min | |||||||
Operate Time | Max. 5ms | |||||||
Release Time | Max. 5ms | |||||||
Temperature Range | -30℃ to +70℃ | |||||||
Shock Resistance | Functional | 98m / s2 (10g) | ||||||
Destructive | 980m / s2 (100g) | |||||||
Vibration Resistance | 10 to 55HZ 1.5mm | |||||||
Humidity | 35% to 85% RH | |||||||
Weight | Approx . 2.2g | |||||||
Safety Standard | CUL on pending | |||||||
◆ COIL DATA | ||||||||||||
Norminal Voltage (VDC) | Coil Resistance at 20℃±10%（Ω） | Max Operate Voltage | Min Release Voltage | Max Applicable Voltage | ||||||||
0.15W | 0.2W | 0.36W | VDC | VDC | VDC | |||||||
3 | 60 | 45 | 25 | 2.25 | 0.3 | 3.9 | ||||||
5 | 167 | 120 | 70 | 3.75 | 0.5 | 6.5 | ||||||
6 | 240 | 180 | 100 | 4.50 | 0.6 | 7.8 | ||||||
9 | 540 | 400 | 220 | 6.75 | 0.9 | 11.7 | ||||||
12 | 960 | 720 | 400 | 9.00 | 1.2 | 15.6 | ||||||
24 | 3840 | 2880 | 1600 | 18.00 | 2.4 | 31.2 | ||||||

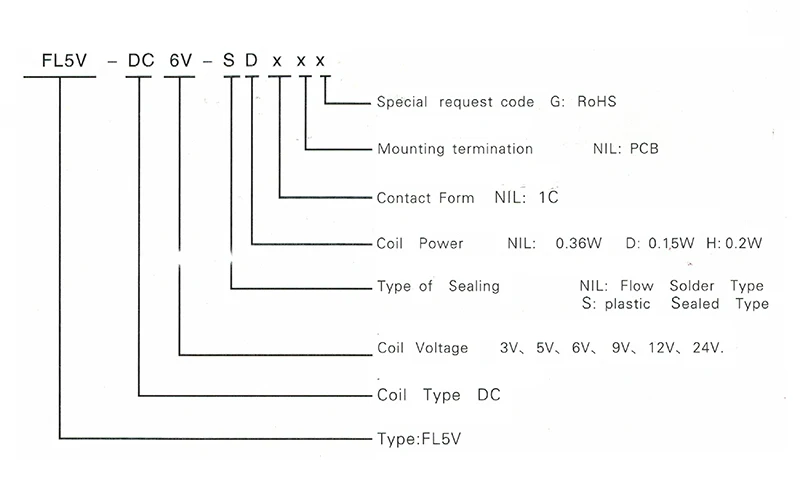

ORDERING INFORMATION

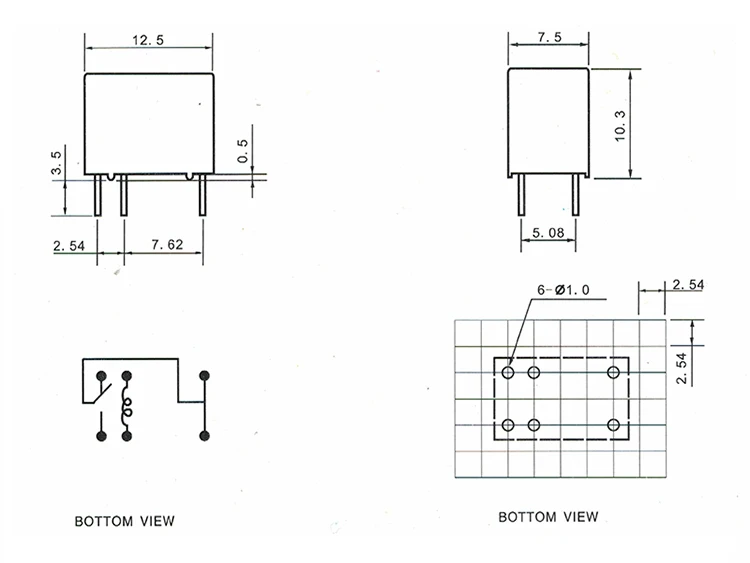

OUTLINE DIMENSIONS , WIRING DIAGRAM AND PC BOARD LAYOUT

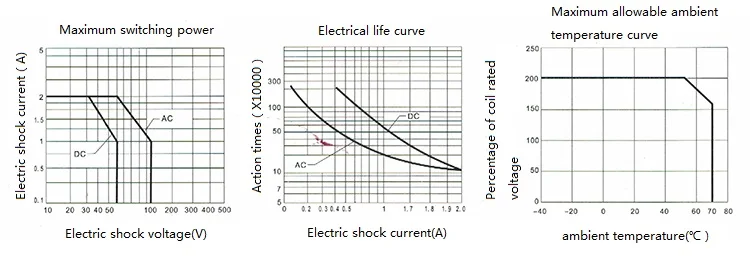

REFERENCE DATA

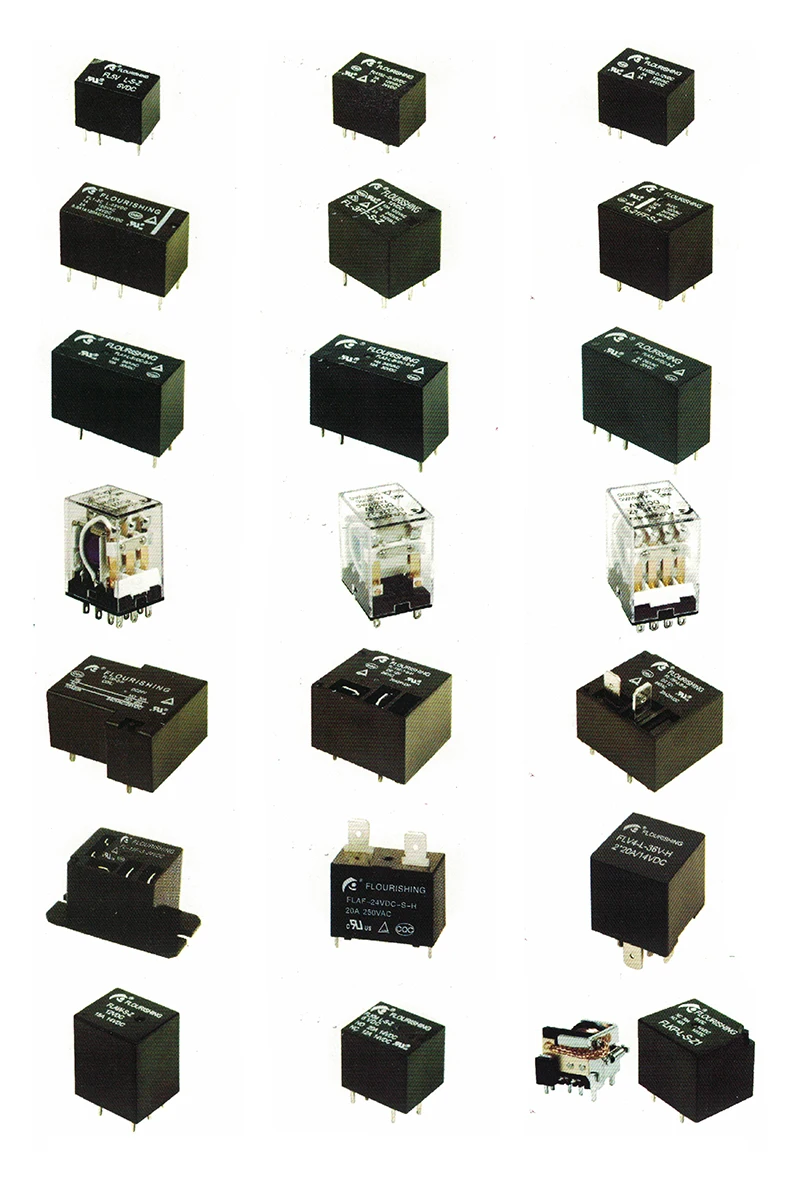

MAIN PRODUCTION
Workshop
Shipment & Packing
FAQ
Q1: Are you Factory?
A1:We are a Manufacturers and traders, we have our own factories.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
A1:We are a Manufacturers and traders, we have our own factories.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
