Product Overview

Description

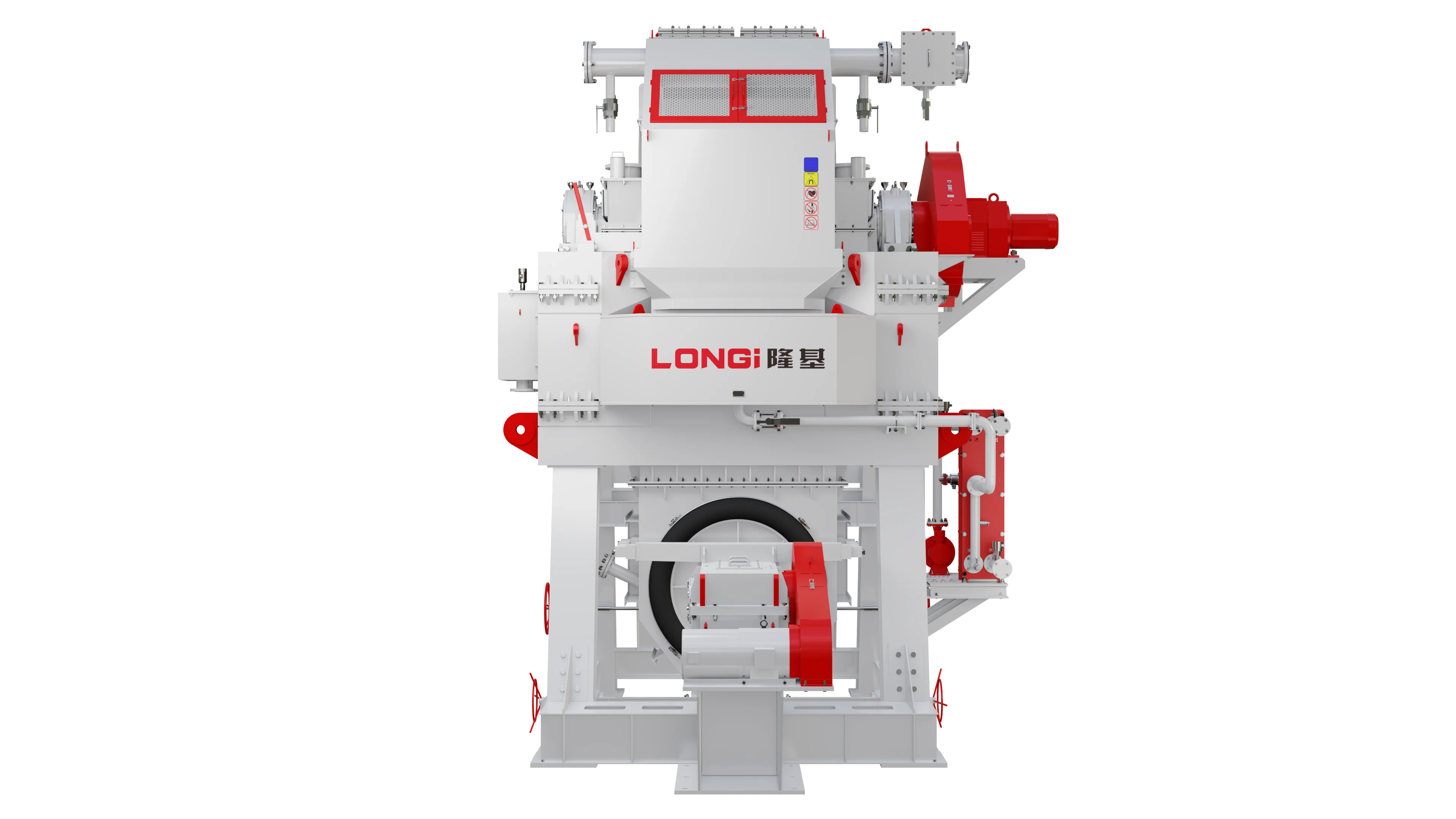

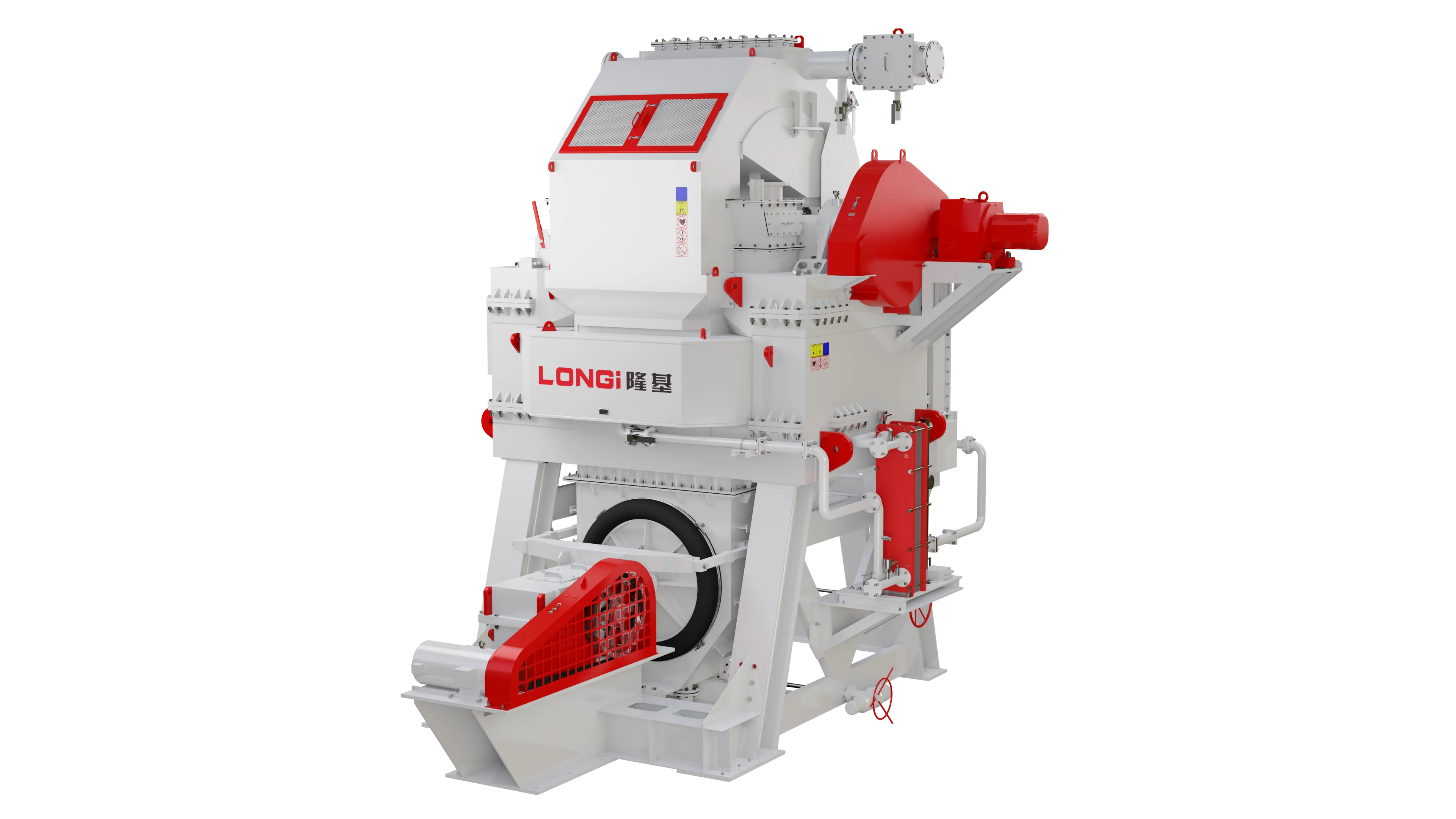

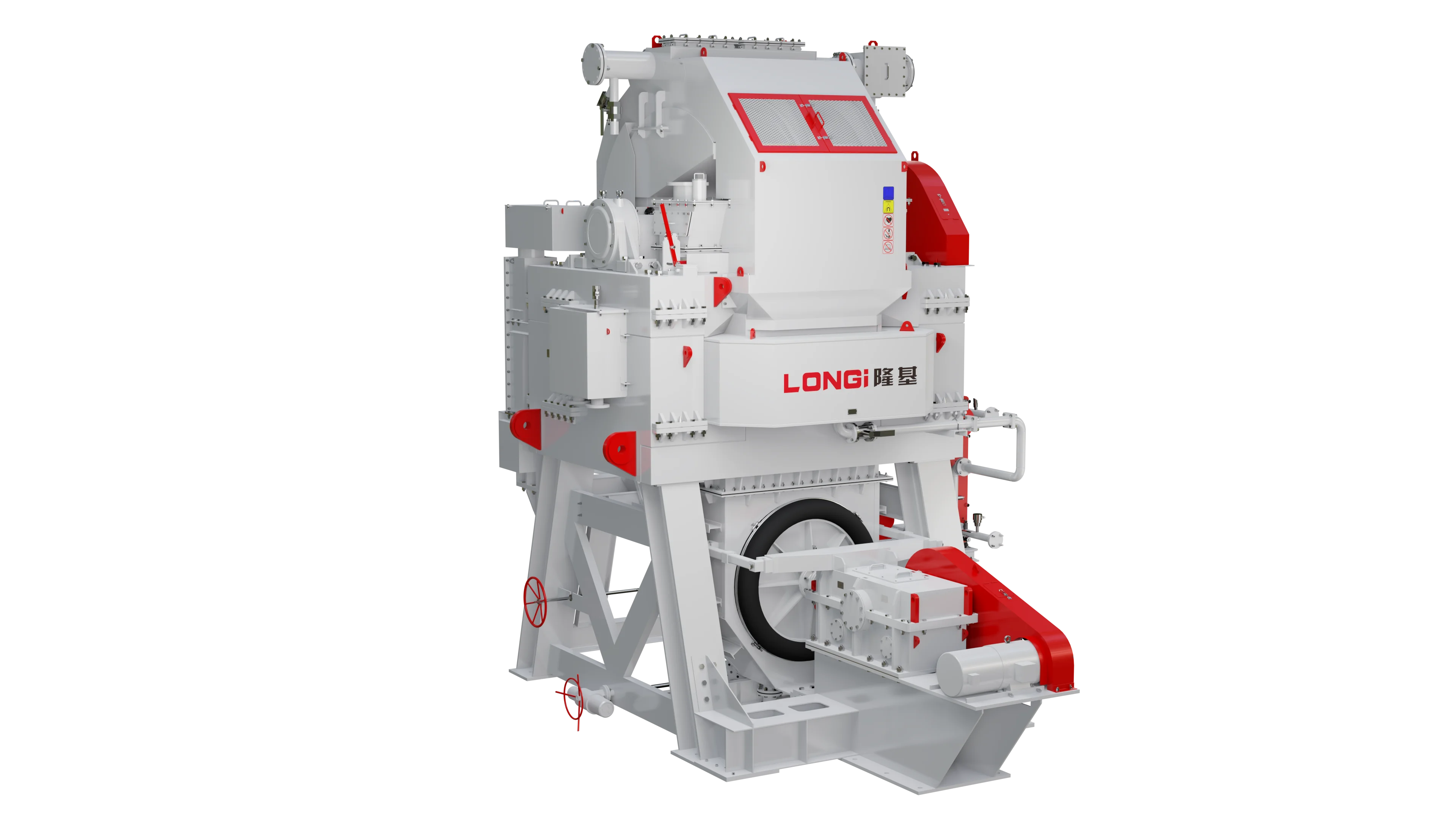

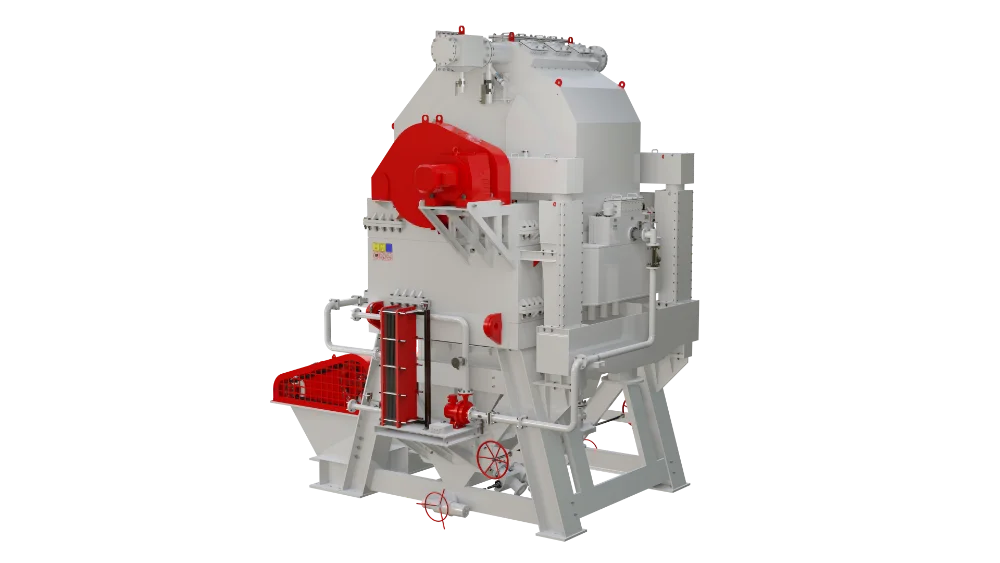

In the feldspar separation application, LONGi wet high intensity magnetic separator has incomparable advantage, It can effectively remove weak magnetic iron and associated weak magnetic impurities contained in the pulp And according to the feldspar mineral properties and customer needs, to provide a customized solution of separation medium, to meet customer whiteness requirements of concentrate.





LGS-1500
Q
LGS-1750
Q
LGS-2000
Q
LGS-2250
Q

LGS-2500
Q
LGS-3000
Q
LGS-3500
Q

LGS-4000
Q
Capacity（Solid）
t/h
10~15
15~25
25~40
35~55
50~75
75~125
110~175
150~240
Capacity（pulp）
m³/h
50~100
75~150
100~200
150~270
200~400
350~650
430~850
600~1200
Excitation power
（kw）
≤45
≤52
≤42（58）
≤50（68）
≤58（76）
≤74（98）
≤98（115）
≤115
（132）
Particle size（mm）
-1mm
-1mm or smaller than -3mm
-1mm or smaller than -3mm
-1mm or smaller than -4mm
-1mm or smaller than -4mm
-1mm or smaller than -5mm
-1mm or smaller than -5mm
-1mm or smaller than -6mm








Wet High Intensity Magnetic Separator for Feldspar is vital equipment in the flow to process the feldspar. The proposed processes combine the typical process of crushing, grinding and classifying, attrition scrubber, with the wet high intensity magnetic separator (WHIMS) and the direct flotation of feldspar. WHIMS is used to remove muscovite, biotite and garnet which are the causes of high Fe-content. The results showed that efficient separation of Fe-bearing minerals could be achieved by WHIMS in thecommercial scale and create the environmental friendly manner.LONGi cooperate with the customer again. There are 9 units wet high intensity magnetic separators and 4 units wet drum magnetic
separators operating on the site for many years, we have received stable and high efficient performance and perfect index data result, we won the customer’s believe, and the customer decided to enlarge the capacity of the project this time，the purchasesLONGi LGS-4000 wet high intensity magnetic separator and CTN-1550 wet drum magnetic separator.








Compared with common models, the processing capacity of 4 meters vertical ring high intensity magnetic separator is greatly improved, and the capacity of a single pulp can reach 1200m³/h, which is energy saving and efficient, greatly reducing the processing cost, and fully meeting the needs of large processing capacity purification of separation plant.
Larger model, transportation, installation also put forward greater challenges. LONGi 4 meters vertical ring high intensity
magnetic separator optimized the whole machine structure, using modular split design, transportation, installation is more
convenient.
