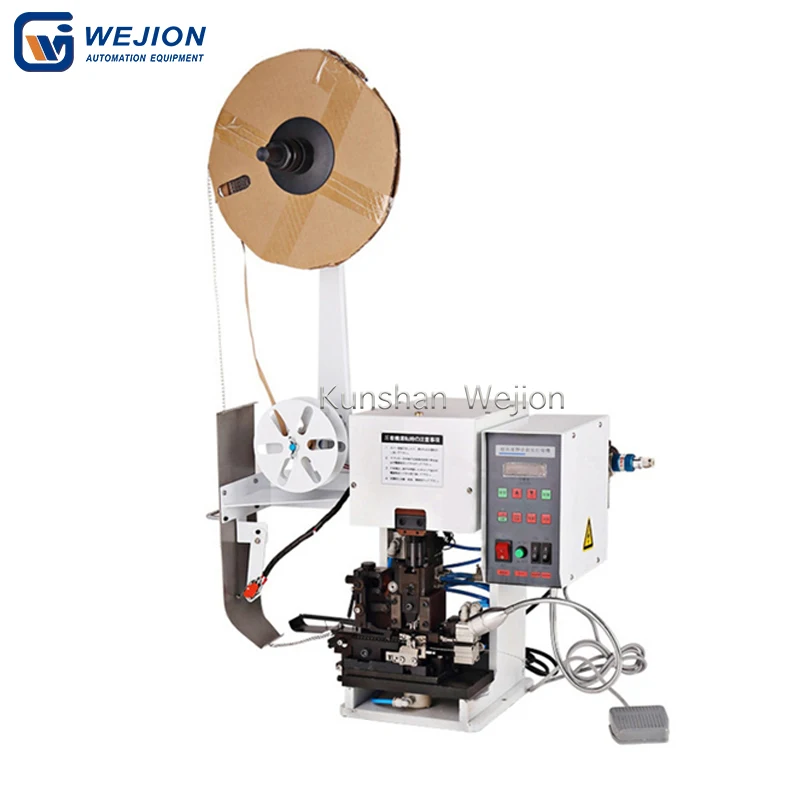

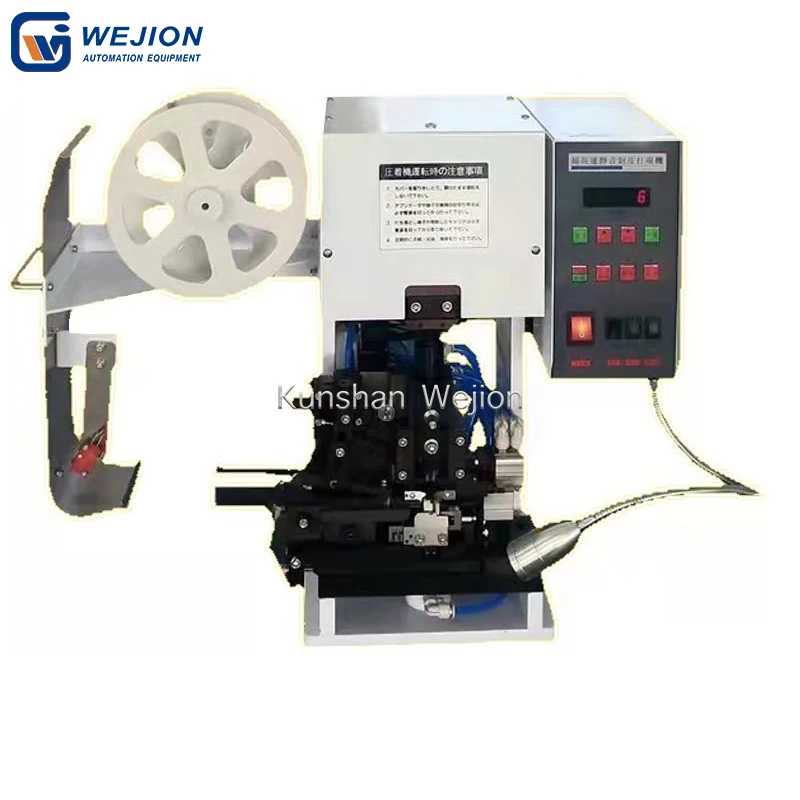

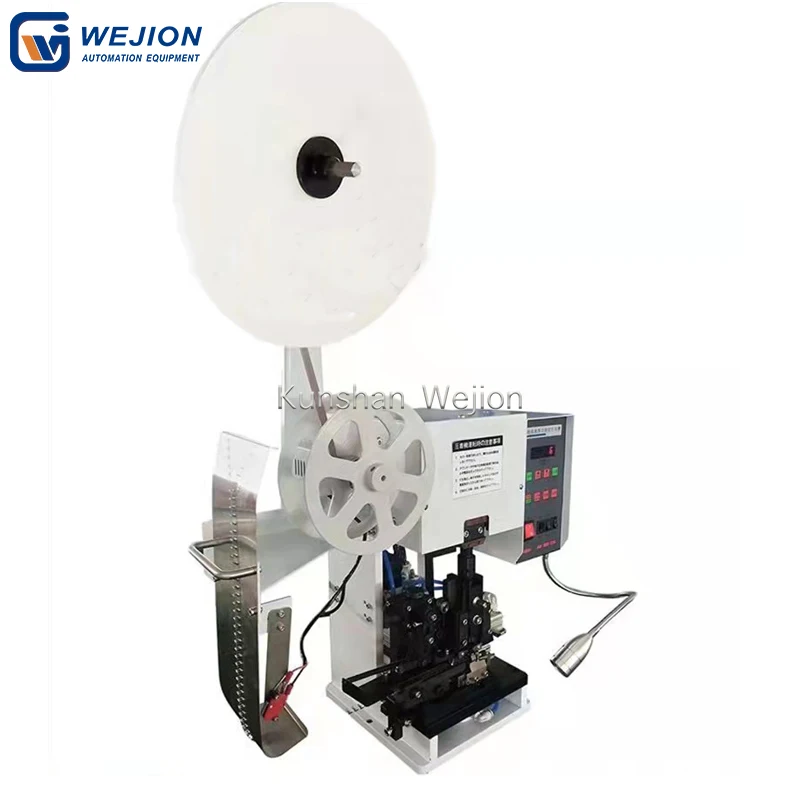

2269 Automatic wire stripper and crimper tool wire stripping and terminal crimping machine Molex JST 1.5T 2T 3T (1600537172554)

Share on:


Price:$1,150.00 - $1,250.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Semi-automatic Wire Terminal
Strip Crimp Machine




Parameters


Model
TSC-1.5T
TSC-2.0T
TSC-3.0T
Applicable wire Diameter
AWG36#-AWG20#
AWG36#-AWG16#
AWG26#-AWG16#
Crimping capacity
1.5 Tons
2.0Tons
3.0Tons
Air Source
0.3~0.4mpa(please use dry and clean air)
0.3~0.4mpa(please use dry and clean air)
0.3~0.4mpa(please use dry and clean air)
Applicable wire
AV、AVS、AVSS、CAVUS、KV、KIV、UL、TEFLON
AV、AVS、AVSS、CAVUS、KV、KIV、UL、TEFLON
AV、AVS、AVSS、CAVUS、KV、KIV、UL、TEFLON
Stripping length
1.0mm-10.0mm
1.0mm-10.0mm
1.0mm-10.0mm
Tolerance
0.05mm-0.1mm
0.05mm-0.1mm
0.05mm-0.1mm
Power Supply
Single Phase 200-240V (50-60HZ)
Single Phase 200-240V (50-60HZ)
Single Phase 200-240V (50-60HZ)
Power
400W
750W
1100W
Weight
70KG
80KG
120KG
Machine Size
530*400*830mm
530*400*830mm
500*450*1000mm


TSC-1.5T Features:


1.Equipped with high-precision control module and transmission mechanism
2.Low noise, low power consumption and high efficiency
3.For thin wires, the processing of multi-core shielded wires has obvious effects












Hot Sell Products




A. Semi-automatic wire crimping machine:


TM-2.0T
1.0T-20T
mute wire crimping machine

TS-30T
8T 15T 20T 30T
servo lug cable crimping machine

TF-01
0.1-4mm² (11-27AWG)
pre-insulated terminal machine



B.Fully automatic wire crimping machine:



TA-S01
0.1-3.0mm²(12-27AWG)
Fully automatic double-end wire crimping machine
TA-DWI01
16-28AWG
Automatic double-end waterproof terminal crimping machine


TA-SHI01
10-20AWG
Fully automatic single-end heat shrink machine


TA-HI800
18-34AWG
Fully automatic plastic shell machine
TA-F01
14-28AWG
Fully automatic pre-insulated wire terminal machine


TA-DZX01
18-32AWG
Fully automatic five-wire dip tin crimping machine

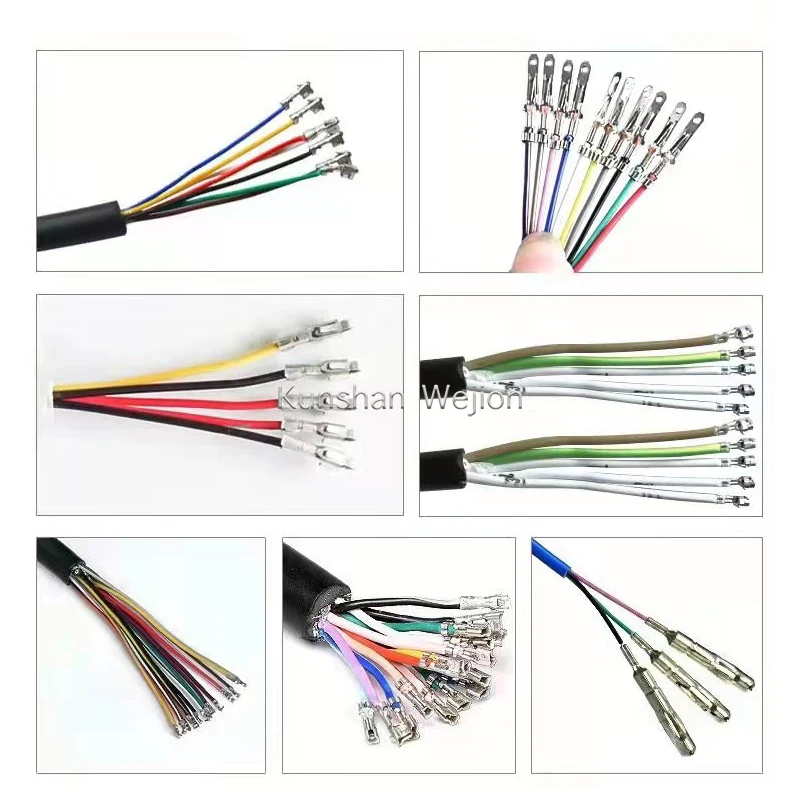

Wire samples:




Packing




Company Introduction


Kunshan Weijiang Automation Equipment Co., Ltd is a modern technology enterprise specializing in the research,development, production and sales of intelligent equipment for processing, cutting and wiring harnesses. The company's core products include: large square computer stripping machine, automatic terminal machine,corrugated pipe cutting machine, rotary pneumatic stripping machine, hexagonal crimping machine, and so on.
Fully automatic heat shrinkable sleeve terminal machine, automatic sheath terminal machine, automatic waterproof bolt terminal machine, automatic rubber shell terminal machine, automatic cable terminal machine, new energy automation equipment, etc. In addition, the company undertakes R&D and manufacturing of non-standard automation equipment.








Our Services & Strength



We are one of the most professional Chinese wire cable process machine manufacturers and leaders.

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.


FAQ


1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?

Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery


3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples


4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
