Factory Sale Fully Automatic Pharmaceutical Capsule Tablet Packing Machine Blister Tablet Manufacturing Machine
- Category: >>>
- Supplier: Zhejiang Haichen Machinery Co. Ltd.
Share on (1600537174362):
Product Overview
Description
Products Description
Feature:
1.The up and bottom heating plate are used and the connection head moves separately from the heating area, so that the temperature distribution of the heating surface is evenly distributed and the temperature difference is smaller, the bubble cover firm and full.
2.The universal rolling brush feeder is used, and the feeding tank has the automatic powder screening function. Electromagnetic
vibration control material; photoelectric control material quantity; more uniform material, effectively avoid damage caused by drug accumulation and extrusion .
3.The finished pushing plate device is installed on the cutting plate, so that the finished product will not stay in the mold
cavity and squeeze each other, and avoid damage and waste of the finished product.
2.The universal rolling brush feeder is used, and the feeding tank has the automatic powder screening function. Electromagnetic
vibration control material; photoelectric control material quantity; more uniform material, effectively avoid damage caused by drug accumulation and extrusion .
3.The finished pushing plate device is installed on the cutting plate, so that the finished product will not stay in the mold
cavity and squeeze each other, and avoid damage and waste of the finished product.
Details Images

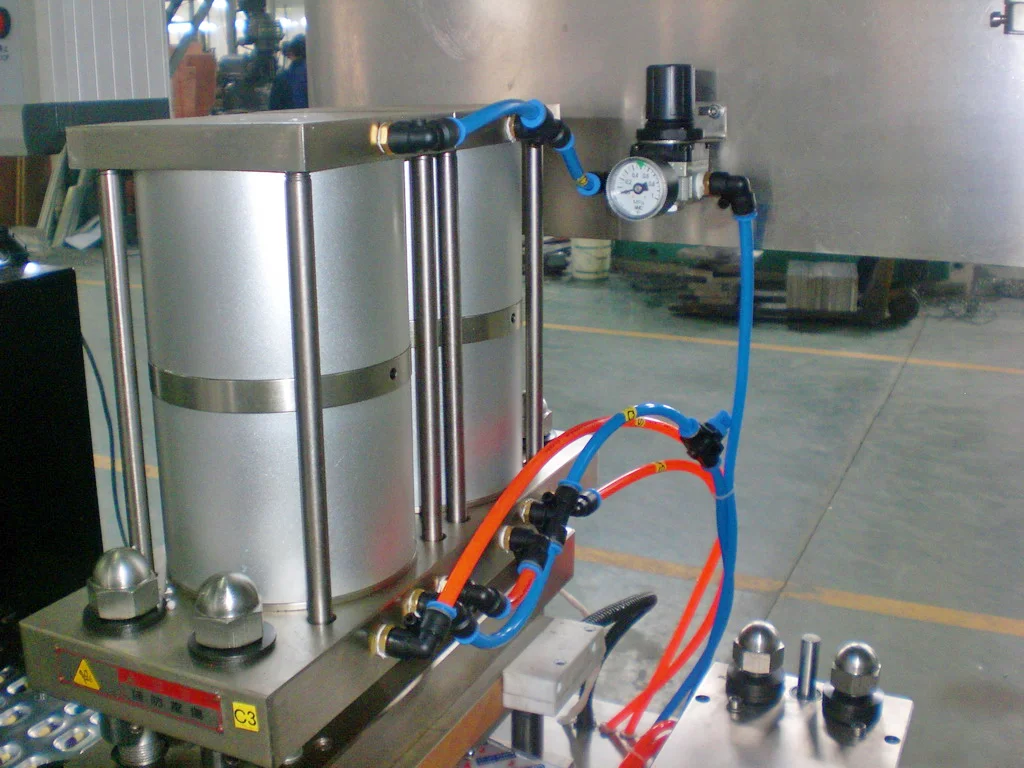

Heat-sealing Unit
1. Install the booster cylinder to reduce the transmission part wear.
2. the heat seal cylinder is lifted to avoid the product being damaged during the machine stop.
1. Install the booster cylinder to reduce the transmission part wear.
2. the heat seal cylinder is lifted to avoid the product being damaged during the machine stop.

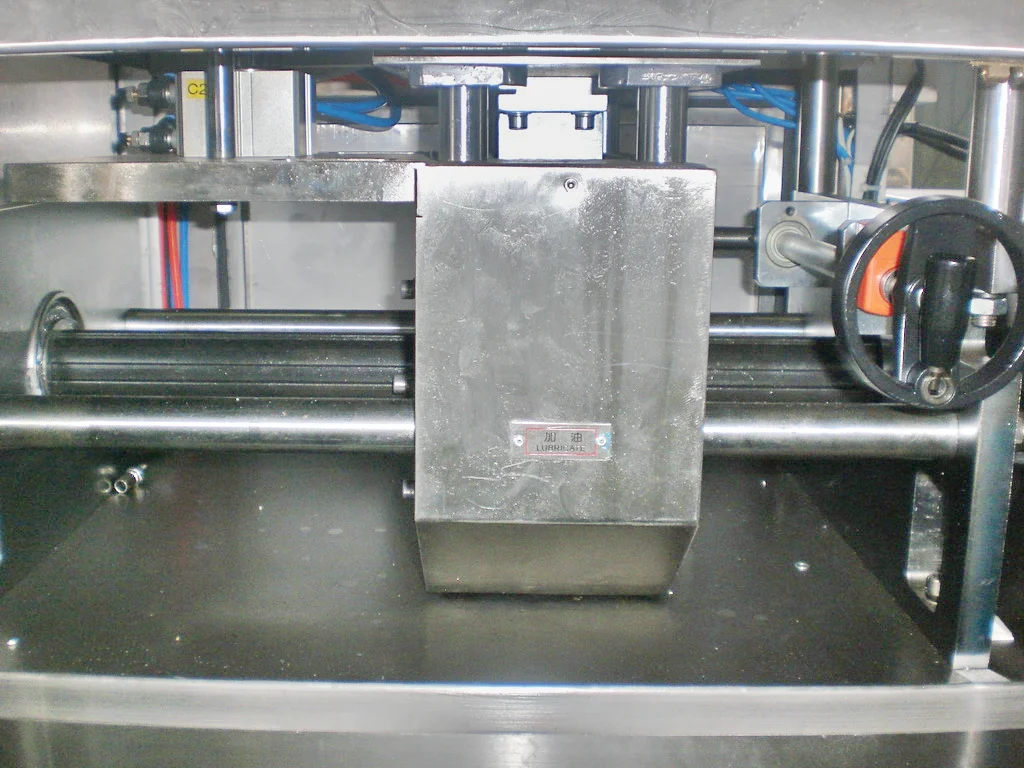

Cutting Unit
The finished pushing plate device is installed on the cutting plate, so that the finished product will not stay in the mold cavity and squeeze each other, and avoid damage and waste of the finished product.
The finished pushing plate device is installed on the cutting plate, so that the finished product will not stay in the mold cavity and squeeze each other, and avoid damage and waste of the finished product.

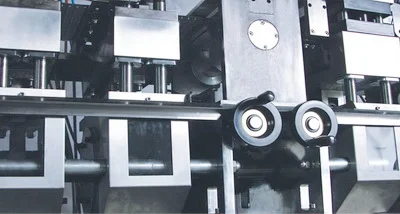

Transmission and control Unit
Coaxial transmission between each station,eliminates gear operation errors and noise.
Coaxial transmission between each station,eliminates gear operation errors and noise.

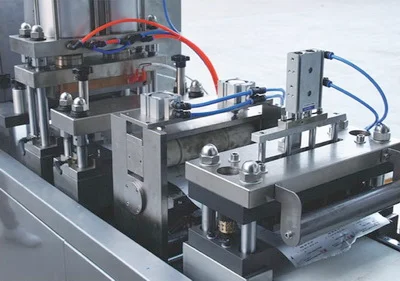

Station Adjustment Unit
The adjusting rod is equipped with a position display, which can record parameters and facilitate switching and adjusting among various varieties. The accuracy coefficient is up to 0.1mm.
The adjusting rod is equipped with a position display, which can record parameters and facilitate switching and adjusting among various varieties. The accuracy coefficient is up to 0.1mm.
Product Paramenters
Main parameter | Cutting frequency:25-50 times/(Aluminum plastic) |
Material and specification | Aluminum foil: width 260mm, thickness 0.02-0.03; Moulding material: width 260mm, thickness:0.1-0.35mm |
Travel distance | Traction distance:30-120mm, cutting:0-100mm ,batch number:0-50mm Moulding:0-100mm ,hot sealing:fixed reference objection |
Output | 10000~12000plat/H（4plates/mould） |
Main function | Moulding, hot sealing, batch number, punching and cutting, Frequency conversion without extreme speed adjustment , PLC control |
Max forming deepness（mm) | 20-30mm |
Max forming area（mm2) | 240×170×20mm |
Power supply | 380V 50Hz |
Total power（kW） | 5.5KW |
Compressed air pressure（MPa) | 0.5-0.7MPa |
Compressed air consumption（m3/h) | ≥ 0.22 |
Cooling water consumption（m3/h) | Recycled water cooling |
Noise（dB) | 75dB |
Size（L×W×Hmm) | 4200*650*1700(mm)L*W*H |
Weight（kg) | 1500kg |
Motor frequency adjustment capacity | 0-50Hz |
