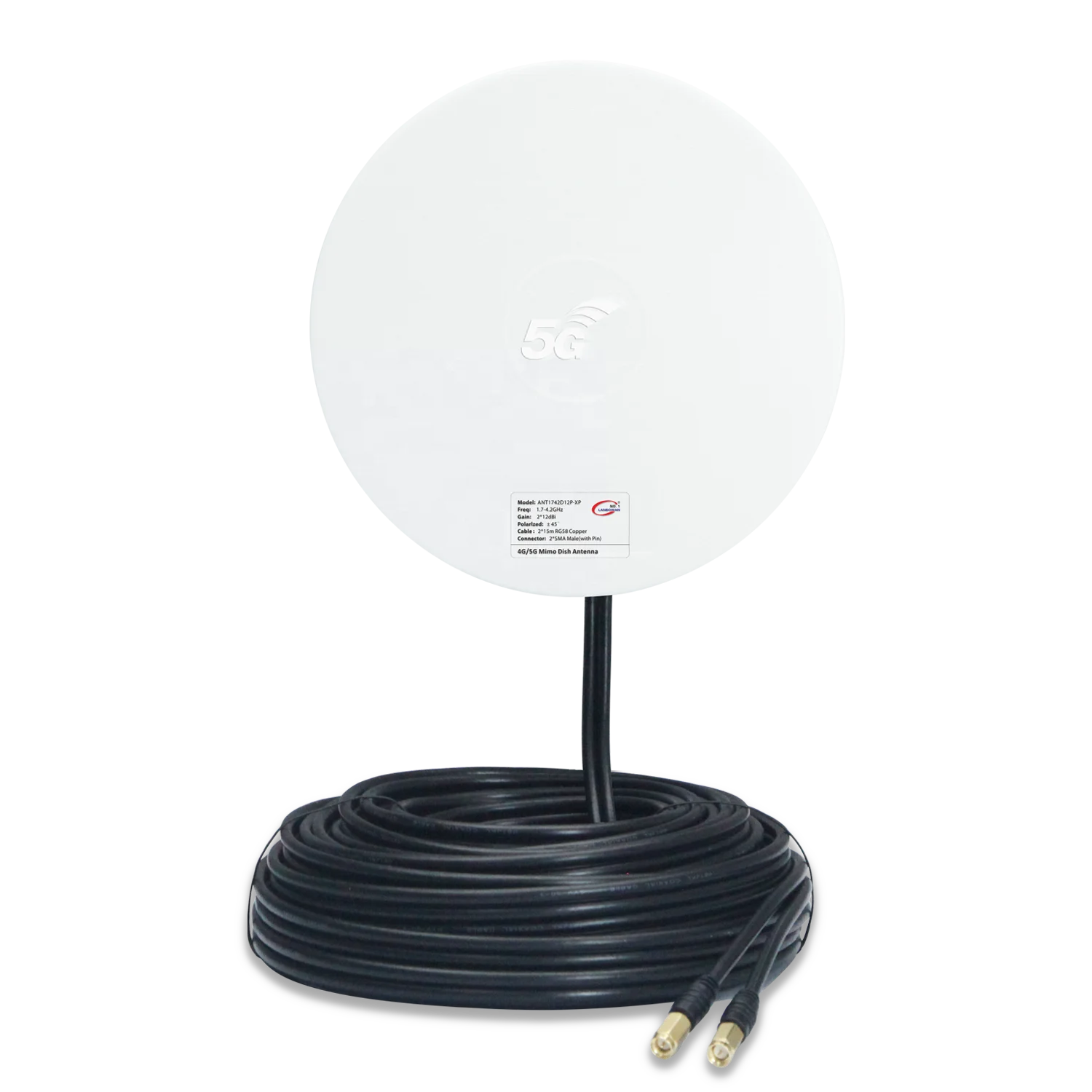

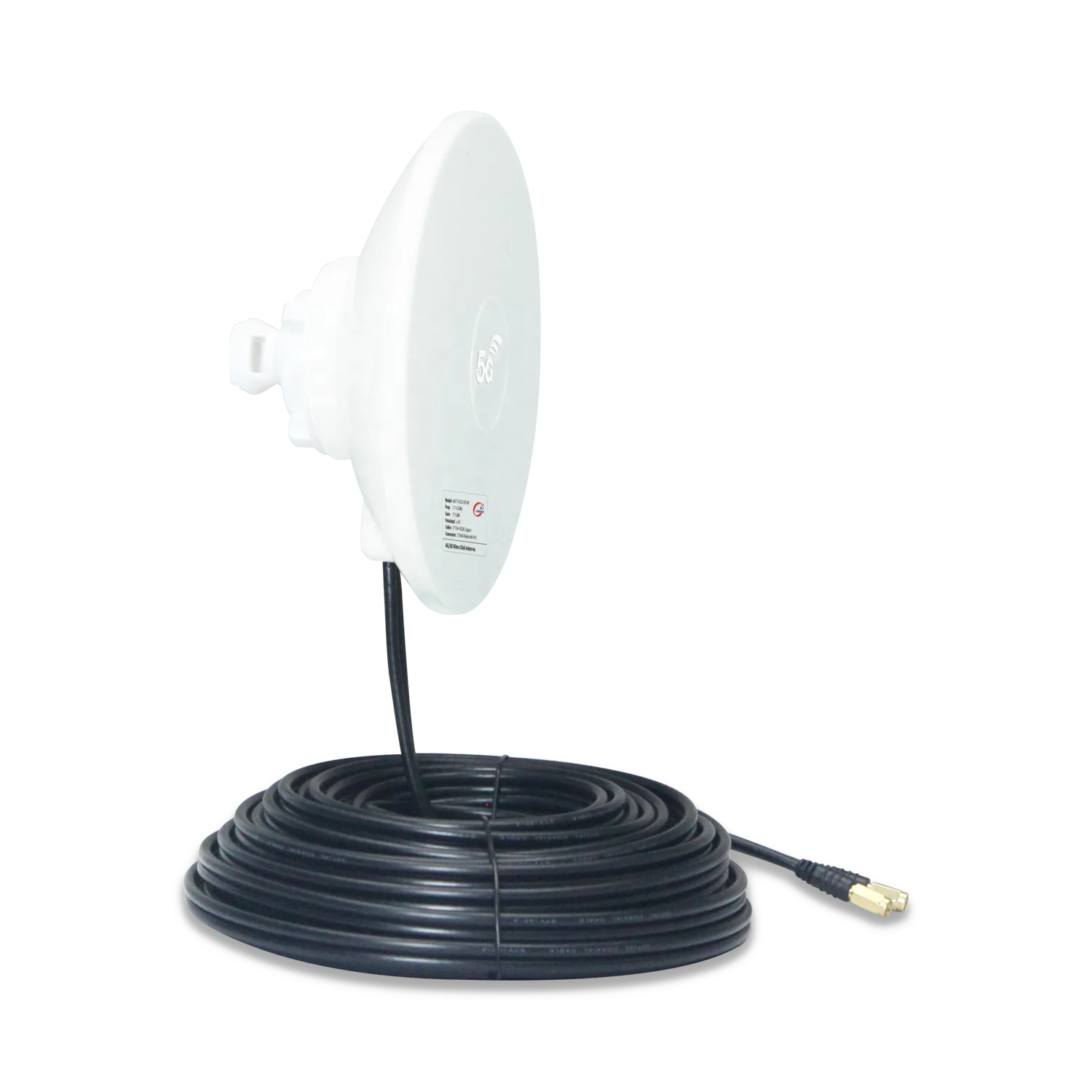

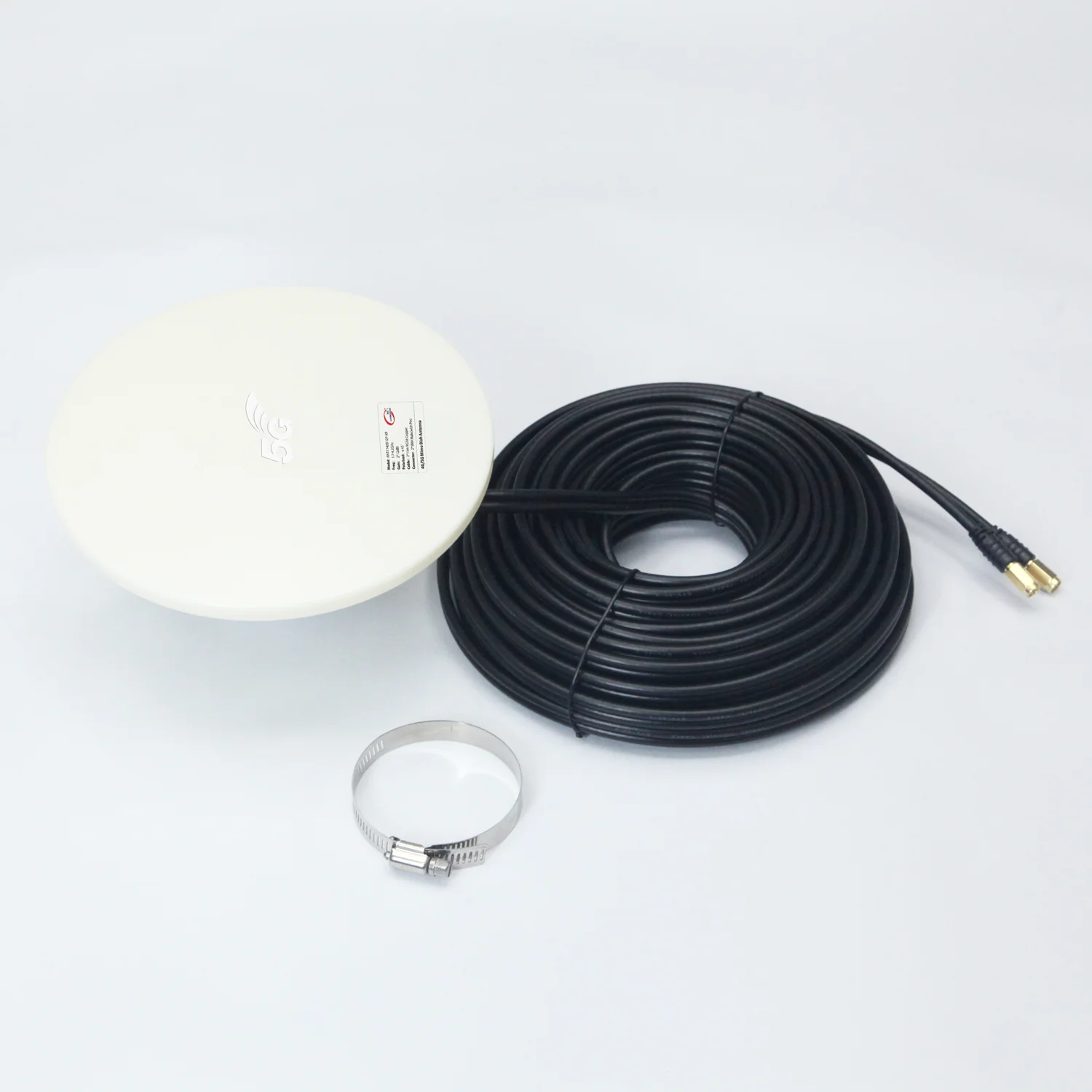

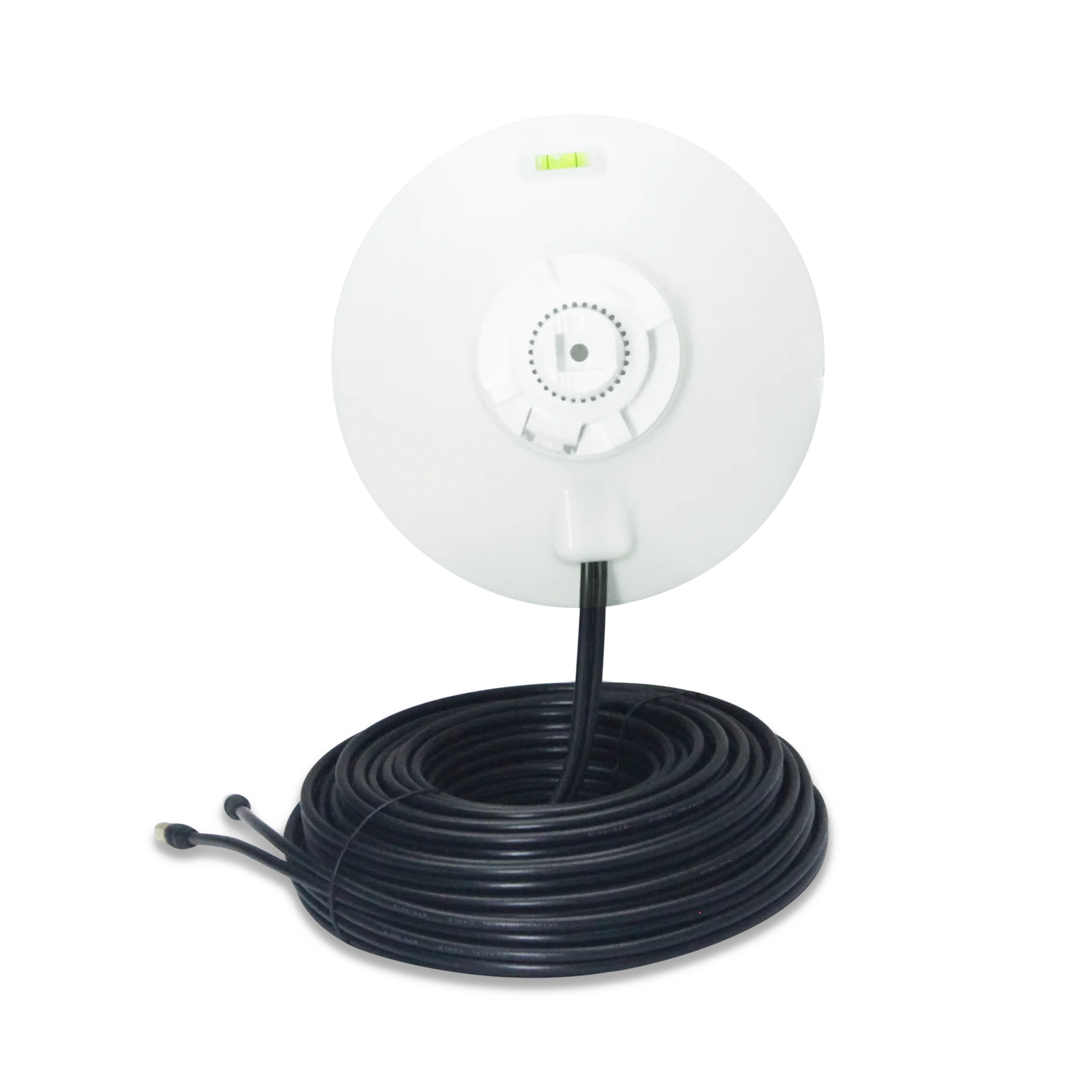

2*12dBi Globe mimo antenna 4G LTE WIFI ANTENNA MODEM SIGNAL BOOSTER hybrid mimo antenna Hyperbolic ultra wideband
- Category: >>>
- Supplier: Lanbowan Communication Ltd.
Share on (1600537181255):
Product Overview
Description
Product Description
Features
• Dish Design
• ±45 Slant Polarization
• 2*12 dBi Gain
• 2x2 MIMO
• Type SMA Male Connector
• ±45 Slant Polarization
• 2*12 dBi Gain
• 2x2 MIMO
• Type SMA Male Connector
Application
• LTE,5G,CBRS
• Cellular networks
• DAS (Distributed Antenna Systems)
• IEEE 802.11b/g/n WiFi applications
• Cellular networks
• DAS (Distributed Antenna Systems)
• IEEE 802.11b/g/n WiFi applications
Product Paramenters
Electrical | ||||
Model | ANT1742D12P-XP | |||
Frequency Range | 1710-2690MHz | 3300-4200MHz | ||
Gain | 11±1dBi | 12±1dBi | ||
VSWR | <1.5 | <1.5 | ||
Horizontal Beam width | 50±5° | 55±5° | ||
Vertical Beam width | 50±5° | 55±5° | ||
Polarization | Dual Slant (±45°) | |||
Isolation | >20dB | |||
Front to Back Ratio | >20dB | |||
Maximum Power Per Port | 50W | |||
Impedance | 50Ω | |||
Lighting protection | DC Ground | |||

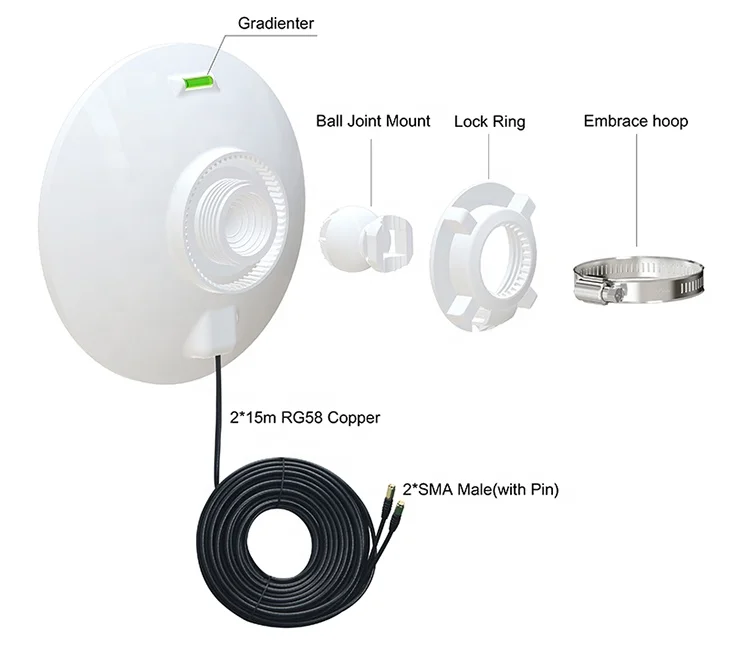

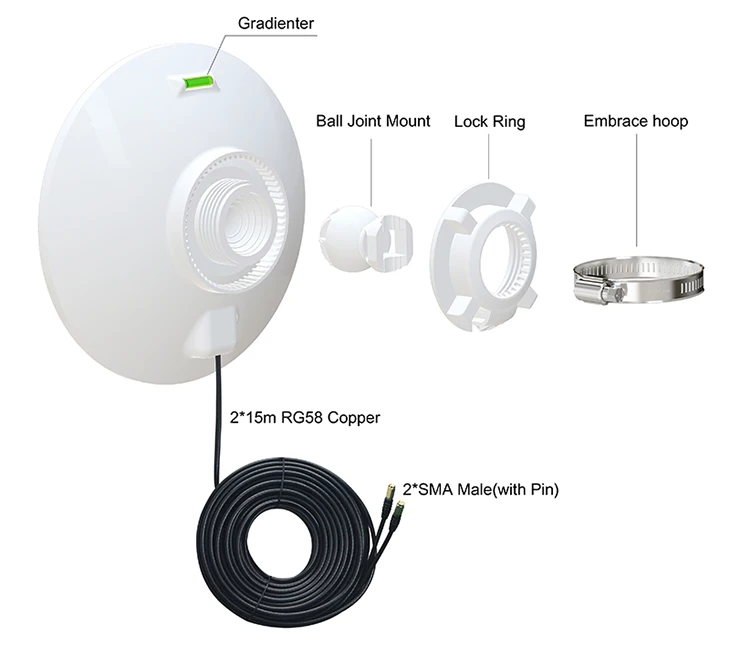

Mechanical | ||||
Connector | 2*SMA Male(with Pin) | |||
Antenna Size | Φ120mm | |||
Antenna Weight | 1.5kg | |||
Cable length | 2*15m RG58 Copper | |||
Antenna color | white | |||
Diameter of the Pole | Φ30mm to φ50mm | |||
Mechanical Tilt | ± 40° | |||
Operational Temperature | -40°C to +70°C (-32°F to +158°F) | |||
