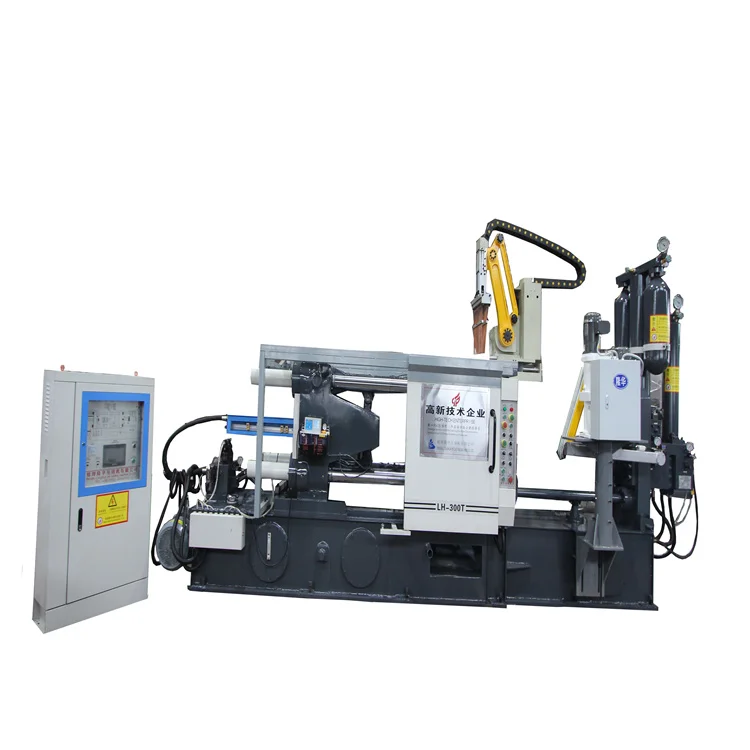

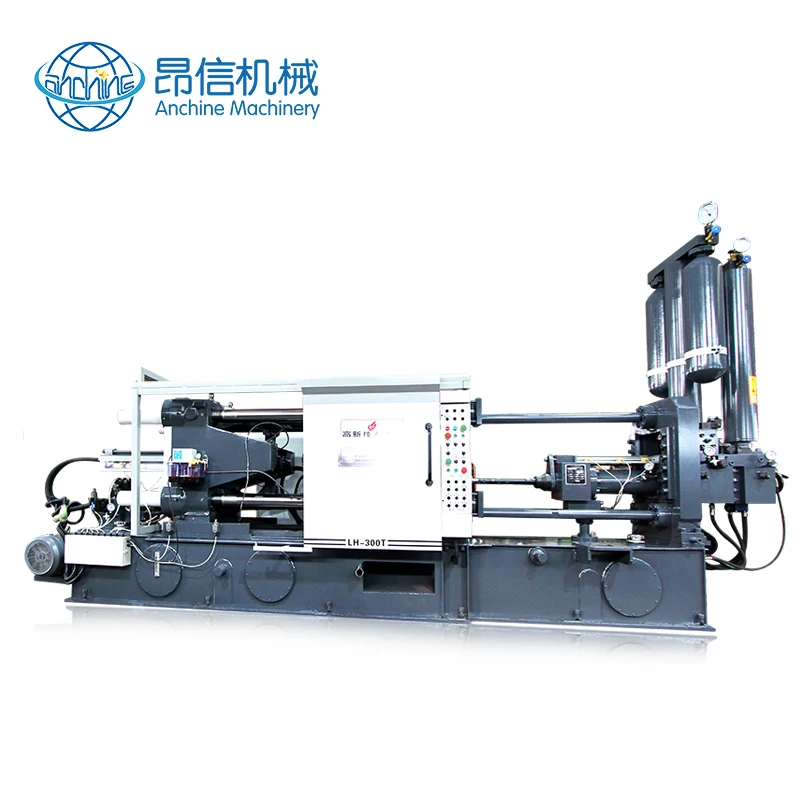

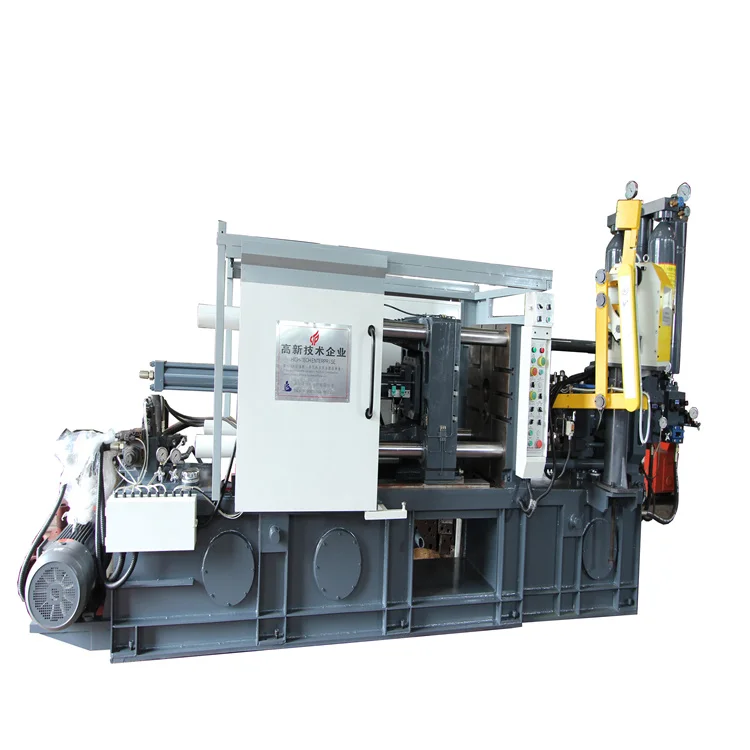

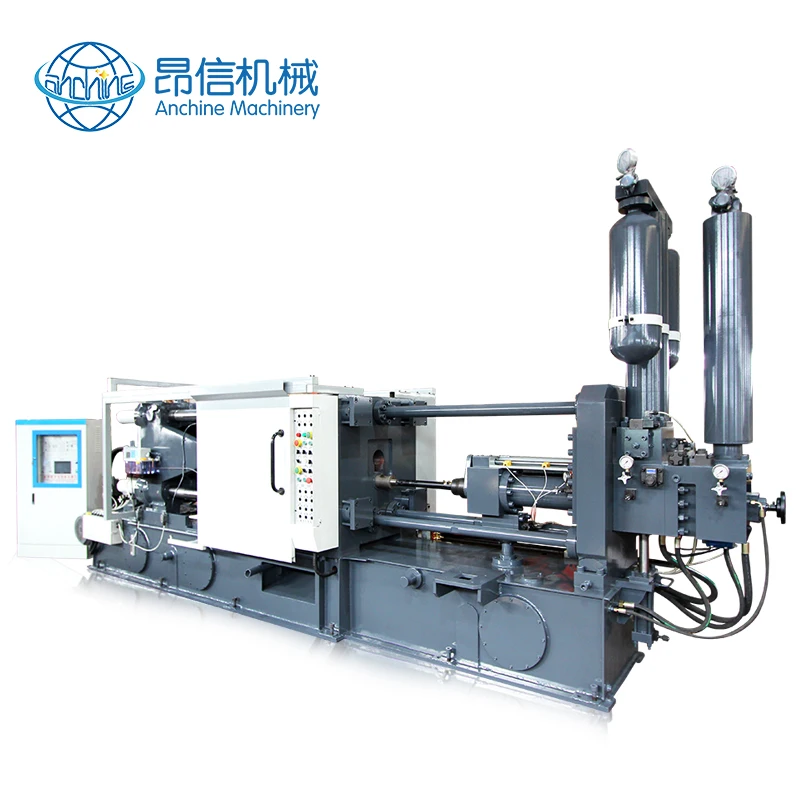

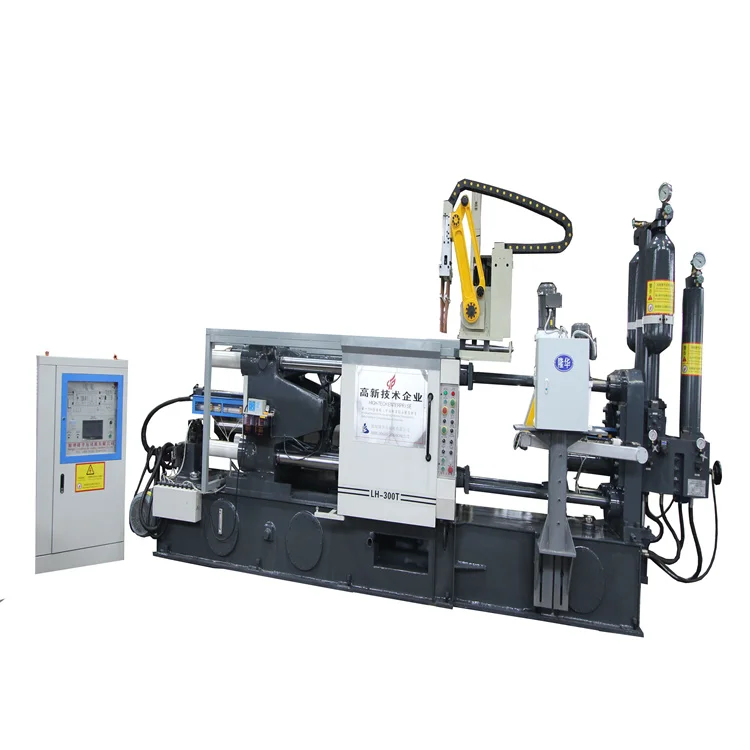

New Automatic Die Castings Making Machine Machines Manufacturer
- Category: >>>
- Supplier: Anhui Anchine Machinery Co. Ltd.
Share on (1600537194711):
Product Overview
Description
Item | Unit | Specification |
Hydraulic Working Pressure | MPa | 14 |
Clamping Force | KN | 3000 |
Space Between Tie Bars | mm | 560*560 |
Tie Bar Diameter | mm | ￠110 |
Die Opening Stroke | mm | 420 |
Injection Force(intensify) | KN | 240 |
Plunger launch distance | mm | 140 |
Injection position | mm | 0 -- 160 |
Plunger Diameter | mm | ￠50----￠70 |
Injection Stroke | mm | 420 |
Casting pressure (intensify) | MPa | 143/99/73 |
Casting Flange Protrusion | mm | 12 |
Casting Flange Diameter | mm | 110 |
Max Casting Area Under 40Mpa | CM2 | 700 |
injection Weight(Al) | Kg | 3.5 |
Die Height(Min--Max) | mm | 250～650 |
Ejector Force | KN | 150 |
Ejector Stoke | mm | 120 |
Motor Capacity | Kw | 15 |
Machine Dimensions (L*W*H) | m | 6.4*1.7*2.8 |
Referential Machine Weight For Uplifting | T | 12.5 |
Oil Tank Capacity | L | 750 |
We reserve the right to make any technical improvement without further notice
