Product Description

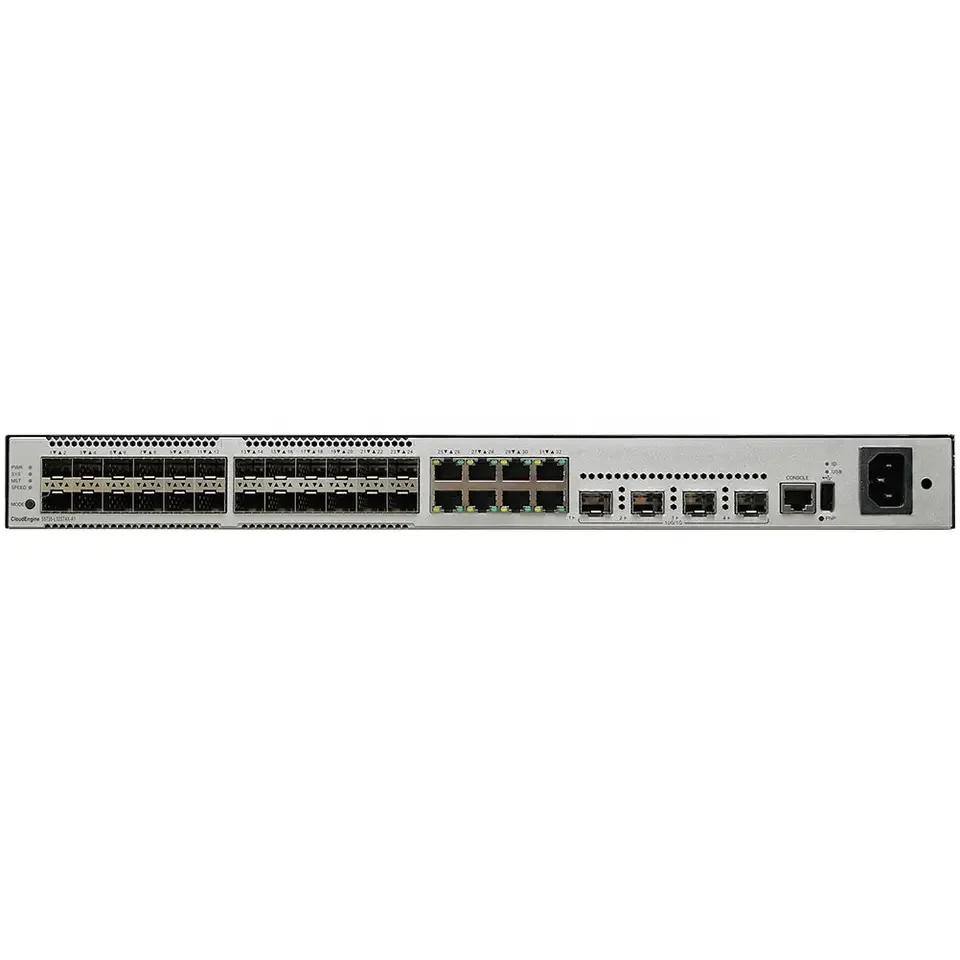

S5735-L32ST4X-A1 24 Port Gigabit Optical Fiber Switch
24 port ethernet fiber optical switch S5735-L32ST4X-A1 of competitive price
|
Item
|
Specification
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
|
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
|
Chassis height [U]
|
1 U
|
Weight without packaging [kg(lb)]
|
2.88 kg (6.35 lb)
|
Weight with packaging [kg(lb)]
|
4.03 kg (8.89 lb)
|
Typical power consumption [W]
|
53.2 W
|
Typical heat dissipation [BTU/hour]
|
181.52 BTU/hour
|
Maximum power consumption [W]
|
66.8 W
|
Maximum heat dissipation [BTU/hour]
|
227.93 BTU/hour
|
MTBF [year]
|
58.44 year
|
MTTR [hour]
|
2 hour
|
Availability
|
>0.99999
|
Noise at normal temperature (acoustic power) [dB(A)]
|
46.8 dB(A)
|
Number of card slots
|
0
|
Number of power slots
|
0
|
Number of fans modules
|
2
|
Redundant power supply
|
Not supported
|
Long-term operating temperature [°C(°F)]
|
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
|
Short-term operating temperature [°C(°F)]
|
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
|
