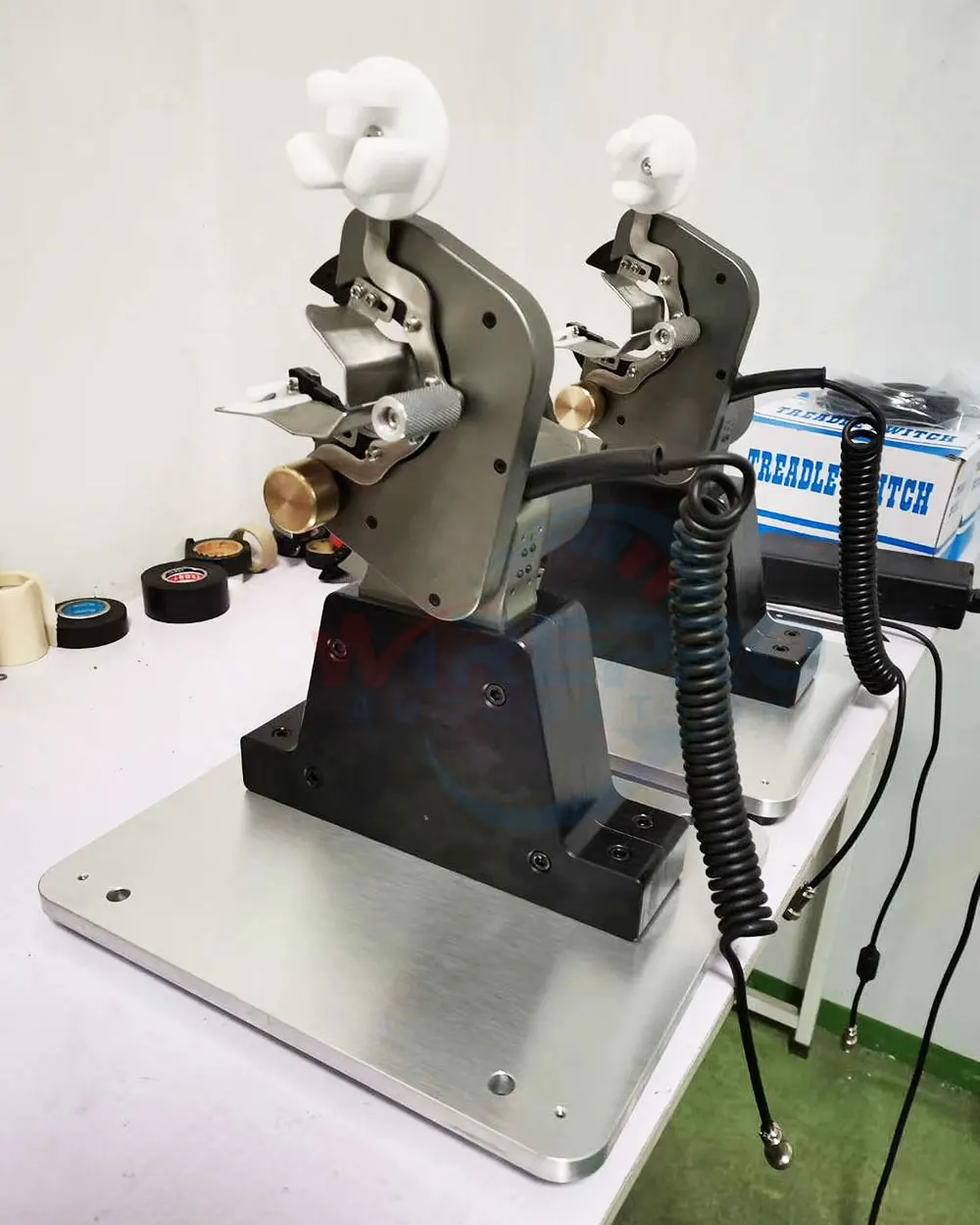

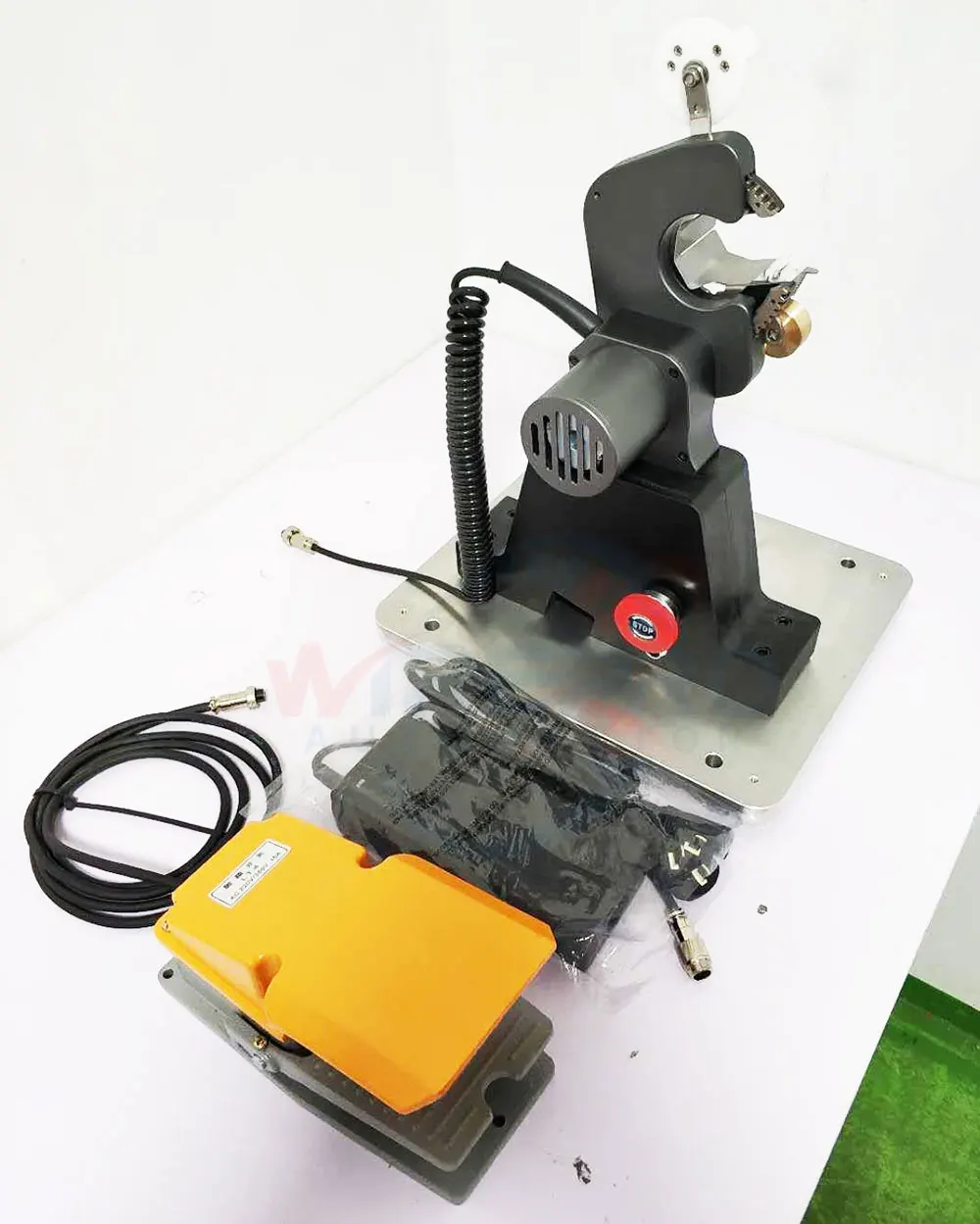

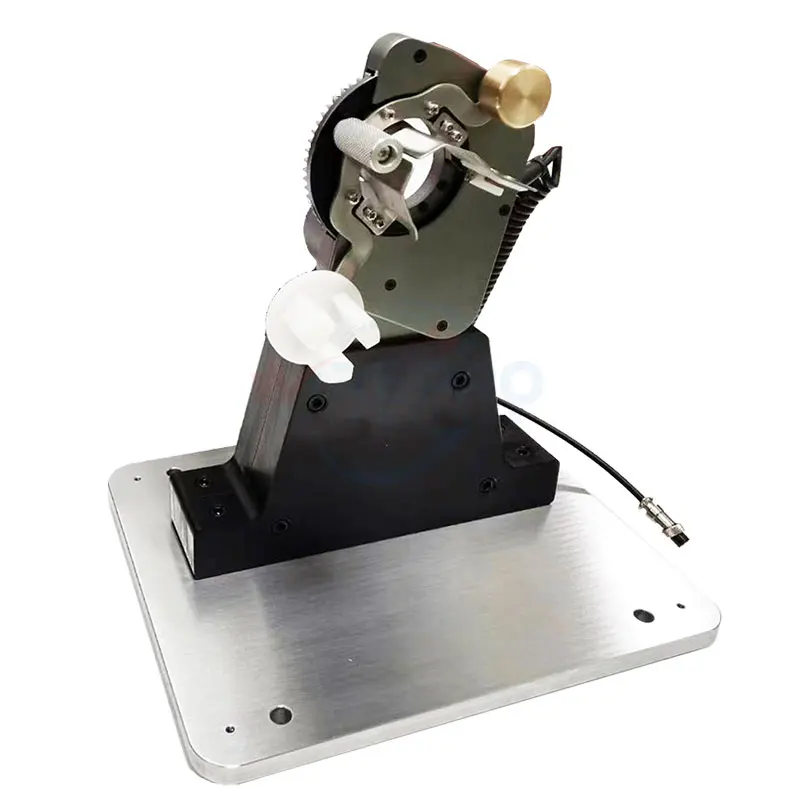

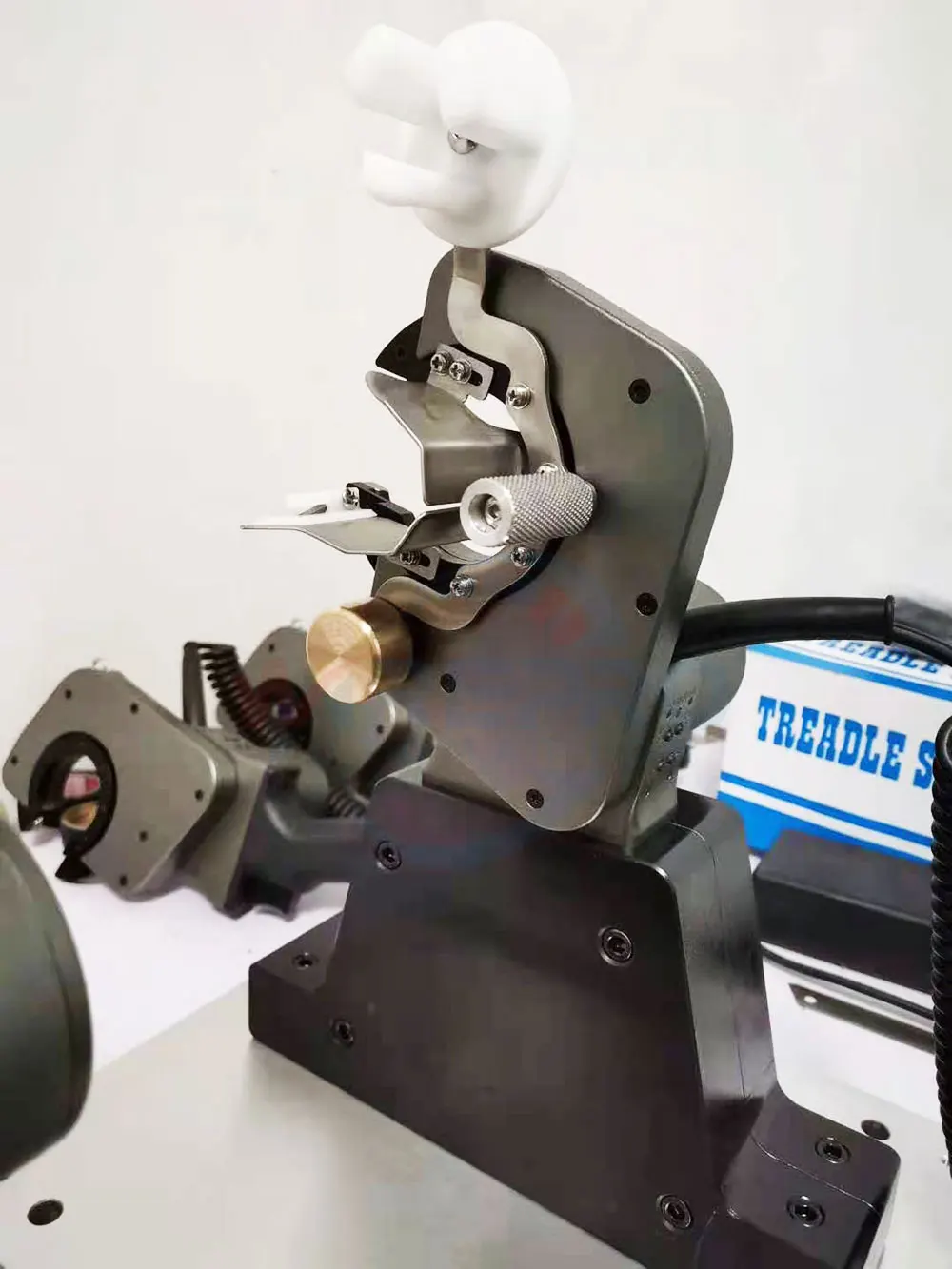

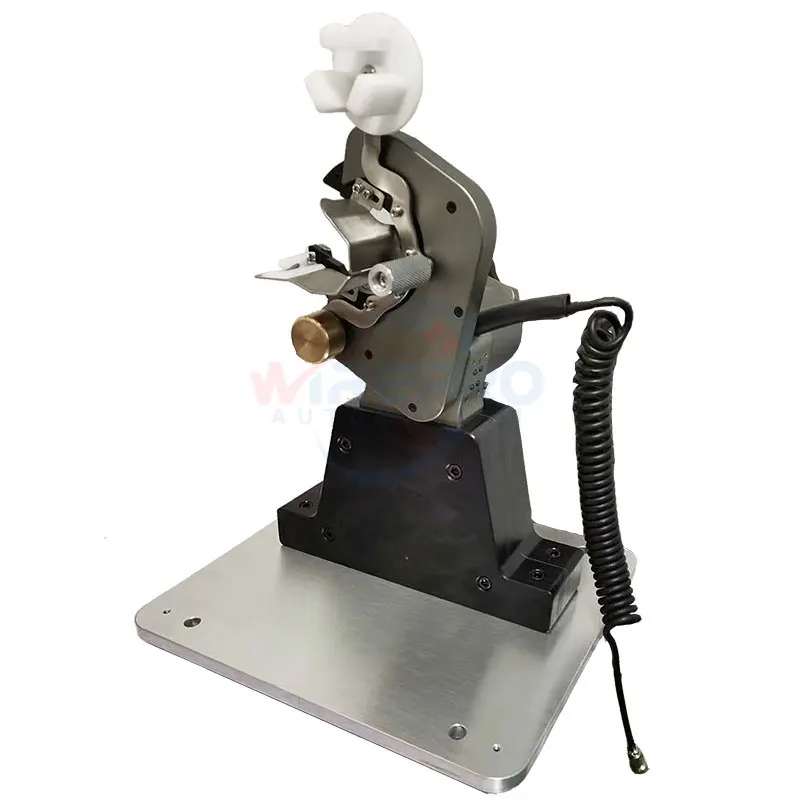

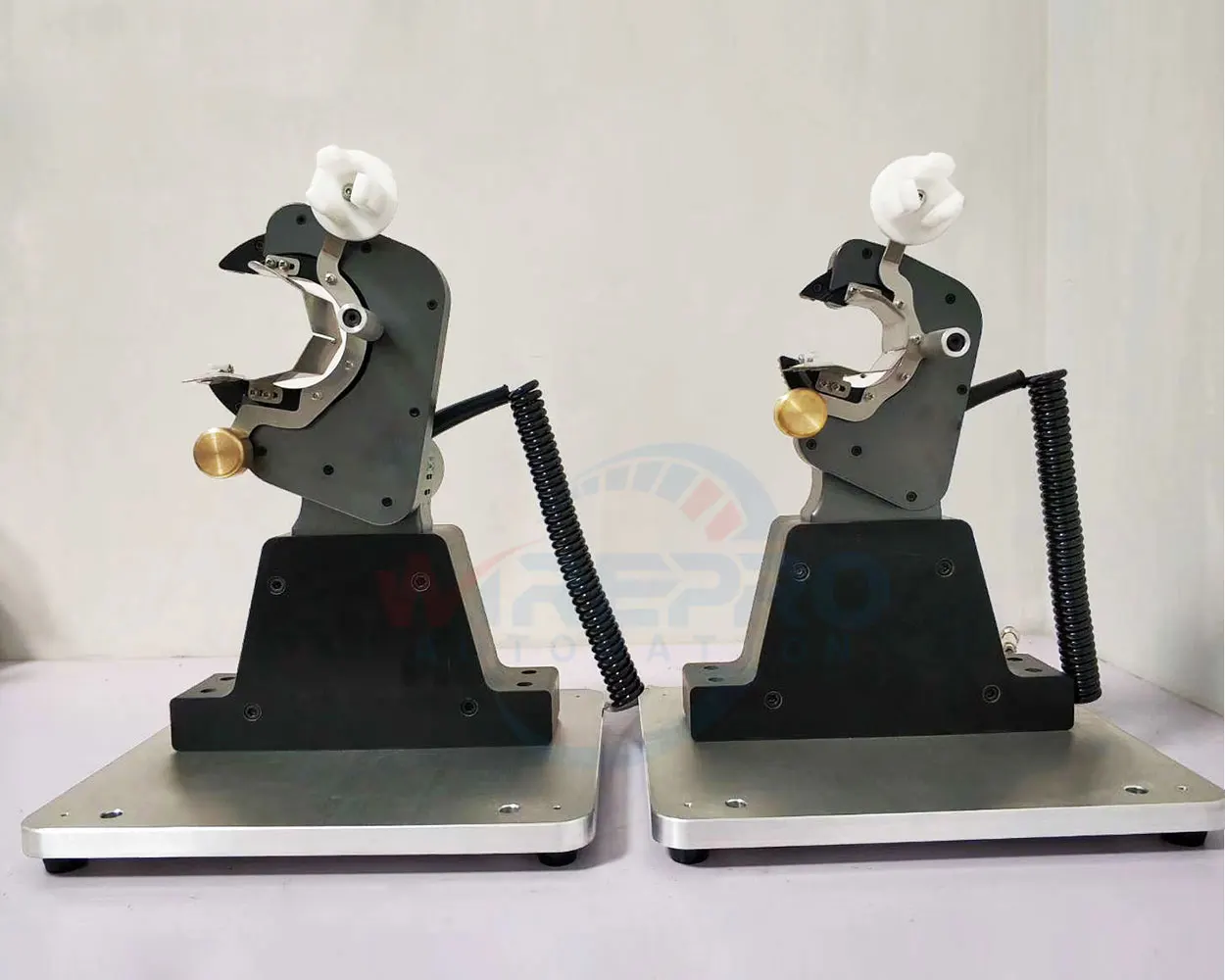

HW HD35 HW HD55 big diameter desktop wire harness taping machine
- Category: Cable Manufacturing Equipment >>>
- Supplier: Wirepro Automation Technology Co. Ltd.
Share on (1600537198239):
Product Overview
Description
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
Product Description

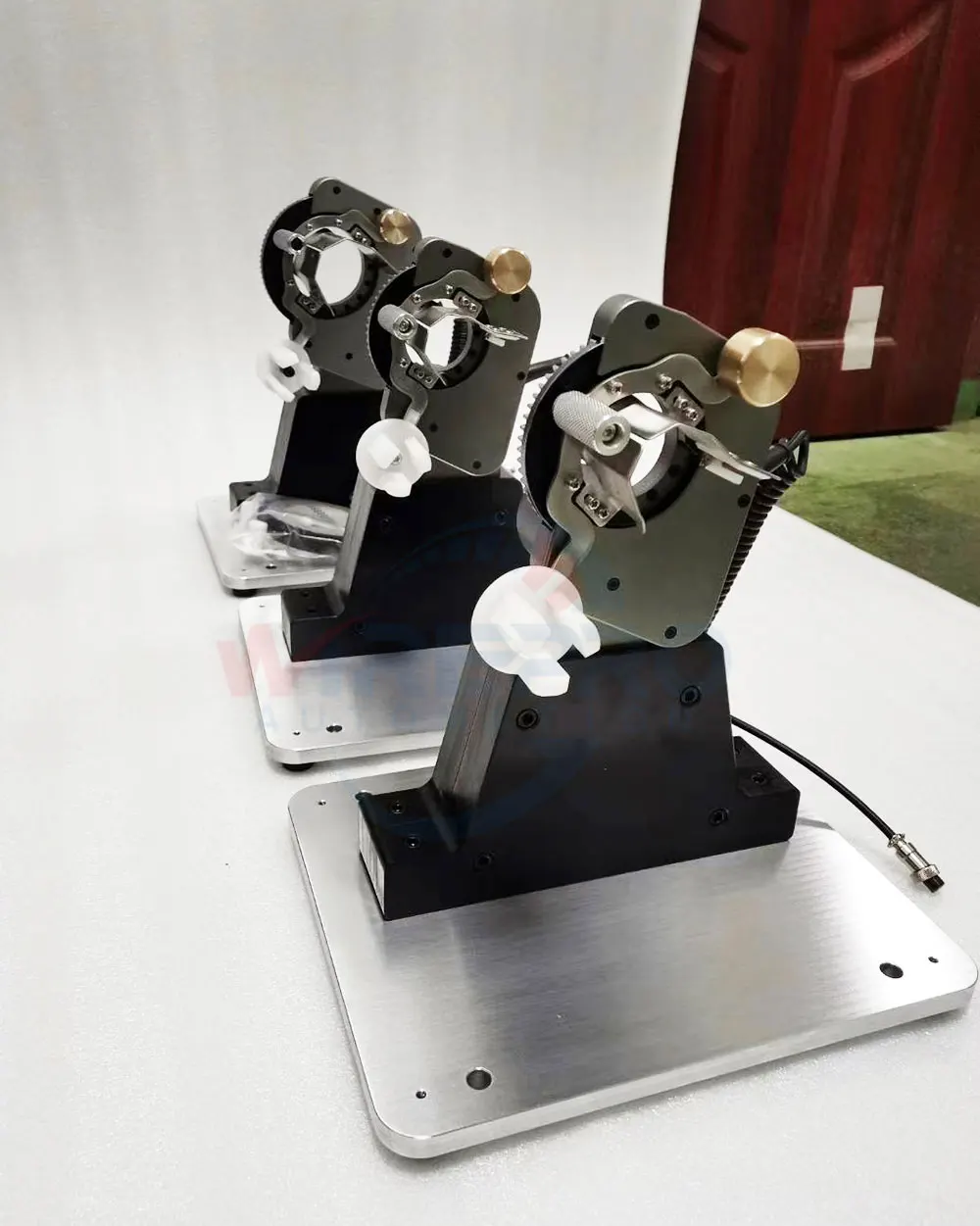

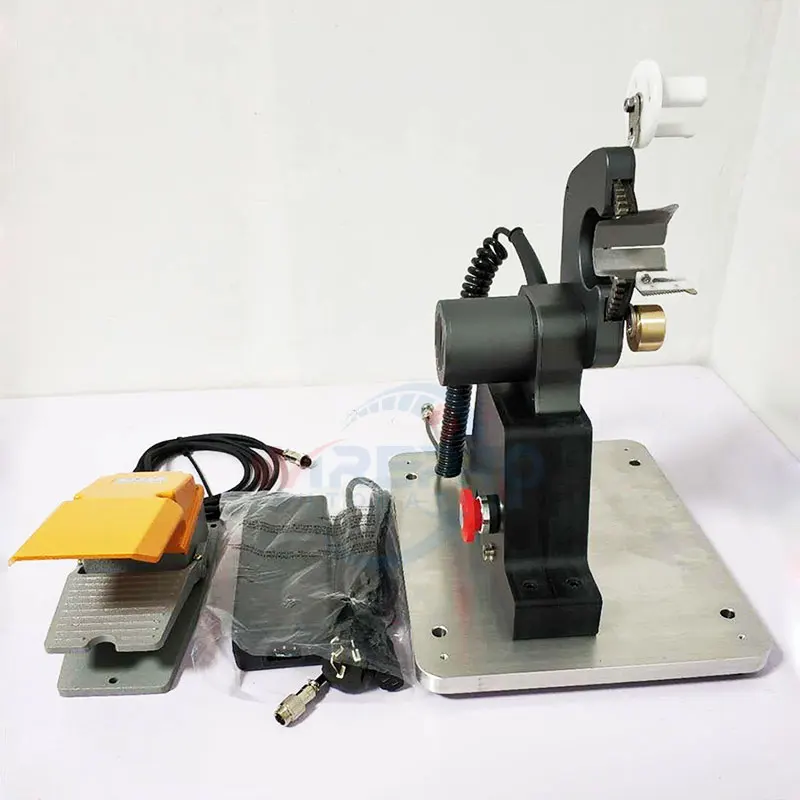

HW-HD35 machine fetures:
1. The whole machine weight is only 8kgs, lightweight and very convenient to move
2. Support point taping and full taping, winding speed and winding turns can be set

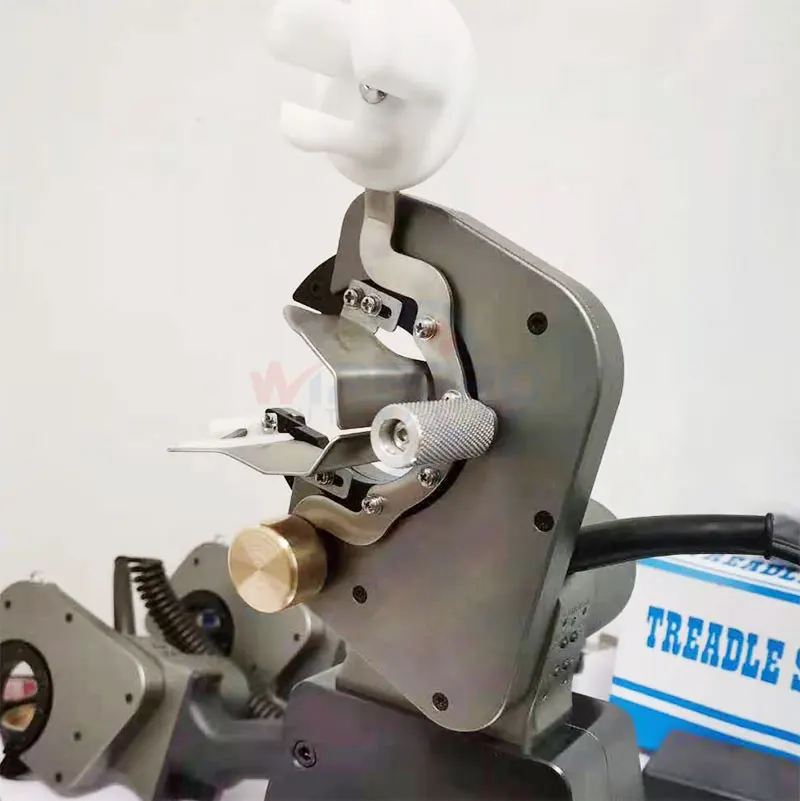

3. Integrated tooth-shaped incision and hidden knife, which can cut different materials tapes
4. After finishing one taping, the tape can automatically jump to the next position to prepare for the next work without additional operations
5. Turntable opening is set, very good for branch taping. can taping larger diameter wire harness
6. It conforms to human mechanics, easy to operate, and the operator is not easy to feel tired
| Model | HW-H35 | HW-HD35 |
| Features | Hand holding | Desktop |
| Available Wire Dia | Φ8-35mm | Φ8-35mm(20-55mm) |
| Tape Width | 10-25mm | 10-25mm |
| Tape Roll OD | Max Φ90mm / Max Φ110mm | Max Φ110mm |
| Wrapping Speed | Manual control | Manual control |
| Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
| Dimensions | 33*18*15cm | 25*30*35cm |
| Weight | 4kg | 8kg |

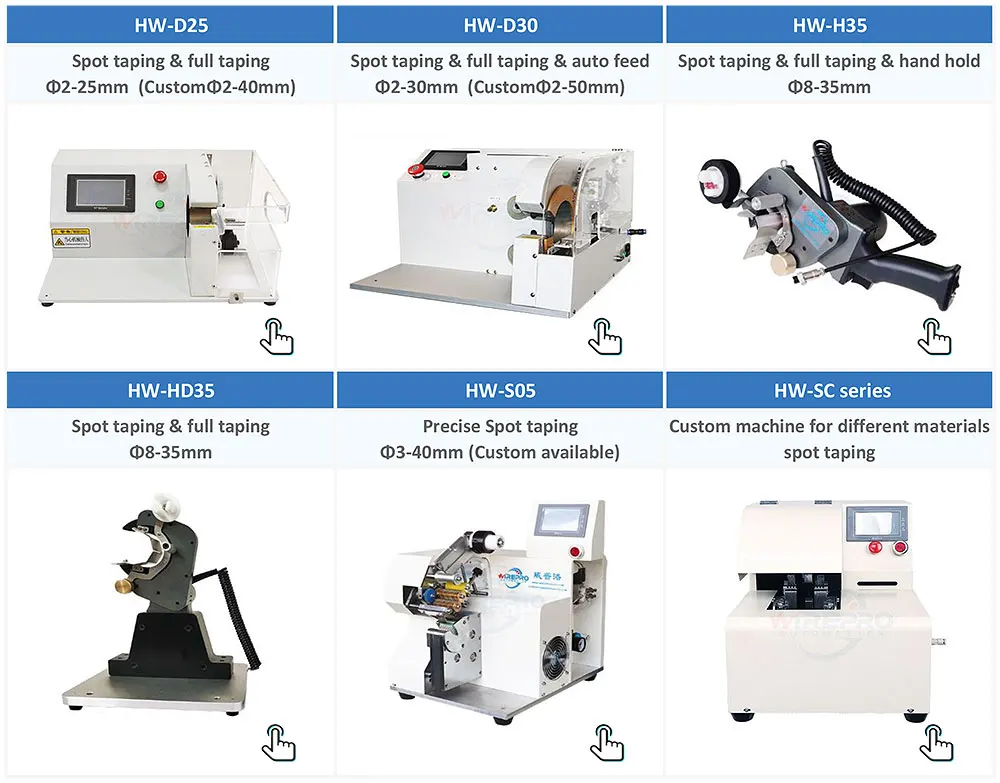

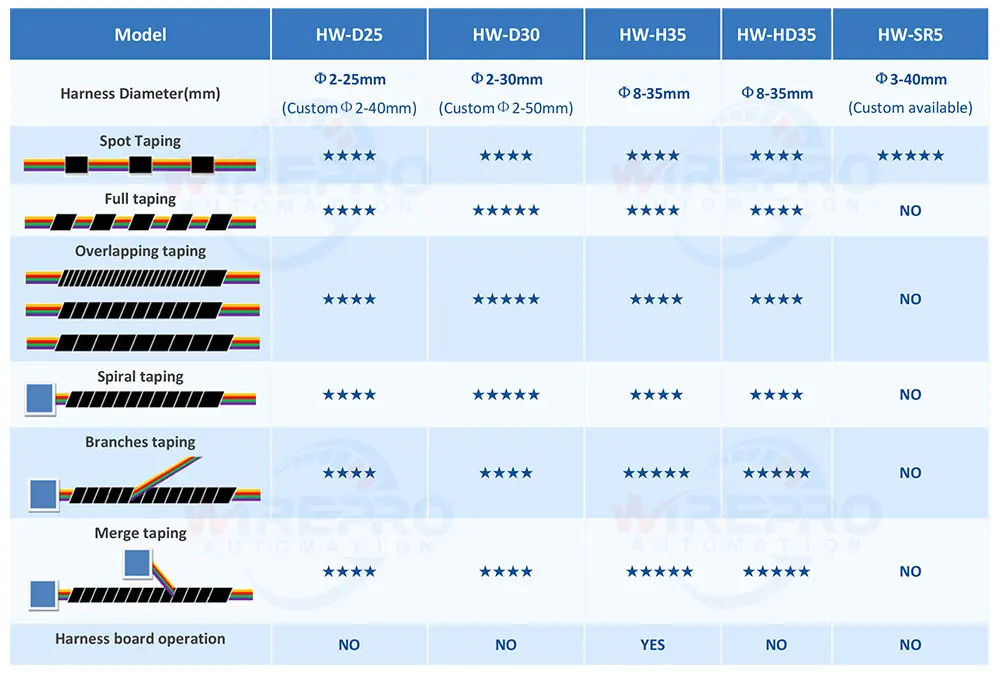

The series machines are designed for tape point wrapping and full taping. Please check the following machine features and find the one you need:
Click here to check more details and videos!

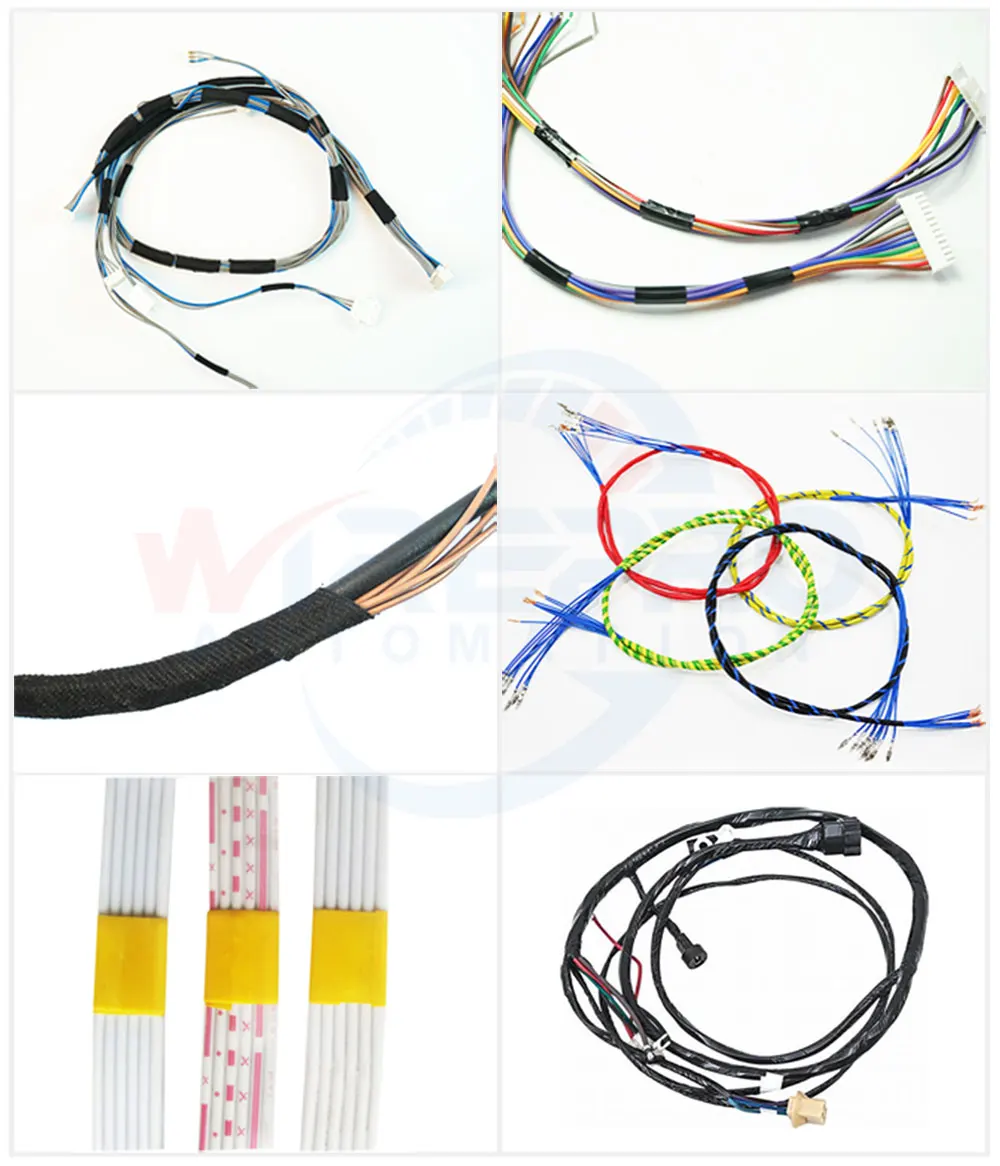

Taping wire samples:
Related Products
Other Wire Processing Machines
Packaging & Shipping
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
Company Information
FAQ
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
