Product Overview
Description
Product Overview

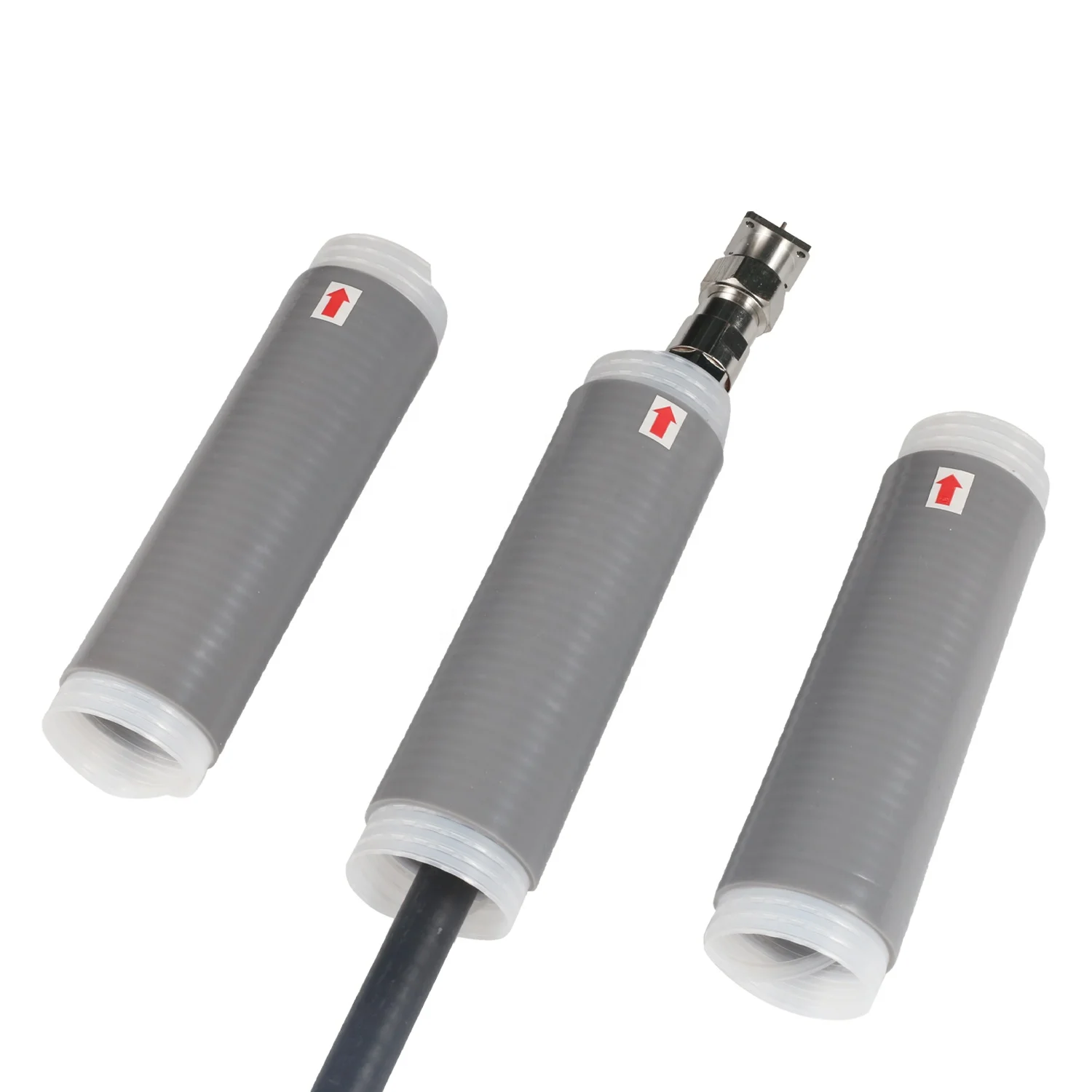

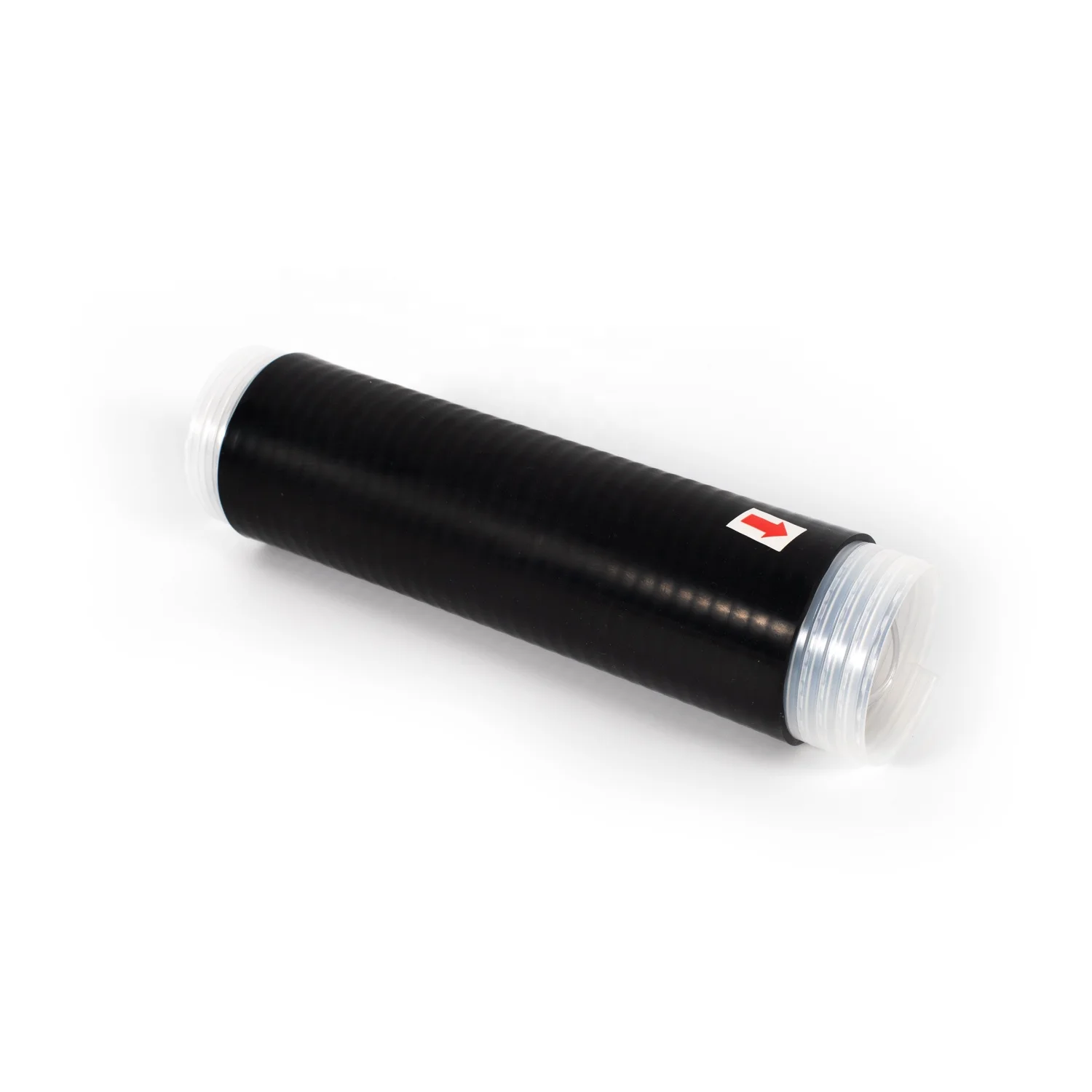

Insulation silicone rubber cold shrink tube
RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections.
Features
1.Continuous operating temperature:-60°C~200°C
2.Waterproof and Sealing Class:IP68
3.Shrink Ratio :5:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
4.Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance
5.Excellent tear resistance
6.Simple installation, requires no special heating tools , and adhesive to seal the connections

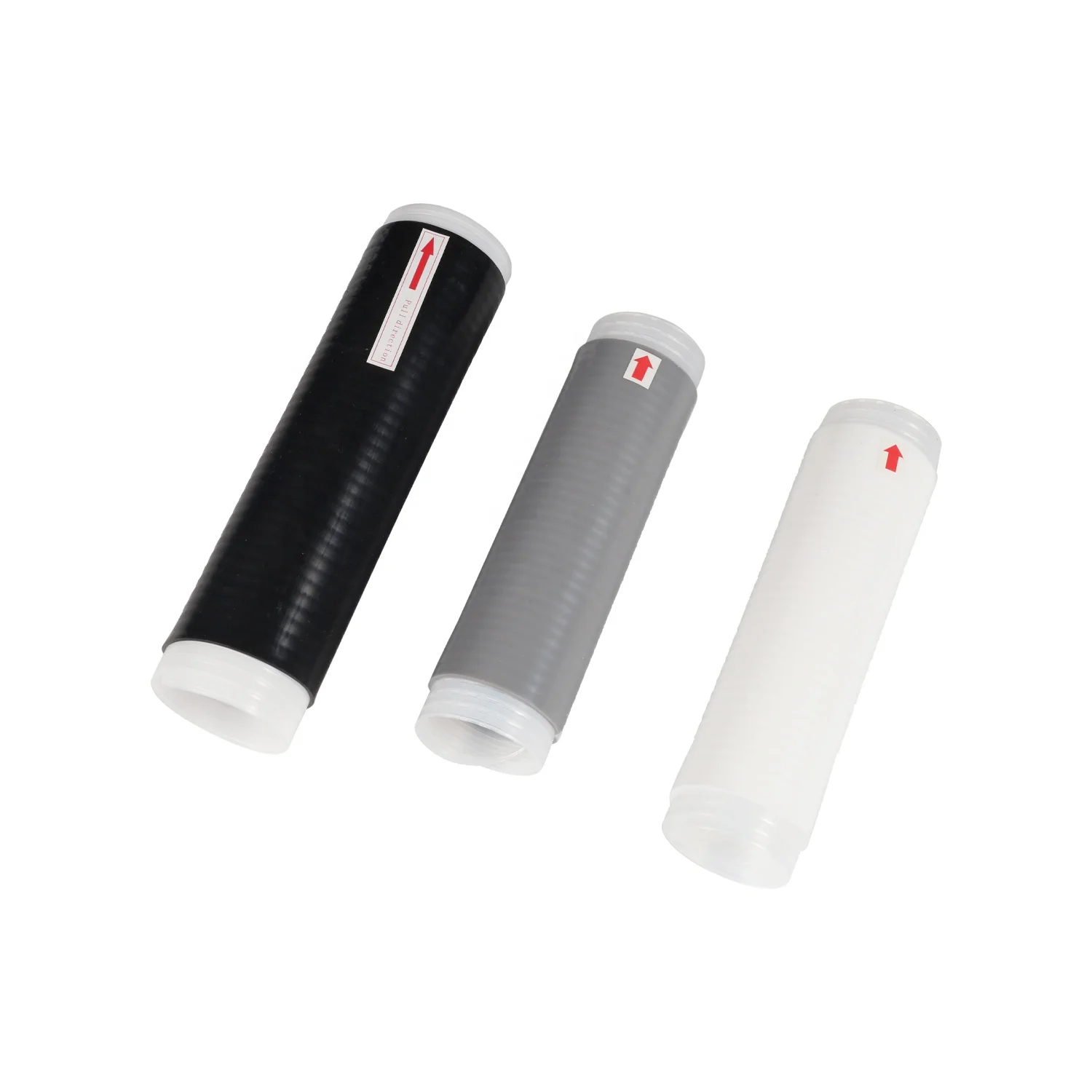

7.Standard color: black,white,grey,red,pink,yellow,etc
2.Waterproof and Sealing Class:IP68
3.Shrink Ratio :5:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
4.Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance
5.Excellent tear resistance
6.Simple installation, requires no special heating tools , and adhesive to seal the connections
7.Standard color: black,white,grey,red,pink,yellow,etc

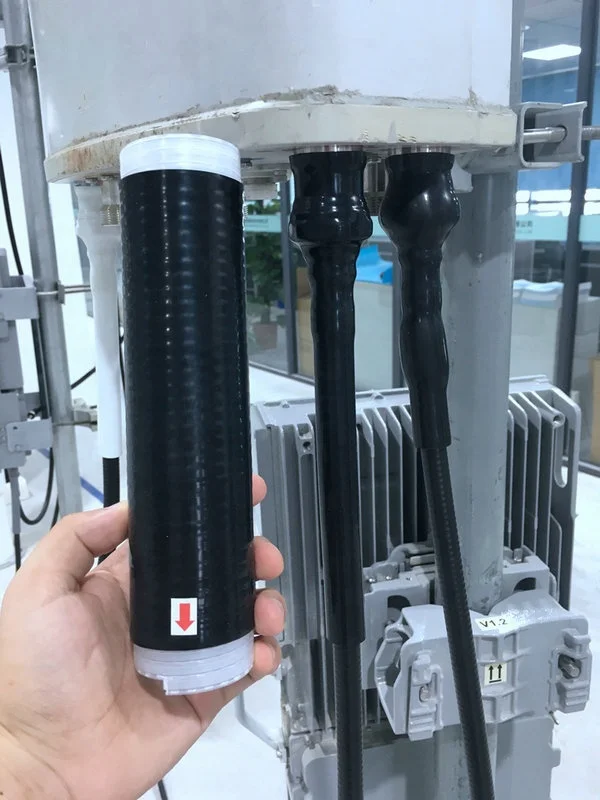

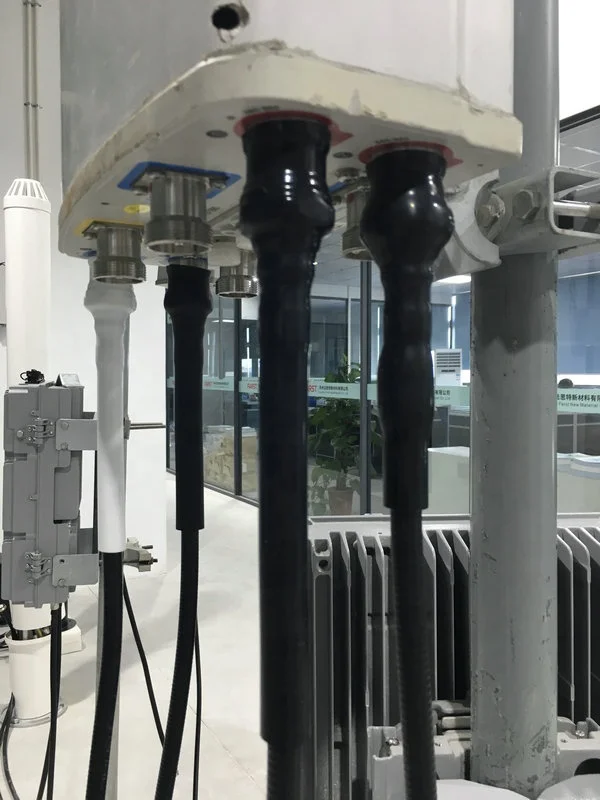

Production View
Production View
Delivery
PRODUCT SPECIFICATIONS
Properties | Typical Data | Test Method |
Shore Hardness | 40±5 | GB/T 531-2008 |
Tensile Strength | ≥9.0MPa | GB/T 528-2009 |
100% Stress at Definite Elongation | ≤1.2MPa | GB/T 528-2009 |
200% Stress at Definite Elongation | ≤2.0MPa | GB/T 528-2009 |
Elongation at Break | ＞800% | GB/T 528-2009 |
Tear Strength | ≥35kN/m | GB/T 529-2008 |
Size | Inner Diameter (mm) | Min Cable Outer Diameter (mm) | Max Cable Outer Diameter (mm) | Full Recovered Length (mm) |
VS20-1.5 | Ф20 | 6.0 | 15.0 | 38 |
VS20-2 | Ф20 | 6.0 | 15.0 | 50 |
VS20-3 | Ф20 | 6.0 | 15.0 | 76 |
VS25-1.5 | Ф25 | 7.0 | 19.0 | 38 |
VS25-2 | Ф25 | 7.0 | 19.0 | 50 |
VS25-3 | Ф25 | 7.0 | 19.0 | 76 |
VS25-4 | Ф25 | 7.0 | 19.0 | 100 |
VS28-1.4 | Ф28 | 7.0 | 22.0 | 36 |
VS28-1.5 | Ф28 | 7.0 | 22.0 | 38 |
VS28-2 | Ф28 | 7.0 | 22.0 | 50 |
VS28-4 | Ф28 | 7.0 | 22.0 | 100 |
VS28-5 | Ф28 | 7.0 | 22.0 | 127 |
VS28-6 | Ф28 | 7.0 | 22.0 | 150 |
VS32-2.2 | Ф32 | 10.0 | 27.0 | 57 |
VS32-2.5 | Ф32 | 10.0 | 27.0 | 65 |
VS32-5 | Ф32 | 10.0 | 27.0 | 127 |
VS32-6 | Ф32 | 10.0 | 27.0 | 150 |
VS32-7 | Ф32 | 10.0 | 27.0 | 178 |
VS32-8 | Ф32 | 10.0 | 27.0 | 203 |
VS32-9 | Ф32 | 10.0 | 27.0 | 230 |
VS32-11 | Ф32 | 10.0 | 27.0 | 280 |
VS32-12 | Ф32 | 10.0 | 27.0 | 305 |
VS35-5 | Ф35 | 12.5 | 30.0 | 127 |
VS35-7 | Ф35 | 12.5 | 30.0 | 178 |
VS35-8 | Ф35 | 12.5 | 30.0 | 203 |
VS35-9 | Ф35 | 12.5 | 30.0 | 229 |
VS35-10 | Ф35 | 12.5 | 30.0 | 254 |
VS35-11 | Ф35 | 12.5 | 30.0 | 280 |
VS35-12 | Ф35 | 12.5 | 30.0 | 305 |
VS40-5 | Ф40 | 14.0 | 33.0 | 127 |
VS40-5.5 | Ф40 | 14.0 | 33.0 | 140 |
VS40-6 | Ф40 | 14.0 | 33.0 | 152 |
VS40-7 | Ф40 | 14.0 | 33.0 | 180 |
VS40-8 | Ф40 | 14.0 | 33.0 | 203 |
VS40-9 | Ф40 | 14.0 | 33.0 | 230 |
VS40-10 | Ф40 | 14.0 | 33.0 | 254 |
VS40-11 | Ф40 | 14.0 | 33.0 | 280 |
VS40-12 | Ф40 | 14.0 | 33.0 | 305 |
VS45-6 | Ф45 | 14.0 | 39.0 | 152 |
VS45-7 | Ф45 | 14.0 | 39.0 | 178 |
VS45-8 | Ф45 | 14.0 | 39.0 | 203 |
VS45-9 | Ф45 | 14.0 | 39.0 | 230 |
VS45-10 | Ф45 | 14.0 | 39.0 | 254 |
VS45-11 | Ф45 | 14.0 | 39.0 | 280 |
VS45-12 | Ф45 | 14.0 | 39.0 | 305 |
VS53-6 | Ф53 | 19.0 | 46.0 | 152 |
VS53-7 | Ф53 | 19.0 | 46.0 | 178 |
VS53-8 | Ф53 | 19.0 | 46.0 | 203 |
VS53-9 | Ф53 | 19.0 | 46.0 | 230 |
VS53-10 | Ф53 | 19.0 | 46.0 | 254 |
VS53-11 | Ф53 | 19.0 | 46.0 | 280 |
VS53-12 | Ф53 | 19.0 | 46.0 | 305 |
We don't list all sizes here.Diameter 60mm-105mm can also produce

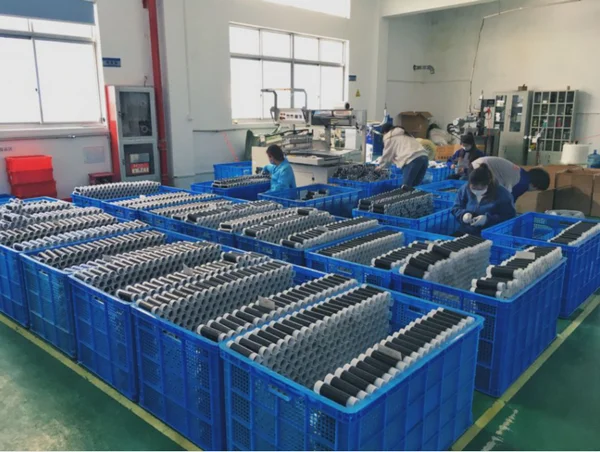

Production Show
