Price:$4,980.00 - $5,200.00

Quantity:


Product Overview

Description



Products Description

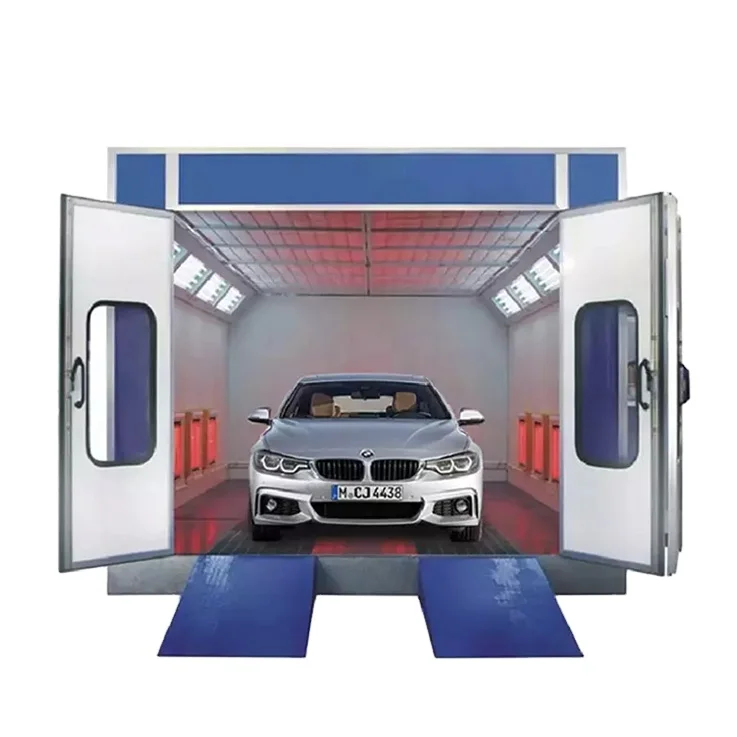

Spray booth provides a closed environment for vehicles painting with pressure controlling.
As we know that dust free, appropriate temperature and wind speed are necessary for painting.

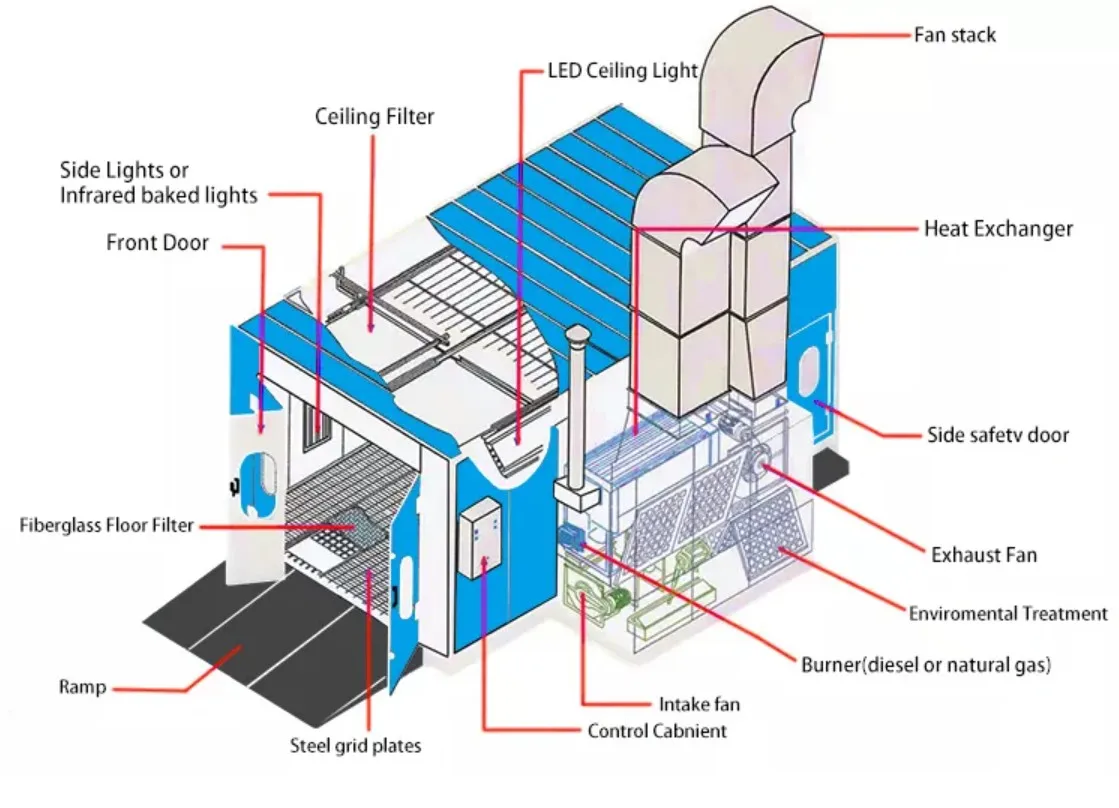

Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a suitable temperature, air flow and illumination.

We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. we can also design a suitable spary booth for you according to your actual site.Contact us and you'll be pleasantly surprised.








Outside size
7000*5150*3250（L*W*H) or customized
inside size
6900*3900*2600 (L×W×H) or customized
Entrance door
2900*2570（W*H)
Emergency door
650 × 2000 mm ×1 fold, with handle and anti-explosion lock
Cabin system
wall panel
50 mm EPS panel + 0.35 mm galvanized steel plate
basement
- steel structure, 300 mm height
- 2 rows of steel grille + 3 rows of diamond plate floor
 - diamond plate ramp, 1800 mm × 600 mm ×2 pc
Ventilation system
inlet fan
2 × 4KW YDW centrifugal fans, total air capacity: 25000 m3/h/set
outlet fan
optional
airflow speed
0.35 m/s, ventilation rate: 280 time/h
Heating system
1KW × 3 pc × 8 units infrared lamps for heating
Lighting system
ceiling light
LED lights: 16W × 3 pc × 8 units
Filtering system
primary filter
to filter granules > 10μm, filtering rate > 83%
ceiling filter
to filter granules > 4μm, filtering rate > 98%
Control system
lighting, spraying, heating, temperature controller, time setting, emergency stop, etc.
Working voltage
380V/220V, 50Hz/60Hz, 3 phase

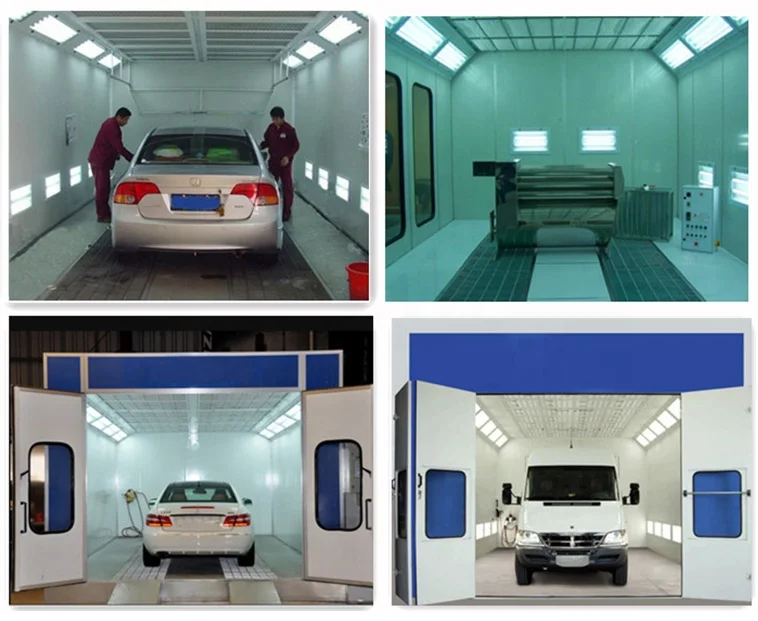

Details Images








FAQ


1,As for auto spray booth,what kind of heating system do you have?
 It has electric heating system,diesel heating system.You are suggested to choose one heating method.
It depends on whether electricity or diesel is more expensive in your local.

2,What is the thickness of wall panels metal sheets?
 The thickness of EPS is 50mm,75mm,Rock wool board 50mm,75mm,the thickness of metal sheets is 0.35-0.476mm

3,What is the roof material?
 Galvanized steel roof panel.

4,What is the advantages of inlet fans and exhaust fans?
 With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as
possible.Pollution is small,it will be comfortable when people are working in the booth.

5,What kinds of color of main door I can choose?
As for main door,you can choose grey,white,red,blue,reddish orange,silver grey.

6,How about your after-sales service?
Our after-sales service is very good.Each kind of spare parts of spray booth will be marked by number before delivery,and packing list,installation drawing,circuit diagram will come with auto spray booth.
If you have any question during the process of installation,you can also consult our machine expert.
