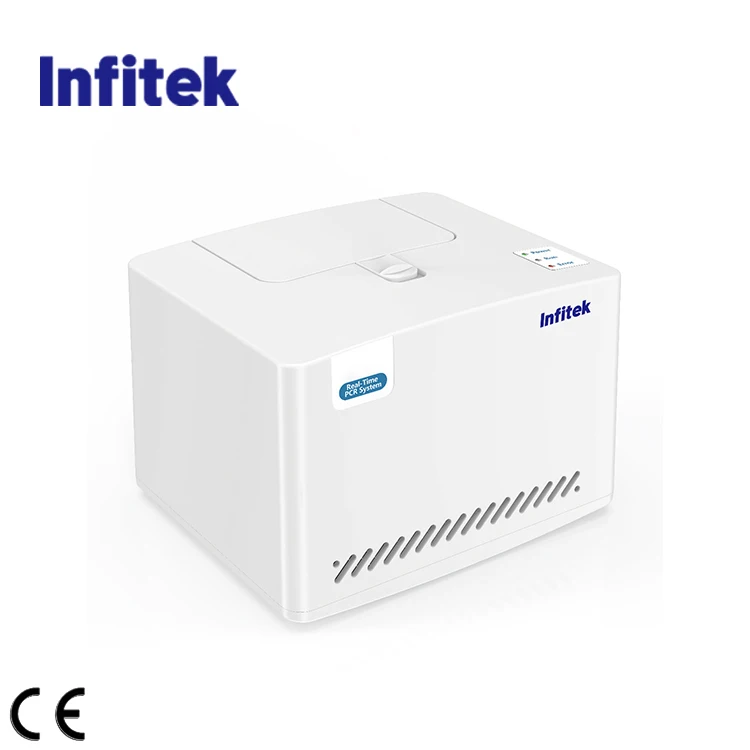

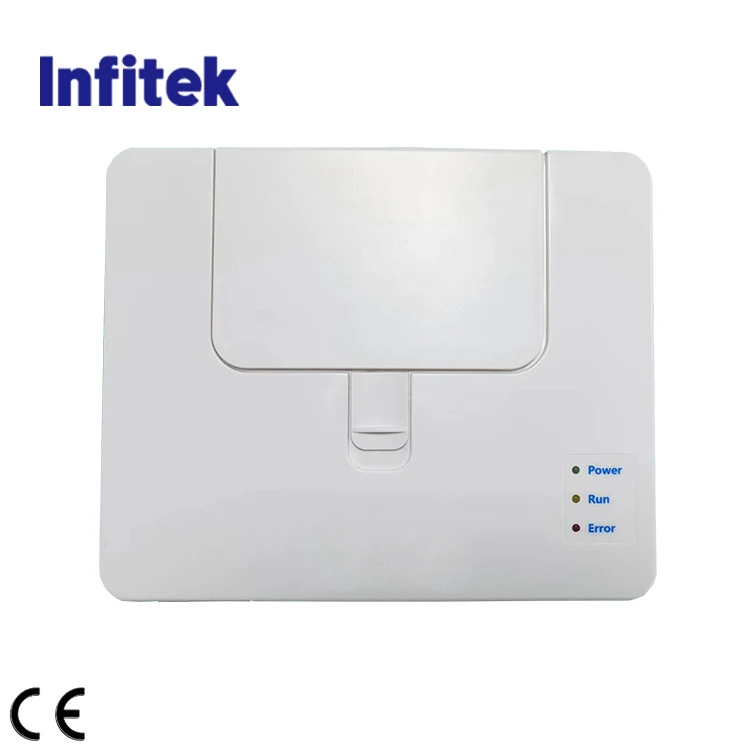

Infitek PCR-Q88 Series Real-Time PCR System QPCR Machine



Features


Description


The product can be used for real-time detection in pasture forest farm, breeding farm and water source. It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.


Advantages



  1. Small size, light weight, easy to carry

  2. Powerful software analysis function, which can perform quantitative analysis, melting curve analysis, genotyping, etc

  3. Adopting side scan technology, the detection distance is short, and the fluorescence collection signal is stable

  4. Black reaction block to avoid background noise.

  5. Adopt the same acquisition optical path to improve the repeatability.

  6. LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.

  7. Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy

  8. It has the protection functions of over-current, over temperature, power-off data self recovery, etc.

  9. Forward and backward air vent design, can be placed side by side, saving laboratory space.

  10. Support lithium battery power supply, especially suitable for quick inspection and field inspection.





Specifications


















































































































ModelPCR-Q88-4
Sample Capacity8×0.2ml (8 well)
ConsumableClear 0.2 ml PCR tube /8-tube strips
Reaction Volume15-100μl
Temperature control




technology


Marlow customized Peltier allow 1.000.000 cycles
Temperature Range0-100℃(Resolution:0.1℃)
Max. Ramp Rate7℃/s
Temperature fluctuation±0.1℃
Uniformity±0.25℃
Accuracy±0.25℃
Hot Lid Temperature30-110℃ (Adjustable, default 105℃)
Temperature ControlBlock/Tube
Excitation wavelength460-628nm
Emission wavelengthF1:520-540nm




F2:540-580nm


F3:571-612nm


F4:628-692nm





Factory Calibrated DyesF1: FAM/SYBR Green I




F2:HEX/VIC/JOE/TET


F3: ROX


F4: CY5





ExcitationLong life LED
DetectionHigh sensitivity photoelectric detector
Dynamic Range1-1010 Copies
Sensitivity1 copy
Feature functionQuantitative/qualitative, melting curve, genotyping
Date Export FormatsExcel,cvs,txt
PrintingReport can be printed (optional USB thermal printer)
CommunicationWIFI/USB2.0
Dimension0(L×W×H)195×165×140 mm
Net Weight3Kg
Electricity220VAC,50Hz    DC15V 225W





Certificates


infitek-certificate-3





Packaging & Shipping


infitek-packing & shiping





About us





infitek aboutinfitek-case





FAQ


Q: Are you a trading company or a manufacturer?


A: Based on independent manufacturing capability, we also integrate both domestic and international resources providing one-stop service for you all.





Q: How about quality of the goods?


A:


All the running products comply with CE standards.


Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.


Well-known third-party testing service available, such as SGS, BV, and TUV, etc.





Q: What are your pre- and after-sales services?


A:


Timely reply to pre-sales enquiries


Real-time update of manufacturing and shipment status


Contracted third-party maintenance company in over 60 countries


Assured availability of parts supply for 10 years at least





Q: Is OEM service available.


A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.





Q: How long is the lead time:


A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
