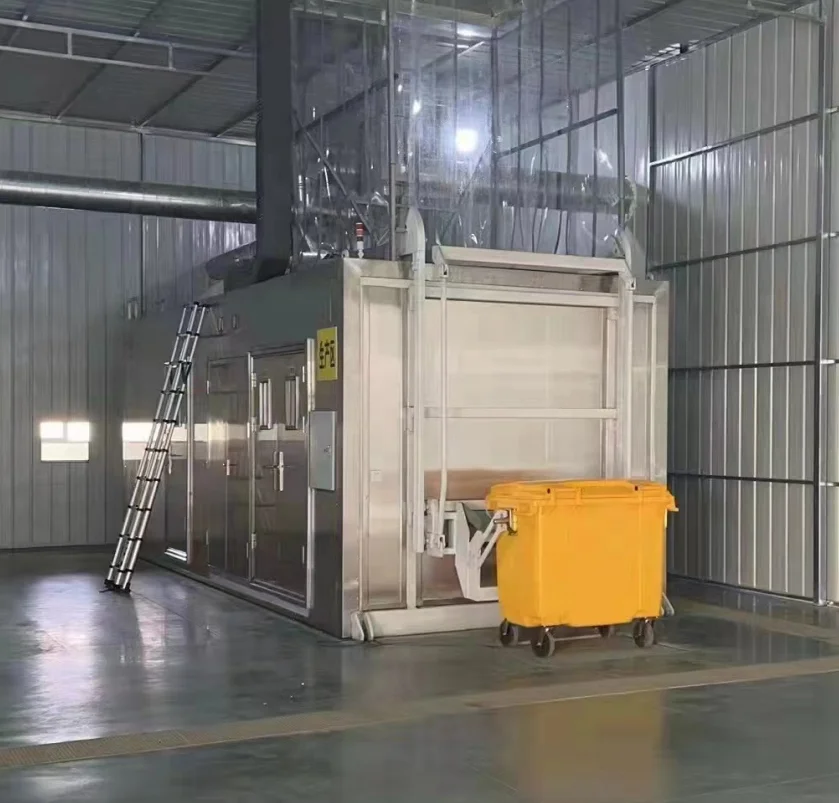

Treating Medical Waste with Microwaves medical waste treatment
$25,000.00 - $26,000.00
Product Overview
Description
Industrial Natural Npg Lpg Fuel Gas Burner For Boiler Spare Parts
Product Categories Show
Fuel gas burner
1. Gas-fired burner.
2. One/Two-stage working.
3. Air-gas mixing at blast-pipe.
4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6. Single stage manual flow adjustment.
7. Two stage Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.
8. One flange and one insulating seal for boiler fastening.
9. Combustion air intake with air flow adjustment device.
10.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
11.Monophase electric motor to run fan.
12.Flame presence check by ionisation electrode.
13.Electrical plant protection rating IP40.
2. One/Two-stage working.
3. Air-gas mixing at blast-pipe.
4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6. Single stage manual flow adjustment.
7. Two stage Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.
8. One flange and one insulating seal for boiler fastening.
9. Combustion air intake with air flow adjustment device.
10.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
11.Monophase electric motor to run fan.
12.Flame presence check by ionisation electrode.
13.Electrical plant protection rating IP40.
Various Models Of Machines For Your Choice
Specifications
Fuel gas burner
model | Calorific value(kcal) per hour | Highest Thermal output （kw） | Steam boiler model（t/h） | moter power(kw) | Valve group | Screen | Detection method | damper | program |
ZXOQM-0.3 | 50k | 70 | 0.2 | - | DN15 | - | Ion needle | without | Siemens Control Box |
ZXOQM-0.5-D | 100k | 140 | 0.2 | - | DN15 | - | without | ||
ZXOQM-0.5-D | 200k | 240 | 0.3 | 0.37 | DN20 | small screen | have | small red box | |
ZXOQM-0.5-S | 200k | 240 | 0.3 | 0.37 | DN20 | small screen | have | ||
ZXOQM-1-D | 300k | 350 | 0.3 | 0.525 | DN25 | - | without | Siemens Control Box | |
ZXOQM-1-S | 300k | 350 | 0.5 | 0.525 | DN25 | small screen | have | Ordinary gas without accompanying combustion | |
ZXOQM-2-S | 400k | 500 | 0.7 | 0.75 | DN40 | 5 inch | electronic eye | ||
ZXOQM-2.5 | 500k | 500 | 0.8 | 0.75 | |||||
ZXOQM-3-S | 600k | 700 | 1 | 1.5 | |||||
ZXOQM-3.5-S | 900k | 1050 | 0.5 | 1.5 | |||||
ZXOQM-4-S | 1200k | 1400 | 2 | 3 | DN50 | Double detection | Ordinary gas with accompanying combustion | ||
ZXOQM-4.5-S | 1800k | 2100 | 3 | 3 | DN50 | ||||
ZXOQM-5-S | 2400k | 2800 | 4 | 7.5 | DN65 | 7 inch | |||
ZXOQM-6-S | 3600k | 4200 | 6 | 9 | DN80 | ||||
ZXOQM-7-S | 6000k | 7000 | 10 | 15 | DN100 | ||||
ZXOQM-8-S | 9000k | 10500 | 12 | 22 | DN125 | ||||
ZXOQM-9-S | 12000k | 14000 | 20 | 37 | DN150 |
Leading companies in the industry,Has more than 10 national patents,National High-Tech Enterprise,China's well-known brands and key recommended projects for the Belt and Road Initiative.
Dimensions Of Each Type Of Machine
For more models and sizes, please contact supplier or chat now
Product Features
Structural features:
1. Lightweight aluminum alloy fan components;
2. High-performance centrifugal fan;
3. Use 304 stainless steel pipeline to improve the life of the whole machine;
4. Sliding combustion head with fixed device and steel flame plate;
5. ZXOQM-YDF-0.7-120 achieves accurate air-fuel ratio by adjusting the on-off of the fuel solenoid valve and the flow of the air door, making the burner more efficient, energy-saving and safer.
1. Lightweight aluminum alloy fan components;
2. High-performance centrifugal fan;
3. Use 304 stainless steel pipeline to improve the life of the whole machine;
4. Sliding combustion head with fixed device and steel flame plate;
5. ZXOQM-YDF-0.7-120 achieves accurate air-fuel ratio by adjusting the on-off of the fuel solenoid valve and the flow of the air door, making the burner more efficient, energy-saving and safer.
Technical and performance characteristics:
1. Second stage fire operation;
2. Can adapt to any type of combustion chamber;
3. Precise air distribution ratio to ensure stable fuel and efficient combustion;
4. The innovative flame stabilizing tube design realizes full fuel mixing and overall flame stability;
5. Super anti-corrosion ability, convenient installation, operation and maintenance, safe and reliable, and low noise;
6. All parts are easy to disassemble, clean, repair and replace;
7. The mechanical pressure atomization is used in the whole process, and the atomization is relatively complete, ensuring relatively complete combustion.
1. Second stage fire operation;
2. Can adapt to any type of combustion chamber;
3. Precise air distribution ratio to ensure stable fuel and efficient combustion;
4. The innovative flame stabilizing tube design realizes full fuel mixing and overall flame stability;
5. Super anti-corrosion ability, convenient installation, operation and maintenance, safe and reliable, and low noise;
6. All parts are easy to disassemble, clean, repair and replace;
7. The mechanical pressure atomization is used in the whole process, and the atomization is relatively complete, ensuring relatively complete combustion.
Applications
Mainly applicable to: all kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Professional manufacture,more than 10 years producing experiences,More than 20 years of experience in the thermal industry, There are more than 20 qualification certificates recognized at the national level,
4 years exporter, burners are worked at many countries, INCLUDE ASIA，EUROPE, AFRICA, SOUTH AMERICA，USA, Philippines,etc country.
4 years exporter, burners are worked at many countries, INCLUDE ASIA，EUROPE, AFRICA, SOUTH AMERICA，USA, Philippines,etc country.
Our service
Why Choose Us
1.We are a professional manufacturer,Factory direct sale, best price,offer the fast delivery.
2.We can provide you with high-quality,competitive products and fast transportation services.
2.We can provide you with high-quality,competitive products and fast transportation services.
