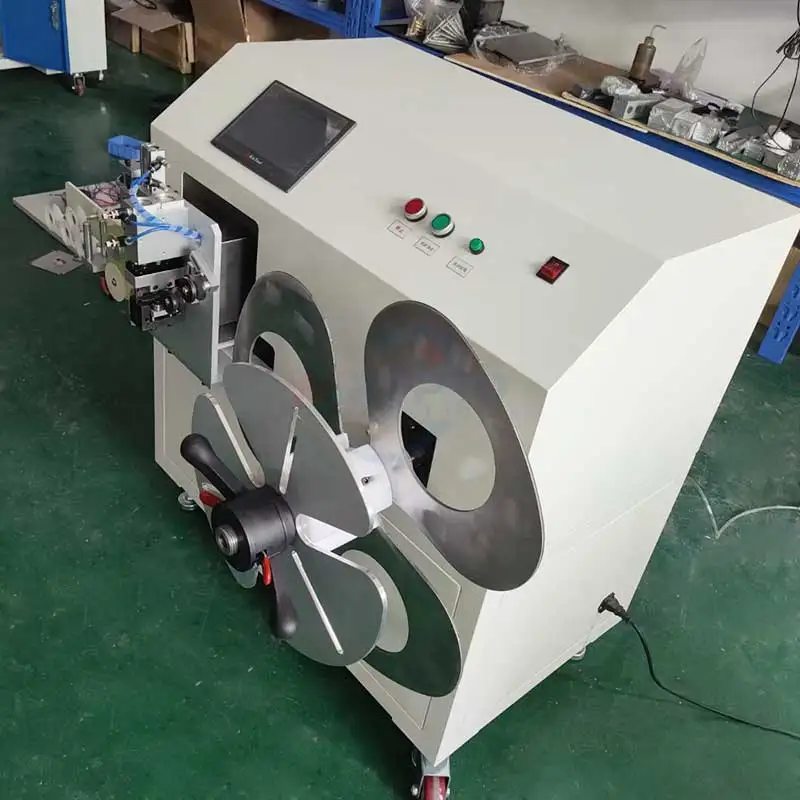

HB MF3 big spool wire measuring and cutting and winding machine
- Category: >>>
- Supplier: Wirepro Automation Technology Co. Ltd.
Share on (1600537235837):
Product Overview
Description
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
Product Description
With meter counting fixed length automatic wire spool bobbin rewinding coiling machine
Technical Data
| Model | HB-MF3 |
| Type | Floor-standing no tying function |
| Available Wire Size | 0.5-12mm (can custom) |
| Max Coil Weight | 25 kg (can custom) |
| Winding Inner Dia | 50-300mm ( can custom) |
| Winding Out Dia | Standard 320mm; Max 350mm |
| Winding Reel Diameter | 300MM / 500MM / 600MM |
| Winding Width | Max 180mm |
| Winding Cycles | Adjustable |
| Winding Speed | 1-8cycle/s |
| Power Supply | 110/220VAC,50/60Hz |
| Power | 1500W |
| Dimensions | 100*45*80cm |
| Weight | 150kg |

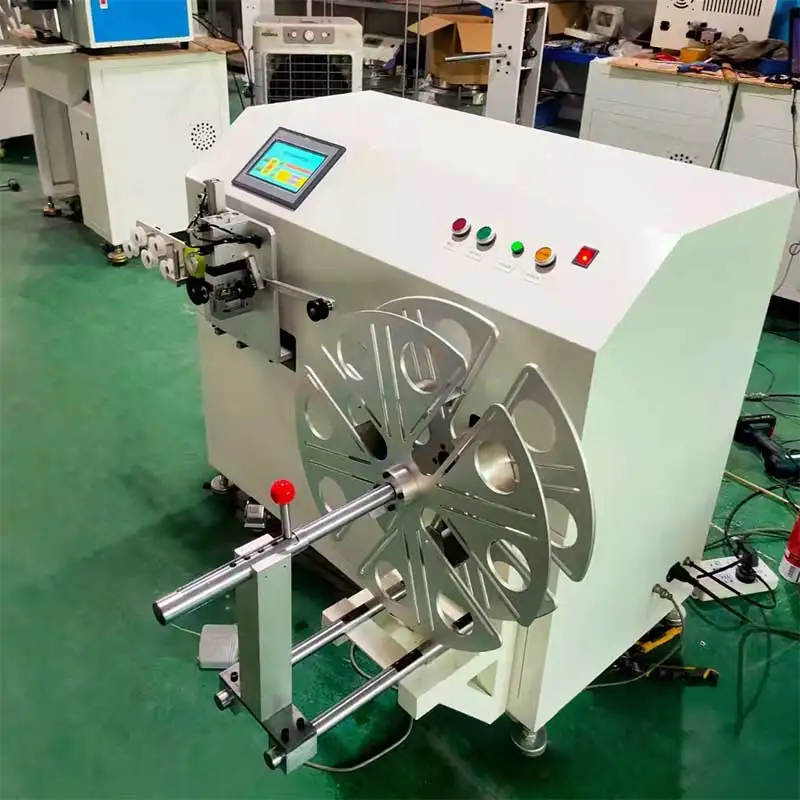

Full-automatic wire measuring and cutting and winding machine.
This model is for a big wire spool, max loading about 25kgs, can custom if you need more loading weight.

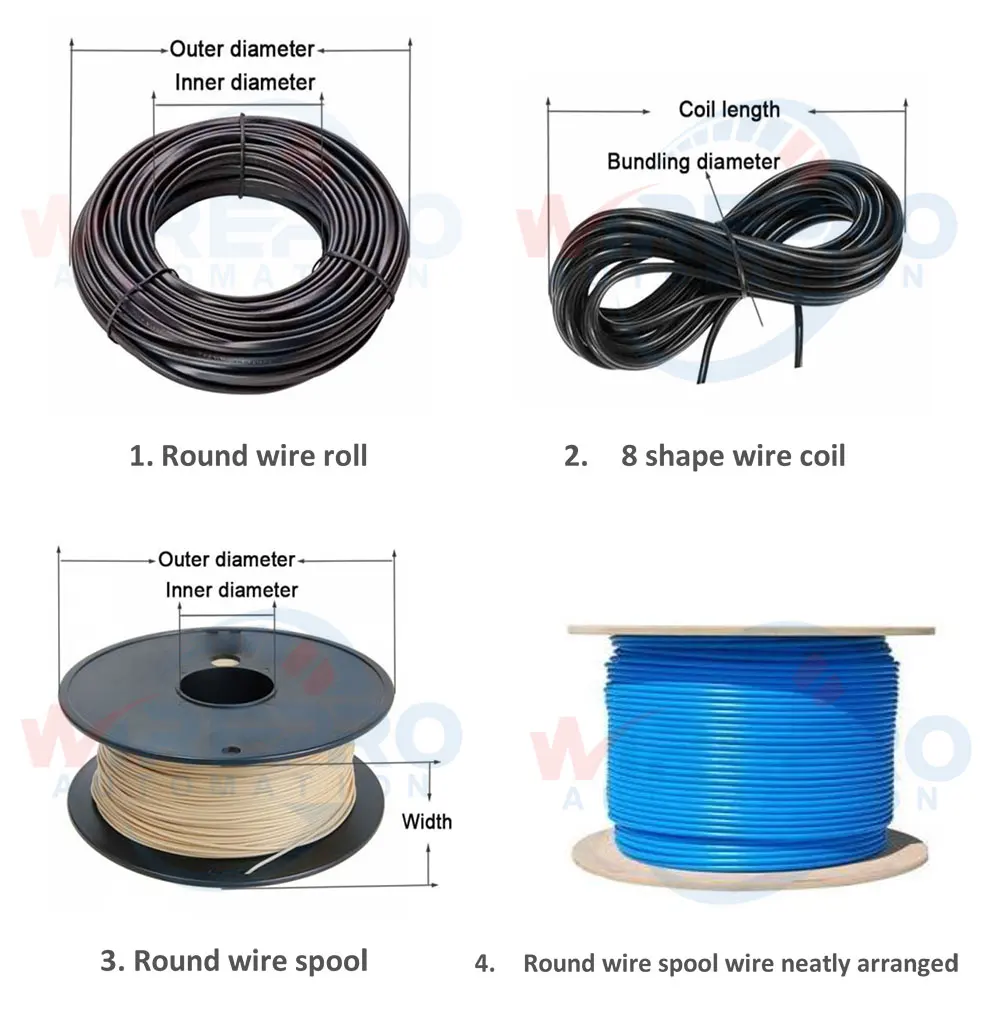

There are three winding systems for wire roll and wire reel winding. The operators just need to put the wire into the wire clamp and then step the footswitch, the machine will automatically cut and wind the wire, tying wire roll function can be costumed.
1. Full-featured with metering, cutting and windings. The tying function can be customized
2. Can bear heavier coils, max about 25kgs
3. High accuracy metering the wire length
4. The number of turns can be arbitrarily set and the winding speed can be adjusted
Application
More machine pictures
Related Products
Wire winding machine HB-W25
|
Wire tying machine HB-T40
|
wire winding and bundling machine HB-D40
|
Desktype wire metering cutting winding bundling machine HB-M01 |  Desktype wire metering cutting winding machine HB-M02
|
Floor standing wire metering cutting winding machine HB-M01 |
Packaging & Shipping
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
Company Information
FAQ
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
