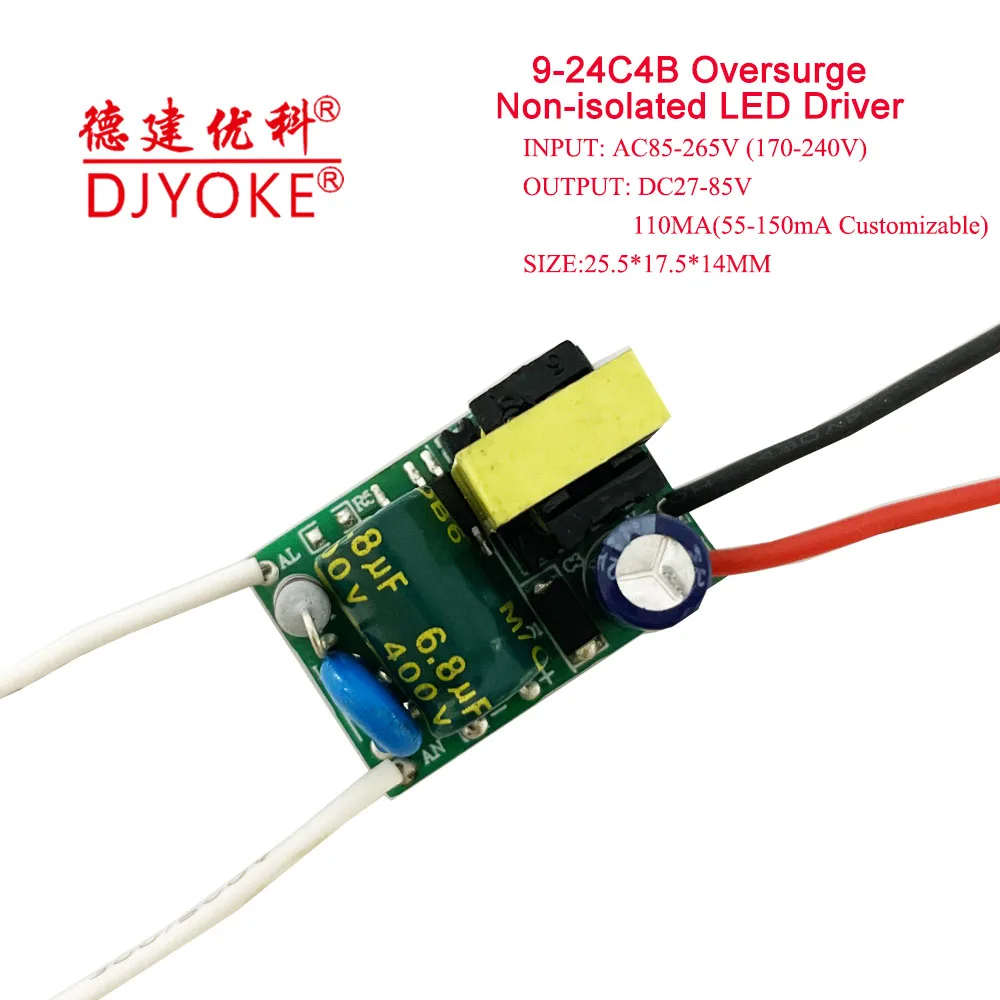

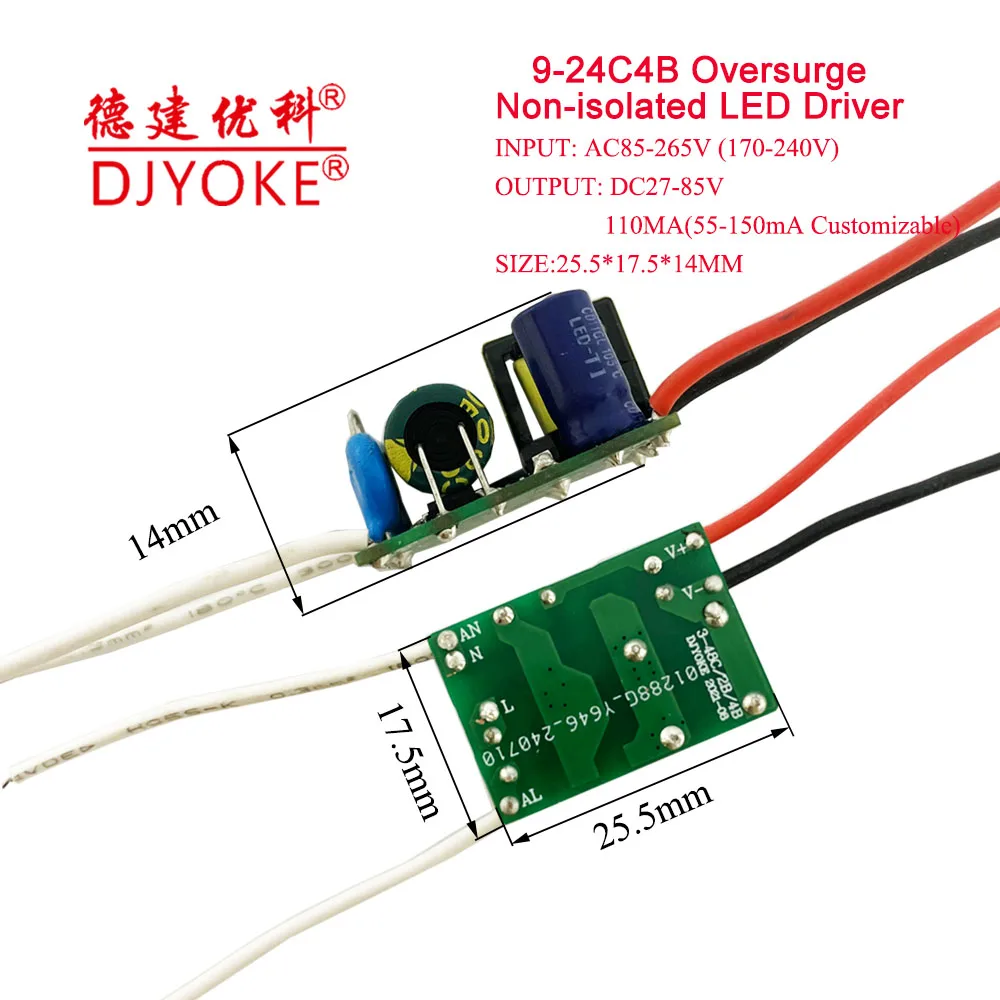

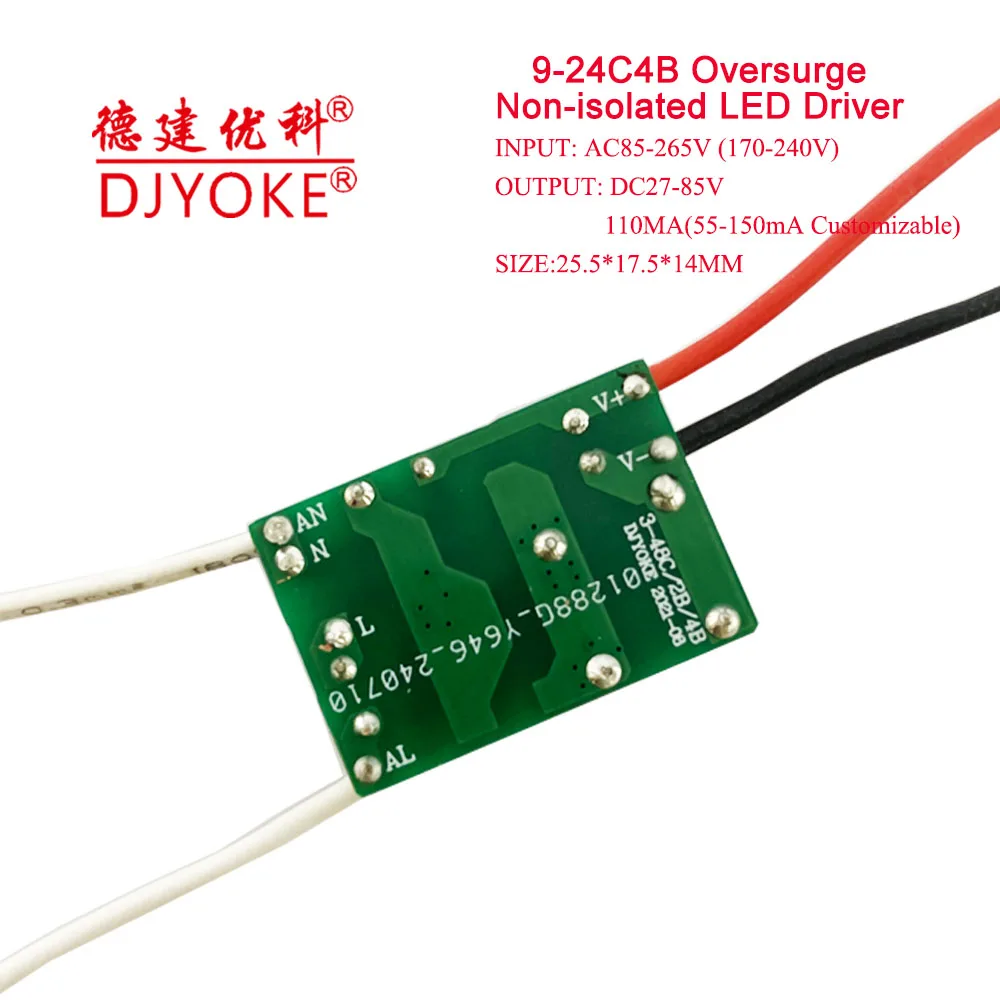

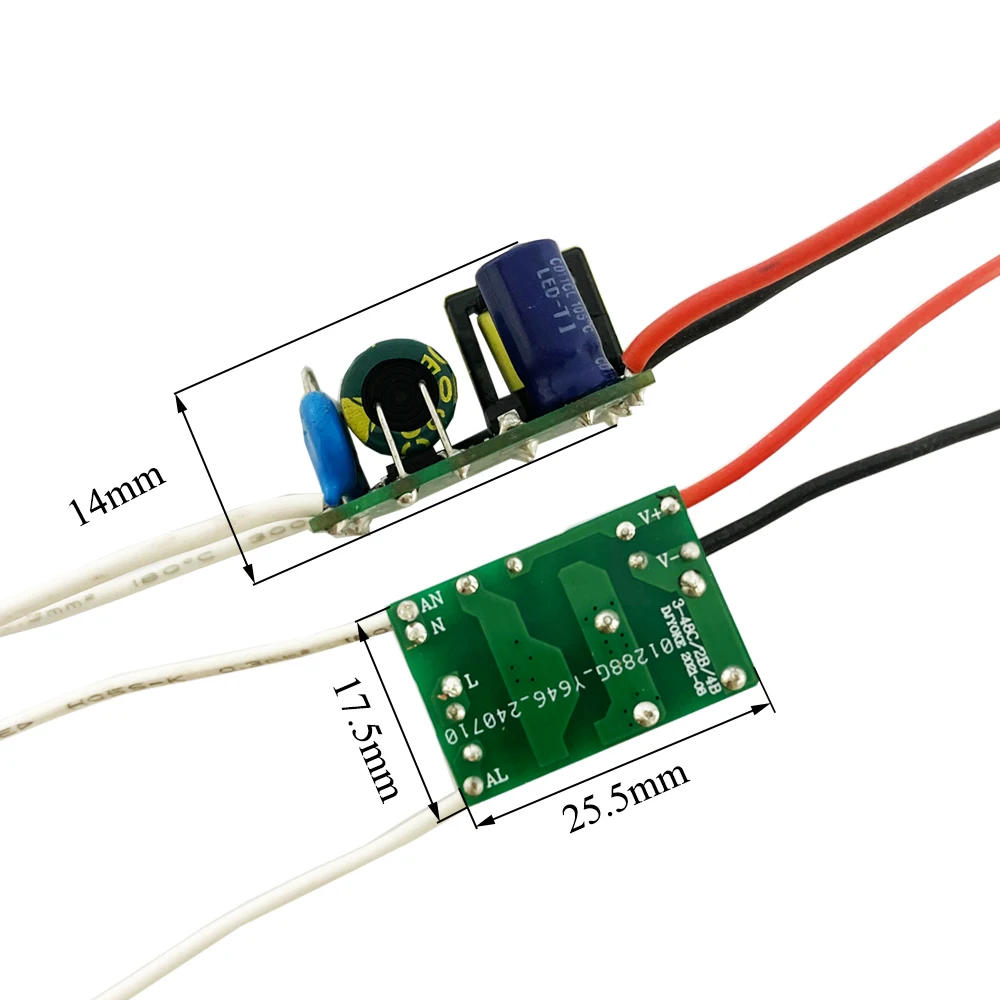

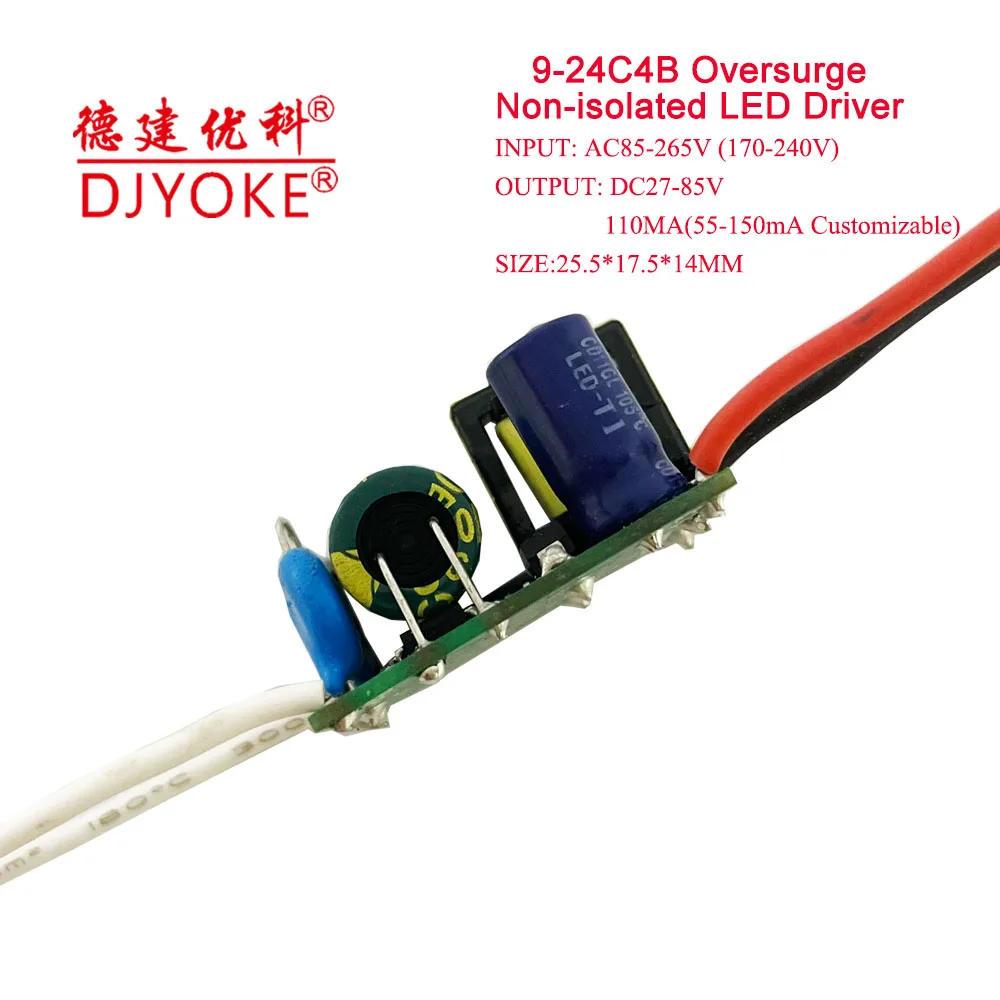

Oversurge 3-10W DC27-85V 110mA Low PFC open frame power supply led driver for bulb lamp E27 E14 LED driver 03






1.Input parameters
Parameters
Unit
Test description
Minimum
Typical
Maximum
Input Voltage
V(AC)
Normal
85
220
265
Input frequency
HZ
Normal
43
50
65
Power factor
PF
Normal
0.51
0.55
0.56
Input Inrush Current
A
Cold start under normal conditions



2.Output parameters
Parameters
Unit
Minimum
Typical
Maximum

Output current
MA
109
110
114

Output voltage
V
27
XX
90

Output ripple
MV




Constant current accuracy
%
1%
3%
5%







3.Overall performance
9series connection110MA Test condition
AC Input
Output
Input Voltage(V)
Power consumption(W)
Output voltage(V)
Output current(MA)
Power Factor
Efficiency
170
3.66
28.2
111
0.54
0.86
180
3.68
28.2
112
0.53
0.86
190
3.73
28.2
112
0.53
0.85
200
3.74
28.2
112
0.52
0.84
210
3.79
28.3
113
0.52
0.84
220
3.81
28.2
113
0.51
0.84
230
3.83
28.3
113
0.51
0.83
240
3.88
28.3
114
0.51
0.83









12series connection 110MA Test condition
AC Input
Output
Input Voltage(V)
Power consumption(W)
Output voltage(V)
Output current(MA)
Power Factor
Efficiency
170
4.74
37.7
111
0.55
0.88
180
4.78
37.7
111
0.54
0.88
190
4.78
37.7
112
0.54
0.88
200
4.86
37.8
112
0.53
0.87
210
4.89
37.8
113
0.53
0.87
220
4.93
37.8
113
0.52
0.87
230
4.95
37.8
113
0.52
0.86
240
5.01
37.8
113
0.52
0.85









16series connection 110MA Test condition
AC Input
Output
Input Voltage(V)
Power consumption(W)
Output voltage(V)
Output current(MA)
Power Factor
Efficiency
170
6.16
50.3
110
0.55
0.90
180
6.2
50.4
110
0.55
0.89
190
6.24
50.4
111
0.55
0.90
200
6.27
50.3
111
0.54
0.89
210
6.34
50.4
112
0.54
0.89
220
6.38
50.3
112
0.53
0.88
230
6.44
50.4
112
0.53
0.88
240
6.46
50.4
113
0.53
0.88









20series connection 110MA Test condition
AC Input
Output
Input Voltage(V)
Power consumption(W)
Output voltage(V)
Output current(MA)
Power Factor
Efficiency
170
7.55
62.9
110
0.56
0.92
180
7.6
62.9
110
0.55
0.91
190
7.62
62.8
110
0.55
0.91
200
7.68
62.9
110
0.55
0.90
210
7.73
62.9
111
0.55
0.90
220
7.79
62.9
111
0.54
0.90
230
7.82
62.9
112
0.54
0.90
240
7.91
63
112
0.54
0.89









24series connection 110MA Test condition
AC Input
Output
Input Voltage(V)
Power consumption(W)
Output voltage(V)
Output current(MA)
Power Factor
Efficiency
170
8.99
75.5
109
0.56
0.92
180
8.97
75.4
109
0.56
0.92
190
9.04
75.5
109
0.56
0.91
200
9.05
75.4
110
0.55
0.92
210
9.11
75.4
110
0.55
0.91
220
9.15
75.4
110
0.55
0.91
230
9.23
75.5
111
0.54
0.91
240
9.27
75.5
111
0.54
0.90



4. Using environment
Parameters
Parameters
Unit
Test description
Minimum
Typical
Maximum
Working ambient temperature
℃
Full load operation
-18
+40
+60
Storage ambient temperature
℃

-25
25
+75
