Product Overview
Description
How to recycle the copper and PVC from waste wire and cable?
We can use wire and cable stripping machine to separate from each other.It’s function was to separate the insulation layer of cable from the conductor to recycle the copper, aluminum, plastic and rubber.
Before stripping: waste wire and cable

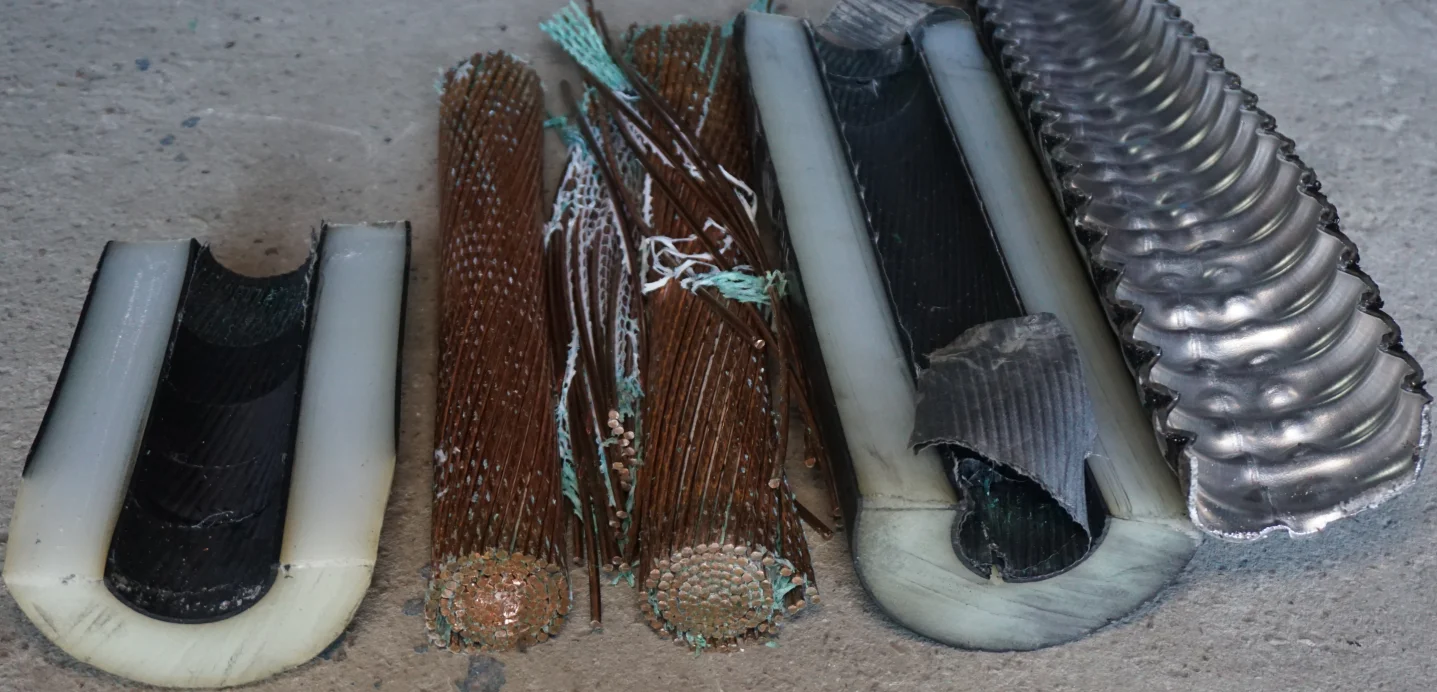

After stripping: separated copper wire
Product Overview
SWM-LP-90 Stripping Machine
Outer diameter Ф2mm - Ф90mm high voltage cable, medium voltage cable, sheathed cable, armored cable, etc. (Please choose other models for wool cords below 10MM)
Suitable dia. of Cable: φ2mm～φ90mm
There are 4 gears in total, from slow to fast:
There are 4 gears in total, from slow to fast:
① Gear L+1 Speed: 65 rpm ② Gear L+2 Speed: 95 rpm ③ Gear H+1 Speed: 130 rpm ④ Gear H+2 Speed: 190 rpm
Note: Switching gears must be stopped for operation
LP-90 stripping machine has 7 kinds of stripping mechanisms that can be matched and adjusted to correspond to more complex cables.
Product Paramenters
No | Item | SWM-LP-90 |
1 | Power& rate | 380V/4KW/50HZ |
2 | Diameter of cable (round) | φ2mm～φ90mm |
3 | Flat cable (Single) | ≤10MMX17MM |
4 | Stripping Thickness | ≤25mm |
6 | Processing Speed | max.100m/min |
7 | Net Weight | 300kg |
8 | Gross Weight | 330kg |
9 | Machine Dimensions | 52*90*130（L*W*H） |
10 | Package Dimension | 56*94*143（L* W*H） |

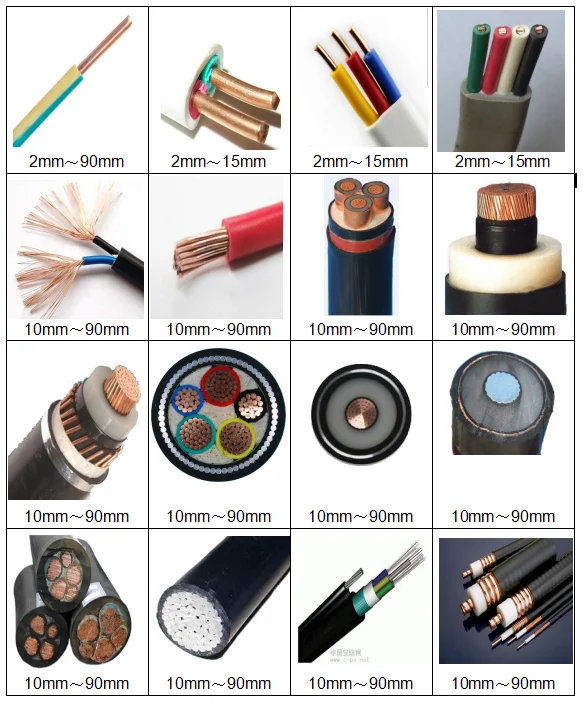

1、Diameter of wire and cable 2、Thickness of wire and cable 3、The structure of wire and cable
SN | Diameter | Thickness | Power | Model | Price/USD | Gross Weight | Package Dimension |
1 | φ2mm～φ45mm | ≤5mm | 220V/2.2KW/50HZ | SWM-MSY45-12 | 558 | 105Kg | 71*73*101cm （L* W*H） |
2 | φ2mm～φ50mm (round) | ≤5mm | 220V/2.2KW/50HZ | SWM-MSY-50 | 886 | 147Kg | 66*73*86cm （L* W*H） |
16mm×6mm 、12mm×6mm (W×T) (flat with single) | |||||||
3 | φ2mm～φ90mm | ≤25mm | 380V/4KW/50HZ | SWM-LP-90 | 1730 | 330Kg | 56*94*143cm （L* W*H） |
4 | φ2mm～φ120mm (round) | ≤25mm | 380V/4KW/50HZ | SWM-MSY-120-3 | 3460 | 445Kg | 86*61*133cm （L* W*H） |
≤10mmX17mm(flat) | |||||||
5 | φ30mm～φ200mm | ≤35mm | 380V/7.5KW/50HZ | SWM-LP-200 | 3650 | 350Kg | 70*105*140cm （L* W*H） |
Product Advantages
Products Description
Instructions:

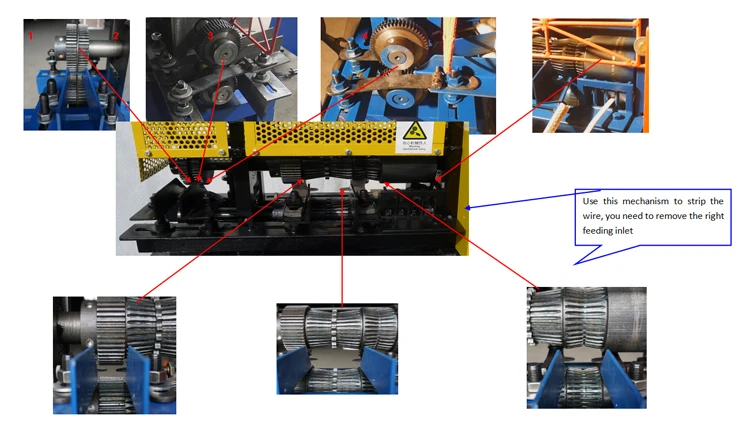

3) Usually the cable with an outer diameter larger than 30MM is placed in the middle of the machine for stripping. There are 3 types of gear cutters that can be matched (see Figures 5, 6, and 7 below), and the most suitable gear is selected according to the size of the cable and the type of cable sheath. Tool combination, when the outer diameter of the cable is larger than the gear, it must be changed to another larger gear to combine the tool to strip the wire.
4) The single-core hard wire with an outer diameter of 2-10MM can use the stripping mechanism (Figure 4), which uses two rollers to strip the wire without using a tool. Please remove the tool to avoid touching the tool when the upper and lower gaps are too small.
1) After turning on the machine, first observe whether the machine is running normally and whether there is any abnormal sound. The gearbox has 4 gears that can be adjusted. The operation must be stopped when adjusting. If it is difficult to shift the gear, it is necessary to manually rotate the lower gearbox pulley to make the internal gears of the gearbox connect properly, and then turn the gear lever to install the new gear. bit. Use low gear when stripping armored and thick-sheathed cables.
2) Select different conveying gears and cutters according to the outer diameter of the cable and the material of the insulating layer, as follows:
①、Usually the outer diameter is less than 30MM plastic sheathed cable, use the round knife on the left side of the machine to strip the wire (see Figure 1 below), adjust the lifting height of the handle according to the thickness of the sheath, after adjusting the handle, lock the nut under the handle, pay attention when adjusting Keep both sides parallel.
②、Usually, the rubber cable with an outer diameter of less than 30MM and the cable with a thick outer skin or an iron sheet are stripped with a long knife on the left. Remove the left round knife, and then install the long knife on the knife holder (see Figure 2 and 3 below). The height of the long knife edge is located in the middle of the cable, and the center of the knife edge is slightly 1 cm behind the gear (the knife edge is too forward It is easy to cause the resistance to be too large, and the gear cannot drag the cable). When stripping the wire with the long knife on the left, the outer diameter of the absolute cable determines whether to use 1 gear or 2 gears. When using 1 gear, add a washer to the inside to fix it.
*Note: Cables with an outer diameter greater than 30MM cannot be stripped on the left side for a long time. Due to the stress on one side, it is easy to cause the shaft to break.
①、Usually the outer diameter is less than 30MM plastic sheathed cable, use the round knife on the left side of the machine to strip the wire (see Figure 1 below), adjust the lifting height of the handle according to the thickness of the sheath, after adjusting the handle, lock the nut under the handle, pay attention when adjusting Keep both sides parallel.
②、Usually, the rubber cable with an outer diameter of less than 30MM and the cable with a thick outer skin or an iron sheet are stripped with a long knife on the left. Remove the left round knife, and then install the long knife on the knife holder (see Figure 2 and 3 below). The height of the long knife edge is located in the middle of the cable, and the center of the knife edge is slightly 1 cm behind the gear (the knife edge is too forward It is easy to cause the resistance to be too large, and the gear cannot drag the cable). When stripping the wire with the long knife on the left, the outer diameter of the absolute cable determines whether to use 1 gear or 2 gears. When using 1 gear, add a washer to the inside to fix it.
*Note: Cables with an outer diameter greater than 30MM cannot be stripped on the left side for a long time. Due to the stress on one side, it is easy to cause the shaft to break.
3) Usually the cable with an outer diameter larger than 30MM is placed in the middle of the machine for stripping. There are 3 types of gear cutters that can be matched (see Figures 5, 6, and 7 below), and the most suitable gear is selected according to the size of the cable and the type of cable sheath. Tool combination, when the outer diameter of the cable is larger than the gear, it must be changed to another larger gear to combine the tool to strip the wire.
4) The single-core hard wire with an outer diameter of 2-10MM can use the stripping mechanism (Figure 4), which uses two rollers to strip the wire without using a tool. Please remove the tool to avoid touching the tool when the upper and lower gaps are too small.
5) Precautions for use:
① . When the machine is running, pay attention to the safety of your hands and do not reach into the machine. Turn off the machine when servicing adjustments.
② . Do not wear gloves when operating the machine to prevent it from being caught by the cable and dragged into the machine.
④. Check the oil quantity of the transmission every quarter, and the transmission gear should be frequently added with lubricating oil.
⑤. When using the handle to adjust the distance between the upper and lower shafts, the heights of the two sides should be relatively parallel, and the force on one side will easily damage the machine.
① . When the machine is running, pay attention to the safety of your hands and do not reach into the machine. Turn off the machine when servicing adjustments.
② . Do not wear gloves when operating the machine to prevent it from being caught by the cable and dragged into the machine.
④. Check the oil quantity of the transmission every quarter, and the transmission gear should be frequently added with lubricating oil.
⑤. When using the handle to adjust the distance between the upper and lower shafts, the heights of the two sides should be relatively parallel, and the force on one side will easily damage the machine.
⑥. Check whether the four lifting screws of the gearbox and the four lifting screws of the motor are loose every quarter. If there is such a situation, the tension of the chain and the V-belt should be adjusted in time. When adjusting, the transmission and the motor are both It should be relatively parallel, not too inclined.
