Product Overview

Description

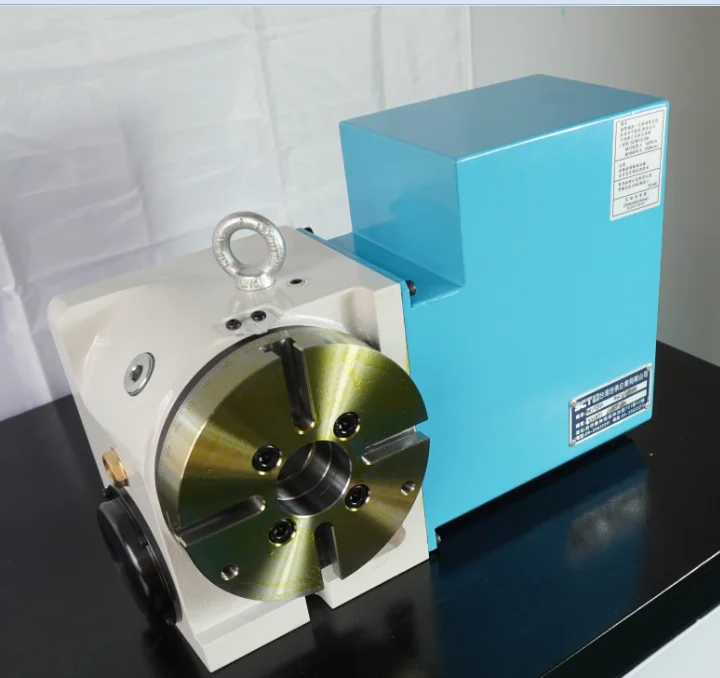

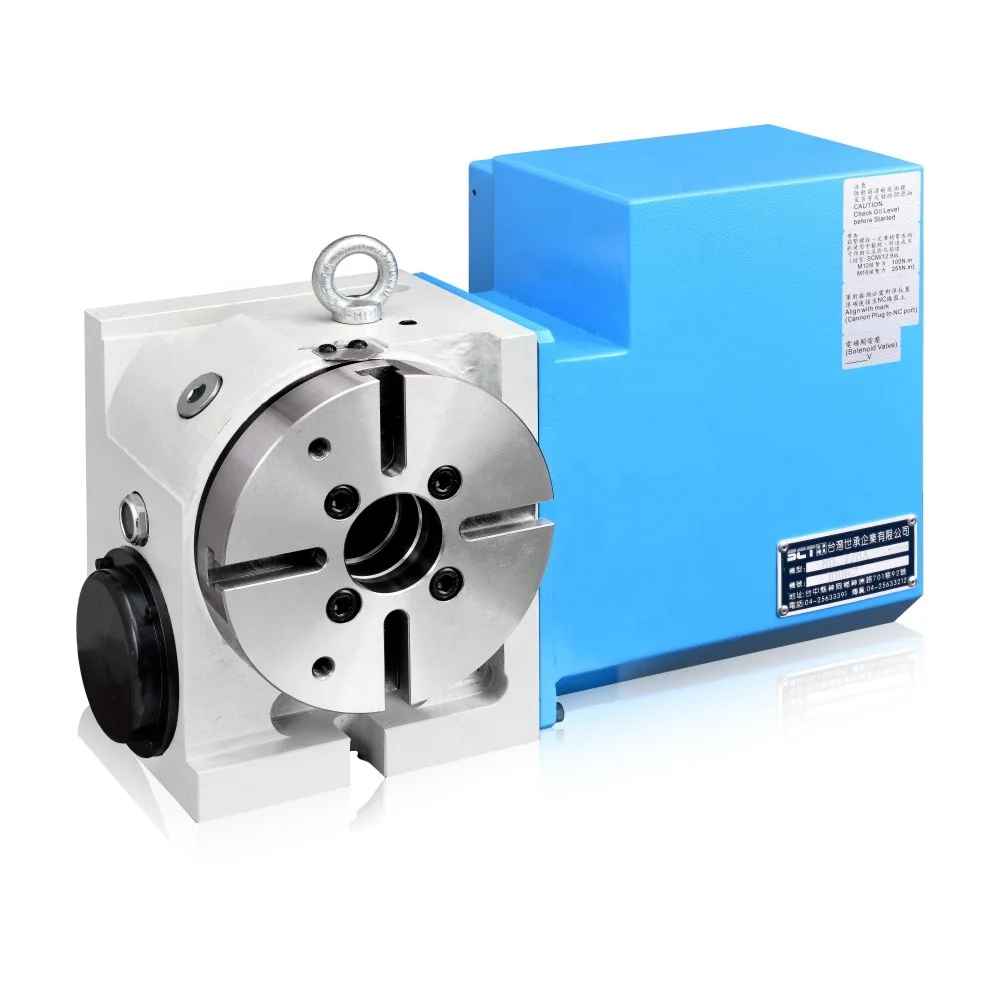

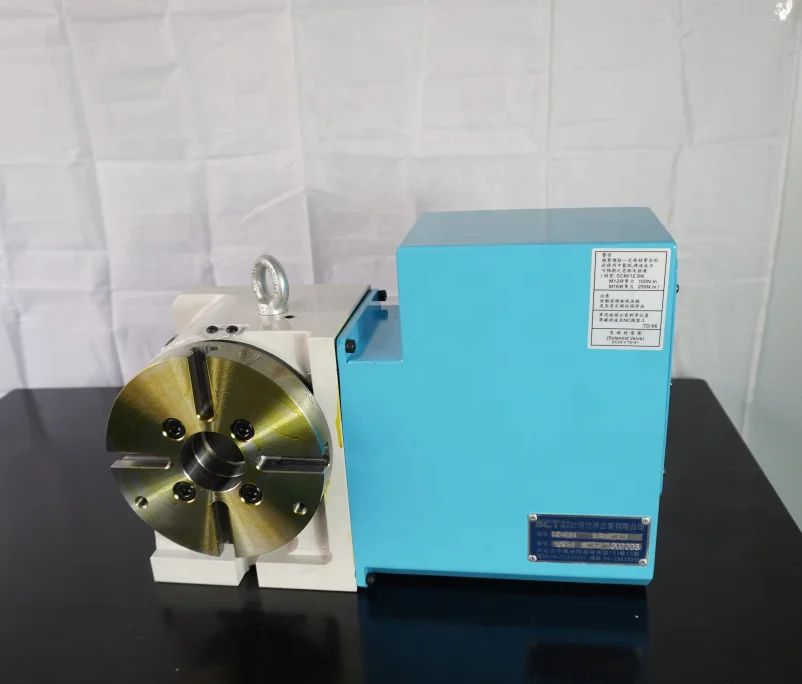

Mitsubishi System Cnc Machine Center Use 4th Axis Cnc Rotary Table 135mm Center Height Cnc Indexing Head



Features

1.This rotary table use dual lead worm.
2.The worm material is aluminum bronze alloy.
3.High transmission positioning accuracy.
4.Cross Ball Bearings for make sure the long machining times.


Product Overview

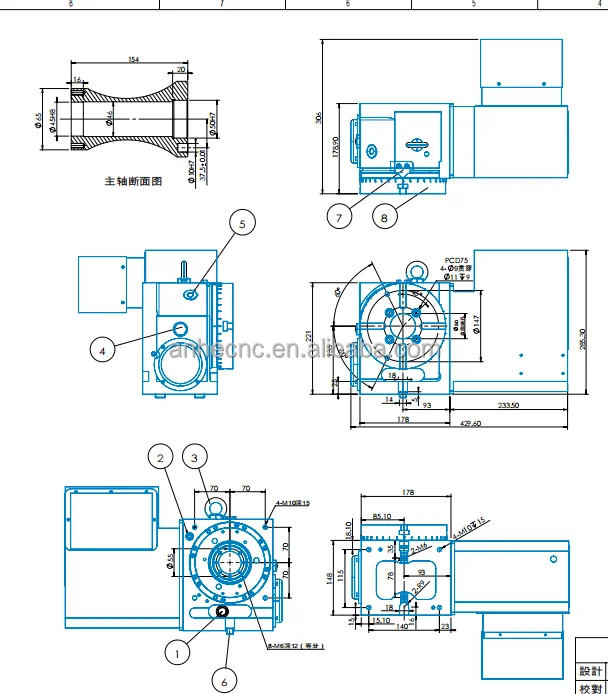

Drawing




FEATURES AT A GLANCE


Compact dimension
Safety frame
Cnc control
Long service life
Versatility



Front elevation
3D back elevation
3D Front elevation




PRODUCT SPECIFICATIONS


Model
MD-170A
Disc diameter
170mm
Spindle bore diameter
∅50h7
Sindle cener through hole
∅45h7
Horizontal center height
221mm
Center height
135mm
Width of T slot
12h7
Width of mount key
14h7
Locking force
5 pneumatic/25 hydraulic
Ambient temperature
18 ~40°
Mini division angle
0.001°
Gear ratio
1/72


PRODUCT CONFIGURATION


Mitsubishi serve motor
Mitsubishi drive
Mitsubishi system connect cable


SALES AND SERVICE NETWORK




Successful Project


Solution for brother drill&tap machine
Solution for Ugint drill&tap machine
Solution for Fanuc drill& tap machine


SIMILAR PRODUCTS




FAQ


Q1:What's the lead time for the cnc rotary table ?
A1：We have 4th axis cnc rotary table in stock ,the 5th axis rotary table need more than 7 days.

Q2:Which system suit for the cnc rotary table ?
A2: Fanuc ,Mitsubishi,siemens,Haas, GSK,Syntec etc .
