Product Overview

Description









WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website.


If you need any support, welcome contact us anytime ^_^










Product Description

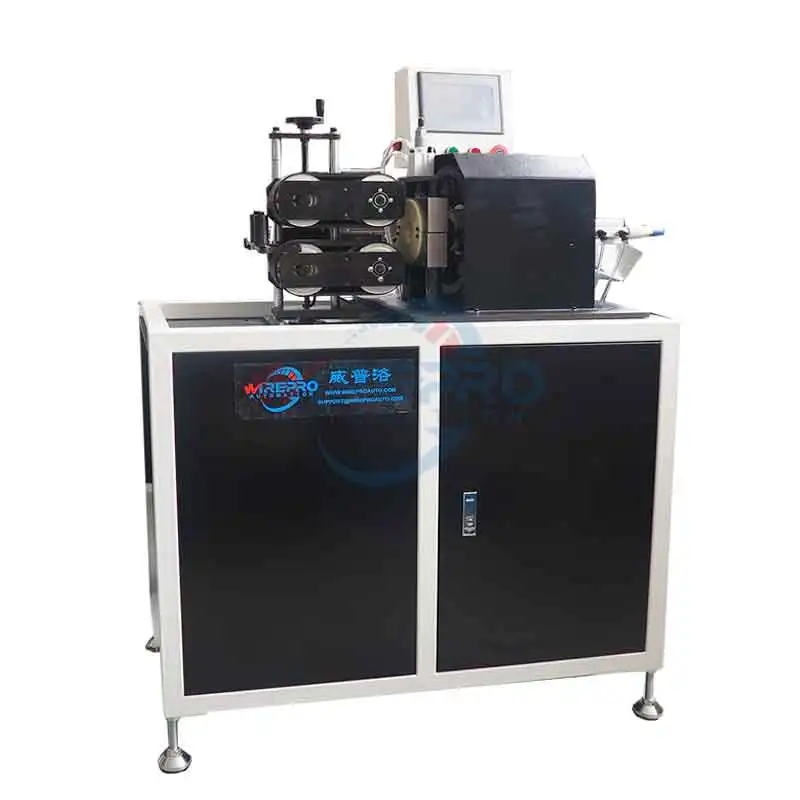

 pipe cut machine (10)








High precision automatic plastic tube cutting machine for PC, PE, PVC, PP, ABS, PS, PET and other plastic pipes. PC PVC ABC PP tube cutting machine.

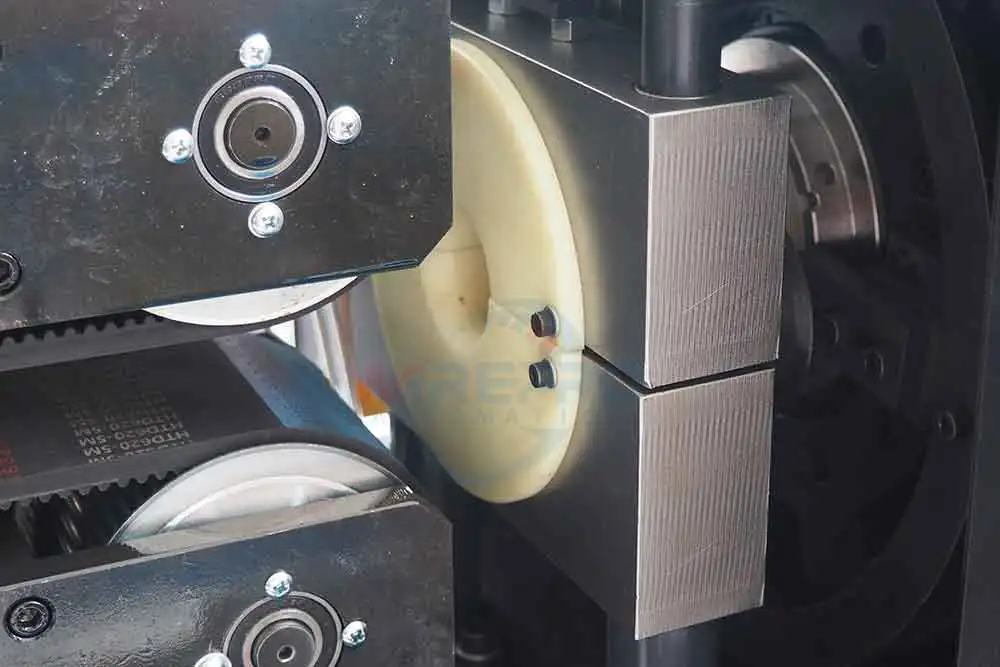

This series of machines have a belt feeding part, can cut pipe individually.


The CP-50S for max diameter 50mm, CP-100S for max diameter 100mm, other diameters can custom.


Features:


1. Rotary knife cutting, chipless cutting, flat and smooth cut, no indentation, no scratches, no deformation
2. High definition LCD screen, quick access to information content, reduce errors
3. Can be automatically cut the pipe, max diameter 150mm
4. Special line pipes can be equipped with rubber wheels and cutters.
5. Designed for different specifications and different materials, good flexibility and fast processing





Technical Data



















































ModelCP-50SCP-100S
Available Tube Diameter Max 50mm (can custom) Max 100mm (can custom)
ApplicationGenerally just cutting tube, if you need used with the tube production line, please check our other machine
Available Tube Thickness0.5 - 6mm (others please check with us)
Cutting Length 3-1000mm or more long
Knife cold knife, rotor cutter
Power Supply220/110V,50/60Hz
Power450W
SpeedAutomatic speed adjust
Dimensions130*80*11cm
Weight 60kgs

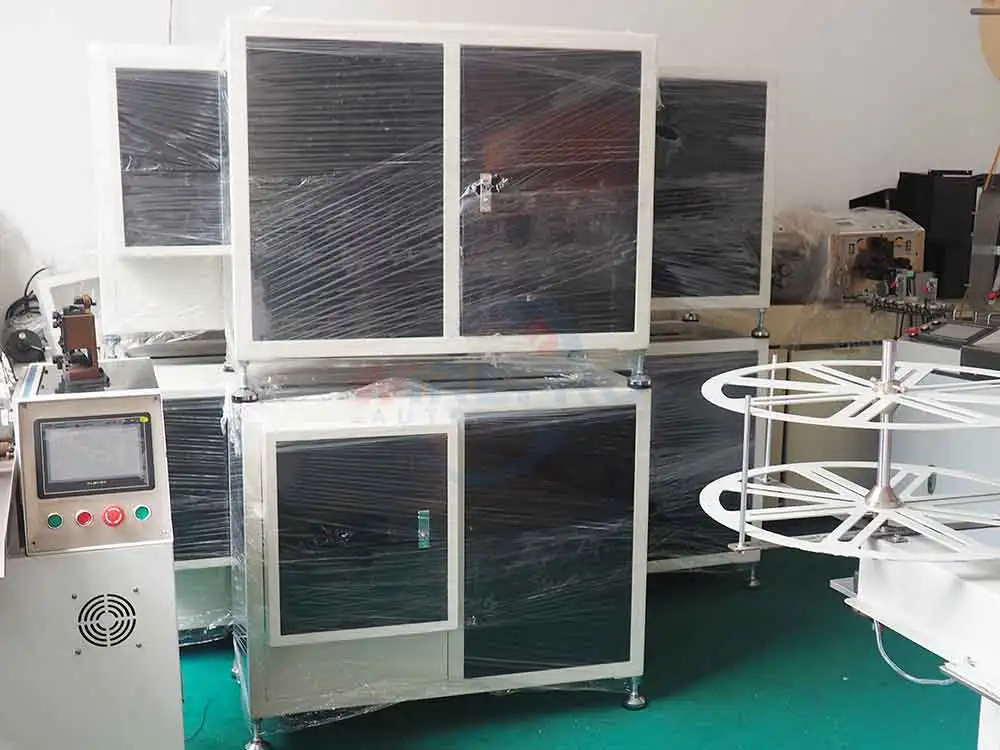

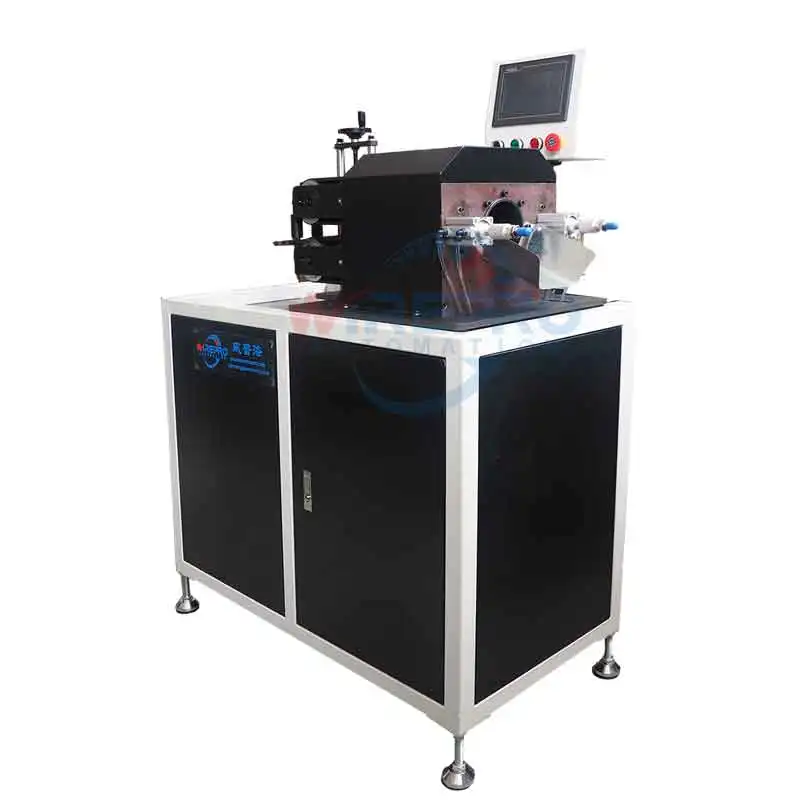

 pipe cut machine (9)pipe cut machine (2)





pipe cut machine (7)

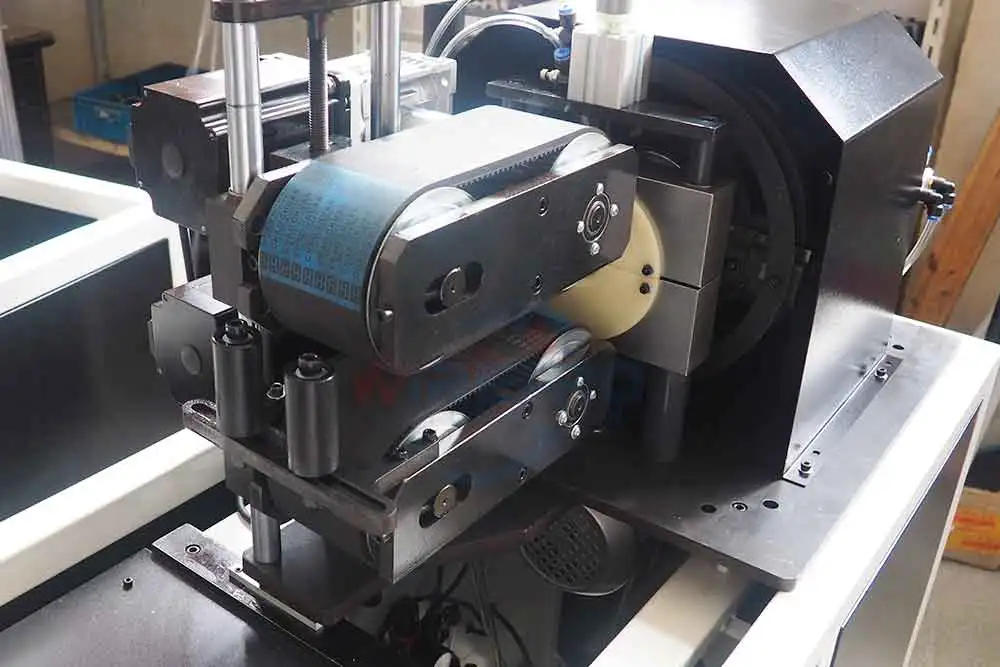

pipe cut machine (5)

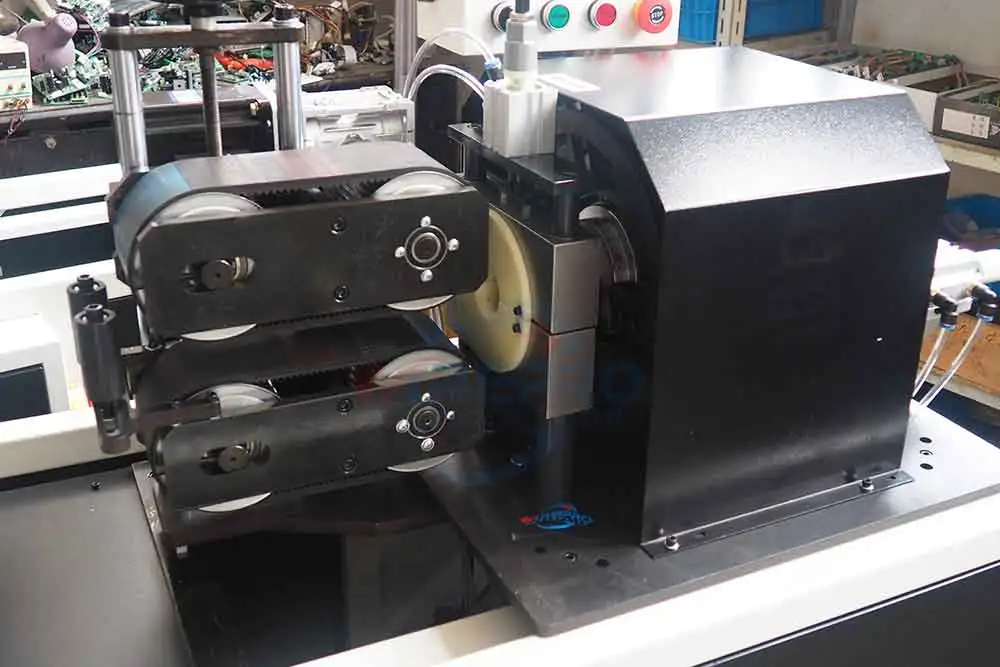

pipe cut machine (6)

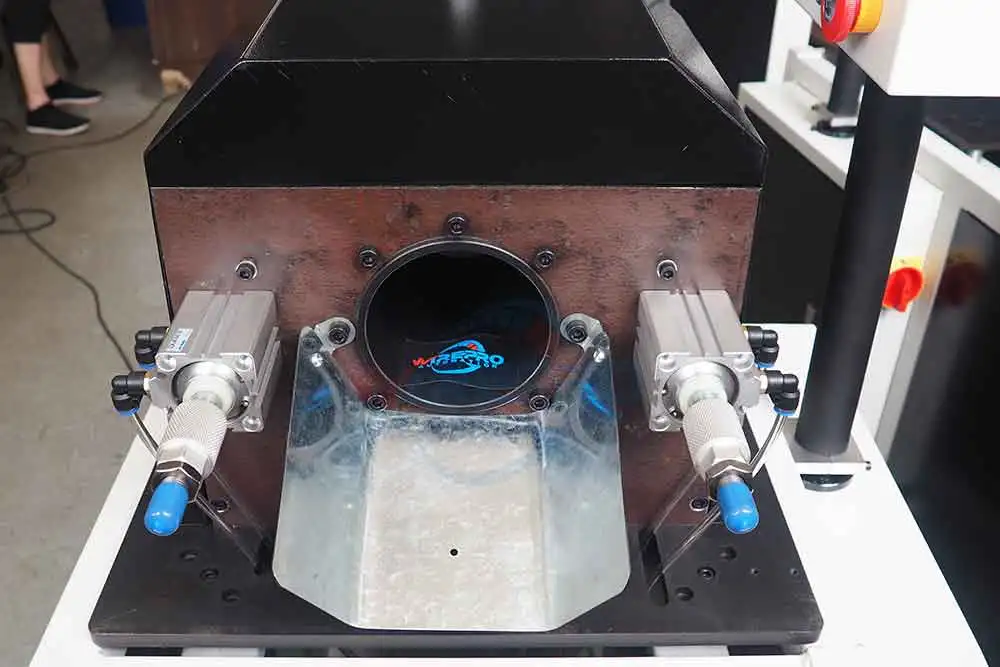

pipe cut machine (3)

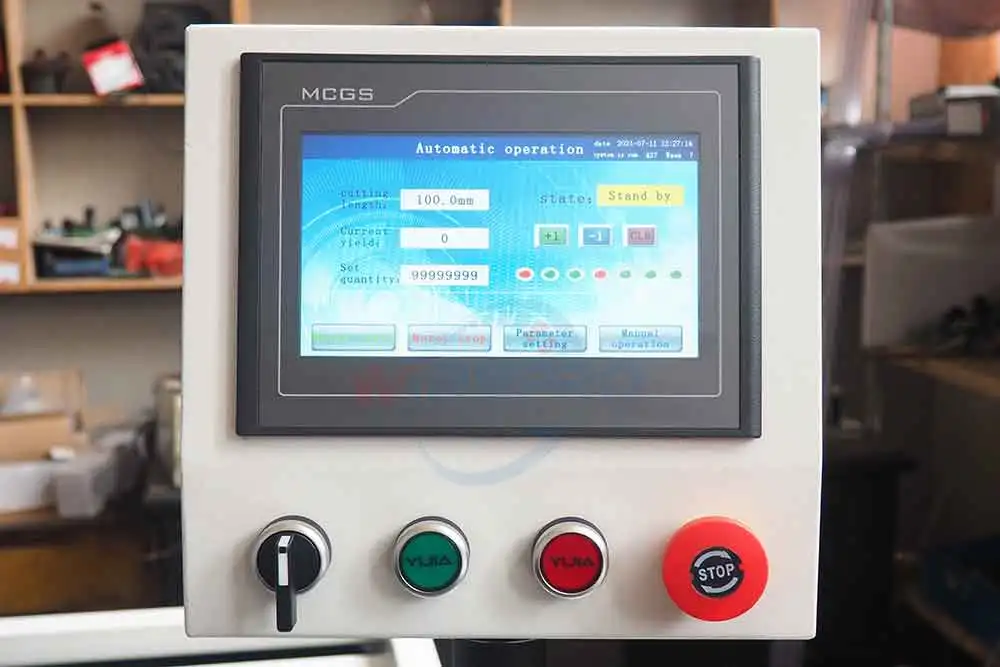

pipe cut machine (8)





pipe cut machine (4)








Application:

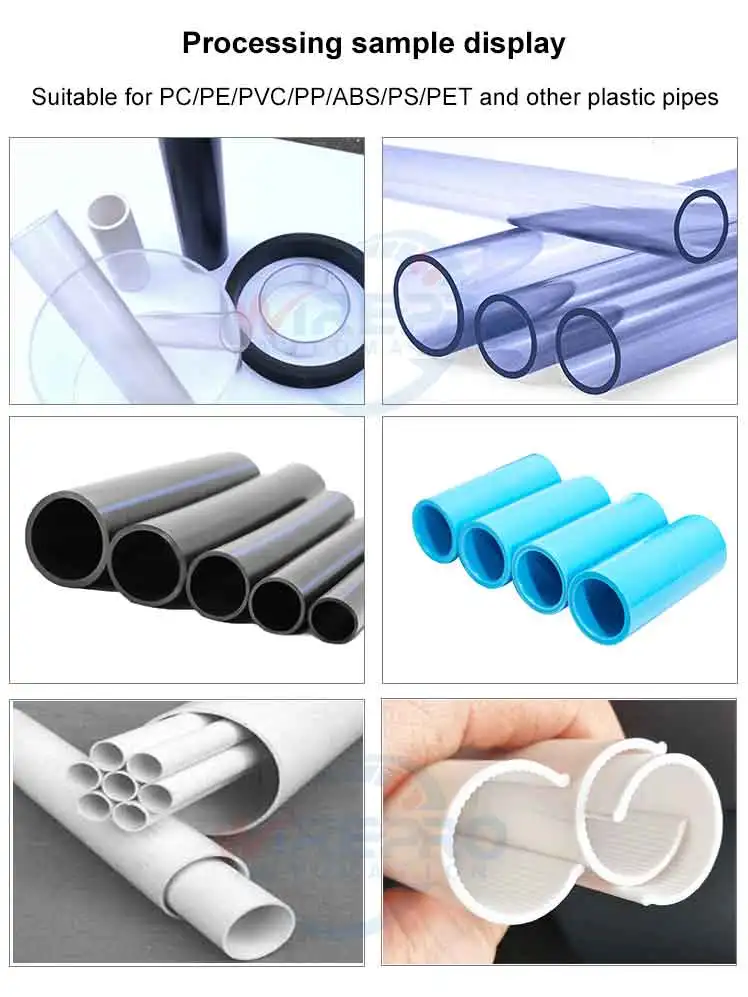

pipe cut machine (1)









Related Products







More Cutting Machines





A versatile and reliable machine for cutting to length heat shrink tubing, plastic piping, sleeving,  cable marker tube, small bellows pipe, plastic hose, insulation paper, cable ties, copper foil and so on.





CP-U10:Multifunction flat material cutting machine,for soft pipe heatshrinkable tube and so on


CP-U11:Universal tube cutting machine, for soft pipe, hard pipe and so on


CP-U12:Powerful universal cutting machine,for hard materials, wire, cable, steel wire


CB-F01: Precision cutting flat materials
CB-U02: Precision cutting corrugated tube, splitting function can custom


CB-R03: Rotary cutting hard tube, for hard materials tube


CB-A04: All in one corrugated tube cut machine, with feeder for long corrugated tube


CB-M05: Powerful corrugated tube cut machine, for thin metal tube or thick plastic tube


CB-P06/V07: Visual orientation tube cut machine, precision cut bellows wave valley or peak

































Cutting materials samples:


















-01











-02









Packaging & Shipping





 Samll size machines:  Standard carton
 Medium size machines: Thickened cartons and wooden pallets
 Big size machine: Plywood wooden cases








Company Information





1





FAQ

























1.  What are the optional accessories and wearing parts?
Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker.
Wearing parts: Generally blade and belt.
For More info, please contact WIREPRO.
2.  Operation panel and user manual language?
English and Chinese are optional.

3. How long is the lead time?


Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.





Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.





Transportation: Support shipping via air, sea, and railway many transportation modes.



4. How do we install and operate the machine?
Machines, accessories, and manuals will be packed and delivered together, we provide operation and maintenance instructions and parts catalog.





Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).





Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.





We also welcome you to come to our factory for more training.


 5. What after-sales service is provided?
WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days.
