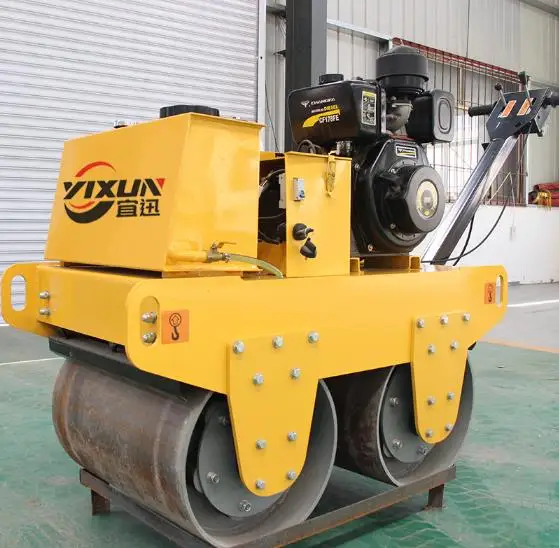

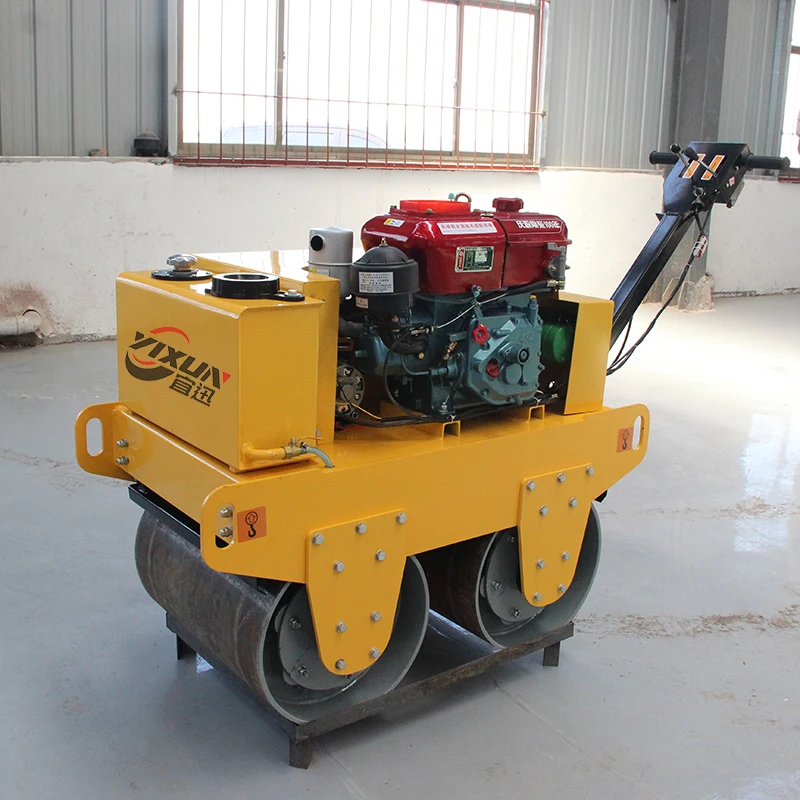

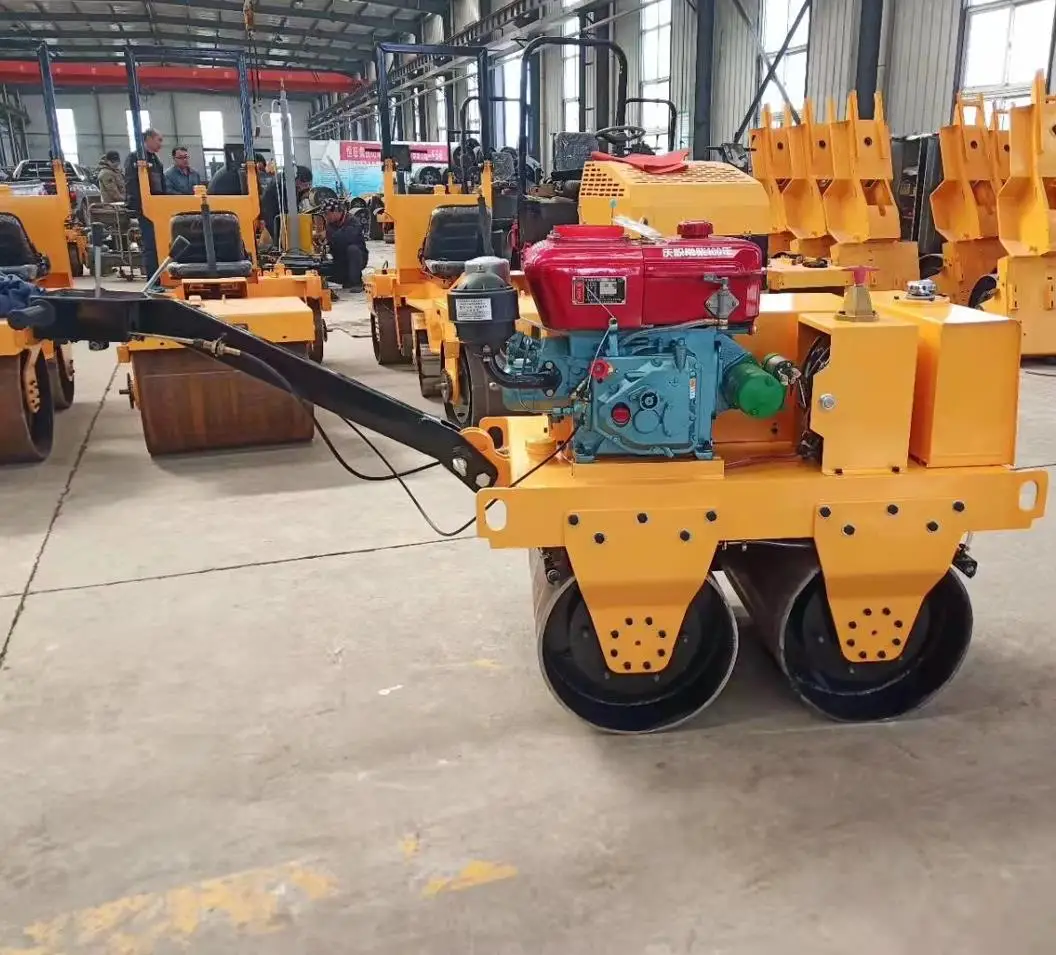

Walk Behind Small Double Drum Roller Compactor asphalt soil compactor roller 1ton
- Category: >>>
- Supplier: Jining Yixun Machinery Co. Ltd.
Share on (1600537291817):
Product Overview
Description
Model | YX-600SF | YX-600SC | YX-600SQ | ||
Engine | ChangFa | Chang Chai | Gasoline | ||
Working weight | 550KG | 590KG | 530KG | ||
Engine power | 6HP,3600RPM | 8HP, 2300RPM | 9HP,3600RPM | ||
Fuel tank capacity | 3.5L | 4.5L | 3.5L | ||
Fuel consumption | 280G/KW.H | 313G/KW.H | 395G/KW.H | ||
Walking speed | 0-4km/h | ||||
Gradeability | 30% | ||||
Nominal amplitude | 0.5mm | ||||
Vibration frequency | 75HZ | ||||
Exciting force | 20KN*2 | ||||
Water tank capacity | 20L | ||||
Drive method | Hydraulic pump and motor (two-wheel drive) | ||||
Vibration method | Automatic two-wheel vibration | ||||
Engine type | Diesel /Gasoline engine | ||||
Steel wheel width | 600mm | ||||
Steel wheel diameter | 426mm | ||||
Total length (Flat handrail) | 2450mm | ||||
Total width | 780mm | ||||
Total height (upright handrail) | 1800mm | ||||
Package dimensions | 1350*850*1250mm | ||||
Walk-behind double-drum road roller：
1. Widely used in compacting asphalt pavement, compacting gravel, sand and gravel and other engineering foundations, rolling lawns, playgrounds;

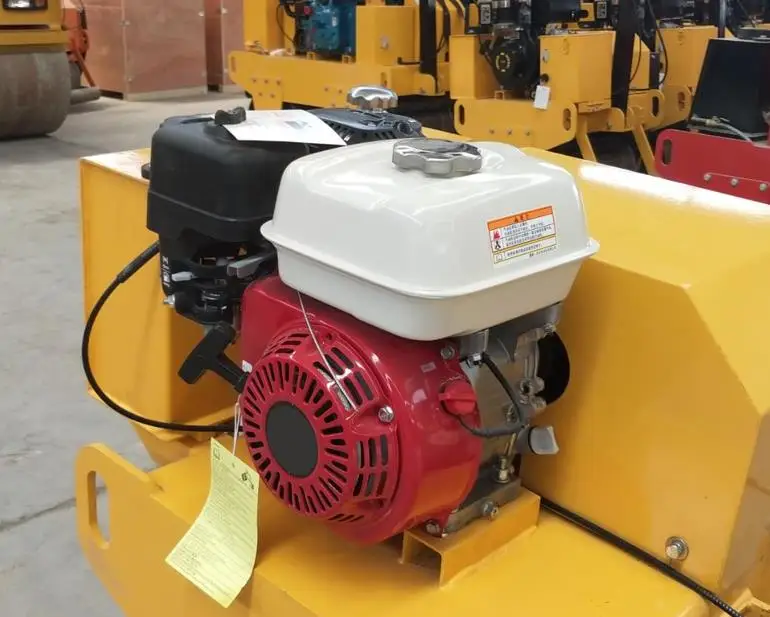

2. Optional diesel/gasoline brand engine with superior performance and strong power;
3. The main bearing adopts the international brand NSK high-precision radial ball bearing with seat to ensure the overall performance of the machine is intact;
4. Two-way hydraulic walking, small working radius, convenient operation and flexible rotation;
Steel wheel width: 780mm
Exciting force 20KN*2
Water tank:
20L in capacity

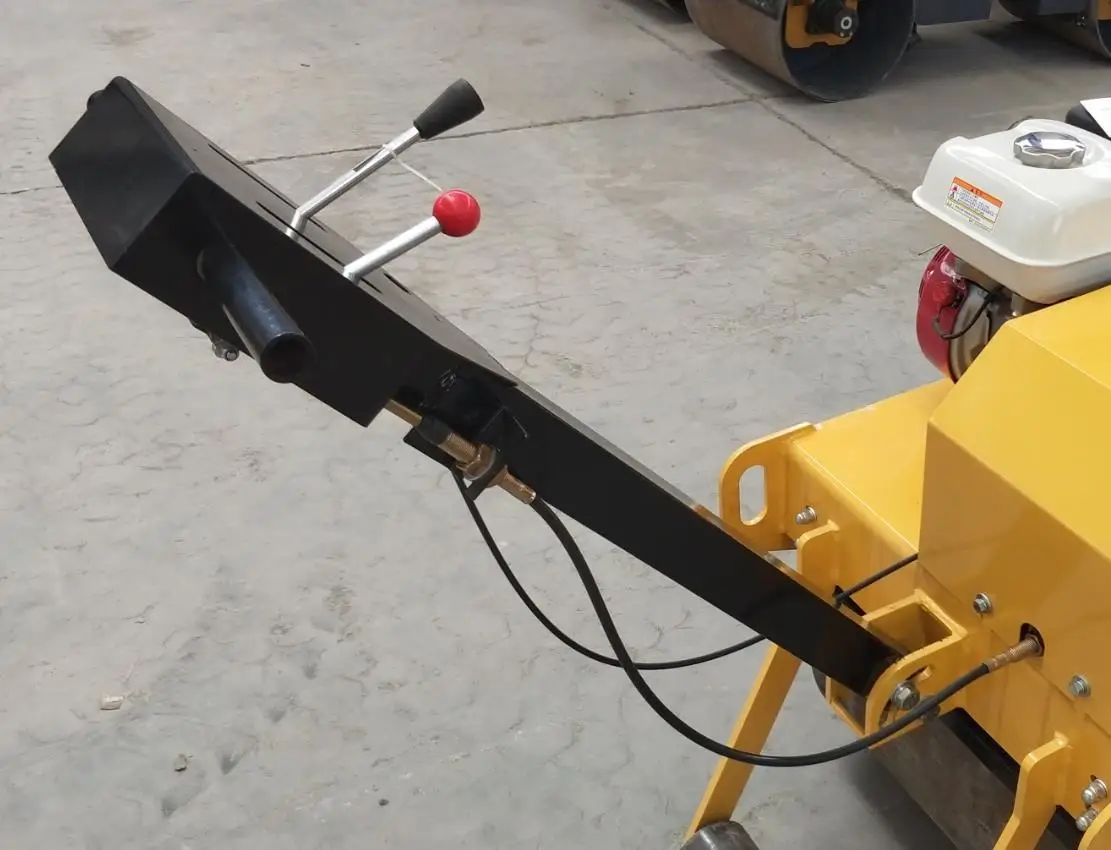

Go up and down freely
Get the right height
Fuel consumption rate: 280g/kw.h
Jining Yixun Machinery Co., Ltd. is mainly engaged in a full range of equipment for road construction and maintenance. The company has advanced production equipment, strong technical force, complete testing equipment, 15 years of lean manufacturing, long-life, multi-function, high-precision small equipment, and has obvious advantages in compatibility, high efficiency, and high cost performance. The road rollers, milling machines, grooving machines, trenchers, joint filling machines, manhole cover rounding machines, snow sweepers, sweepers and other small road construction and maintenance
Machinery produced by Yixun Machinery cover the global market and participate in many large-scale construction projects. Supporting services.

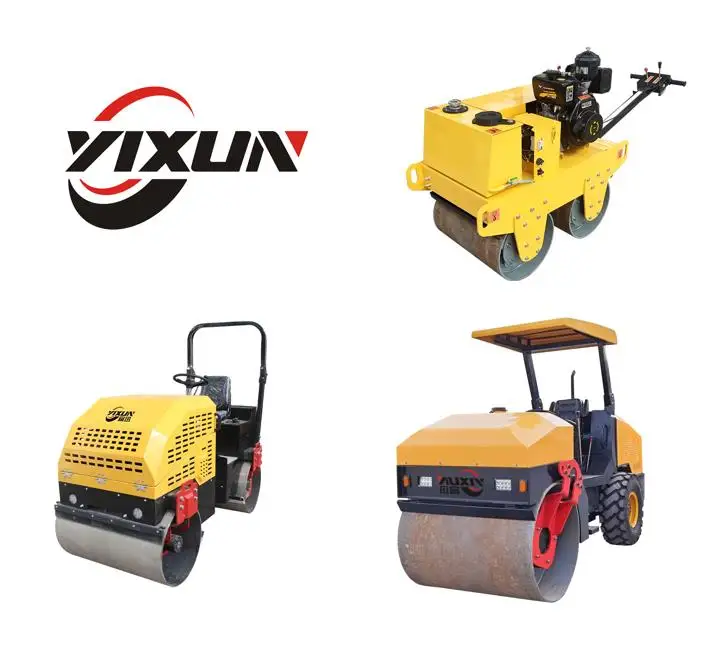

Yixun rollers have 58 varieties in 8 categories, including walk-behind single-wheel rollers, twin-cylinder wheel rollers, vibratory rollers, full hydraulic rollers, and car-mounted rollers. The product models range from 0.45T to 10T. which can satisfy customers.
Machinery produced by Yixun Machinery cover the global market and participate in many large-scale construction projects. Supporting services.
Yixun rollers have 58 varieties in 8 categories, including walk-behind single-wheel rollers, twin-cylinder wheel rollers, vibratory rollers, full hydraulic rollers, and car-mounted rollers. The product models range from 0.45T to 10T. which can satisfy customers.
Customized needs
FAQ
1.HOW IS YOUR DELIVERY TIME?
Under normal circumstances,we can deliver conventional machines to customers within 7 days, because we have various resources to checkthe machine inventory.If the purchase quantity is large,we need to verify with the factory warehouseand then the production order time will be calculated。
2.WHICH PAYMENT TERMS CAN YOU ACCEPT?
Usually we can deal with T/T clause or L/C clause
For T/T terms, a 30% down payment is required,and 70% of the balance is settled before shipment.
3.HOW LONG WILL YOUR PRICE BE VALID?
We are very friendly suppliers and never seek huge profits. Our prices will basically not change much.
We will only adiust our prices basedontwosituations
1) The exchange rate between theU.Sdollar and the renminbi
2) Increase in the cost of machinerawmaterials
Under normal circumstances,we can deliver conventional machines to customers within 7 days, because we have various resources to checkthe machine inventory.If the purchase quantity is large,we need to verify with the factory warehouseand then the production order time will be calculated。
2.WHICH PAYMENT TERMS CAN YOU ACCEPT?
Usually we can deal with T/T clause or L/C clause
For T/T terms, a 30% down payment is required,and 70% of the balance is settled before shipment.
3.HOW LONG WILL YOUR PRICE BE VALID?
We are very friendly suppliers and never seek huge profits. Our prices will basically not change much.
We will only adiust our prices basedontwosituations
1) The exchange rate between theU.Sdollar and the renminbi
2) Increase in the cost of machinerawmaterials

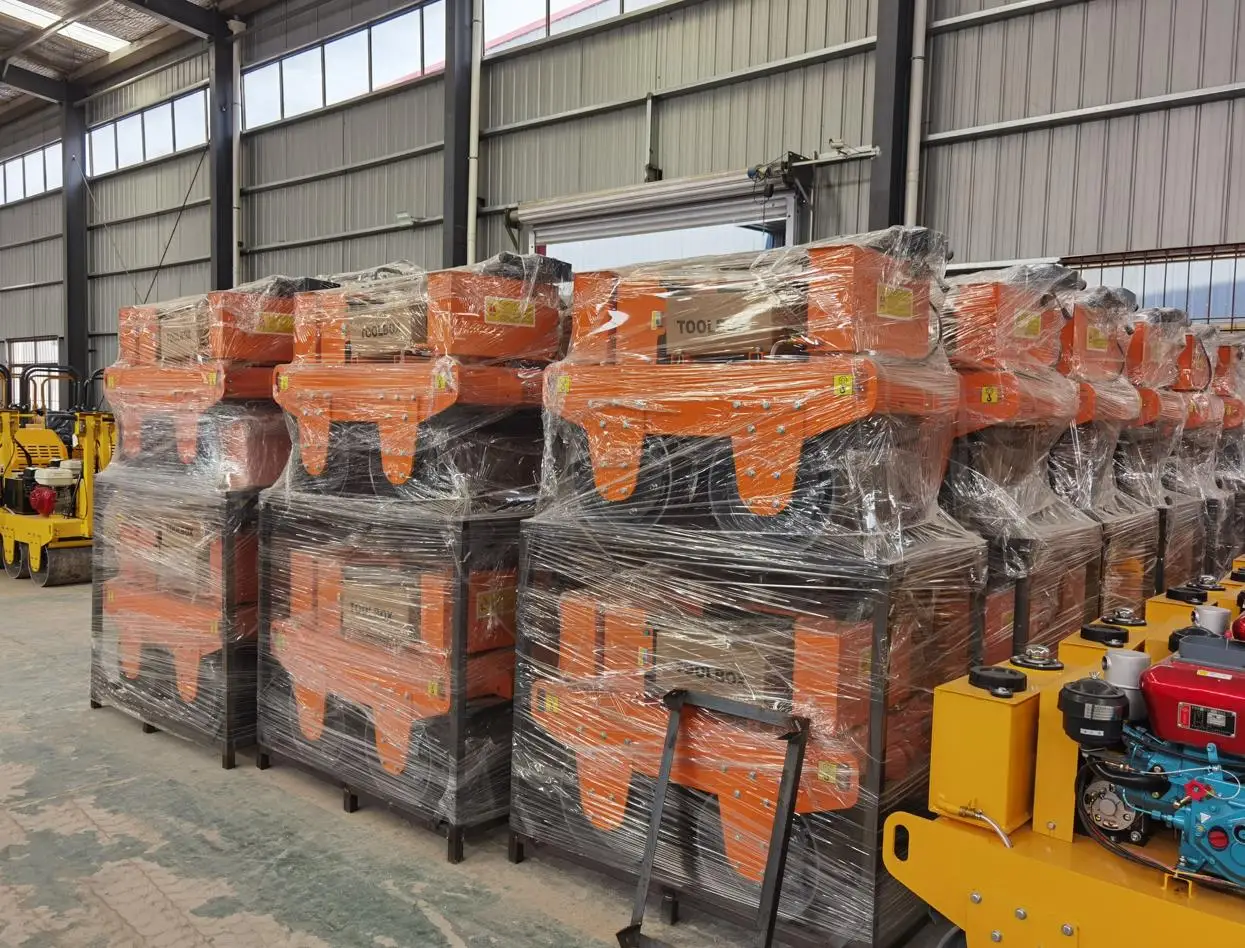

4.Our machines will be shipped to all major continents such as Europe,Africa,South America and the Middle East by sea
