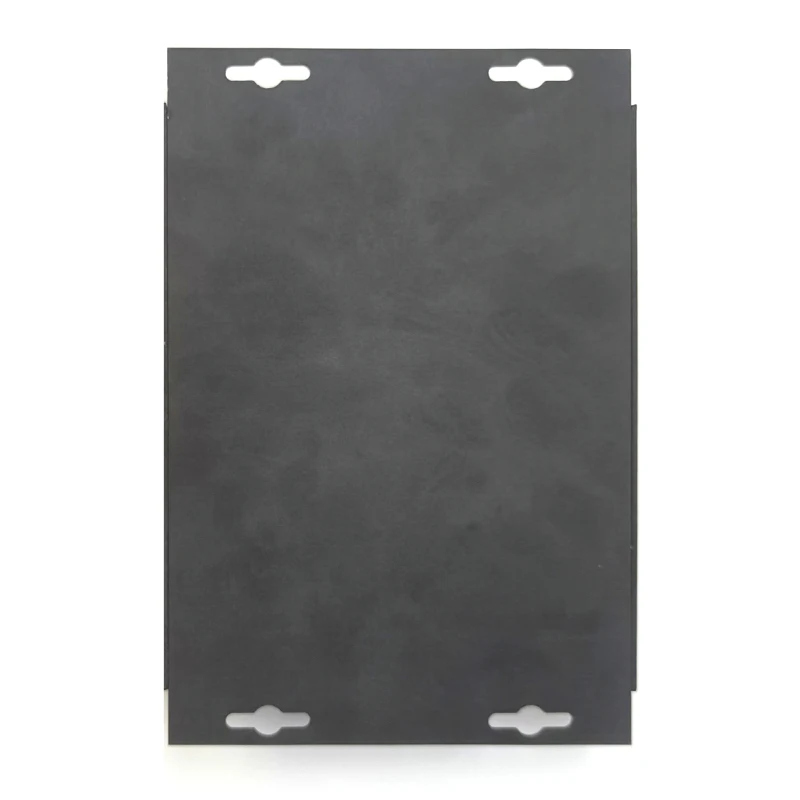

25S~32S Smart BMS MDK diode 500A Same port High voltage DC relay Communication protocol RS485 CAN BT

Share on:


Price:$238.50 - $265.00
Price in USD:Details

Quantity:


Product Overview

Description



Product category


Type
Functional differences
3S~4S BMS
·Hall Current Sensor
·2-way relay control (charging, discharging).
·UART-BT、RS485、CAN.
·Other functions (12V output, switch).
·4-way temperature control
8S BMS
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging).
·UART-BT、RS485、CAN.
·Other functions (12V output, switch).
·4-way temperature control
10S~24S BMS
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging).
·UART-BT、RS485、CAN.
·Other functions (12V output, switch).
·8-way temperature control
25S~32S BMS
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging).
·UART-BT、RS485、CAN*2.
·Other functions (12V output, switch).
·8-way temperature control


Product Paramenters


Parameters
Indicators
Current switch conductor
High voltage DC relay
Support battery
Li-ion、Lifepo4、LTO
Discharge current
500A According to relay selection
peak current
2000A According to relay selection
Charging current
500A According to relay selection
Internal resistance
10mΩ
Input / output mode
Different ports
BMS switch
Passive switch
Working power consumption
50mA
Sleep power consumption
30μA
Balance current
80mA
Communication function
1 UART serial port, Bluetooth.
1 isolated RS485 interface, support Modbus protocol.
1 isolated CAN2.0B interface.
Single cell voltage
Acquisition range
0~5V
Detection error
≤±0.1%
Total battery pressure
Acquisition range
Battery voltage range
Detection error
≤±0.2%
Charge discharge current
Acquisition range
Hall Current Sensor 600A
Detection error
±1 %
temperature
Acquisition range
-40~125℃
Detection error
±1℃


Products Description


Options include products
Selected BMS, Hall current sensor, relay *2








Company Profile




FAQ


What is the difference between high voltage DC relay (contactor) and MOS transistor?
1. relay: high voltage resistance, high current withstand, not integrated in BMS, easy to replace, less affected by temperature rise, high power consumption, large size, not suitable for small capacity batteries.
2.mos: low voltage withstand, multiple increased current withstand in parallel, such as uneven current distribution, long-term use will damage, low power consumption, small size, and affected by temperature rise.
3. both relay and MOS have their own advantages. MOS is selected for low current and relay is selected for high current.


Why do some products have one relay and two relays?
1. a relay product controls charging and discharging. When the battery is fully charged, it is controlled to turn off. In order to prevent overcharging, when there is voltage on the voltage detection line, the relay will not open, and the charger needs to be unplugged before discharging.
When the battery is discharged, the control is turned off. To prevent excessive discharge, the relay is turned on only when the detection line has voltage to charge the battery.
2. for the products of two relays, one controls charging and the other controls discharging. The charging relay is closed only after it is fully charged. In other cases, it is open. The discharging relay is closed only after it is discharged. In other cases, it is open.


Why does the smart BMS support Li ion and LiFePO4?
1. because such chips can compile programs, different voltage range parameters can be set through supporting app or PC software.
2. the specification option exists because we have set the voltage parameters in advance.


Can the communication protocol be used to connect the solar controller?
1. although the communication ports are the same, the communication protocol is not interlinked and cannot be directly connected. Protocol docking is required first.
2. if you have software technicians, we can provide the contents of the agreement.
