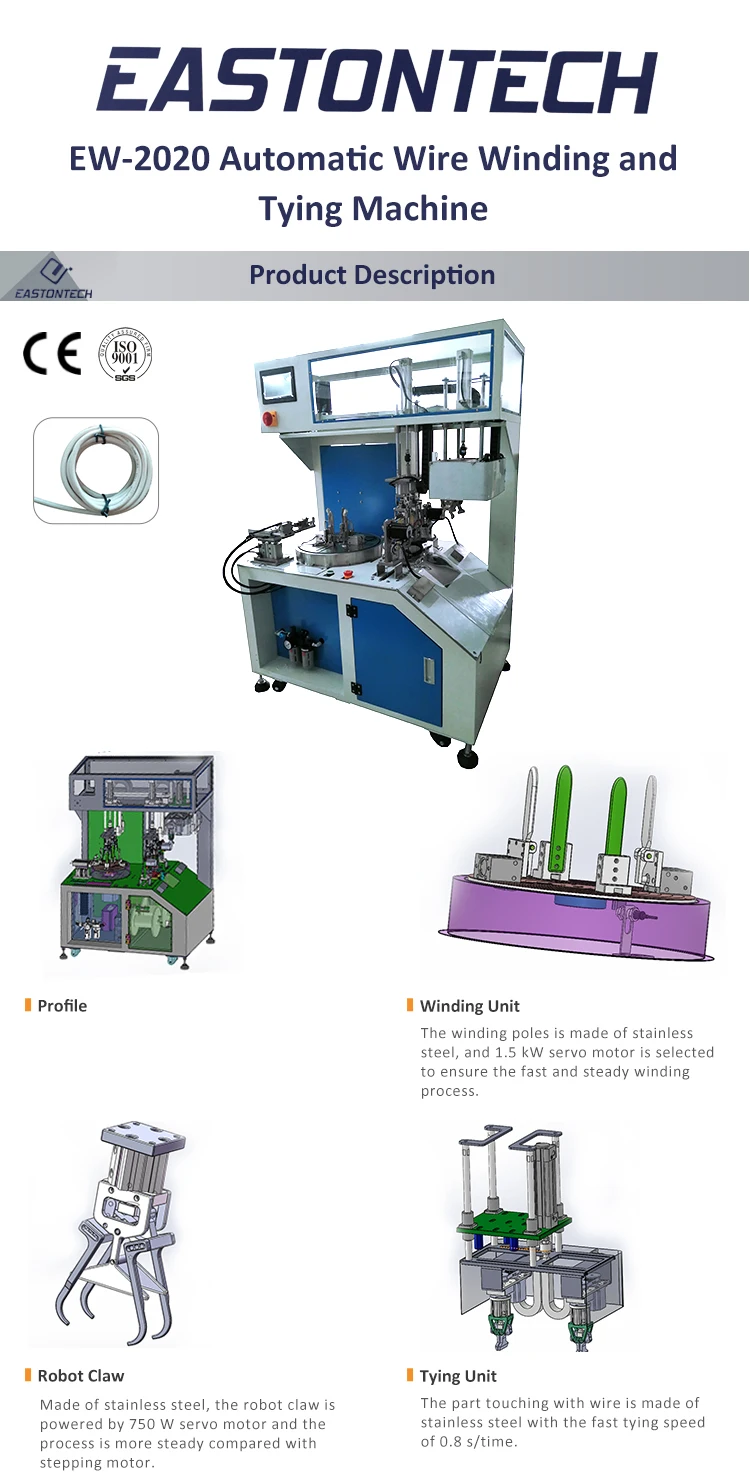

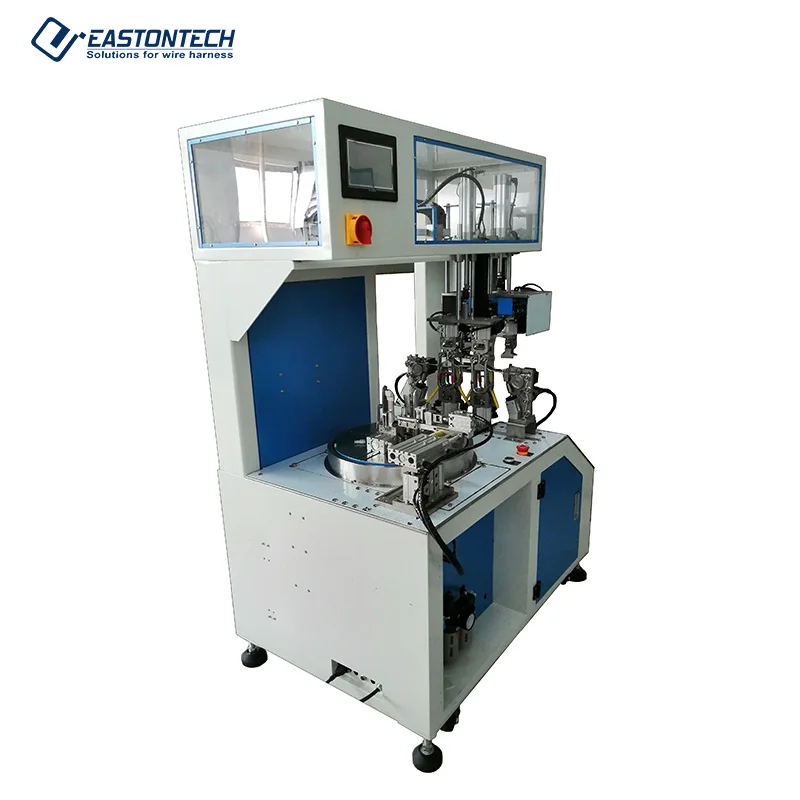

EASTONTECH 2020 AC Type Double Cable Tie Wire Binding Machine Coil Winding Machine Cable Wrapping Machine
- Category: >>>
- Supplier: Wenzhou East World Automation Equipment Co. Ltd.
Share on (1600537359062):
Product Overview
Description
Model | EW-2020 |

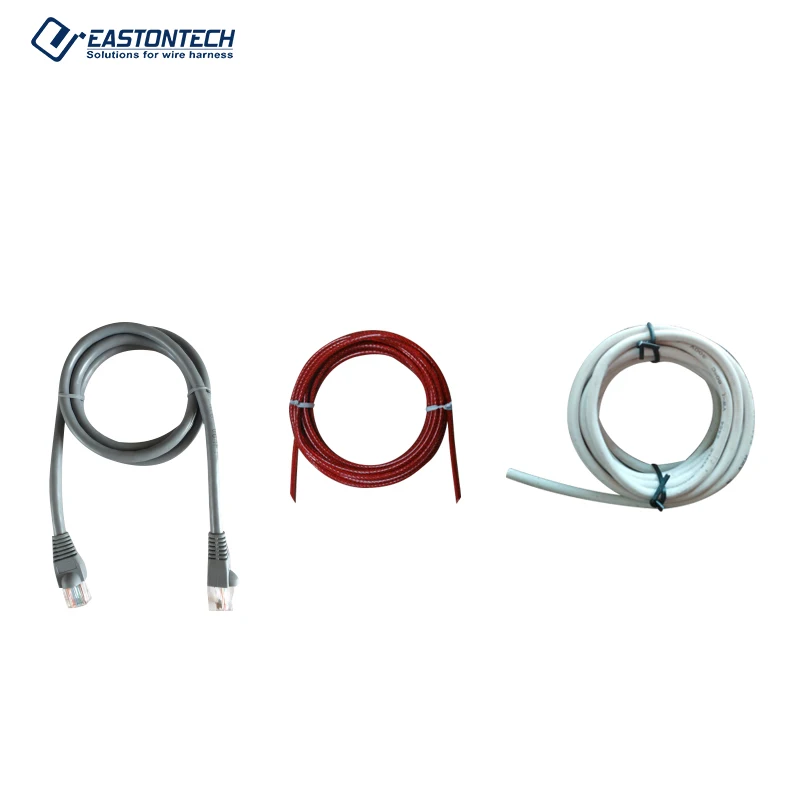

Finished product | Circle shape, double tying |
Wire / cable type | AC / DC / USB etc. |
Wire outer diameter | ≤ 8 mm |
Winding part distance | 80 - 180 mm |
Winding length | ≤ 6 m (depending on wire size) |
Winding speed | Adjustable |
Tying outer diameter | ≤ 40 mm |
Wire head length | 40 - 130 mm |
Wire tail length | 40 - 130 mm |
Productivity | 1200 pcs./h (winding length = 1 m, number of turns = 3) |
Compressed air connection | 0.55 - 0.65 MPa |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | ≤ 2000 W |
Dimension | 1150 * 755 * 1600 mm |
Weight | 210 kg |
