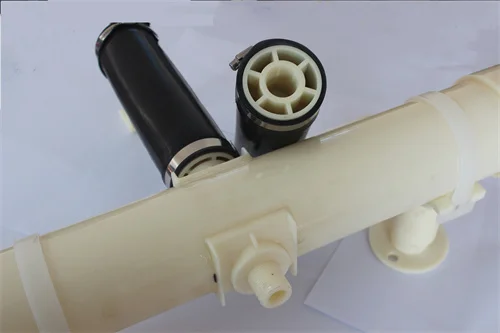

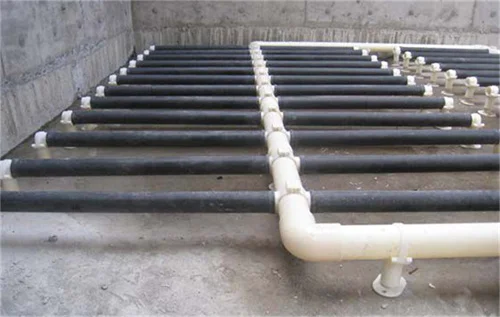

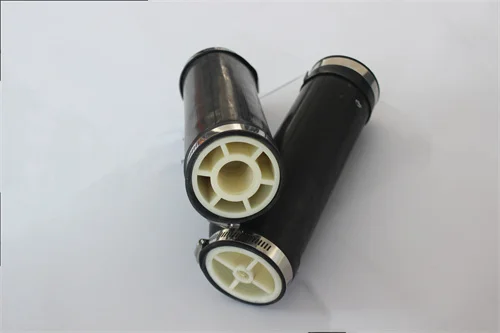

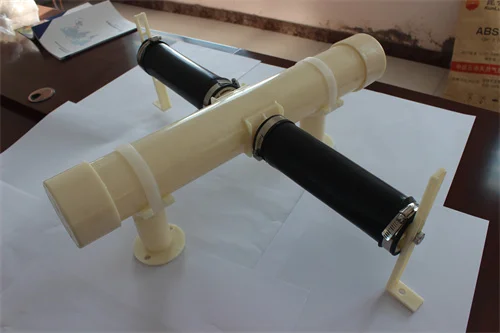

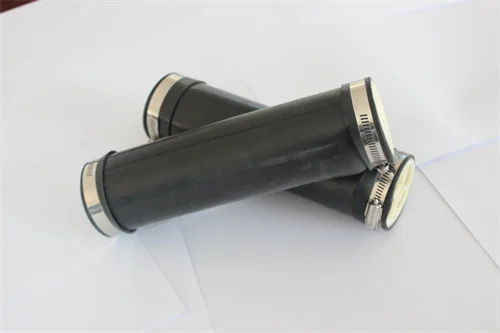

Aeration tube Tubular aerator plate Silicone aeration tube for water treatment Complete specifications
- Category: >>>
- Supplier: Xinxiang Yixin Environmental Engineering Co. Ltd.
Share on (1600537380441):
Product Overview
Description
The product has stable physical and chemical properties and long service life: even drilling, small aperture, small diameter of expanded bubbles, large gas-liquid interface area, so it has a high oxygen transfer efficiency, high oxygen filling efficiency, so compared with other existing bao Gas devices, can greatly save power consumption, reduce the running cost of sewage treatment.
Because the diffusing glue of microporous aerator is made of imported high quality rubber, it has excellent physical and mechanical properties, accessories and air pipes are made of ABS engineering plastics
It is not afraid of corrosion and has reliable performance, which greatly reduces the workload of operation and maintenance.
This series of products is not easy to plug type, both automatic cleaning, prevent sewage countercurrent aeration pipe.
This series of products is not easy to plug type, both automatic cleaning, prevent sewage countercurrent aeration pipe.
When the blower suspended the air supply, the film immediately contracted and closed, to avoid sewage countercurrent in the aeration pipe, when the blower started again, the film rapidly expanded and released bubbles, while sticking to the surface of the sludge from the membrane.
Model number and parameter | 67 X 500 mm | 67 X 750 mm | 67 X 1000 mm | ||||
Oxygen transfer efficiency | 1.5 | 14% ~ 17% | 14% ~ 17% | 14% ~ 17% | |||
3.0 | 15% ~ 23% | 15% ~ 23% | 15% ~ 23% | ||||
5.0 | 23% ~ 32% | 23% ~ 32% | 23% ~ 32% | ||||
6.0 | 34% ~ 39.5% | 34% ~ 39.5% | 34% ~ 39.5% | ||||
7.0 | 31% ~ 45% | 31% ~ 45% | 31% ~ 45% | ||||
Ventilation volume（m2/h） | 1.7 ~ 6.8 | 3.4 ~ 13.6 | 3.4 ~ 17.0 | ||||
Design ventilation（） | 4 | 5.5 | 7.5 | ||||
Service area（m2/Pieces） | 0.82 ~ 2.6 | 0.98 ~ 2.11 | 0.98 ~ 2.35 | ||||
Pressure loss | 17 ~ 42cm | 17 ~ 41.5cm | 17 ~ 40cm | ||||
Opening the number（pieces） | 8080 | 12300 | 16800 | ||||
Bubble diameter | 0.8 ~ 2.0mm | 0.8 ~ 2.0mm | 0.8 ~ 2.0mm | ||||
Oxygenation capacity | Microporous：7.5kgO2/KW.H(Five meters deep underwater) | ||||||
Fine hole：3.5 ~ 4.8kgO2/KW.H(Five meters deep underwater) | |||||||
Extension capacity | >600% | ||||||
Tensile strength | >13.8 ~ 103kpa | ||||||
1. who are we?
We are based in Henan, China, start from 2012,sell to Domestic Market(40.00%),Southeast Asia(20.00%),South
America(10.00%),Africa(5.00%),Eastern Asia(3.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Dewatering Belt Filter Press,MBR Membrane Bio Reactor,Submersible Aerator,Submersible Mixer,Plug Flow Aerator
4. Why should you buy from us not from other suppliers?
It can not only customize the various non-standard environmental protection equipment and engineering design according to user needs, but also provide fast engineering installation and equipment operation commissioning.
5. What services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
