KIE 568JD cost efficiency fully laminate melamine pre milling corner trimming automatic edge banding machine
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600537441519):
Product Overview
Description
Main Functions:

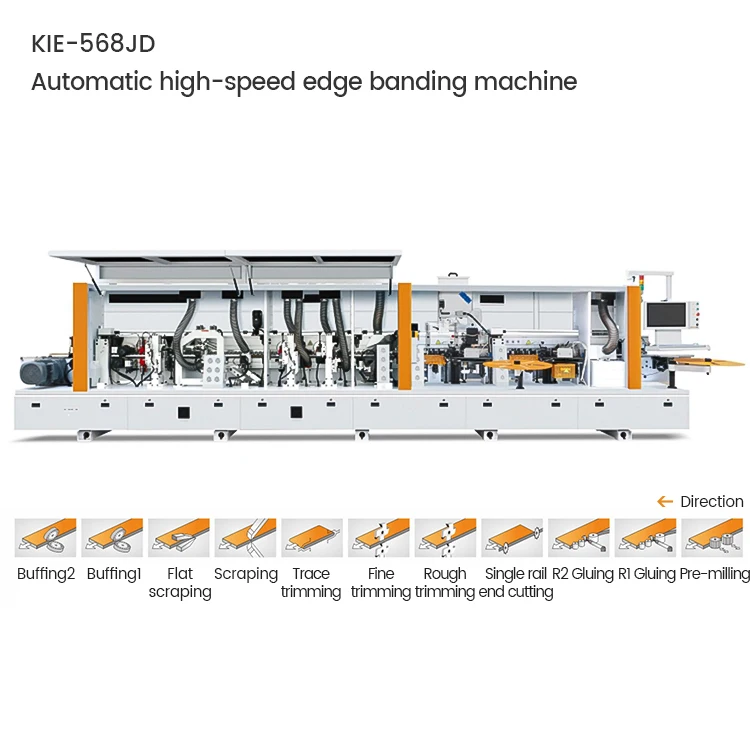

separating - pre-milling - quick gluing 1-heating lamp - gluing 2 - heating lamp - end trimming - rough trimming - fine trimming - corner trimming - scraping - flexible flat scraping - broken wire - cleaning - buffing 1 - buffing 2 (6 wheels pressing + squeegee device， fully surrounds the heavy-duty rack)
Advantages and characteristics:
568JD automatic edge banding machine, the highest speed up to 23m/min. This model has complete functions, stable and powerful system, intelligent operation control and high speed and efficient production, pre-milling, double trimming, corner rounding, so that the edge banding is more beautiful and delicate. It is suitable for high-end batch customized production of panel furniture. With high-quality materials and brand configuration, it can adapt to high and low temperature climate and other harsh environment for production and operation, with stable production, saving maintenance, durability and other characteristics.
Model： | 568JD |
Total power | 23.5kw |
Overall Size(L x W x H) | 8300*1100*1750mm |
Feed speed | 15-23m/min |
Edge thickness | 0.4-3mm |
Panel Thickness | 10-60mm |
Sheet length | ≥150mm |
Panel Width | ≥60mm |
Working Pressure | 0.6Mpa |
Interface
Main functions: start and stop the device, function selection, parameter setting, warning, and other functions, simple touch design, simple training can get started operation.
Separating
The separation agent is sprayed on the plate that needs to be pre-milling, so that the upper and lower sides of the plate form an isolation layer, to prevent dust after pre-milling, sticking to the plate, difficult to clean up.
Pre-milling
The edge of the plate is cut and trimmed, so that the edge of the plate is more smooth and smooth, without burrs. Make the edge band and plate fit more closely, edge glue line is smaller.
Heating lamp
The preheating device of the heating lamp heats the edge of the plate to prevent the edge temperature of the plate from being too low in the cold environment and the glue of the glue from cooling too fast, resulting in the effect of edge sealing is not firm and perfect.

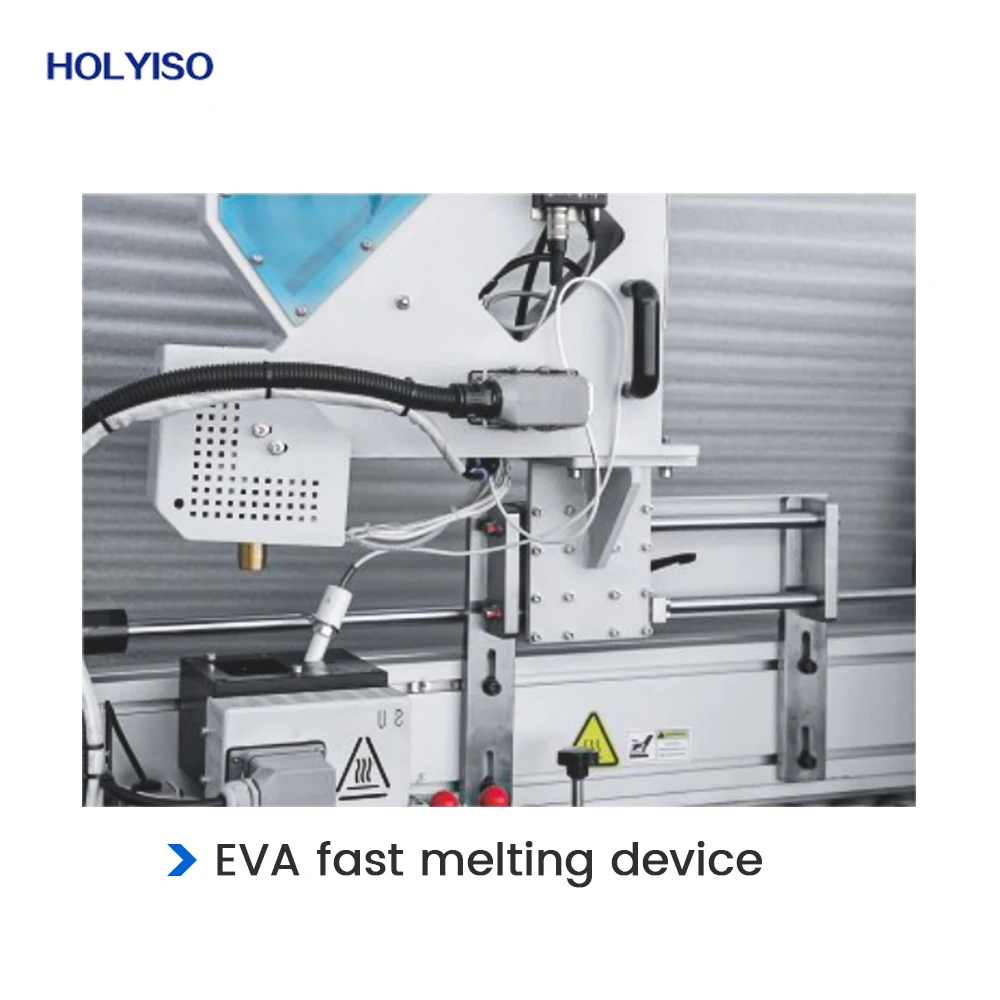

Gluing 1
The glue pot can melt glue quickly and heat up quickly. It has good edge sealing effect on PVC, high-gloss door panel and other plates. Can do no glue line edge sealing.
Gluing 2
Select the gelatinized bearing, can effectively and evenly gelatinize the plate, so that the edge sealing tape fit more closely without gap.
6 wheels pressing
Multi - point contact close pressing, so that the sealing tape and plate fit stronger.
End trimming
The edge sealing belt at both ends of the plate after edge sealing is cut off. The single guide rail is designed at 45 degrees together, which is more accurate and efficient.
Flexible flat scraping
Simple structure, less space occupation, easy blade replacement, so that the scraping effect is better.
Cleaning
Clean the dirt on both sides of the board after edge sealing, so that the board reduces the subsequent cleaning process.
Double buffing
After sealing the edge of the plate polishing treatment to make the upper and lower sides of the sealing tape more smooth, beautiful.
PUR（optional）
PUR edge sealing plate can achieve waterproof,
oil-proof, moisture-proof, great sticky so that the edge sealing tape is not easy to fall off, than ordinary edge sealing machine viscosity up to 10 times. Seamless edge sealing with high gloss board, PVC board, paint panel, aluminum socket board.
oil-proof, moisture-proof, great sticky so that the edge sealing tape is not easy to fall off, than ordinary edge sealing machine viscosity up to 10 times. Seamless edge sealing with high gloss board, PVC board, paint panel, aluminum socket board.
Product Application
Application:
Automatic edge banding machine is suitable for edge banding processing of medium density fiberboard, joinery board, solid board, particleboard, polymer door board, plywood and other boards, the edge banding effect is delicate, smooth, feel good, and the edge banding line is straight and smooth.
The equipment runs stably, reliable and durable, the price is moderate, especially suitable for large and medium-sized furniture factories, cabinets, wardrobes and other plate furniture manufacturers to use. Its characteristics are automation, high efficiency, high precision and aesthetic degree, has been widely used in domestic panel furniture manufacturers.
Recommend Products
1.Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Company Profile
Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.

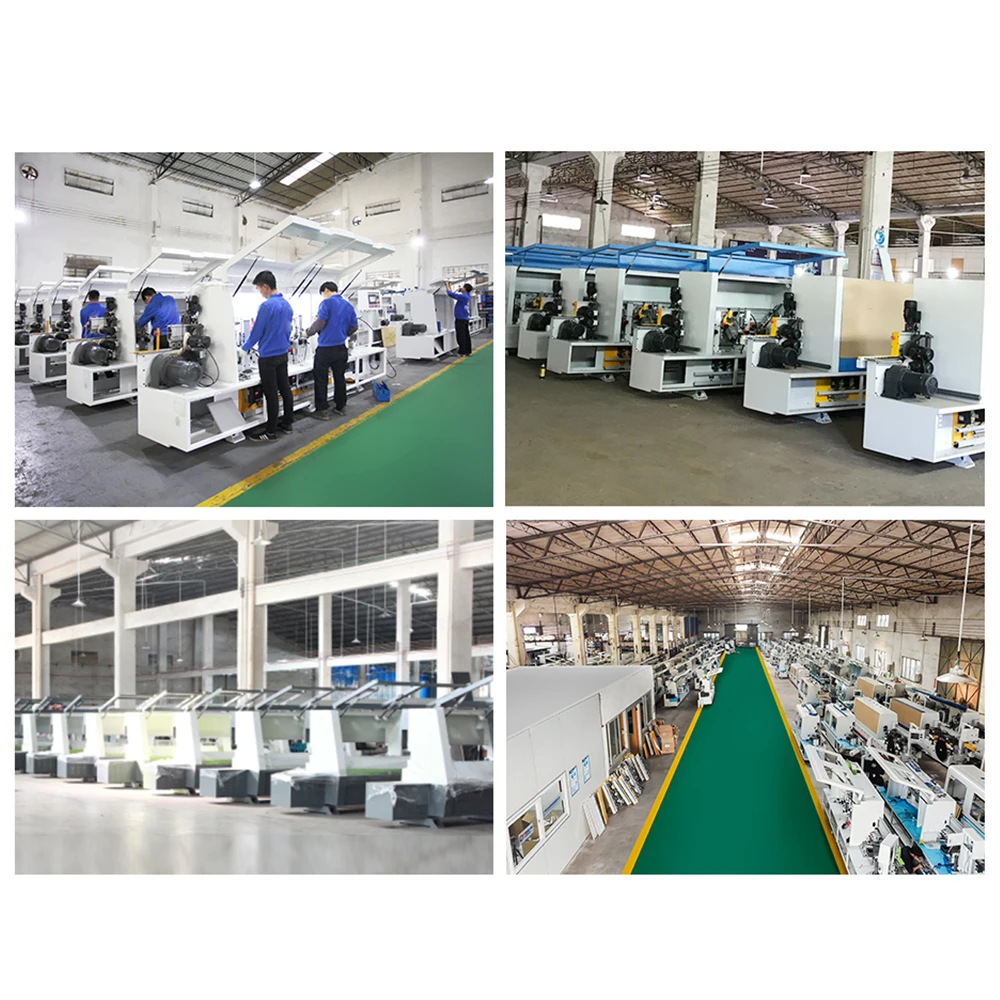

We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
