KIE 465 Edge Banding Corner Rounding Machine Edge Banding Machine with Gluing and Trimming
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600537483094):
Product Overview
Description
Products Description
Advantage:
1.Adopt domestic famous motor and high quality electrical components.
1.Adopt domestic famous motor and high quality electrical components.
2.The machine can be customized. Auto cleaning, high precision, high efficiency.
3.Aluminum alloy beam is a relatively advanced method, precision and straightness are far superior to cast iron.Stability and controlled ability are the most important,factors for an equipment to be part of production line.
3.Aluminum alloy beam is a relatively advanced method, precision and straightness are far superior to cast iron.Stability and controlled ability are the most important,factors for an equipment to be part of production line.
4.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
Application:
The machine is suitable for the following boards: MDF, block board, solid wood board, particleboard, polymer door plates, plywood, pvc board, etc. Straight line edging and trimming.
It can be used for whole house customization, panel furniture, kitchen dining room, oddice cabinet table,etc
Application:
The machine is suitable for the following boards: MDF, block board, solid wood board, particleboard, polymer door plates, plywood, pvc board, etc. Straight line edging and trimming.
It can be used for whole house customization, panel furniture, kitchen dining room, oddice cabinet table,etc
Model | KIE-465 | KIE-468 | KIE-368J | KIE-465J | ||||
Function | Gluing, End trimming, Fine trimming, Corner trimming, Scraping, Buffing | Gluing, End trimming, Rough trimming Fine trimming, Corner trimming, Scraping, Buffing | Pre-milling, Gluing, End trimming, Rough trimming, Fine trimming, Scraping, Buffing | Pre-milling, Gluing, End trimming, Fine trimming, Corner trimming, Scraping,Buffing | ||||
Edge thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm | ||||
Panel thickness | 10-60mm | 10-60mm | 10-60mm | 10-60mm | ||||
Panel length | >=150mm | >=150mm | >=150mm | >=150mm | ||||
Panel width | >=60mm | >=60mm | >=60mm | >=60mm | ||||
Working Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | ||||
Feed Speed | 12m/min，16m/min，20m/min | 12m/min，16m/min，20m/min | 12-20m/min | 12m/min，16m/min，20m/min | ||||
Electrical Lift | yes | yes | yes | yes | ||||
Motor Power | 10.2kw | 12.5kw | 10.48kw | 16.5kw | ||||
Overall dimensions | 4000x900x1600mm | 4800x900x1600mm | 5100X1000X1600mm | 6800x1000x1800mm | ||||
Weight | 1400kg | 1700kg | 1800kg | 2800kg | ||||
* Machine functions can be customized according to your needs * >> Tell us your requirement << | ||||||||

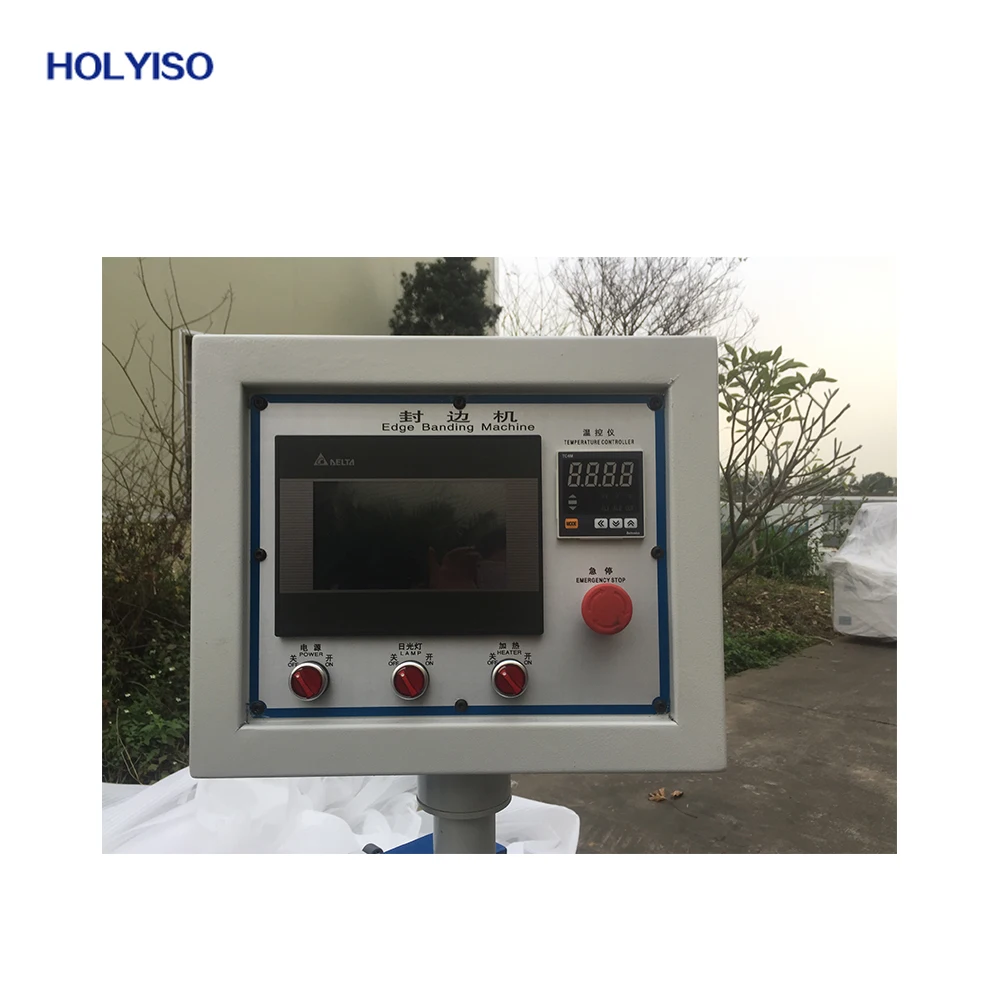

PLC Control Panel
Easily control and maintain the machine.Problems of the machine are visible in the panel.
Pre-milling
Solve defects such as burrs and edge chipping of the board to achieve a better edge banding effect.

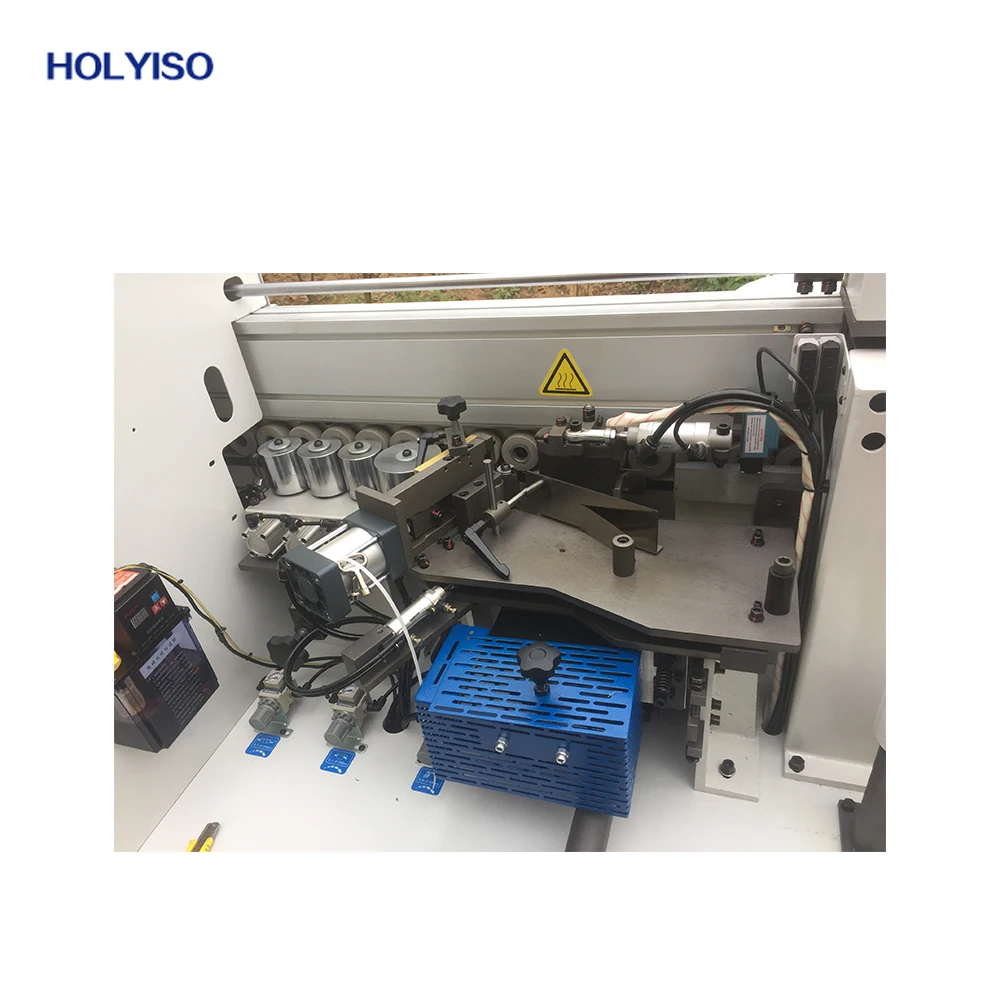

Gluing
Adopt special structure,make plate and edge sealing strip glue evenly, to ensure more firm ashesion.
End Trimming
Stable and reliable operation, fast cutting edge banding , to ensure a smooth cutting surface.

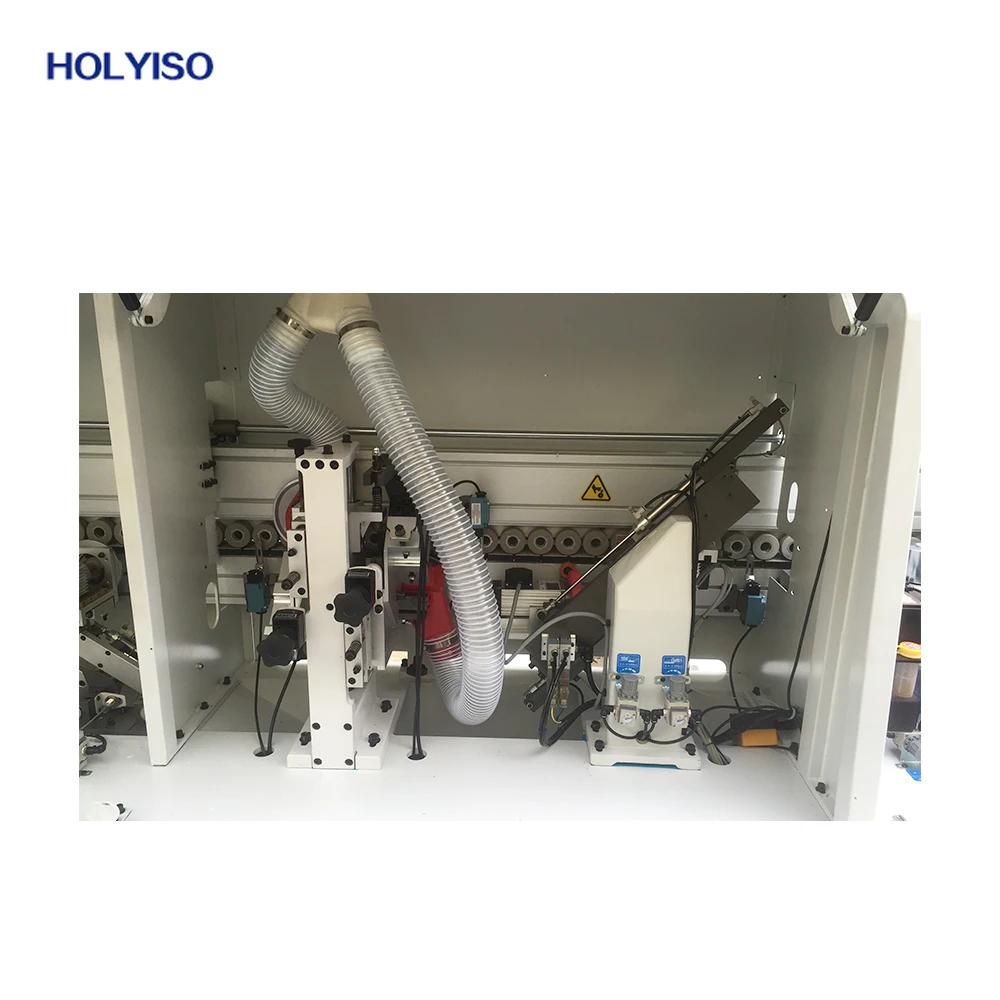

Rough Trimming/Fine Trimming
01.Rough trimming:The rough trimming knife is flat. Used to remove excess edge banding.
02. Fine trimming:Fine trimming knife is R type knife, which is used to remove the excess edge banding above and below the plate,so that the upper and lower parts of the board are smooth.
02. Fine trimming:Fine trimming knife is R type knife, which is used to remove the excess edge banding above and below the plate,so that the upper and lower parts of the board are smooth.

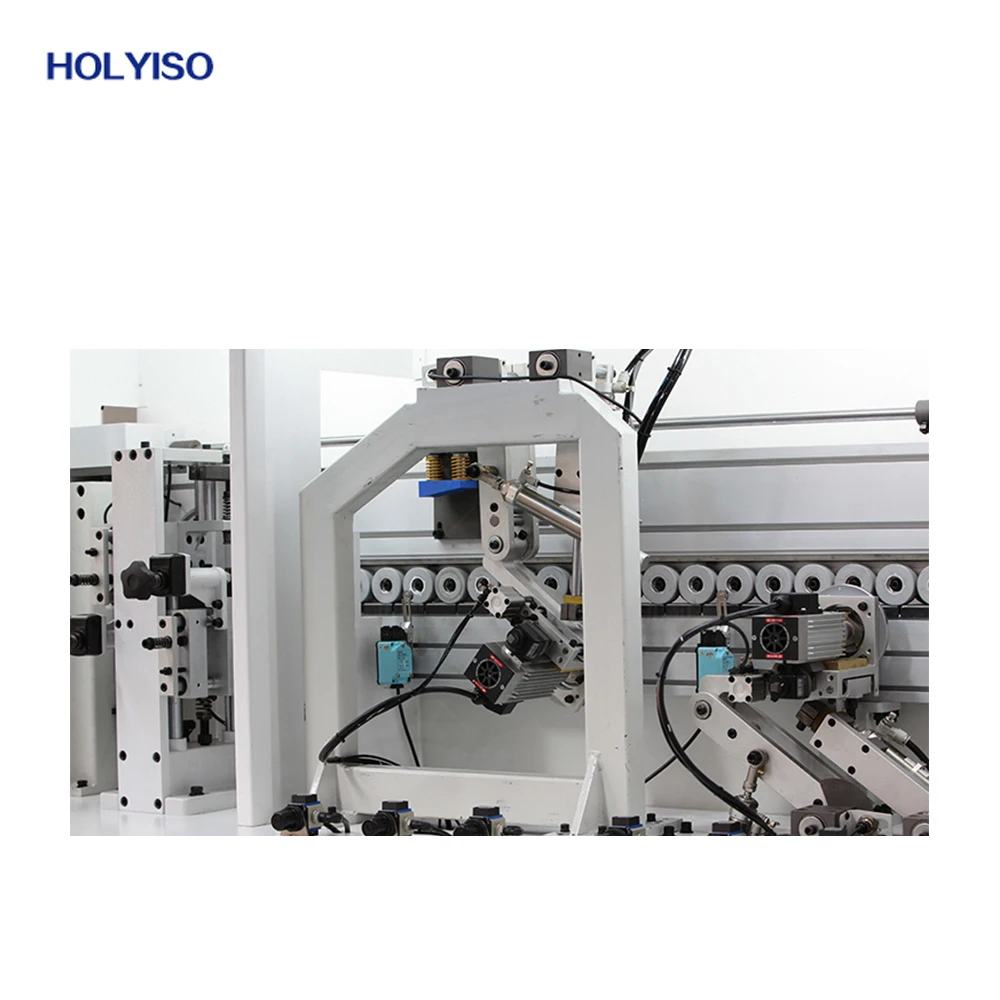

Corner Trimming
The upper and lower four corners are processed to be rounded, and the end surface of the board is smooth and beautiful.
Scraping
Used to eliminate ripple marks caused by trimming process, make the upper and lower parts of the plate more smooth and tidy.
Cleaning Device
After spraying cleaning agent,polishing wheel is easier to clean excess glue, improve the surface finish of the plate.

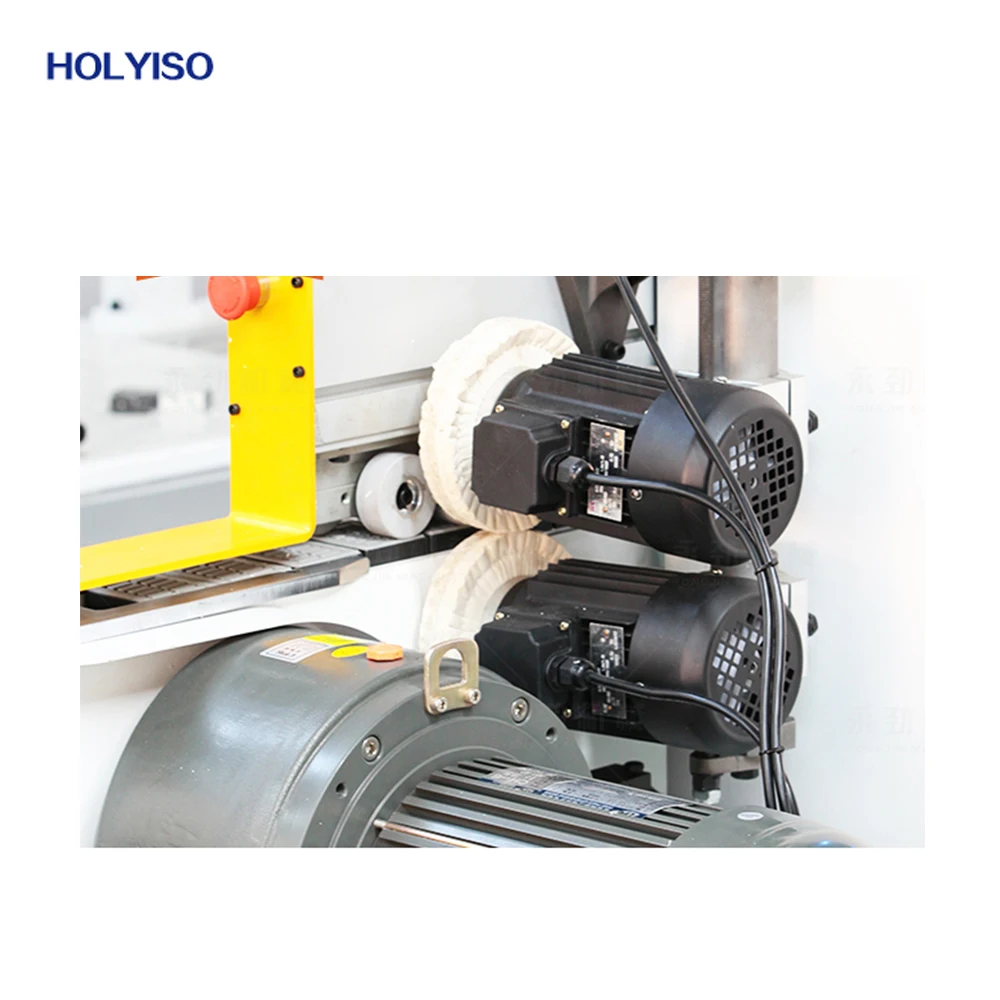

Buffing
Clean the board with cotton buffing wheel to make the edge banding end face smoother.
Product Real shoot
- Work Shop -
■ Straight Edge Banding Machine Finished products display
* We also have High-speed edge banding machine, Curve edge banding machine, 45 degree bevel edge banding machine, J Type, C Type, X Type, L Type edge banding machine. These edge shapes can be customized individually or in combination
* We also have High-speed edge banding machine, Curve edge banding machine, 45 degree bevel edge banding machine, J Type, C Type, X Type, L Type edge banding machine. These edge shapes can be customized individually or in combination
>> Customize your machine <<
Why Choose Us
- HOLYISO Strengths -
1. Online visit of our factory and machine.
2. Factory live every week.
3. The most favorable factory price.
4. Meet various customization requirements
We provide professional one-stop production line services for the woodworking industry.
Panel furniture production solutions, Solid wood furniture production solutions,
The Solution of Automatic Spraying Machine line,
Wooden door making line solution, Automatic Chair Production line solution
Wooden Pallet Automatic Production line solution...
Related Products
Packing&Shiping
Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.

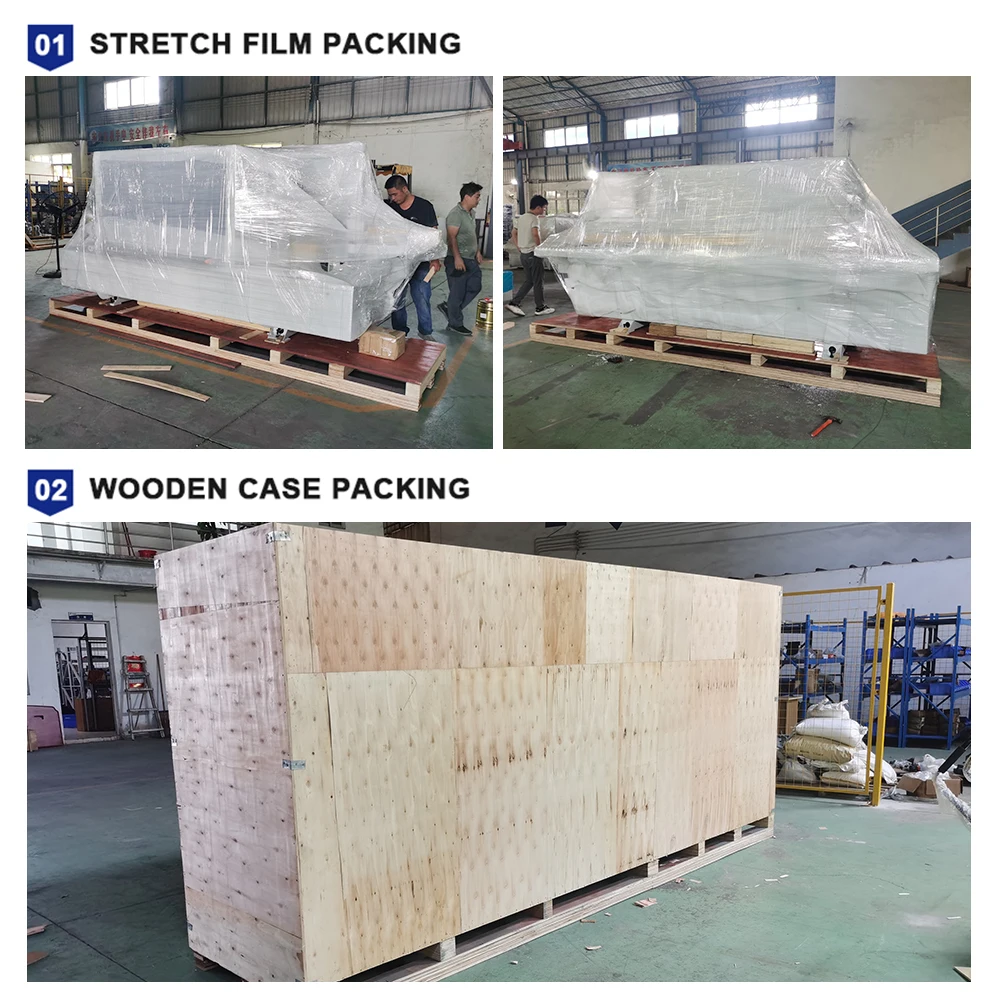

Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Company Profile
Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.
We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
FAQ
FAQ
1.What’s the different between Rough trim&Fine trim?
1.What’s the different between Rough trim&Fine trim?
Rough trim&Fine trim can trim the exceeding edge on the top and bottom side of the panel to be more smooth.Fine trimming can be upgraded to pneumatic adjustment knife edge for increased productivity and precision.
2.Will the machine be debugged before leaving the factory?
Surely yes,our machines are commissioned before leaving the factory to ensure that every function is available. However, we suggestion that the machine be adjusted according to its actual panel after it arrives.
3.Can I pause some features if I don't want to use ?
In addition to the scraping function, most other functions can be pause.
4.Can I customize the features I want?
Of course we are special in woodworking manufacturer and exporter of quality woodworking machines in Guangzhou, China. We have been in this field for more than 20 years.We have the ability to provide professional services for you.
5.Can the edge banding machine only seal the edges straight?
We also have fully automatic Partial hypotenuse edge banding machine.
6.How much temperature reach can it work ?
Generally,when reaches 150 ° it can test the board .The best working temperature is 180°.
7.what features can be upgraded?
A.Full range of products can be customized to feed in the opposite direction.
B.Pneumatic adjustment(Including trimming and scraping)
C.Heavy-duty pneumatic pre-milling function
D.Multi-cylinder adjustment function
E.Profile tracking chamfer
F.Double color plastic pot
G.Dual guide head and tail function
H.PUR glue supply system
I.Four polishing function J.Rapid sol system K.Six-wheel press function
L.Pneumatic flat wipe function (floating edge)
2.Will the machine be debugged before leaving the factory?
Surely yes,our machines are commissioned before leaving the factory to ensure that every function is available. However, we suggestion that the machine be adjusted according to its actual panel after it arrives.
3.Can I pause some features if I don't want to use ?
In addition to the scraping function, most other functions can be pause.
4.Can I customize the features I want?
Of course we are special in woodworking manufacturer and exporter of quality woodworking machines in Guangzhou, China. We have been in this field for more than 20 years.We have the ability to provide professional services for you.
5.Can the edge banding machine only seal the edges straight?
We also have fully automatic Partial hypotenuse edge banding machine.
6.How much temperature reach can it work ?
Generally,when reaches 150 ° it can test the board .The best working temperature is 180°.
7.what features can be upgraded?
A.Full range of products can be customized to feed in the opposite direction.
B.Pneumatic adjustment(Including trimming and scraping)
C.Heavy-duty pneumatic pre-milling function
D.Multi-cylinder adjustment function
E.Profile tracking chamfer
F.Double color plastic pot
G.Dual guide head and tail function
H.PUR glue supply system
I.Four polishing function J.Rapid sol system K.Six-wheel press function
L.Pneumatic flat wipe function (floating edge)
