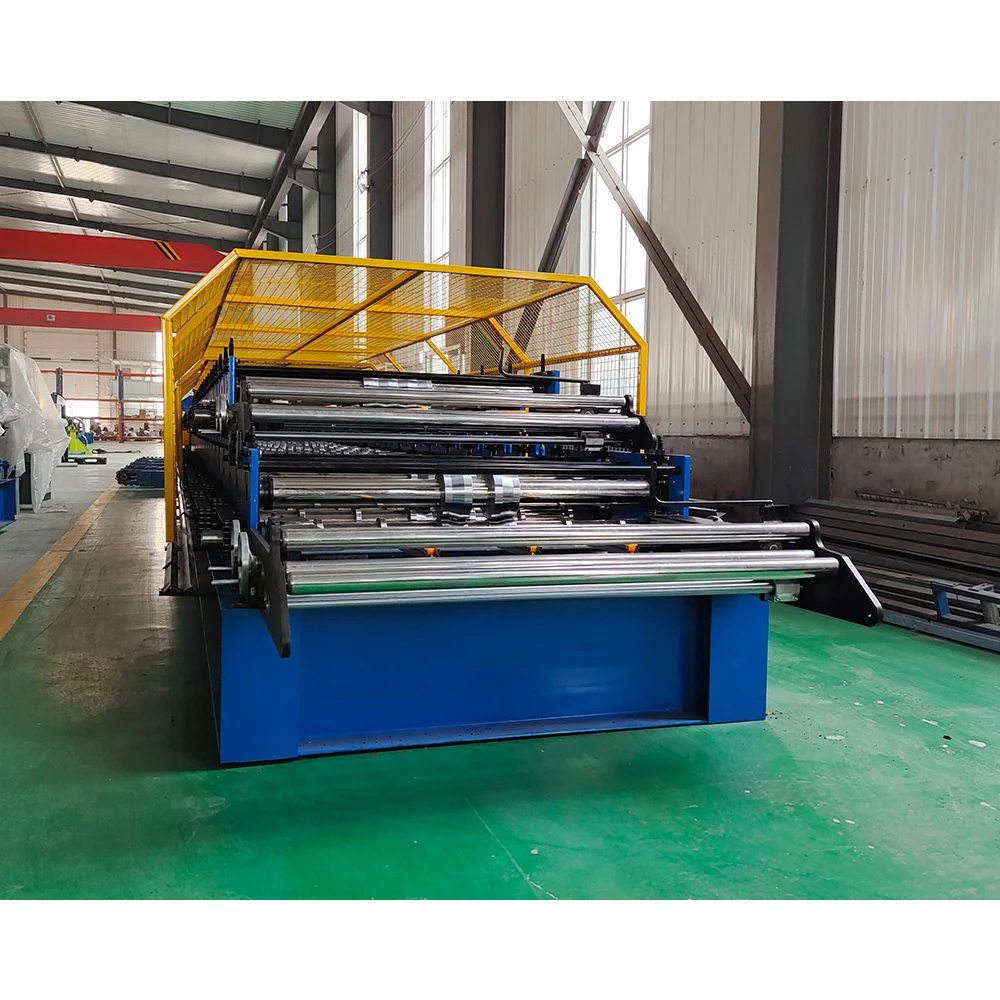

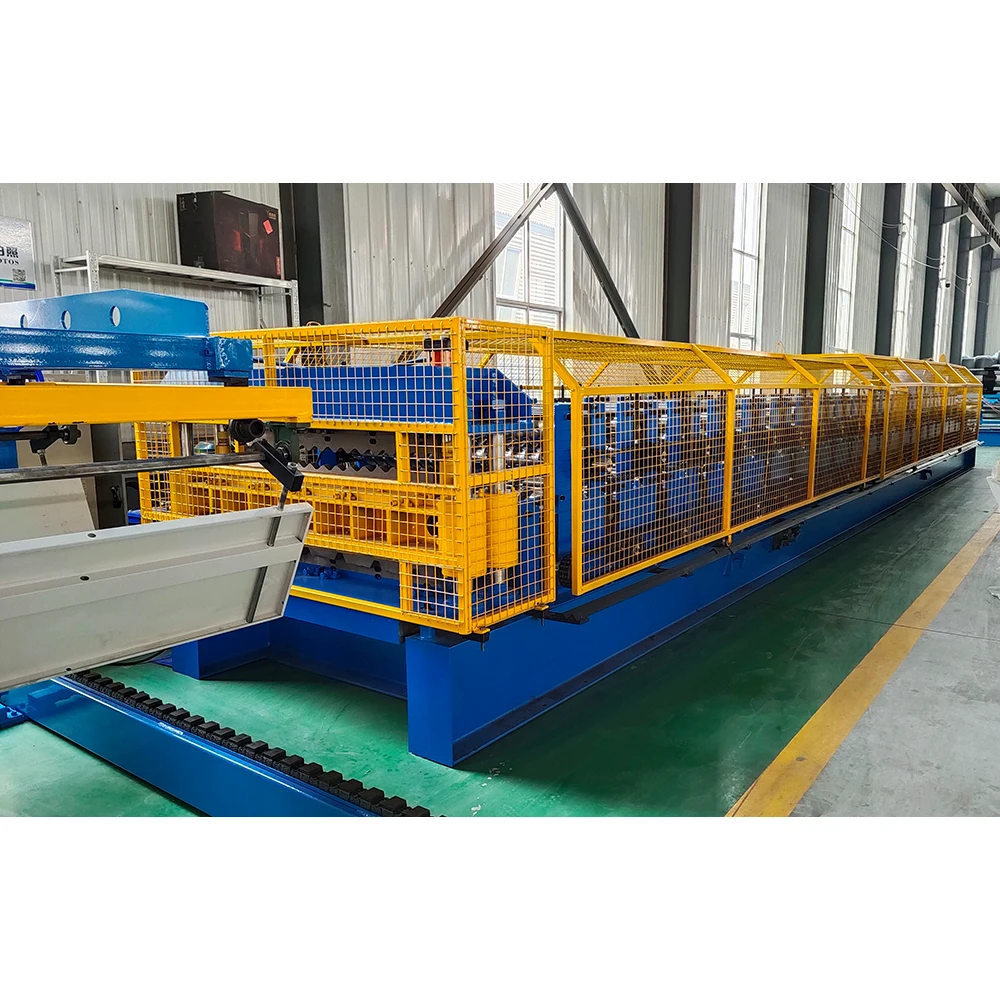

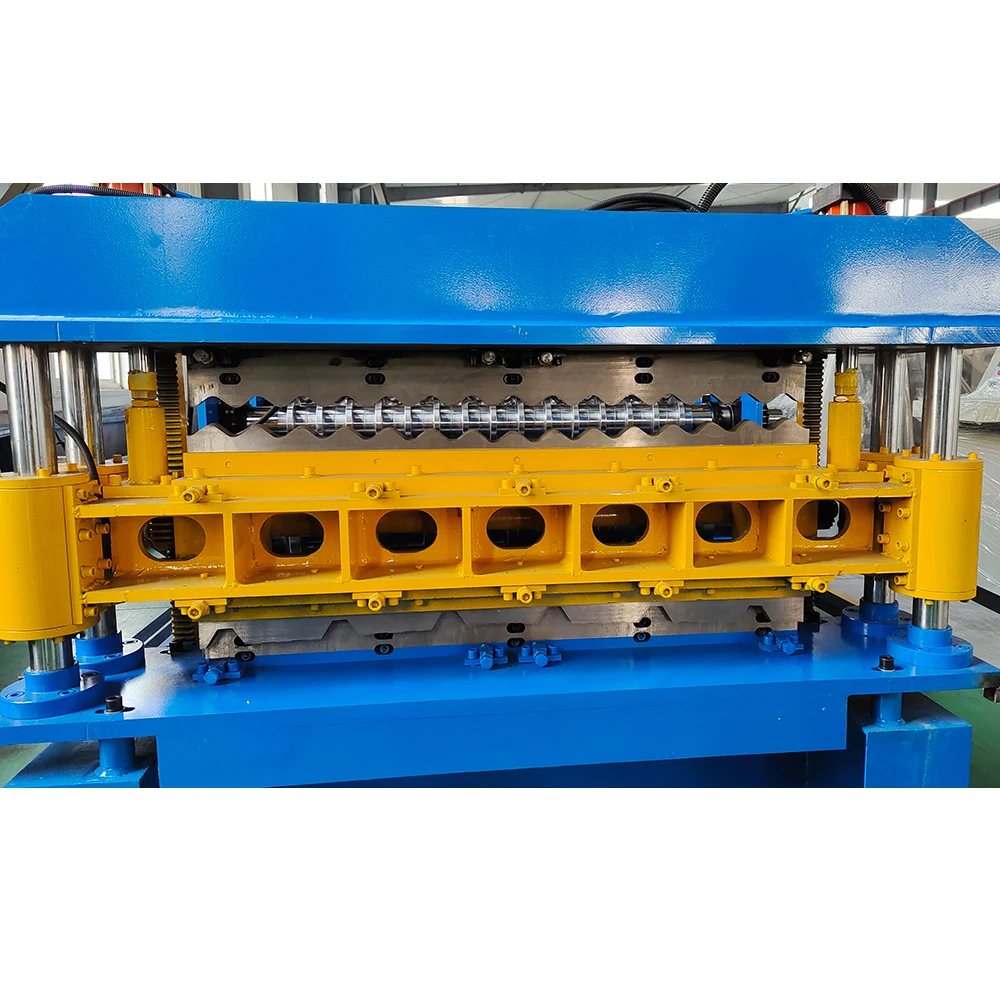

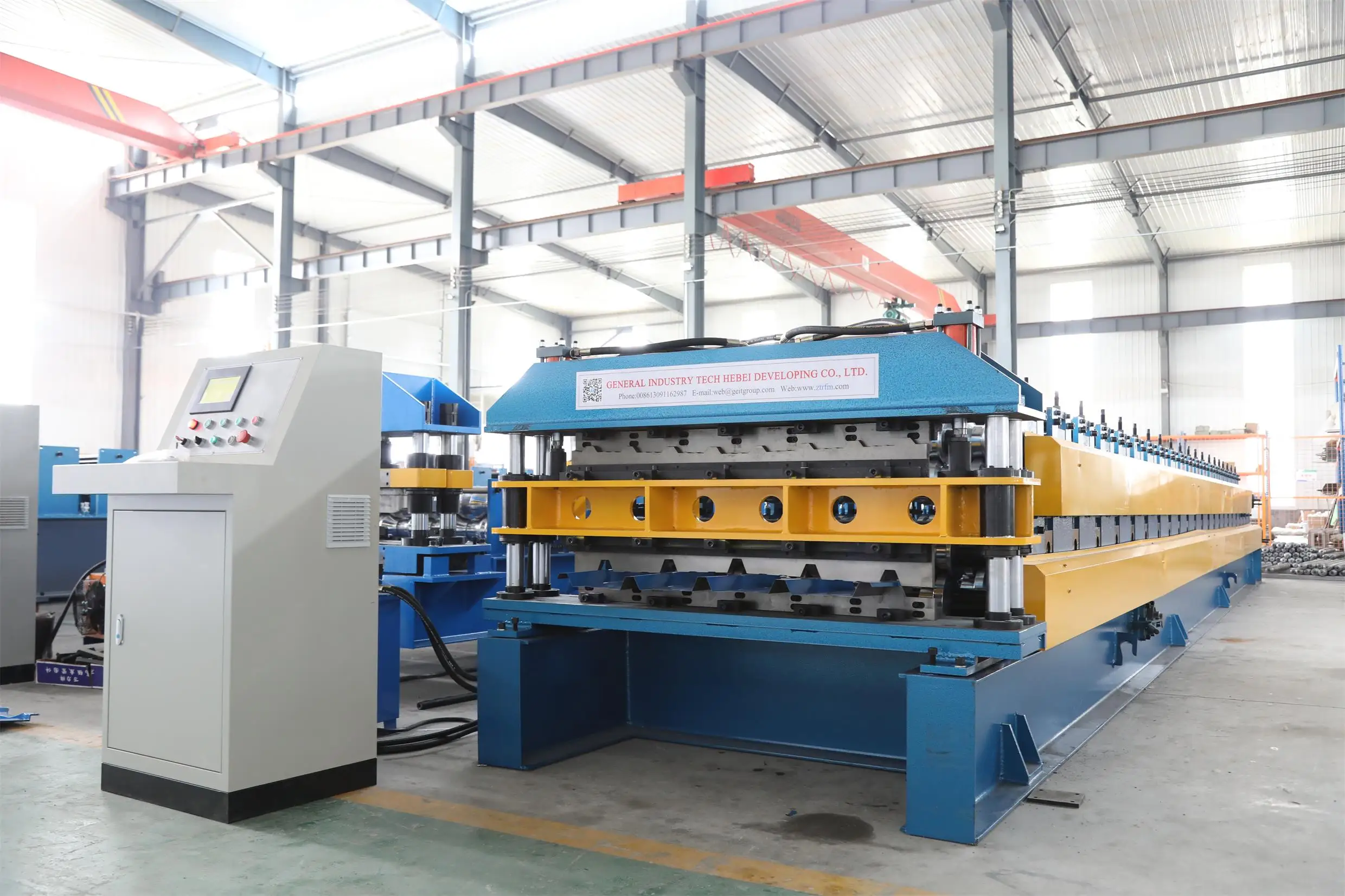

panel rib and ag panel double layerroll forming roll forming machine
panel rib and ag panel double layerroll forming roll forming machine
panel rib and ag panel double layerroll forming roll forming machine
panel rib and ag panel double layerroll forming roll forming machine
panel rib and ag panel double layerroll forming roll forming machine
panel rib and ag panel double layerroll forming roll forming machine
panel rib and ag panel double layerroll forming roll forming machine

panel rib and ag panel double layerroll forming roll forming machine

Share on (1600537845661):


Price:$14,500.00 - $15,500.00

Quantity:


Product Overview

Description

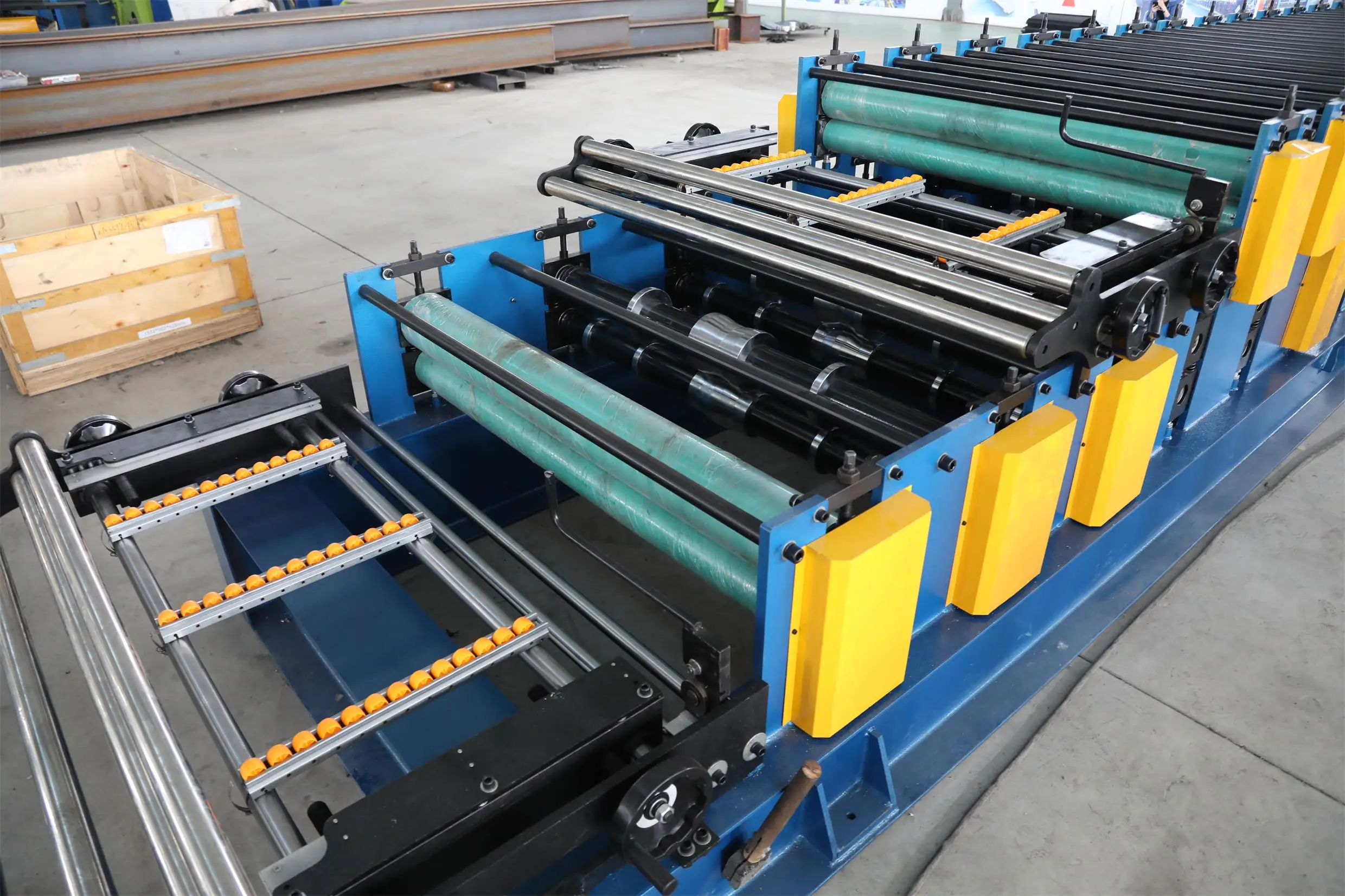

Product Show




Type
Double layer Forming Machine
Tile Type
Colored Steel
Use
Roof
Production Capacity
12 m/min
Voltage
220/380/440V
Dimension(L*W*H)
8000*1650*1500mm
Weight
about 6.5T
Certification
CE/ISO9001
Warranty
1 YEAR
Rolling thinckness
0.3-0.8mm
Feeding width
1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Color
Client's Request
Control system
Taiwan Delta
Thickness
0.3--0.8mm
Effective width
760-1260mm

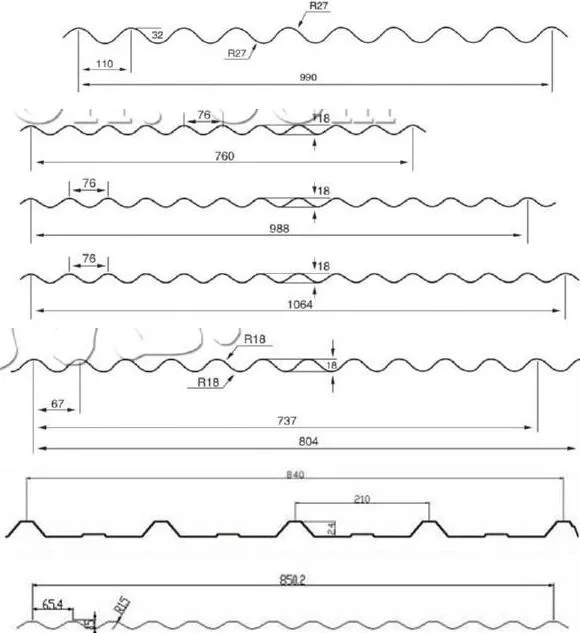

This is our common drawing profile, we can also customize it according to your drawing profile

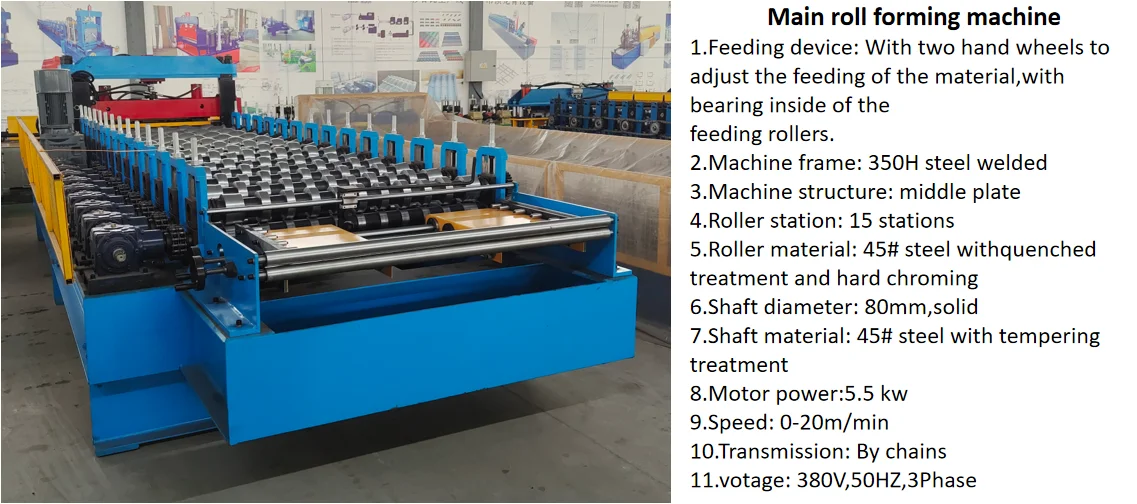

Product Description

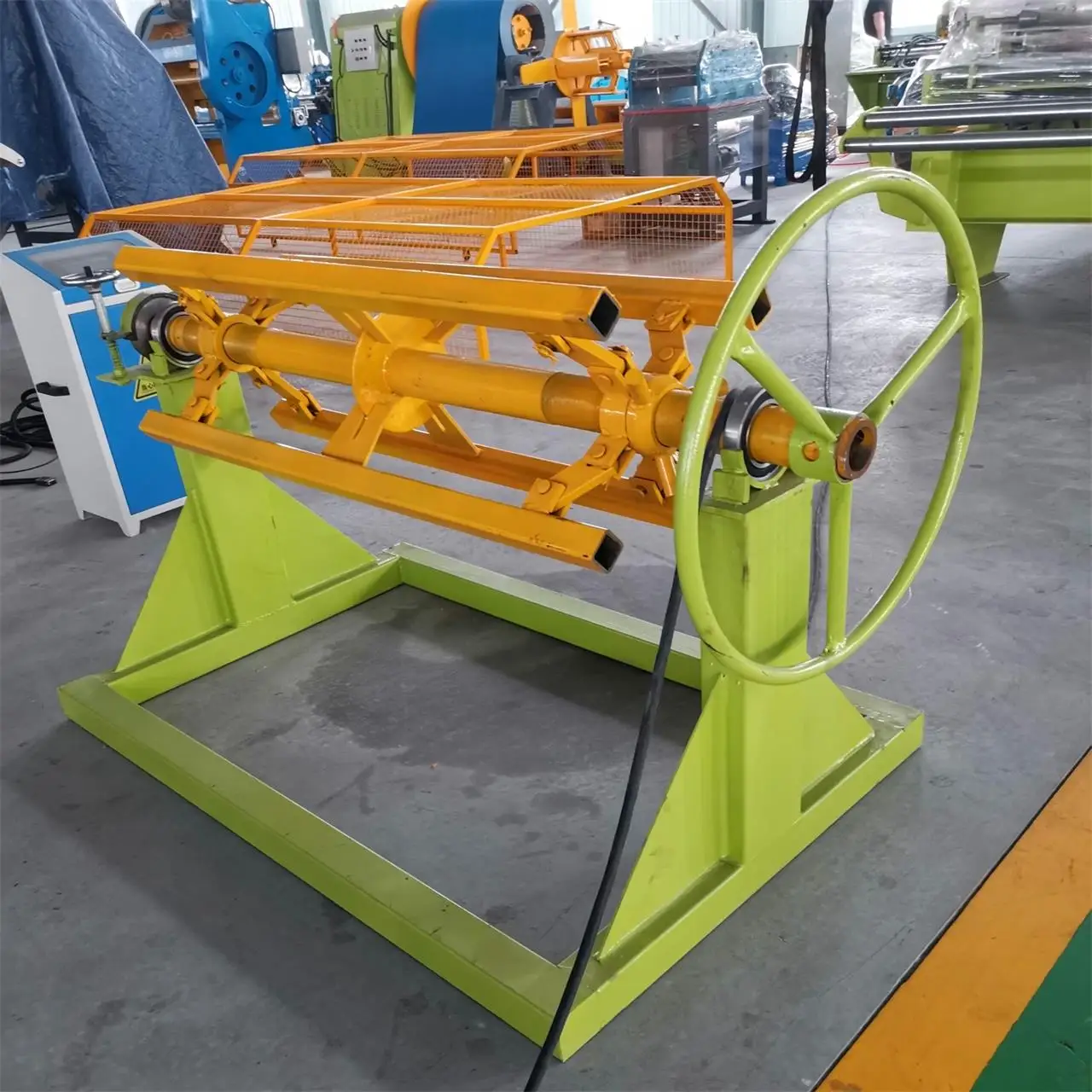

Uncoiler
1.work type: manual
2.usage: to support the coil and make the 3.uncoiling
4.capacity: 5 tons
5.inner diameter: 450-550mm
6.coil width: 1250mm
5.we can also provide manual uncoiler ,electric uncoiler and hydraulic uncoiler according to individual requirement.

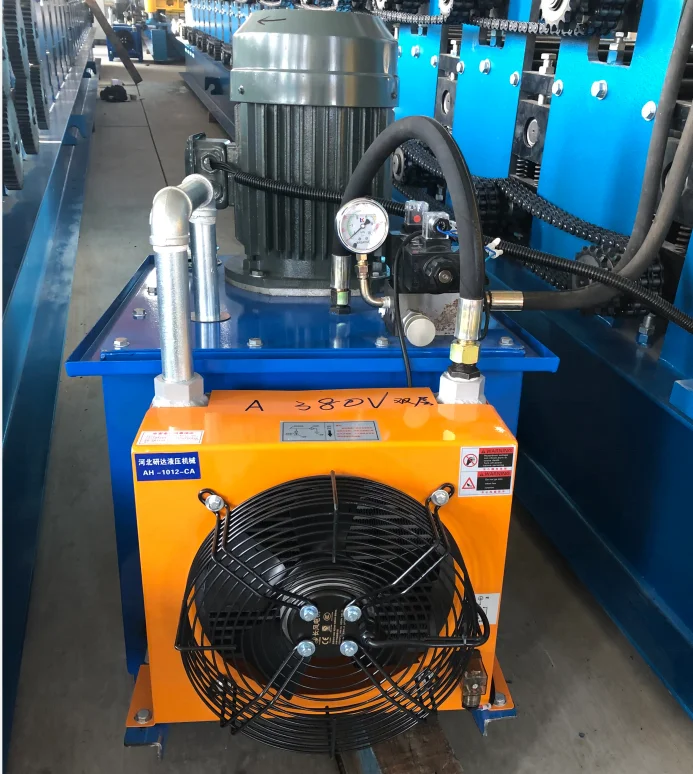

Hydraulic station

It designs with the big motor.
With the hydraulic cooling fan system.

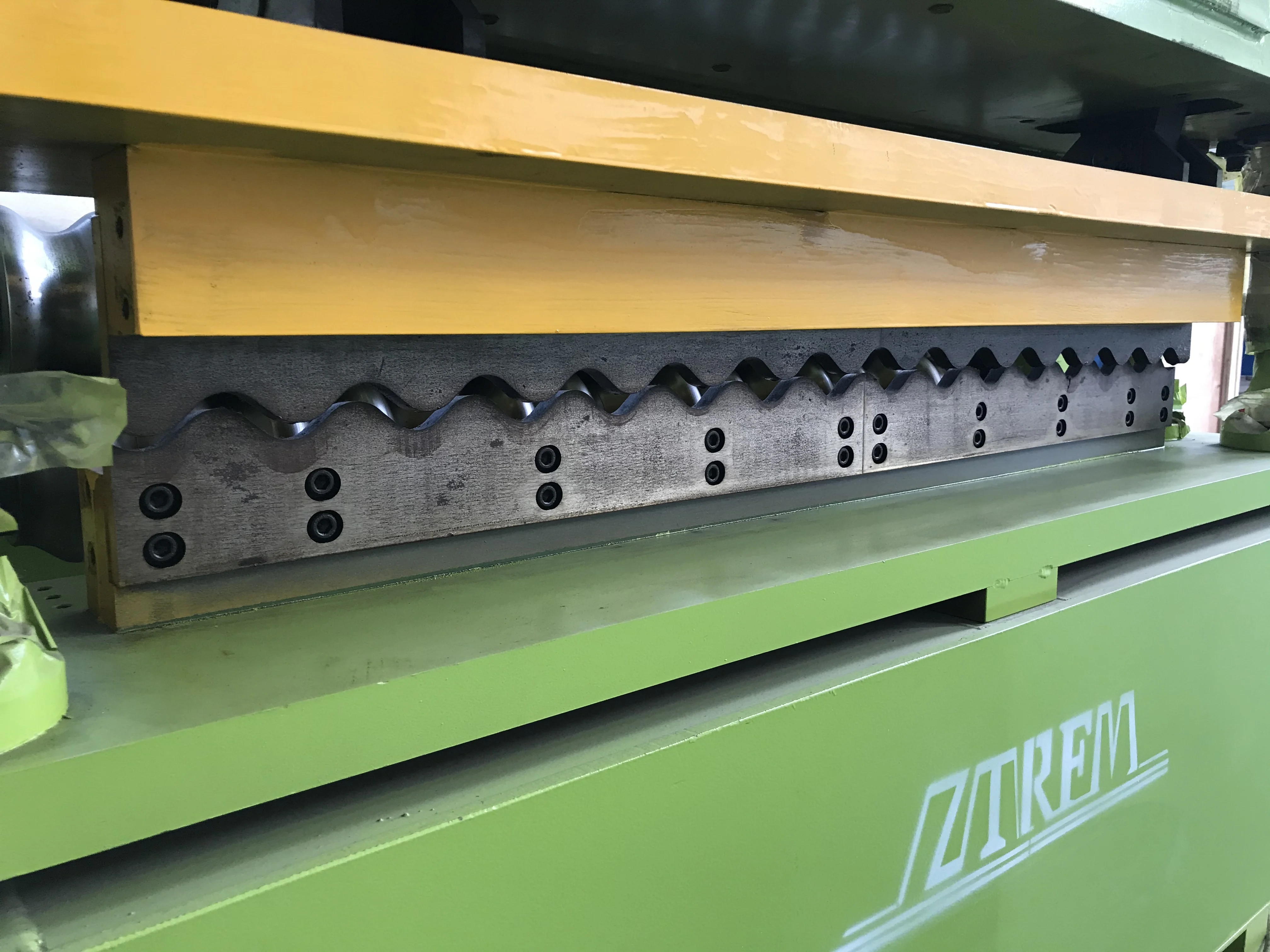

Hydraulic cutting system
Blade material: Cr12,with quenched treatment
Motor power: 4 kw
Cutting tolerance: +/-1 mm
Cooling system: with cooling fan
Cutting type: Hydraulic cutting
Feature: Low noise and high performanc

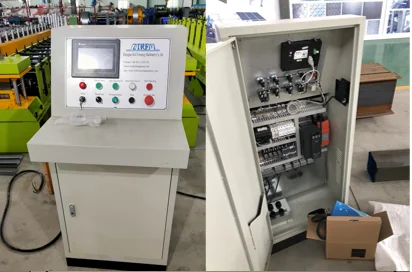

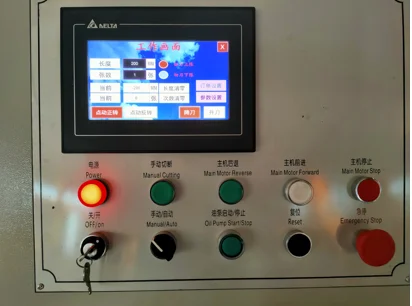

PLC system
1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Panasonic.

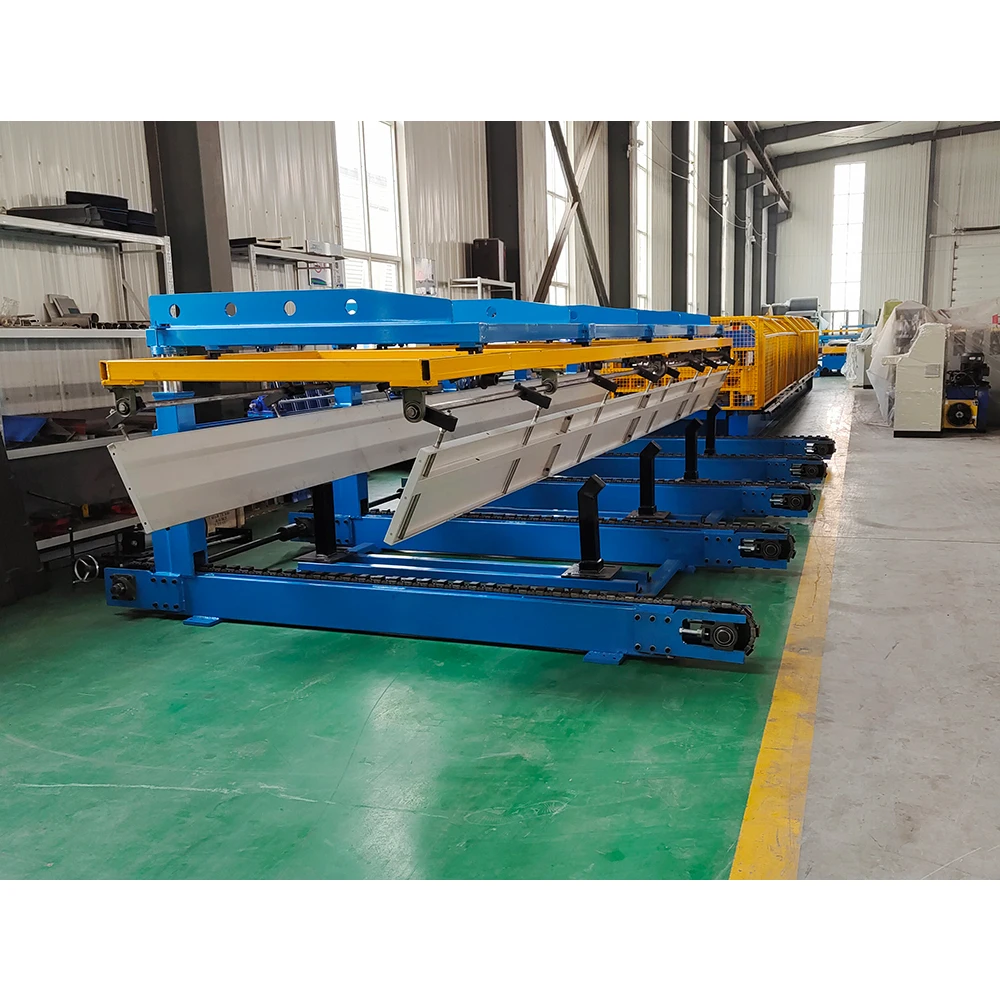

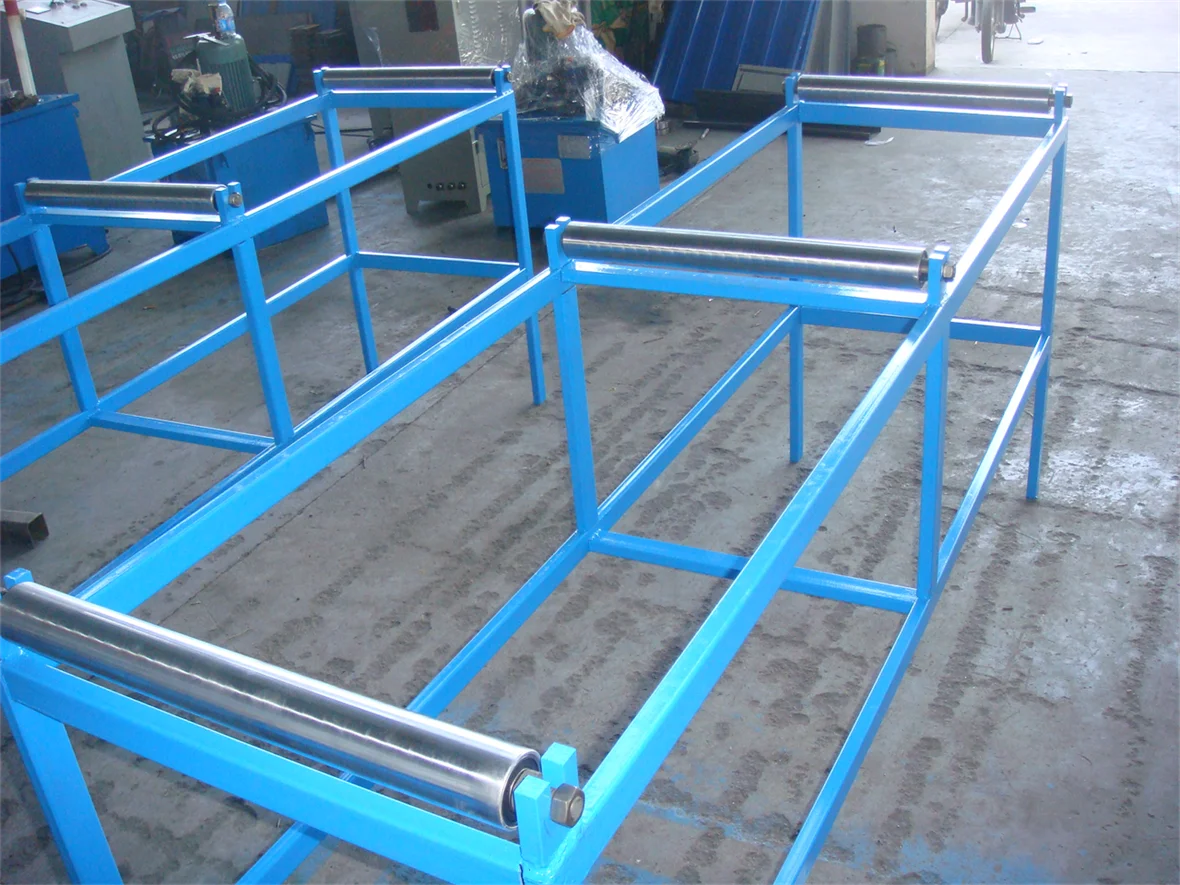

Products receiving table
1.Manual length 3m
2.Auto stacker is also available


Popular machines

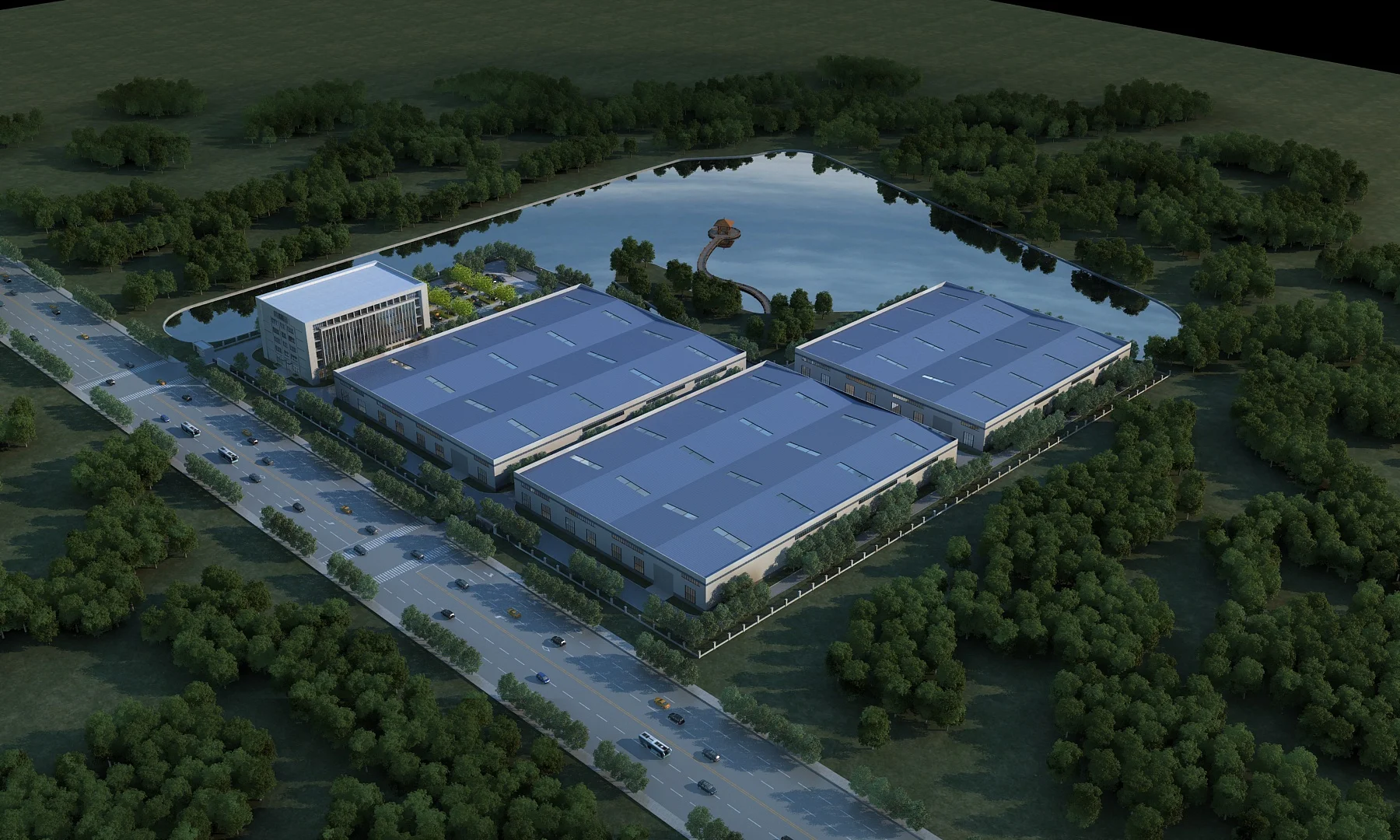

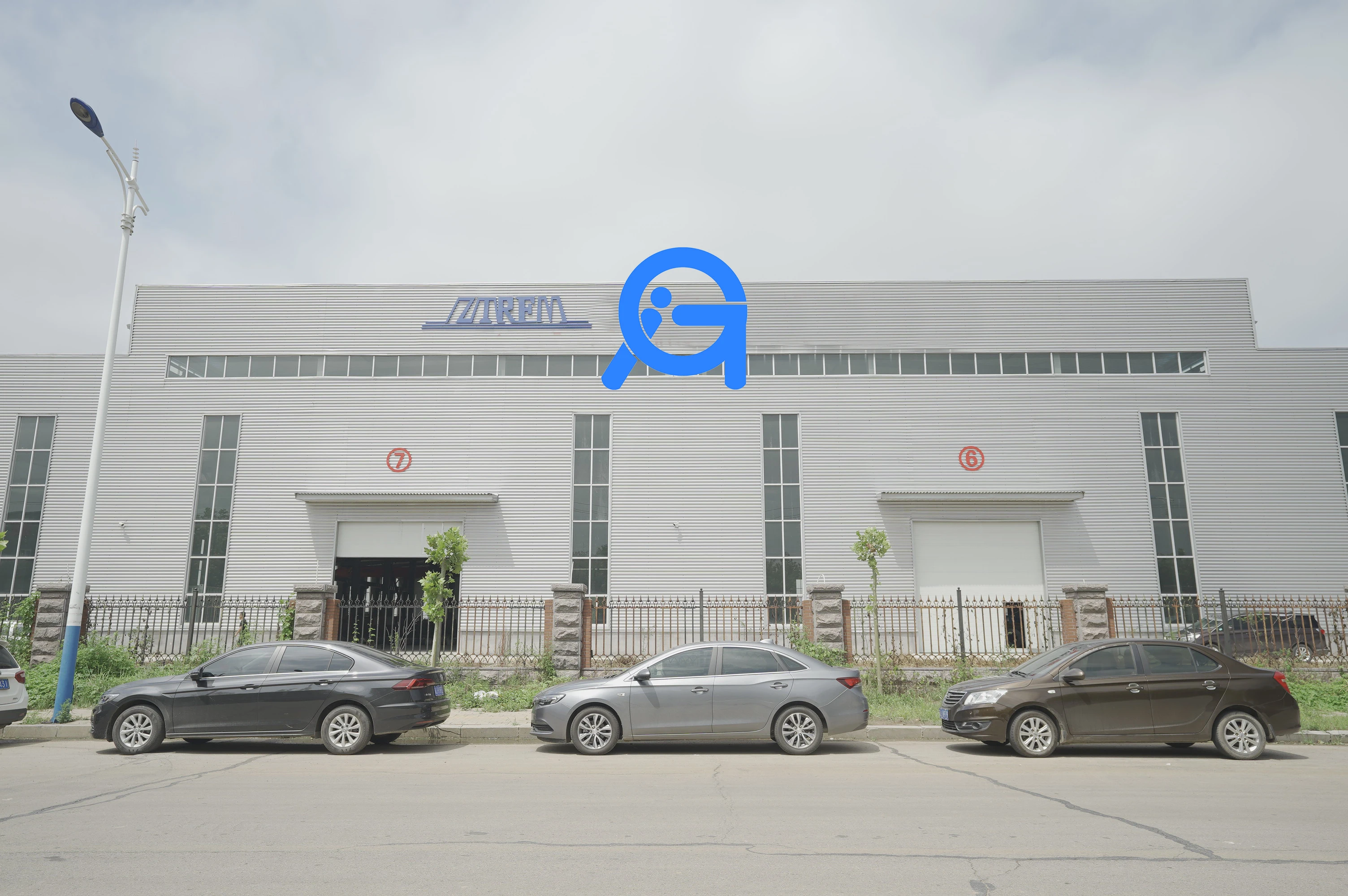

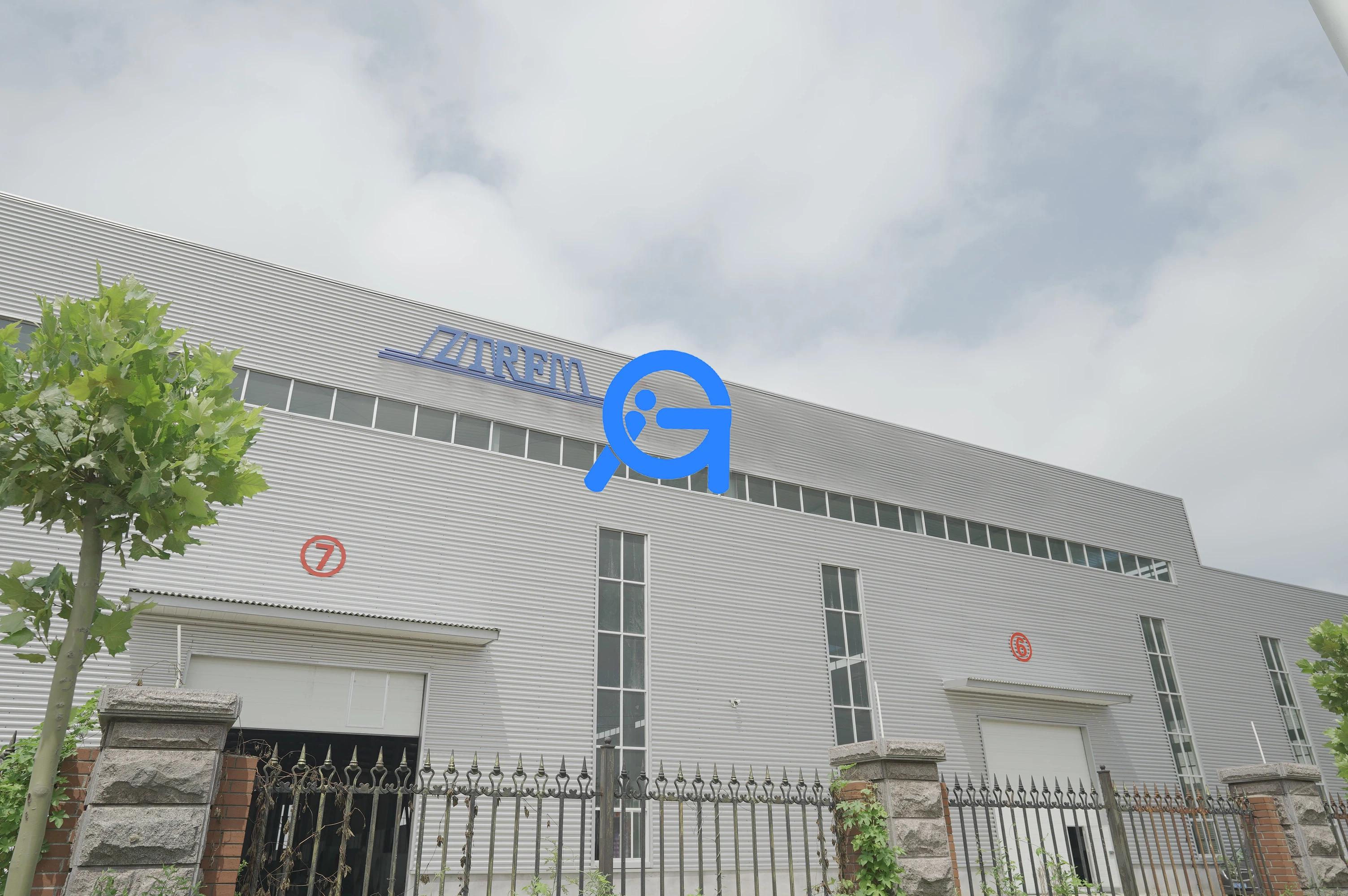

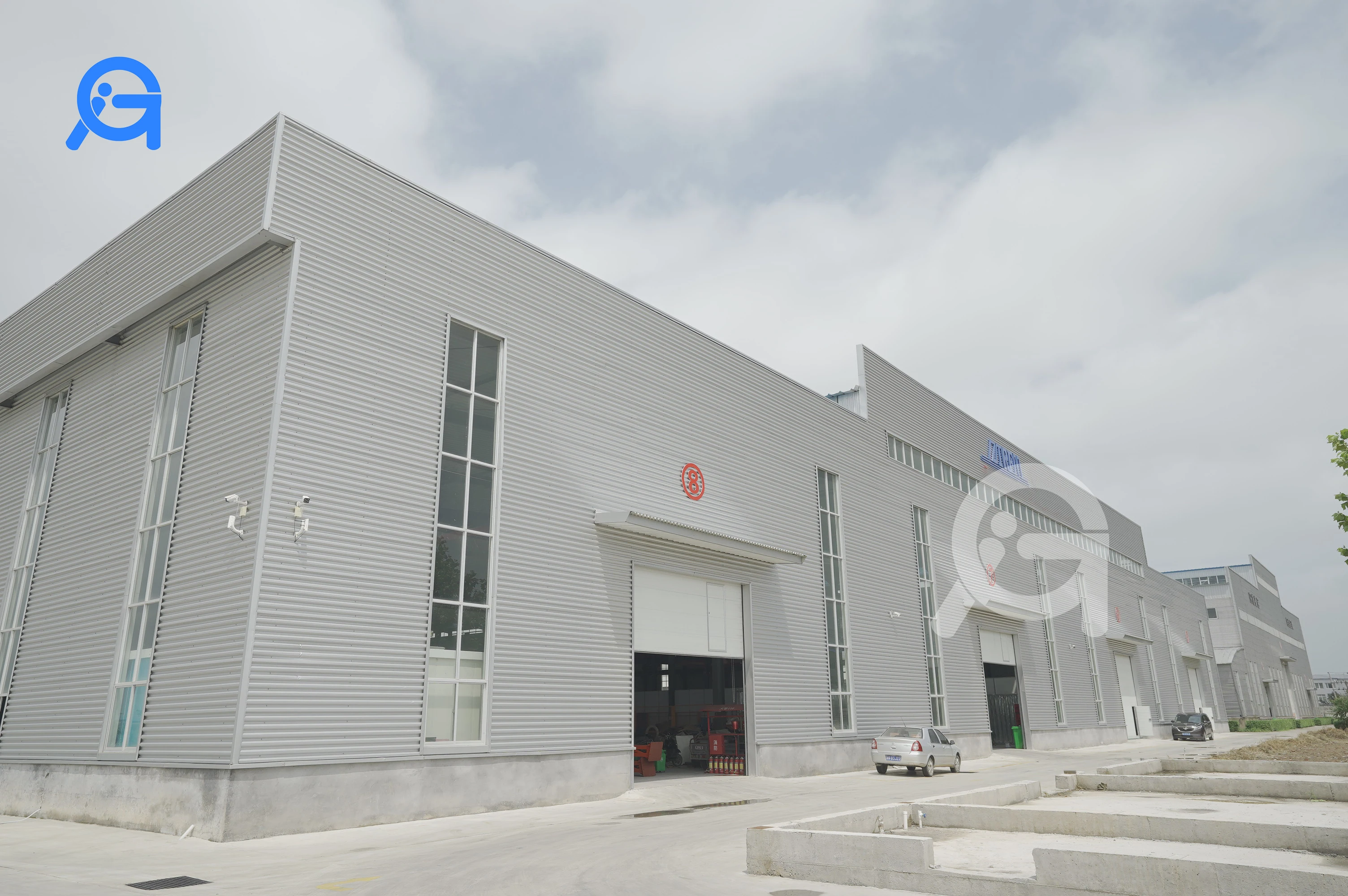

Company Profile


General Industry tech Hebei Developing Co., Ltd (GEIT) is aimed at providing our customers with the best quality metal rolling automation solutions and after-sale s service. At present, our company has more than 10 years of designing and making the cold roll forming machine, and our products have been sold to more than 60 countries and areas, achieving good fame. GEIT are capable of and confident with our product that will make its name in China and will be famous in the world. Backed with the powerful technology and the perfect market service system, and holding the idea of globalization, we have expanded our international market step by step. Opportunities accompanying with challenges, and we are always full of confidence.














Certificate

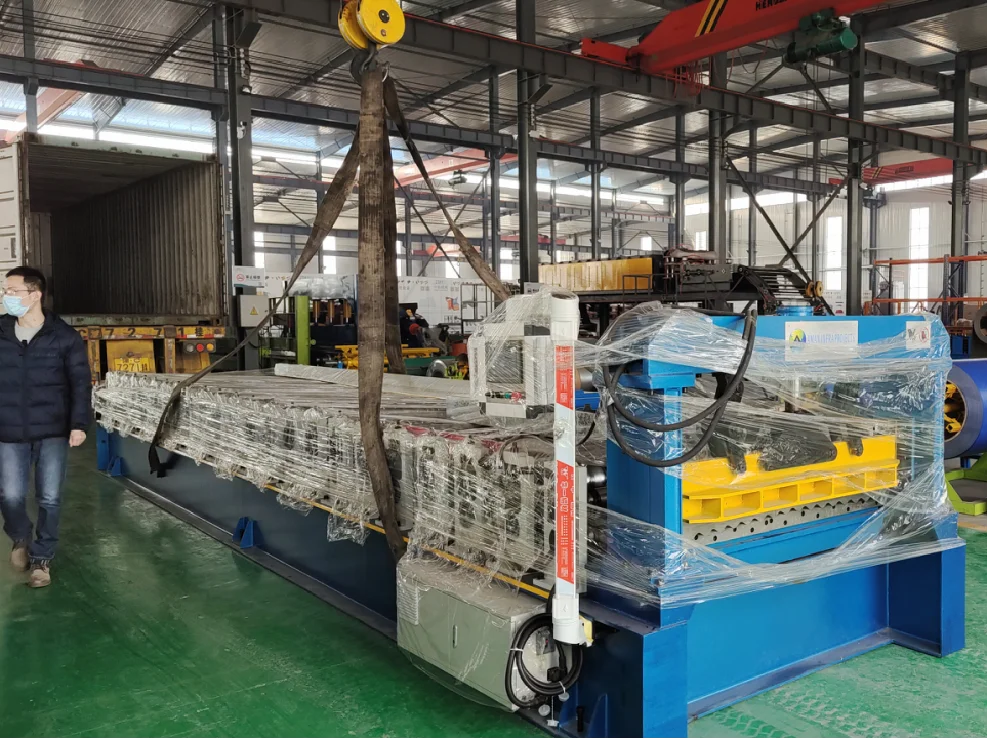

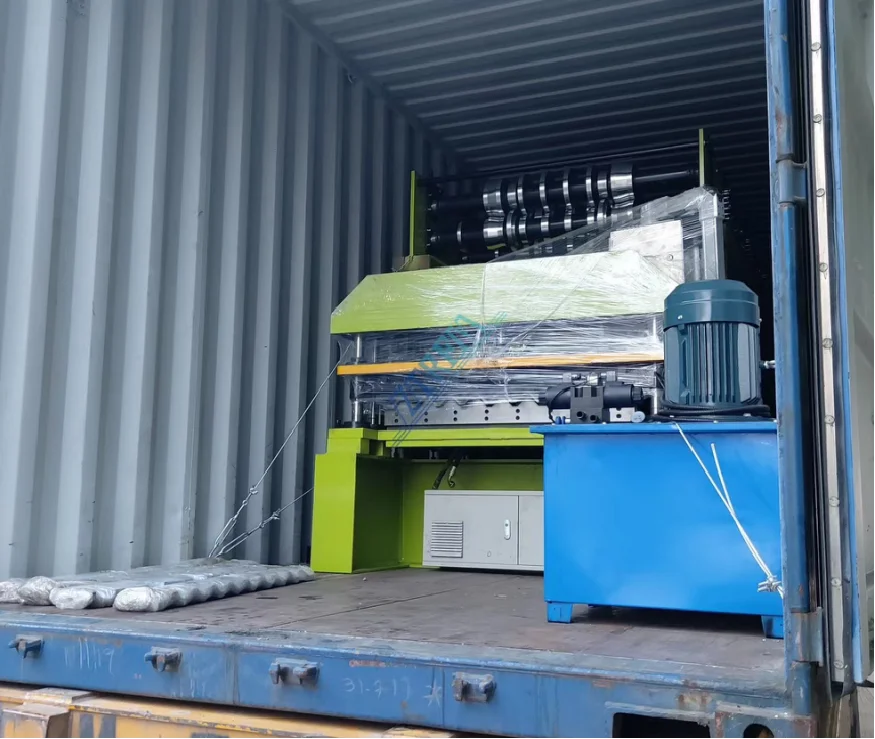

Packing & Delivery
