Бренд Qidian, Прямая поставка с завода, круглая вязальная машина для металлических тканей для домашнего использования
- Category: >>>
- Supplier: Shandong Qidian Machinery Equipment Co. Ltd.
Share on (1600537858864):
Product Overview
Description
PRODUCT SPECIFICATIONS

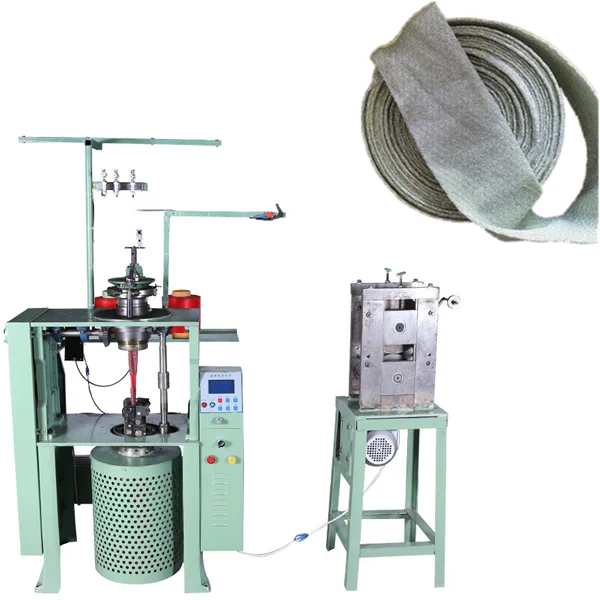

steel fabric knitting machine
108~120 needles,
cylinder’s diameter 3.2”~3.8";
Product width :8.5~10cm
voltage:220v
power:0.55kw
machine weight:350KG
main part size:0.8x0.6x1.6m
ss part:0.45x0.5x1.25m
CAPACITY:7~8KGS/10hours
rotate speed： it is about 160~200rpm/ minutes
wire size:0.09mm
Product width :8.5~10cm
voltage:220v
power:0.55kw
machine weight:350KG
main part size:0.8x0.6x1.6m
ss part:0.45x0.5x1.25m
CAPACITY:7~8KGS/10hours
rotate speed： it is about 160~200rpm/ minutes
wire size:0.09mm
4 WIRE 4BALL FLAT SCOURER MAKING MACHINE
Automatic multifuction Scourer machine(can produce sprial shape and flat shape)
Model:4Wires 4 balls
Voltage:220V/380V
Power:2.2kw Capacity:10-15kg/hour
Machine Weight:520gs
Measures:1300mm(L)X1000MM(W)X1300MM(H)
material:ss 410 430 iron wire,0.13mm
Model:4Wires 4 balls
Voltage:220V/380V
Power:2.2kw Capacity:10-15kg/hour
Machine Weight:520gs
Measures:1300mm(L)X1000MM(W)X1300MM(H)
material:ss 410 430 iron wire,0.13mm
Right elevation
Left elevation
Front elevation
6wire 6ball multi function combined scourer making machine
automatic combined (can produce spiral and flat scrubber)
Model:6Wires 6balls
Voltage:380v
Power: 7.5kw
Capacity: 12kgs/hour
Machine Weight:1800kgs
Dimension : 5500x1200x900mm
machine:front part:1.42x1.2x1m/1.7cbm; back part size:3.4x0.85x0.9m/2.5cbm. total4.2cbm
material: ss 0.7mm or gi wire
Model:6Wires 6balls
Voltage:380v
Power: 7.5kw
Capacity: 12kgs/hour
Machine Weight:1800kgs
Dimension : 5500x1200x900mm
machine:front part:1.42x1.2x1m/1.7cbm; back part size:3.4x0.85x0.9m/2.5cbm. total4.2cbm
material: ss 0.7mm or gi wire
5wire 5ball multi function combined scourer making machine(from 0.7wire to finished scouer ball directly)
automatic combined (can produce spiral and flat scrubber)
Model:5Wires 5balls
Voltage:380v
Power: 11kw
Capacity: 10kgs/hour
Machine Weight:1500kgs
machine:front part:1.42x1.2x1m/1.7cbm; back part size:3.4x0.85x0.9m/2.5cbm. total4.2cbm
material: 0.7mm wire ss or gi
Model:5Wires 5balls
Voltage:380v
Power: 11kw
Capacity: 10kgs/hour
Machine Weight:1500kgs
machine:front part:1.42x1.2x1m/1.7cbm; back part size:3.4x0.85x0.9m/2.5cbm. total4.2cbm
material: 0.7mm wire ss or gi
No | Item | POWER | CAPACITY | VOLTAGE |
1 | 4WIRE 4BALL USUAL | 2.2~4KW | 8KGS/HOUR | 220V/380V |
2 | 5WIRE 5BALL USUAL | 4KW | 10KGS/HOUR | 220V/380V |
3 | 6WIRE 6BALL USUAL | 4KW | 12KGS/HOUR | 220V/380V |
4 | 4WIRE 4BALL COMBINED | 7KW | 8KGS/HOUR | 220V/380V |
5 | 5WIRE 5BALL COMBINED | 7.5KW | 10KGS/HOUR | 220V/380V |
6 | 6WIRE 6BALL | 11KW | 12KGS/HOUR | 220V/380V |
7 | ||||
8 |
Product Overview
SCOURER MAKING MACHINE
The machine can produce any size and any weight cleaning balls(scourers);In intelligent design, automatic management with ball(scourers)Sub-standard sizes ,so it can control zero-error precision on the weight of each cleaning ball. After separation into the cleaning balls automatically it also can send the cleaning balls with the conveyor belt, Automaticlly, ball tight and losen can be adjusted according to the weight and sizes automatically. So ,it can produce balls with variety and attractive appearance.
We have many type scourer machine: spiral scourer making machine, flat scourer making machine and mesh scourer making machine and so on , welcome to visit our factory and order our scourer making machine.
Main Feature:
1) High output,highest output in this field
2) With automatic stop controller,
3) With patent technology,
4）Small noise and energy saving
5) can control zero=error,precision on the weight
6) ball tight and loose can be adjusted;
7) Can be customized as your request
We have many type scourer machine: spiral scourer making machine, flat scourer making machine and mesh scourer making machine and so on , welcome to visit our factory and order our scourer making machine.
Main Feature:
1) High output,highest output in this field
2) With automatic stop controller,
3) With patent technology,
4）Small noise and energy saving
5) can control zero=error,precision on the weight
6) ball tight and loose can be adjusted;
7) Can be customized as your request
SIMILAR PRODUCTS

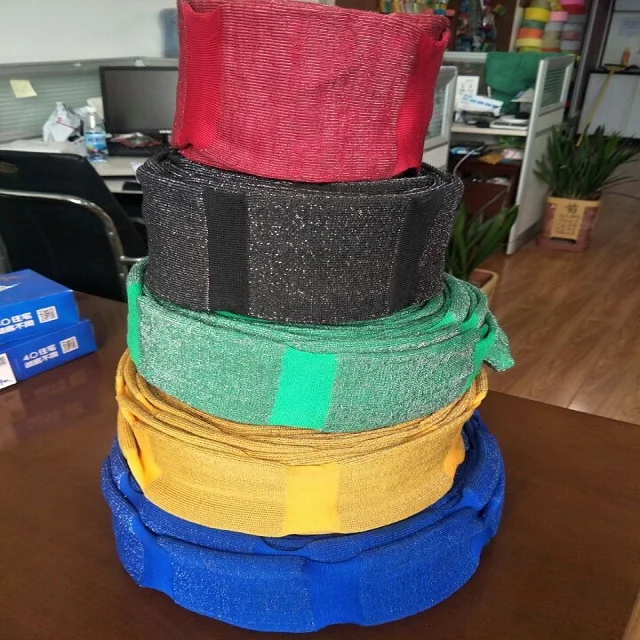

FINISHED PRODUCTS
COMPANY PROFILE:
Linyi Xulin International Trade Co.,ltd, established in 1998,located in the logistics city of China, Linyi, Shandong. We are factory of development,producing and sales of the scourer ball machine and equipment. At present,we are specialized in scourer ball machine,galvanized scrubber mesh making machine,kitchen sponge making machine,hunger making machine,brush planting making machine,scourer washing ball，wire drawing machine and scourer ball wire materials. We can produce all various types of stainless steel wire from 550 to 9 mm We have many type scourer machine: spiral scourer making machine, flat scourer making machine, mesh scourer making machine, scouring pad cutting machine, scourer sponge automatic cutting machine and so on , welcome to visit our factory and order our machine.
Customer Photos
Certifications
CERTIFICATE
SGS CERTIFICATE
CE CERTIFICATE
Contact us
CONTACT PERSON
If you are interested in our products, pls don't hesitated to contact with me by following information, we can supply you best service and competitive price to build long business in the coming future!
Contact person: LISA
WECHAT/whatsapp:+86 15106677085/16567013333
QQ:479374998
Contact person: LISA
WECHAT/whatsapp:+86 15106677085/16567013333
QQ:479374998
