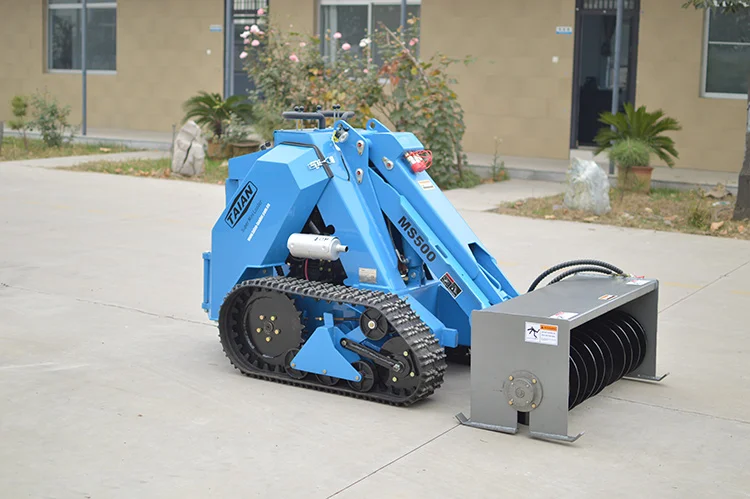

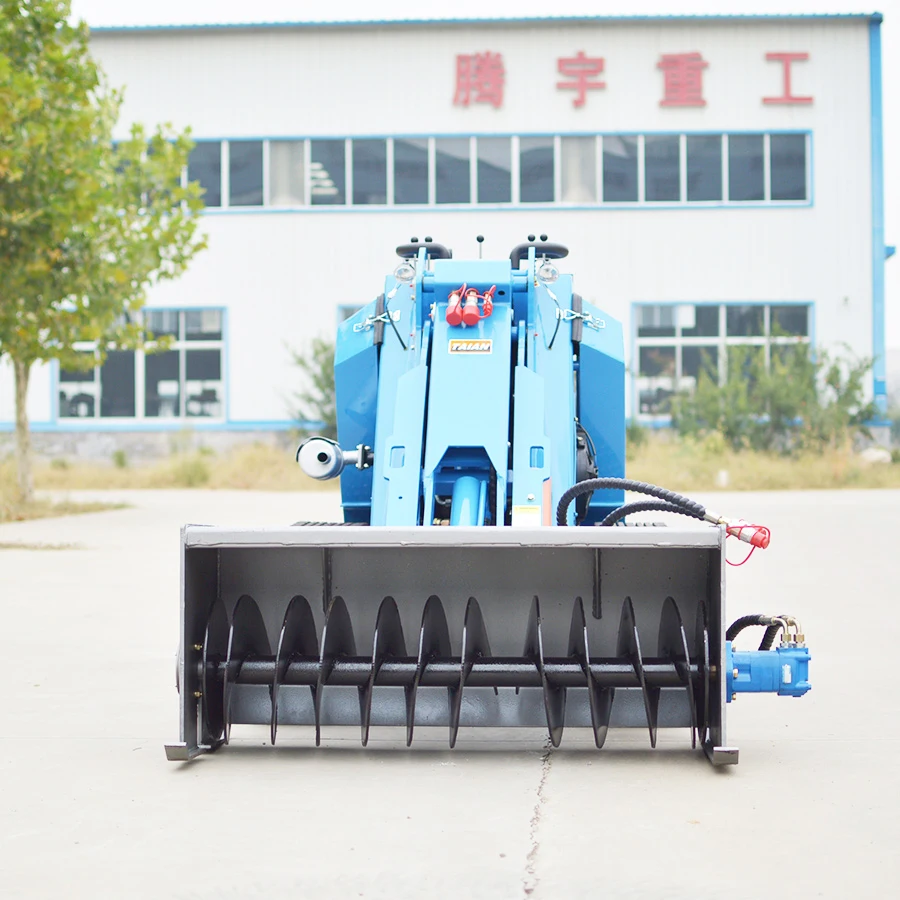

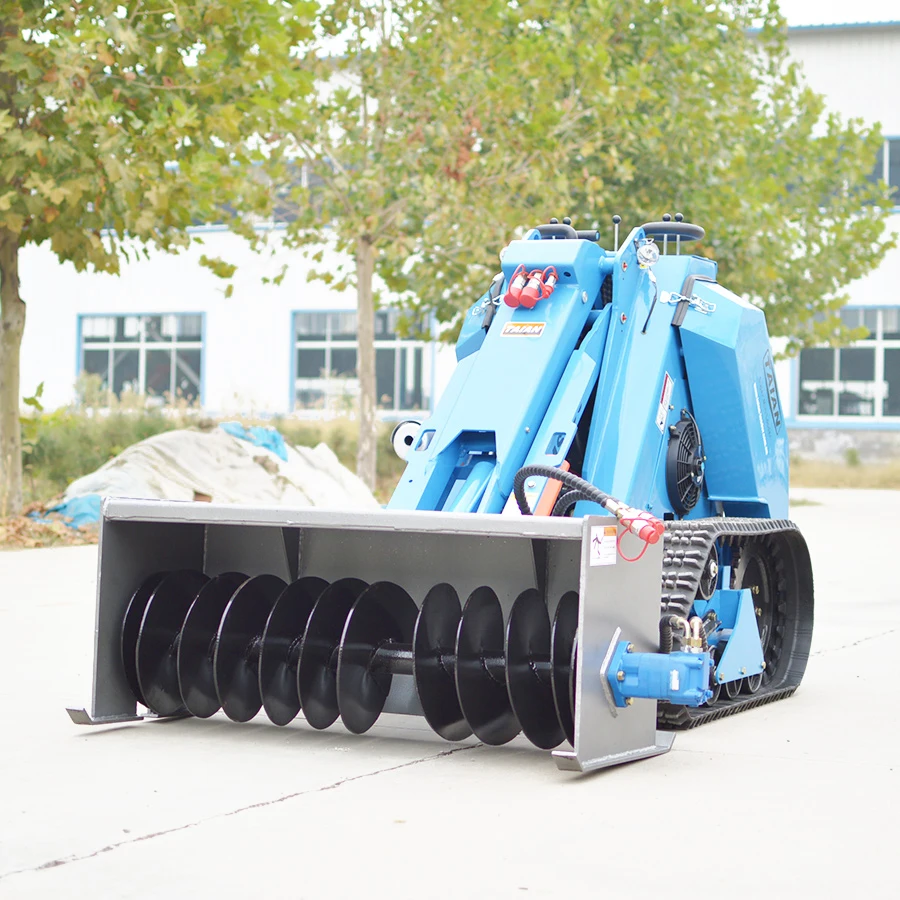

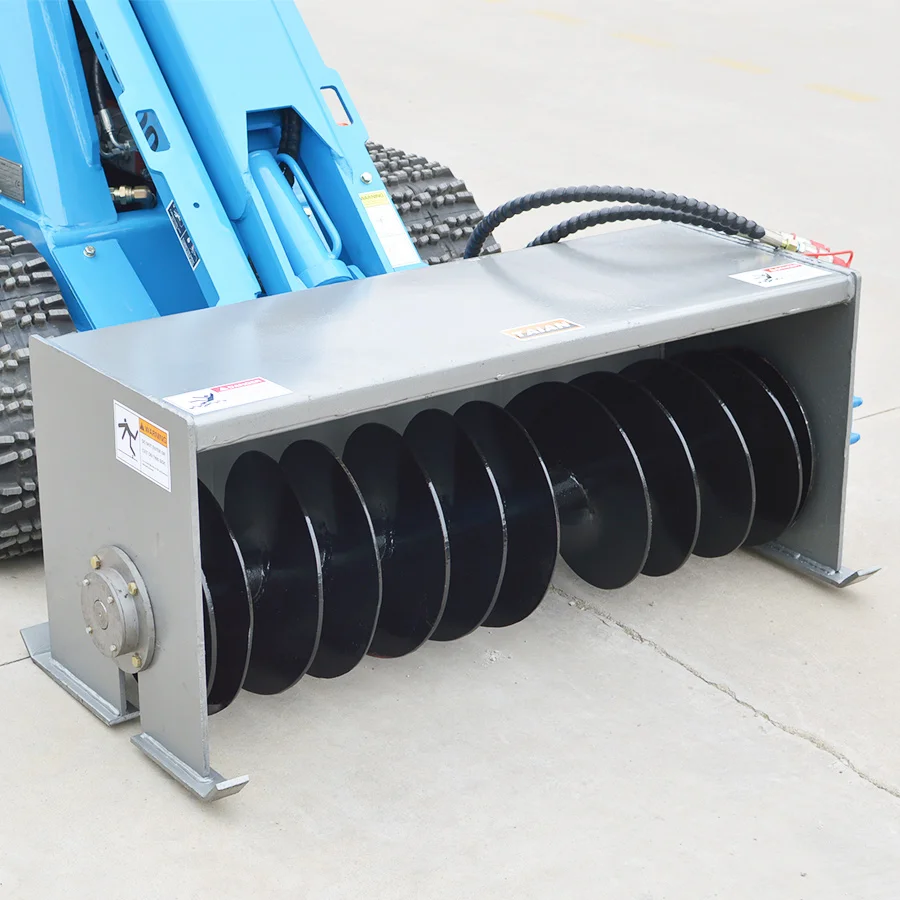

CE Approved Farmland Mini Skid Steer Loader With Trench Backfiller
| MS500 skid steer loader | |

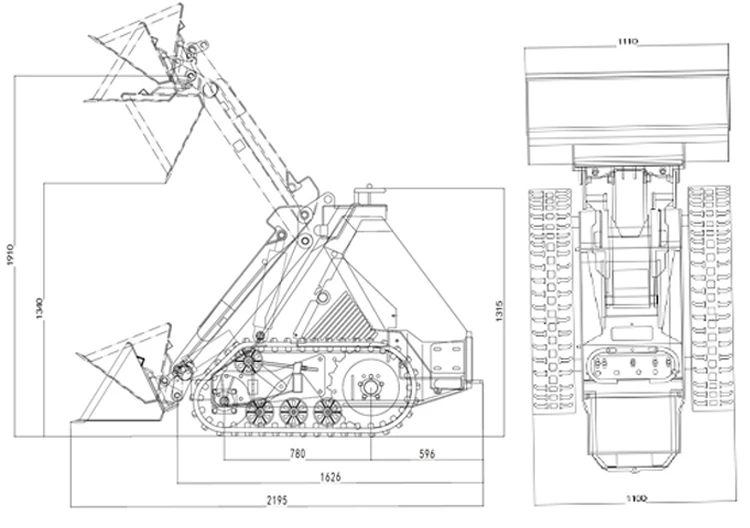

| Dimensions | 1910mm*1150mm*1345mm |
| Speed | 5km/h |
| Rated Loading Capacity | 520Kg |
| Tipping Load | 700Kg |

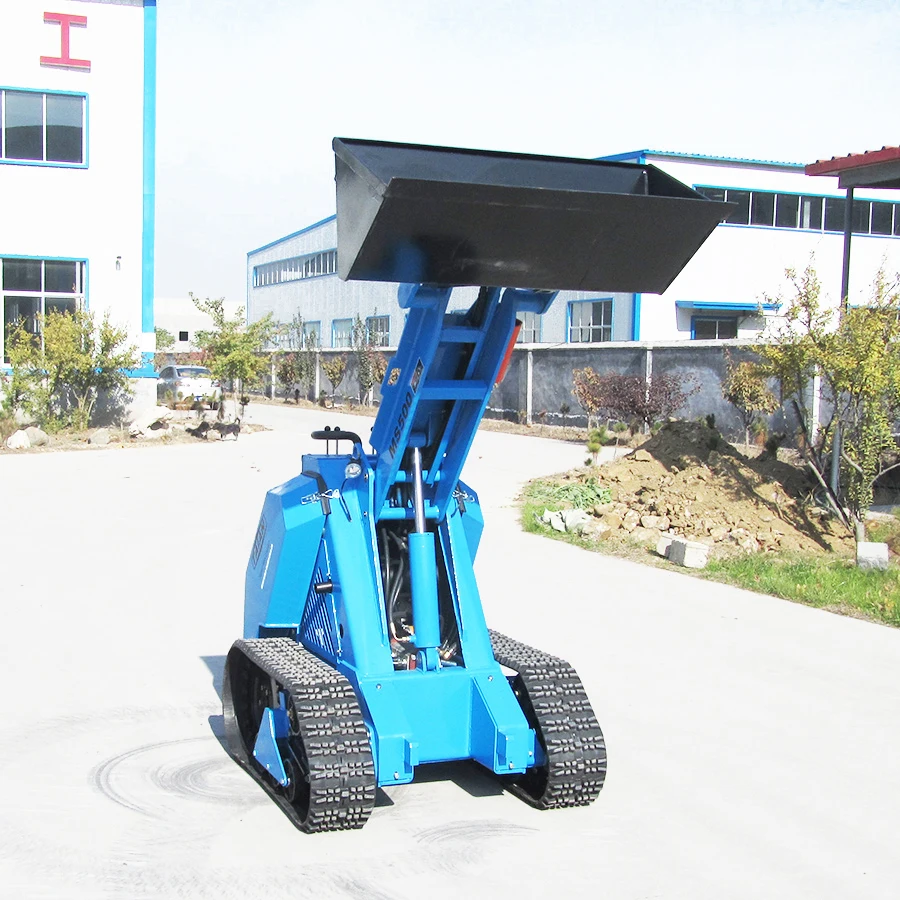

| Max. Reach | 1800mm |
| Tyre Pressure | 790Mpa |
| Pushing Power | 8.2KN |
| Weight | 1050kgs |
| Hydraulic Oil Flow | 30L/min |
| Track Oil Flow | 46L/min |
| Oil Tank Capacity | 38L |
| Oil Mode | L-HL46 |
| Battery Capacity | 45Ah |
| Voltage | 12V |
| Ground Clearance | 150mm |

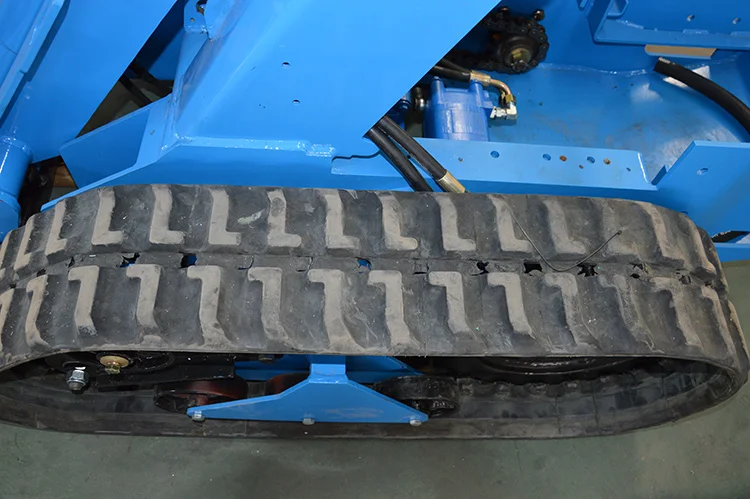

MS500 skid steer loader Moving Type----- Track

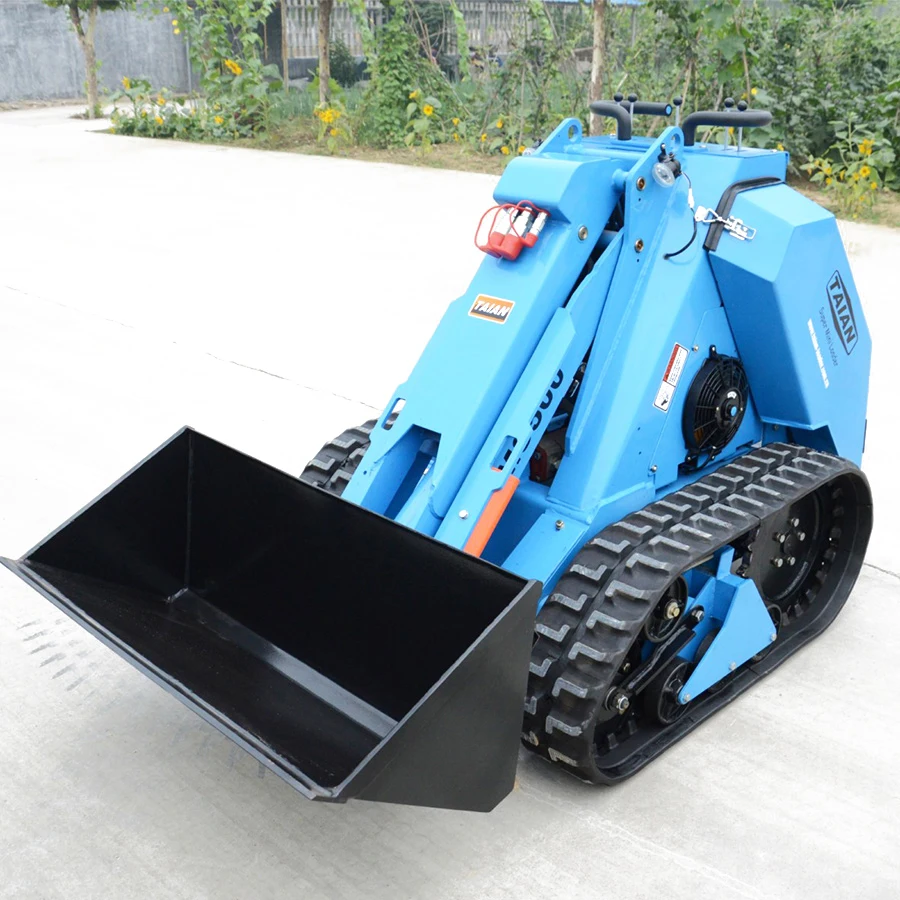

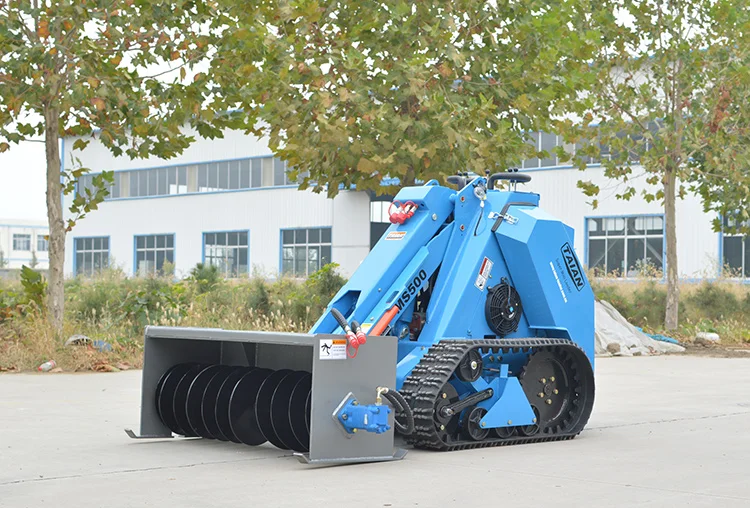

MS500 Mini Skid Steer Loader

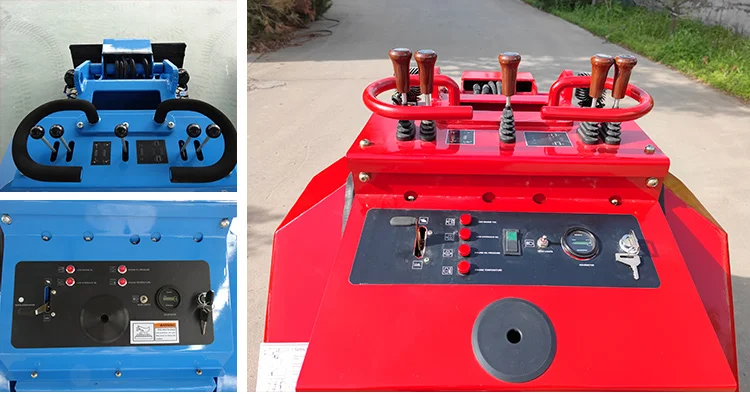

1.Reasonable arrangement of the control levers and the hand hooking bar, makes the operation simple and safe with your hands.
2.All kinds of warning signals well prevent the machine from overuse.
3.Anti-slipping stand on platform helps protect the operator.
4.Knee protection foam prevent the operator’s knee from knocking on the machine body.

MS500 skid steer loader:

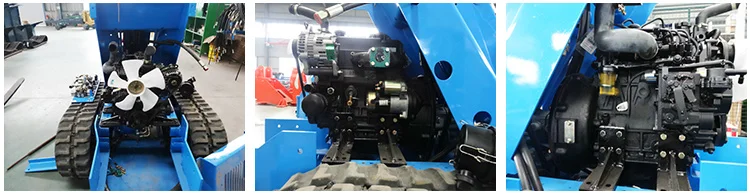

Engine Brand | Changchai 3M78 | |
Emission Standard | Euro Stage V | EPA Tier 4 / Euro Stage 5 |
Cooling system | Water cooling | Water cooling |
Cylinders | 3 Cylinders | 3 Cylinders |
Rated Power | 17.65KW (24HP) | 18.5KW (25HP) |
R.P.M. | 2800r/min | 3000 r/min |

The Benefits of MS500 Mini Skid Steer Loader

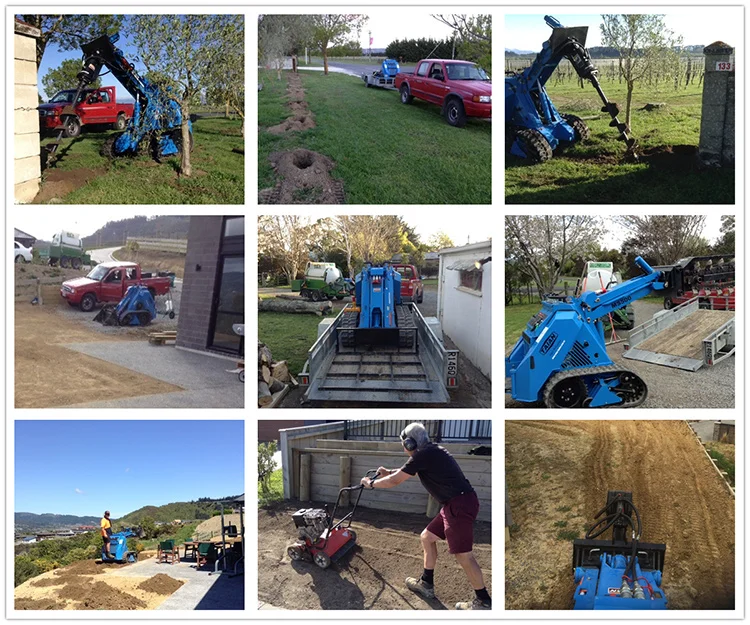

Mini Loader One of the benefits of a mini loader is that they are small compact machines. This is a great benefit because contractors and homeowners are able to move this machinery around their yards which may be small. Some landscaping projects may only be small in squared meters; this is where a mini loader will come in handy because of its size and capabilities. The mini loader still performs all of its required and featured tasks but in spaces where size is an issue.
Another main benefit of a mini loader is that they are easily driven into residential homes. They can be driven through a carport, driveway or small confined space such as; side gates and walkways. There will be no need to hire cranes to lift the mini loader into the residential landscaping site its simple because of their size.

Taian Dongyue Carrying Machinery Co., Ltd.(which was called Tai’an Tengyu Heavy Industrial Co., Ltd. before) has more than 10 years’ experience with production of all kinds of loaders, and is the first one in China who starts to manufacture multifunction telescopic wheel loaders in China, after years’ of improvements and developments, our products are mutual and have been sold worldwide, won very good market response.

Since the year of 2008, we started to focus on telescopic wheel loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.
Our products are exported to many overseas countries and regions, and have won unanimous praise from customers.

1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
6.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
7.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
8.The repairation or replacement for the parts should not exceed the warranty period.
9.The warranty is valid on the condition of all the terms listed in the contract was observed.
