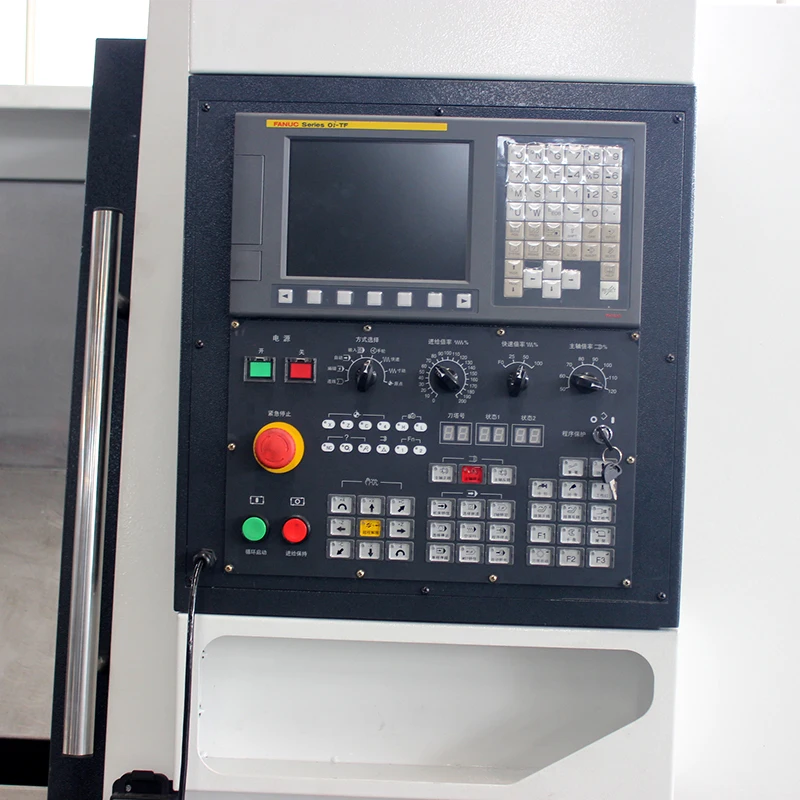

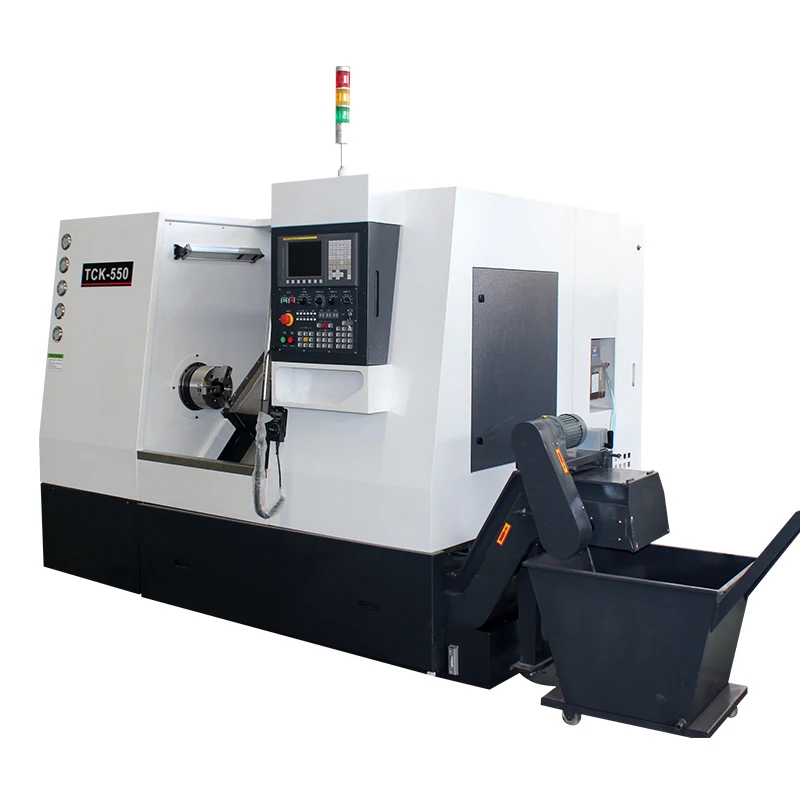

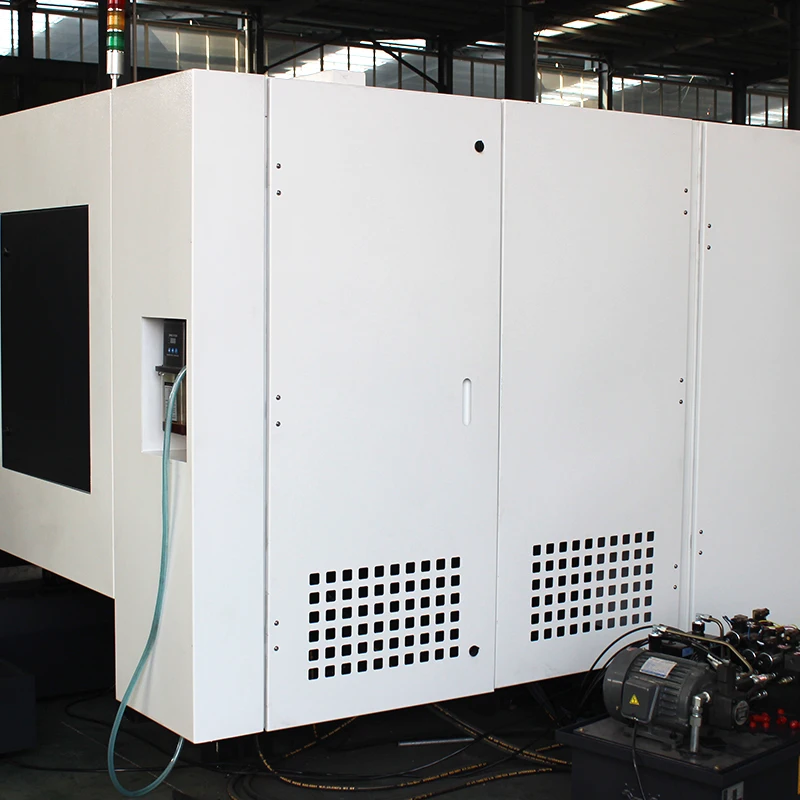

High speed cnc lathe y axis for steel parts TCK550 lathes for metal
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (1600537866725):
Product Overview
Description
Specification
Technical specification | Numbers |
Max.swing over bed | 540mm |
Max.rotary diameter on the skateboard | 270mm |
Max.Cutting over support | 400mm |
Max.Cutting length | 550mm |
X-axis stroke | 220mm |
Z-axis stroke | 620mm |
Spindle bore diameter | 65mm |
Inner diameter of drawing pipe | 52mm |
Spidle end type | A2-6 |
Inner cone at the end of the spindle | 公制80 |
Outside diameter cutter size | 20mm |
Dimensions of inner hole cutter | 25mm |
Tool changing time | 0.45`-1.8 sec |
Tailstock movement mode | Manual |
Tailstock moving distance | 450mm |
Tailstock mandrel movement mode | Hydraulic |
Tailstock mandrel stroke | 100mm |
Tailstock mandrel diameter | 65mm |
Tailstock mandrel taper | MT4 |
Number of cutting tools | 6 8 10(standard) 12 |
Spindle speed range | 100-4000rpm(infinite speed) |
Max.fast moving speed | 18M/min; |
Cutting feed | 0.001-5M/min |
Positioning accuracy | X:0.016;Z:0.02mm |
Repetitive positioning accuracy | X:0.007;Z:0.008 |
Min.setting unit | X:0.001(diameter)Z:0.001 |
Net weight | 3500KG |
Diamension | 2720*1580*1870mm |
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
