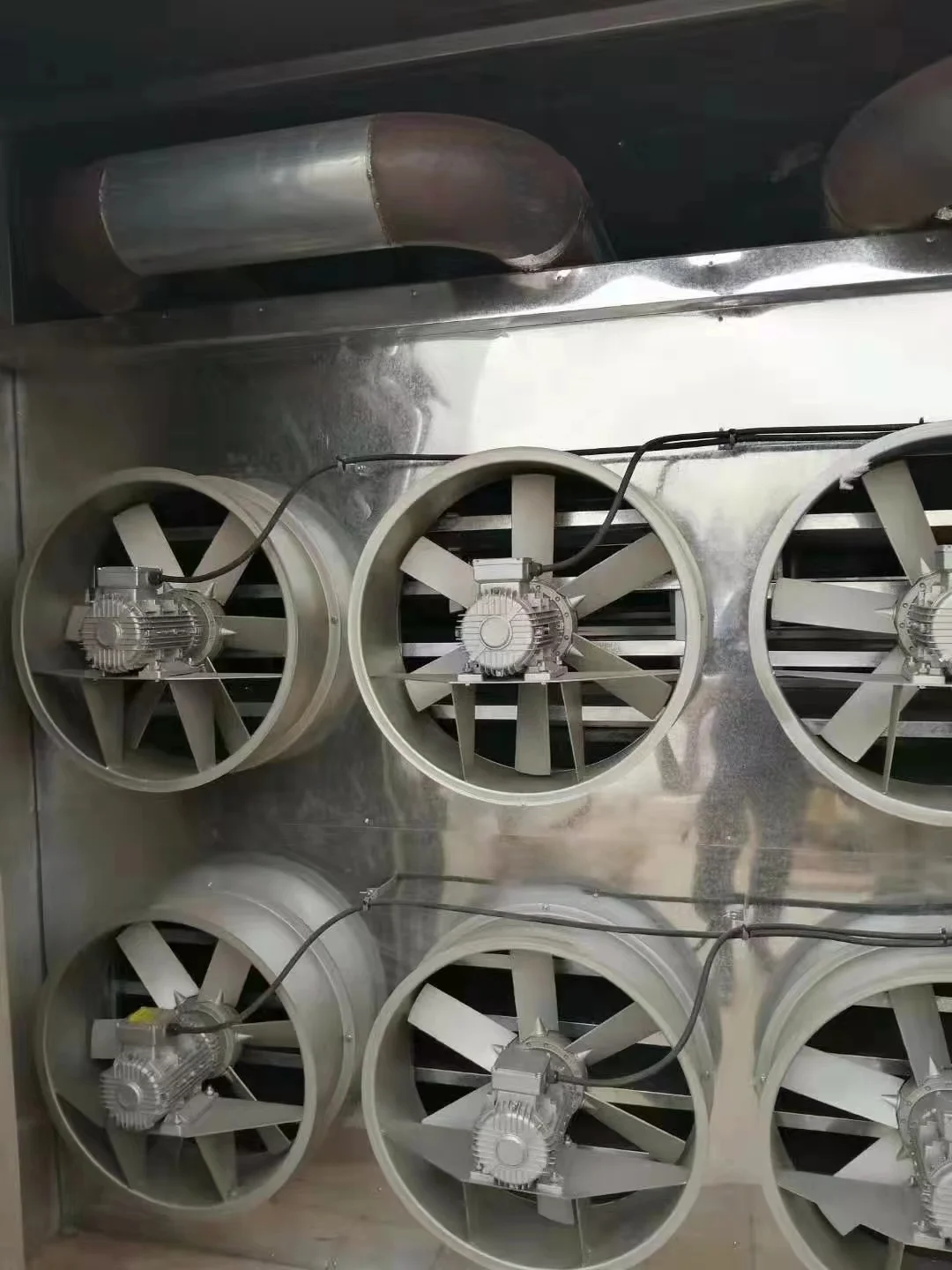

wall mounted 800mm axial fan for drying chamber
- Category: >>>
- Supplier: Fujian Diamond Electrical And Mechanical Equipment Co. Ltd.
Share on (1600537921629):
Product Overview
Description

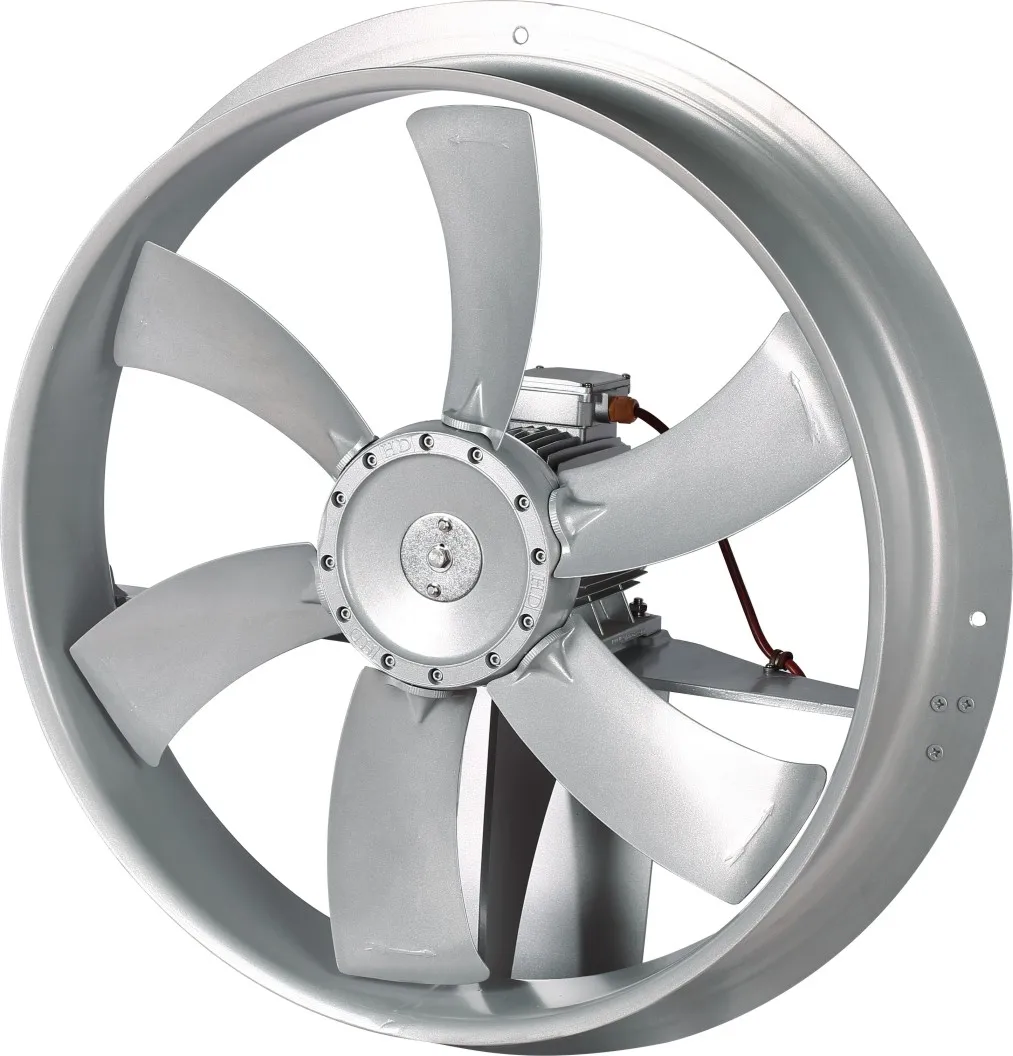

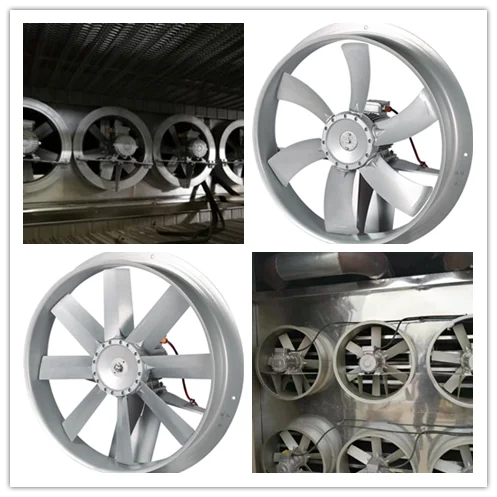

GKW wall type axial fan for wood dryer

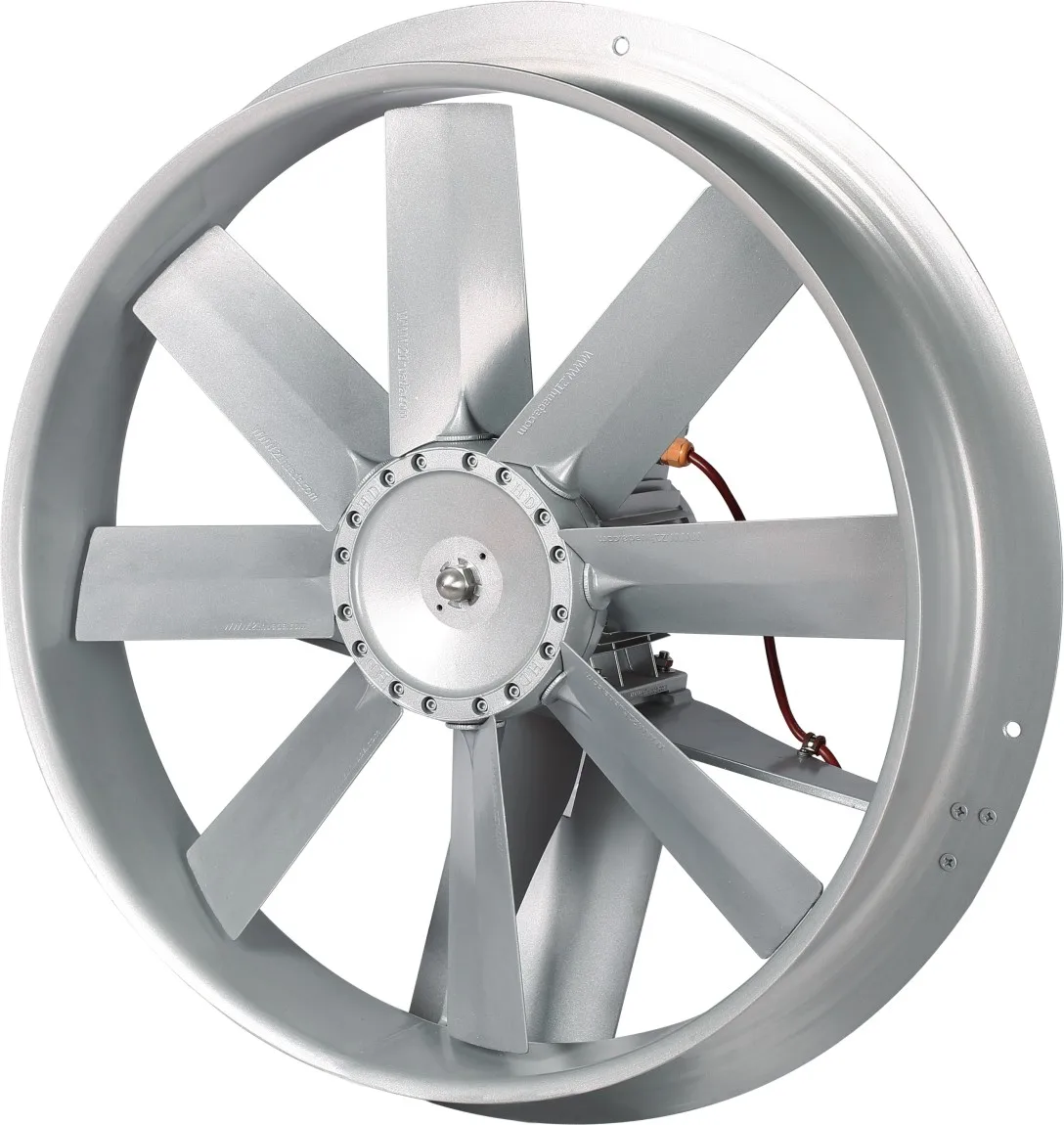

GKW/GWF series drying kiln special high temperature high humidity axial ventilator fan,is special designed for drying kiln,which ventilator equipment.It has remarkable characteristic of resistant to high temperature,resistant to high humidity,large air volume,high efficiency,energy saving,and convenient installation.The axial fan is used in the ventilation system for wood drying kiln and other drying equipment.As the blades diameter is different,there are 7 model,No.4,5,6,7,8,9,10.The angle of fan can be adjusted according to the clients' requirements.
The fans blades can be direct connected with the motor.The circumferential velocity of the impeller does not exceed the condition,there are three different rotational speed:2900 r/min,1450 r/min,960r/min.
Since the frame size and the blades diameter are different,the installation angle of the blades,speed of main shaft is different.Air flow,air pressure and motor output are different.The air pressure from 60Pa to 400Pa,the air flow from 1000 cbm/h to 60000cbm/h.(details as per performance table).

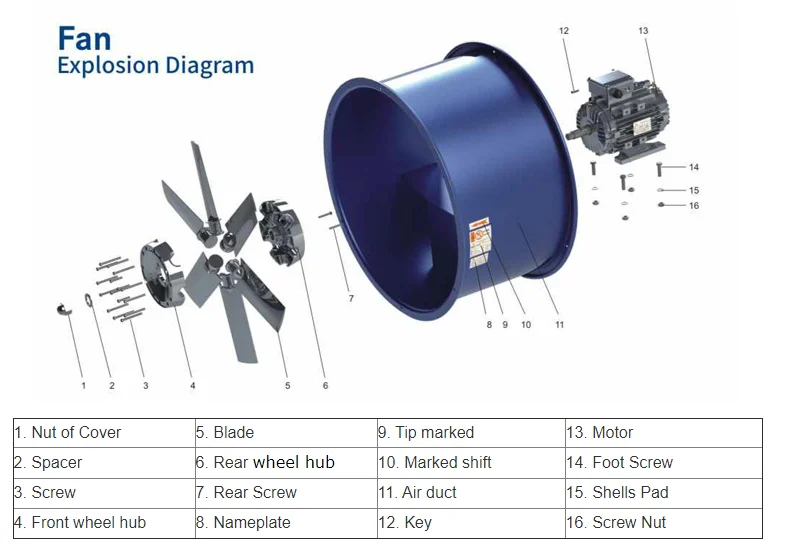

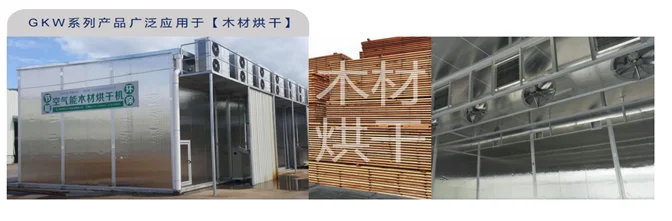

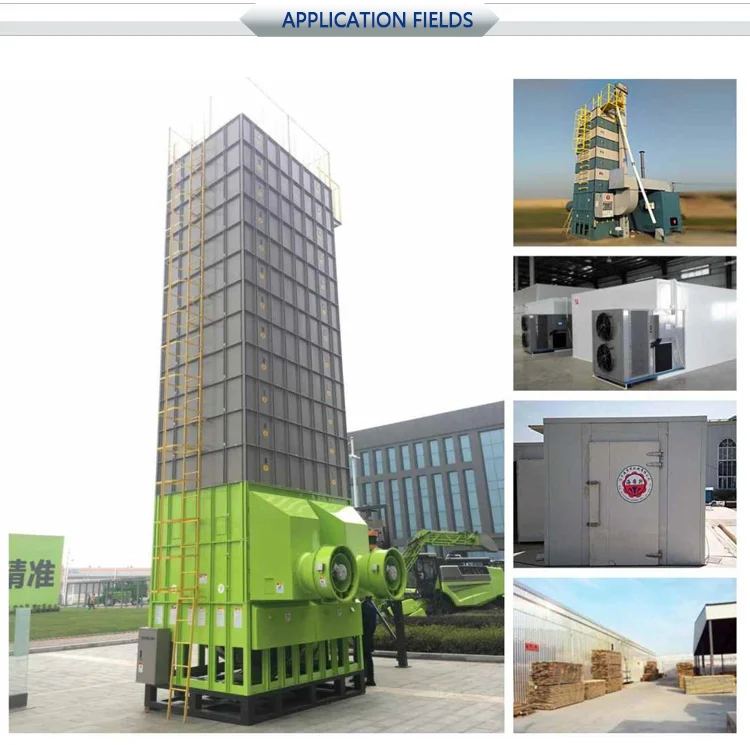

Applied conditions:Max. Ambient Temp:<130℃，Relative humidity:<98%,in the ambient of weak alkali,vapor and no flammable gas,the motor can be also used in the vacuum drying equipment according to the specific conditions.
STANDARD FORM
1)Rated voltage: 220V/380V
2)Rated frequency: 50Hz/60Hz
3)Working Method: Continuous (S1) periodic running in
positive and opposite directions
positive and opposite directions
4)Cooling Method: IC411
5)Protection Class: IP54/IP55
6)Insulation Class: Class H (180 ℃）
Tech data
Item No. | Speed （rpm) | Airflow(m³/h) | Total pressure (Pa) | Static pressure(Pa) | Motor No. | Power(kw) | Noise(dB) | No. of blades |
4 | 2900 | 3000-5000 | 110-200 | 60-180 | 712-2 | 0.55 | ≤74 | 6 |
4000-6500 | 160-250 | 70-200 | 801-2 | 0.75 | ≤74 | 6 | ||
4500-7000 | 200-280 | 80-210 | 802-2 | 1.1 | ≤75 | 6 | ||
1450 | 2000-3500 | 60-70 | 30-55 | 711-4 | 0.25 | ≤66 | 6 | |
2500-4000 | 70-78 | 35-55 | 712-4 | 0.37 | ≤68 | 6 | ||
2800-4300 | 72-80 | 36-58 | 801-4 | 0.55 | ≤70 | 6 | ||
5 | 1450 | 5500-7000 | 130-145 | 70-105 | 801-4 | 0.55 | ≤71 | 6 |
6000-8500 | 138-150 | 80-100 | 802-4 | 0.75 | ≤74 | 6 | ||
6 | 1450 | 7500-11500 | 140-160 | 80-130 | 90S-4 | 1.1 | ≤76 | 6 |
8000-13500 | 160-180 | 80-135 | 90L-4 | 1.5 | ≤78 | 6 | ||
7 | 1450 | 10000-17500 | 180-220 | 140-175 | 90L-4 | 1.5 | ≤79 | 6 |
12000-20000 | 200-250 | 145-180 | 100L1-4 | 2.2 | ≤80 | 6 | ||
8 | 1450 | 15000-25000 | 180-270 | 100-260 | 100L1-4 | 2.2 | ≤81 | 6 |
17000-27000 | 210-300 | 120-260 | 100L2-4 | 3 | ≤82 | 8 | ||
20000-30000 | 240-330 | 125-265 | 112M-4 | 4 | ≤86 | 8 | ||
960 | 13000-20000 | 110-145 | 53-105 | 100L-6 | 1.5 | ≤78 | 8 | |
15000-22000 | 120-155 | 500-100 | 112M-6 | 2.2 | ≤80 | 8 | ||
9 | 1450 | 20000-34000 | 240-340 | 160-320 | 112M-4 | 4 | ≤86 | 8 |
22000-36000 | 250-350 | 150-310 | 132S-4 | 5.5 | ≤87 | 8 | ||
960 | 13000-22000 | 100-140 | 70-120 | 112M-6 | 2.2 | ≤82 | 8 | |
15000-24000 | 12--160 | 70-136 | 132S-6 | 3 | ≤83 | 8 | ||
10 | 1450 | 23000-36000 | 250-400 | 160-370 | 132S-4 | 5.5 | ≤87 | 8 |
28000-40000 | 270-420 | 165-380 | 132M-4 | 7.5 | ≤88 | 8 | ||
960 | 20000-31500 | 150-220 | 90-170 | 132M1-6 | 4 | ≤85 | 8 | |
21000-33000 | 160-230 | 90-176 | 132M2-6 | 5.5 | ≤86 | 8 |

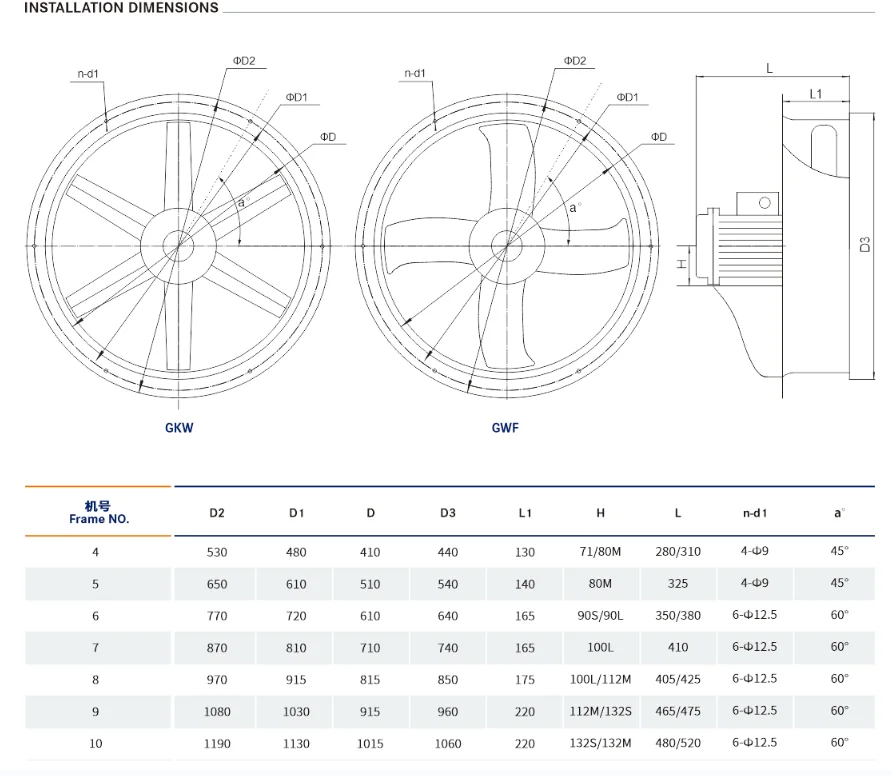

Installation dimension
Advantages

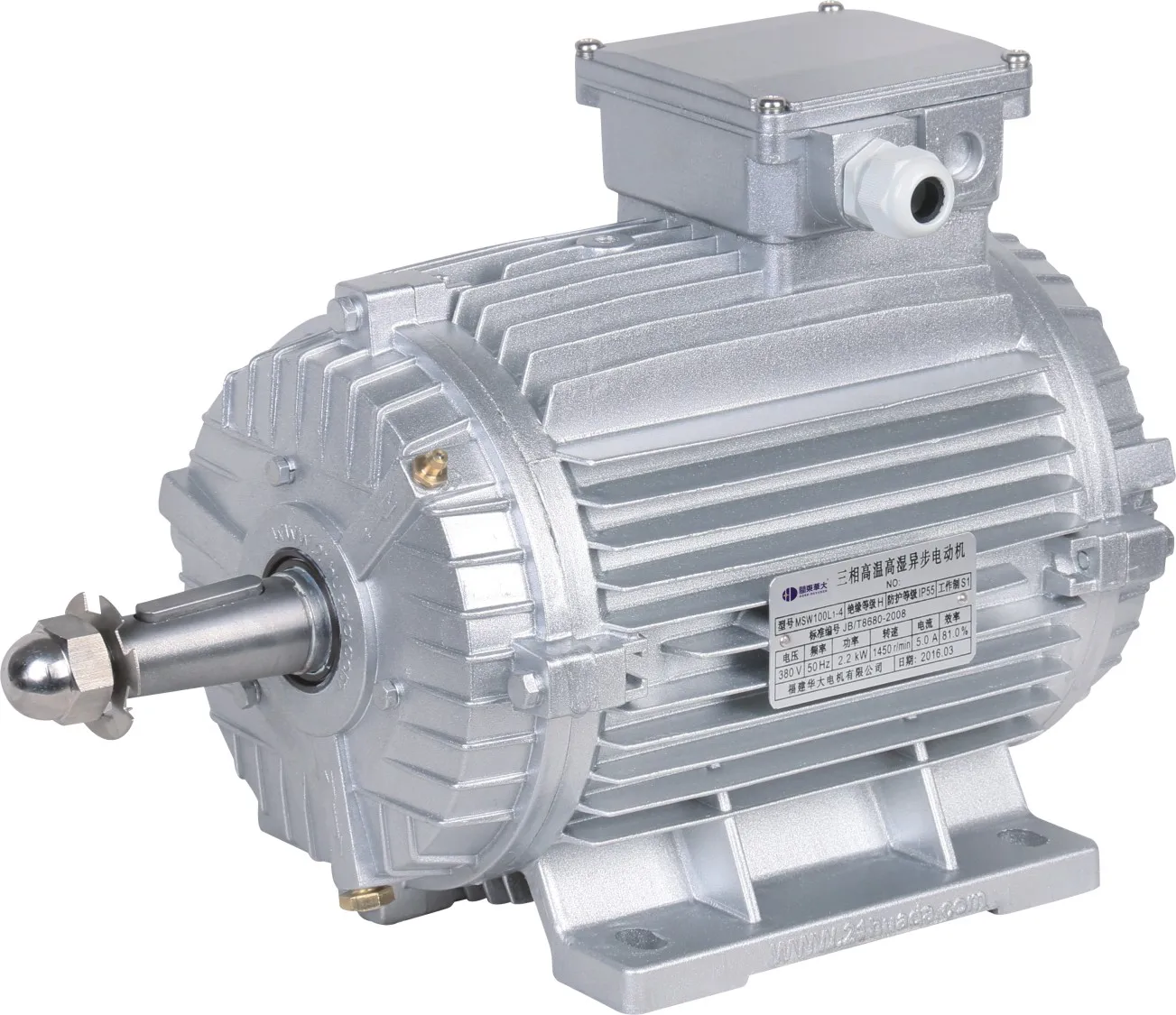

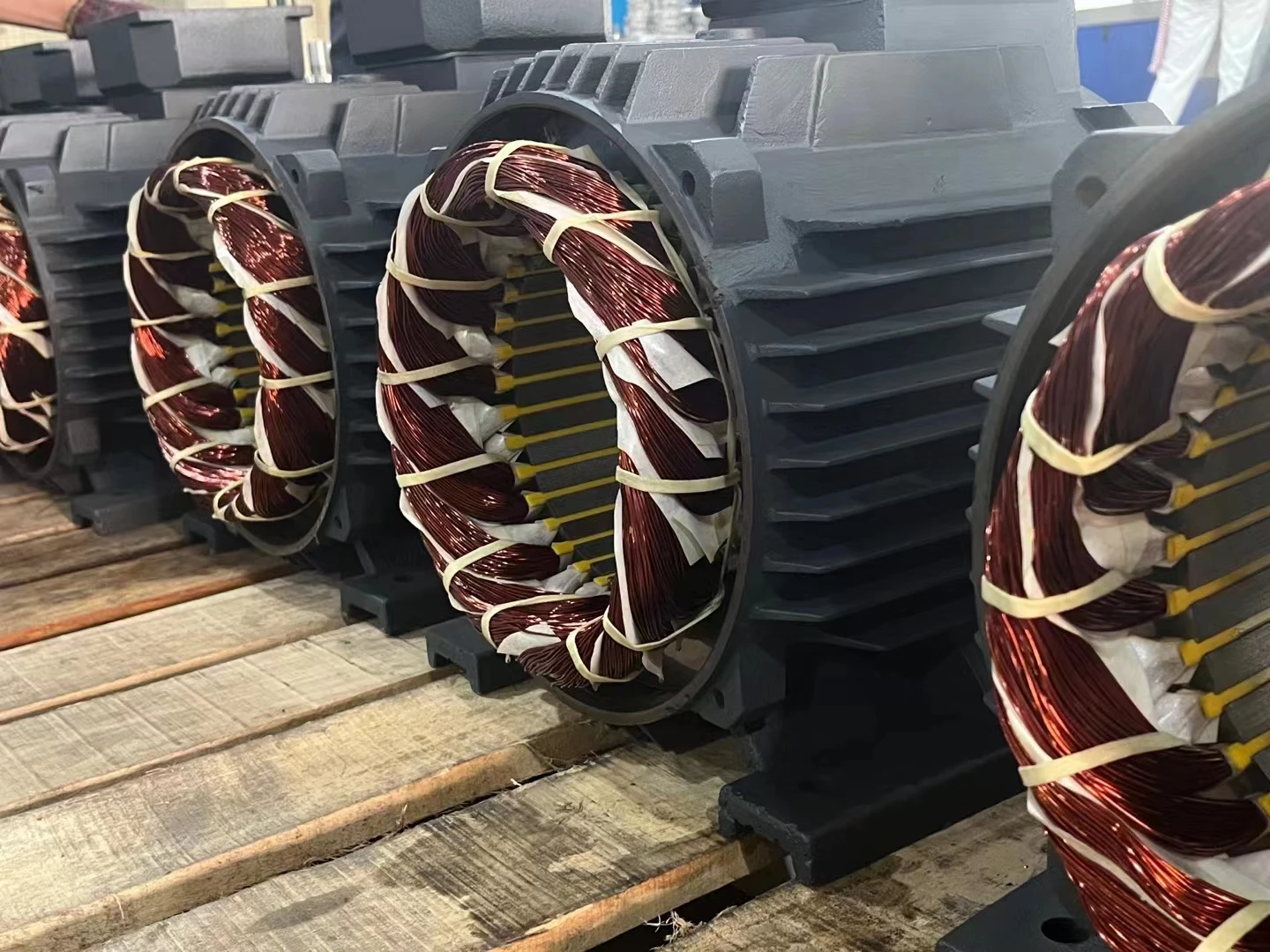

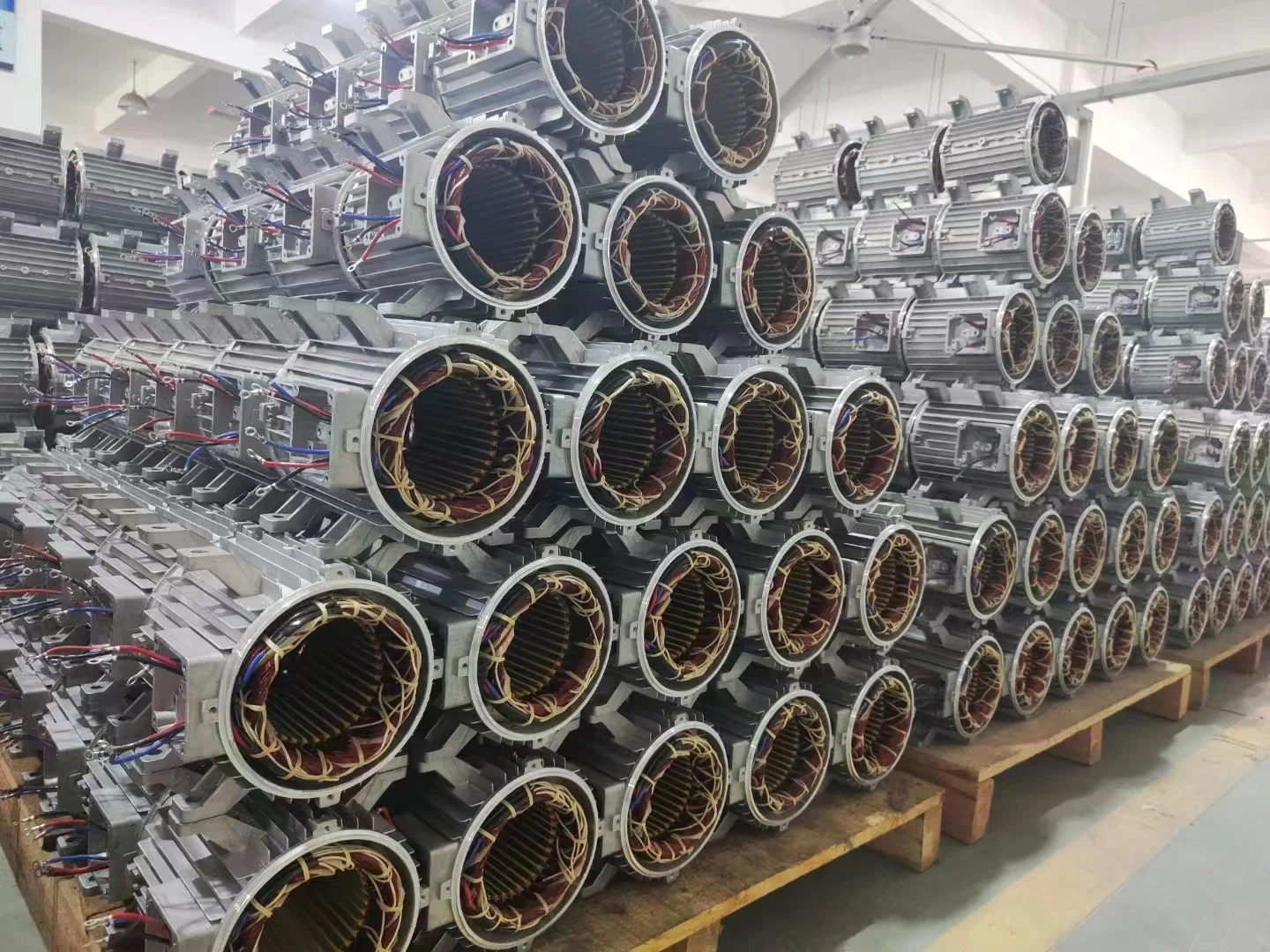

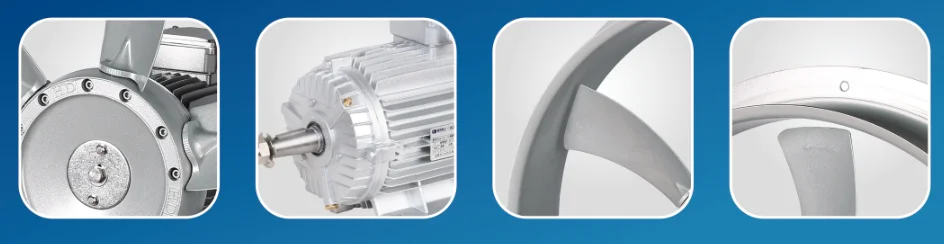

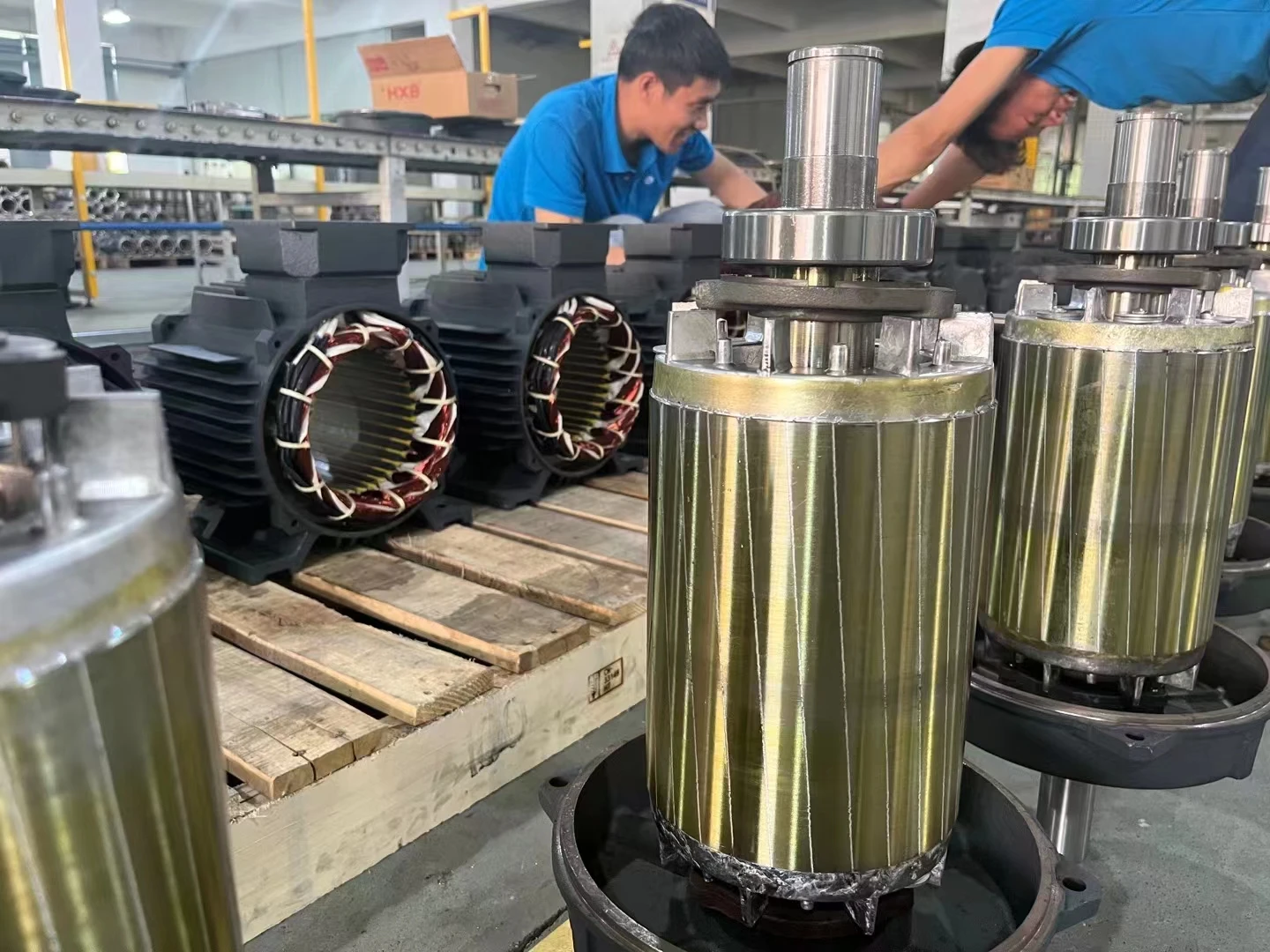

1 100% copper motor , with H class insulation ( with modified polyester imine enamelled wire).
2 According the analysis methods of advanced thermodynamic,it not only reduce the electronic magnetic loads of motor,but also increase the performance efficiency,energy saving.
3 The motor can resistant to ageing and burn out .It can be operated in the hgih temperature and high humidity vapor environment.
4 The motor adopts external structure injected lubricating oil.It is not only increase the service life of bearing,but also avoids the oillingdisassembly.
5 It is designed based on the characteristic of blower-pump load. shell adopt aluminum alloy material,fastening piece adopts stainless steel and copper,attractive appearance.
6 The motor structure adopts the straight shaft extension and subulate shaft-extension,special grease lubricant of resistant to high temperature bearing,low noise and small vibration.
2 According the analysis methods of advanced thermodynamic,it not only reduce the electronic magnetic loads of motor,but also increase the performance efficiency,energy saving.
3 The motor can resistant to ageing and burn out .It can be operated in the hgih temperature and high humidity vapor environment.
4 The motor adopts external structure injected lubricating oil.It is not only increase the service life of bearing,but also avoids the oillingdisassembly.
5 It is designed based on the characteristic of blower-pump load. shell adopt aluminum alloy material,fastening piece adopts stainless steel and copper,attractive appearance.
6 The motor structure adopts the straight shaft extension and subulate shaft-extension,special grease lubricant of resistant to high temperature bearing,low noise and small vibration.
