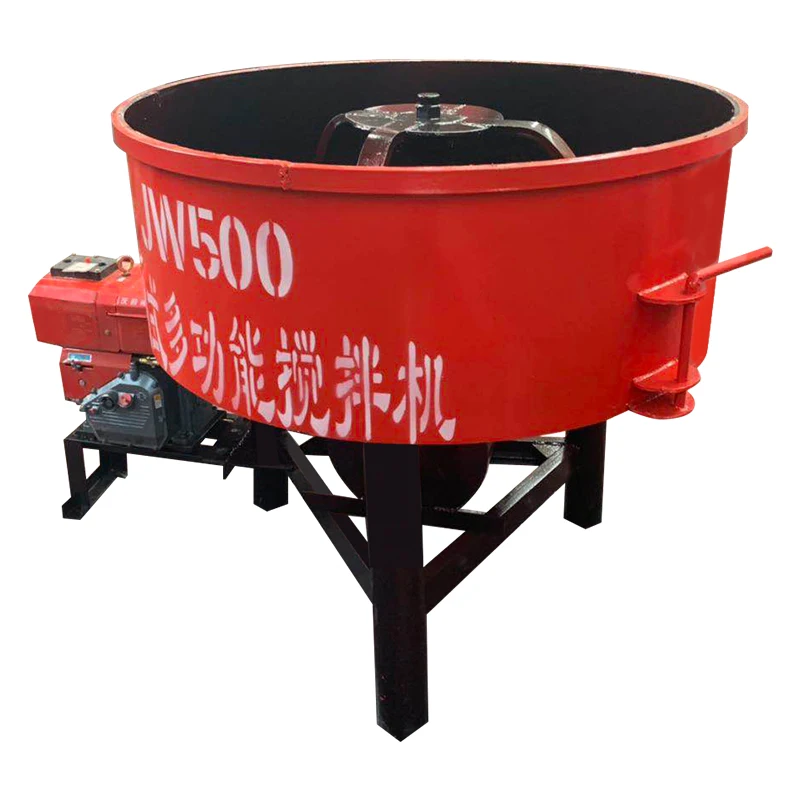

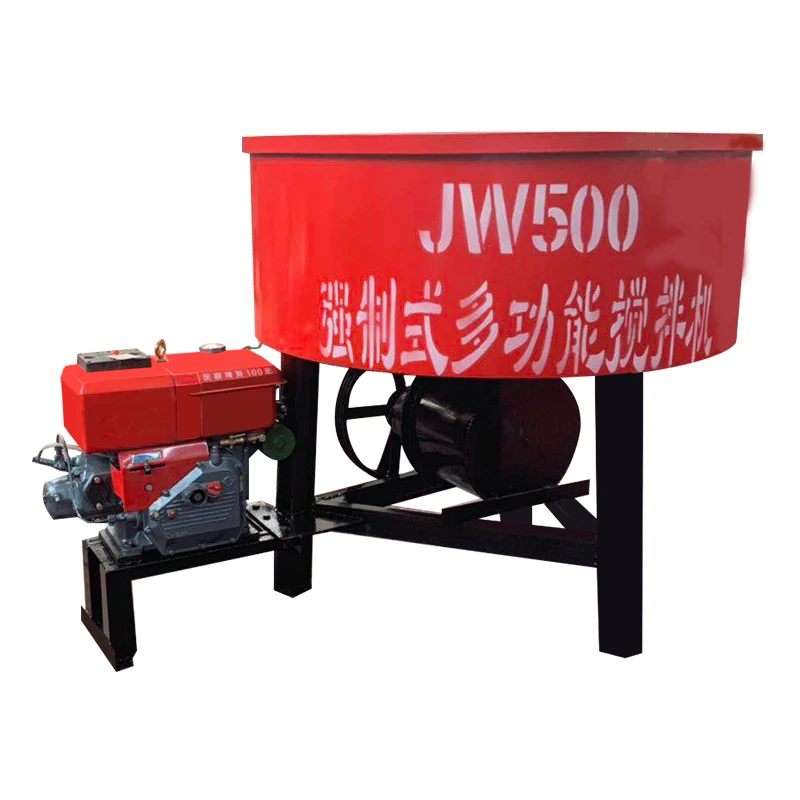

Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling
Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling
Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling
Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling
Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling
Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling
Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling

Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling

Share on (1600537936156):


Price:$560.00 - $569.00

Quantity:


Product Overview

Description



Product Description

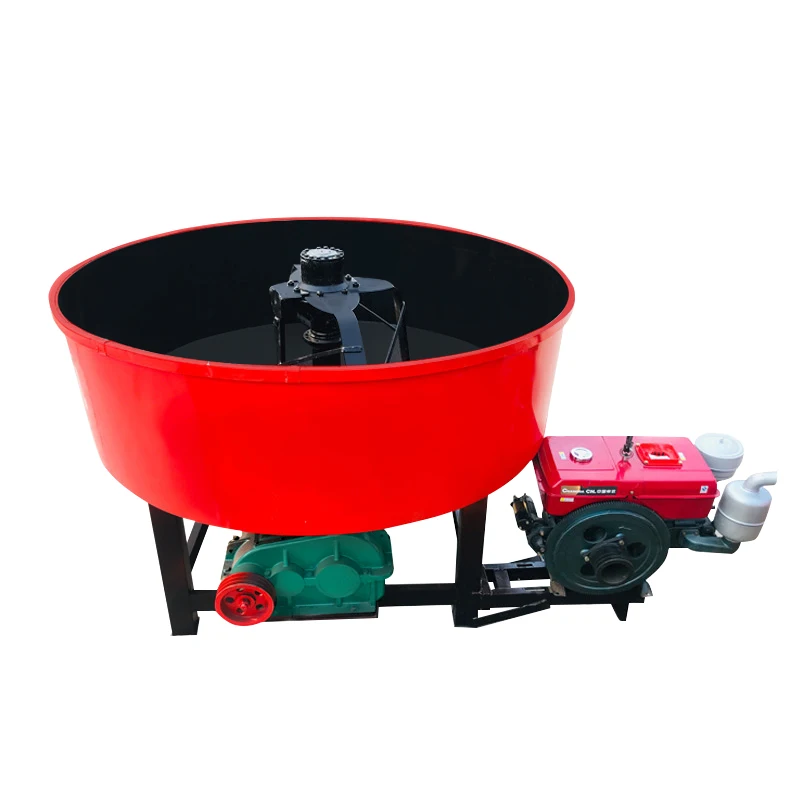

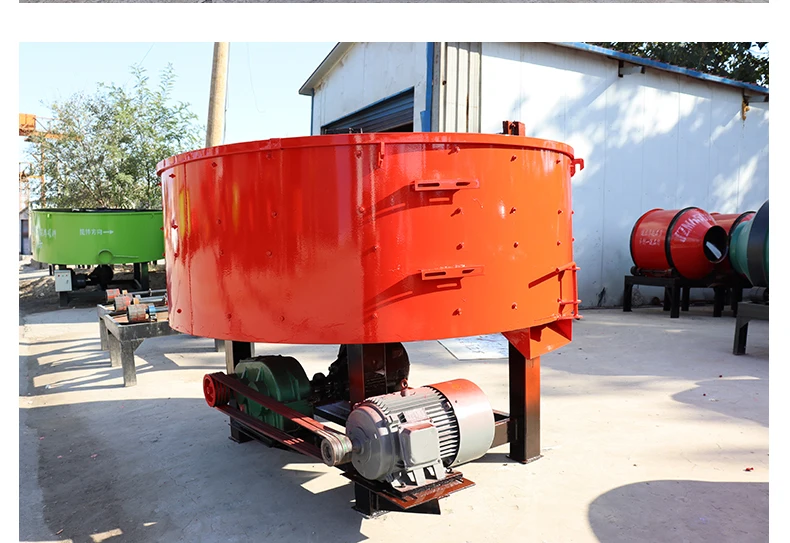

Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling

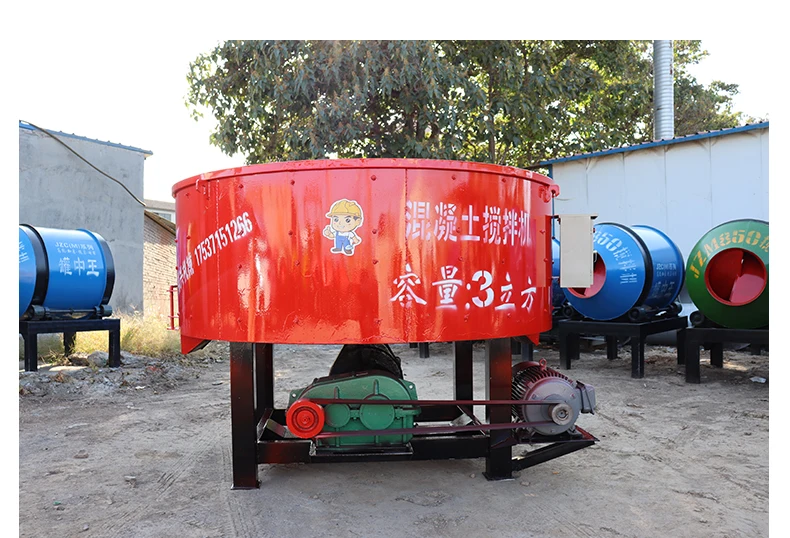

Concrete pan mixer is a new type of concrete mixer, suitable for general highways, power stations, dam construction, construction sites, roads, bridges, hydropower, and large and medium-sized prefabricated plants and other projects. It has stable operation, low energy consumption, compact structure and reliable transmission. , Important light, high production efficiency advantages, can mix plastic, dry-hard, fluid concrete and lightweight aggregates and mortar.Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling






Specification




Good Performance Pan Type Concrete Mixer Machine Small Refractory JW500 Pan Mixing Concrete Mixer Machine For Selling

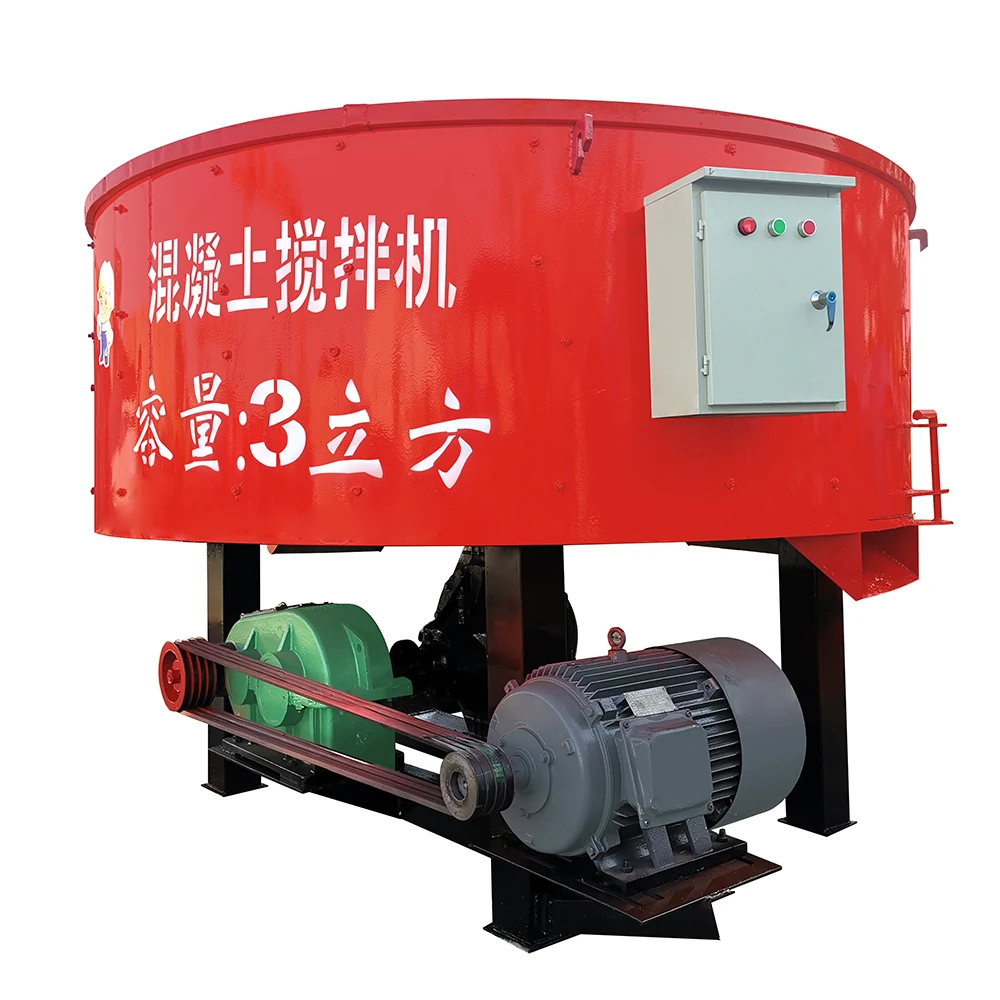

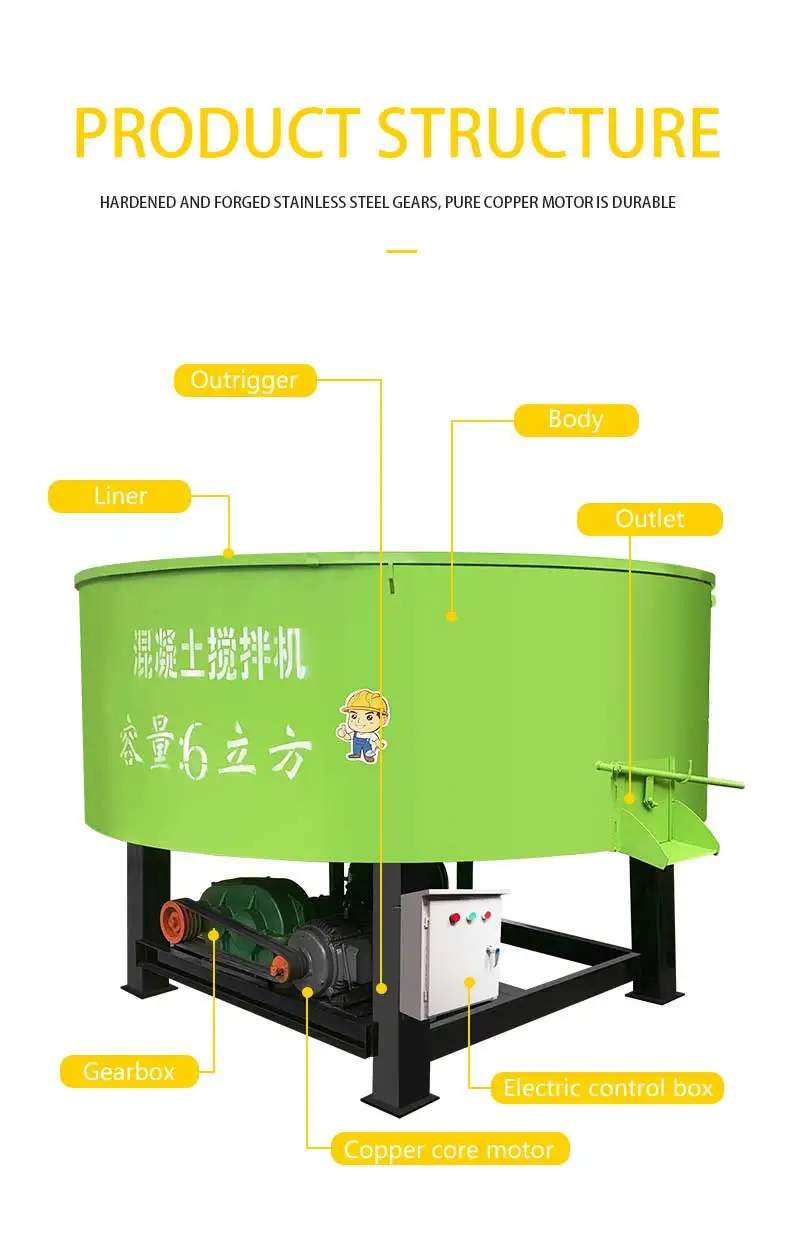

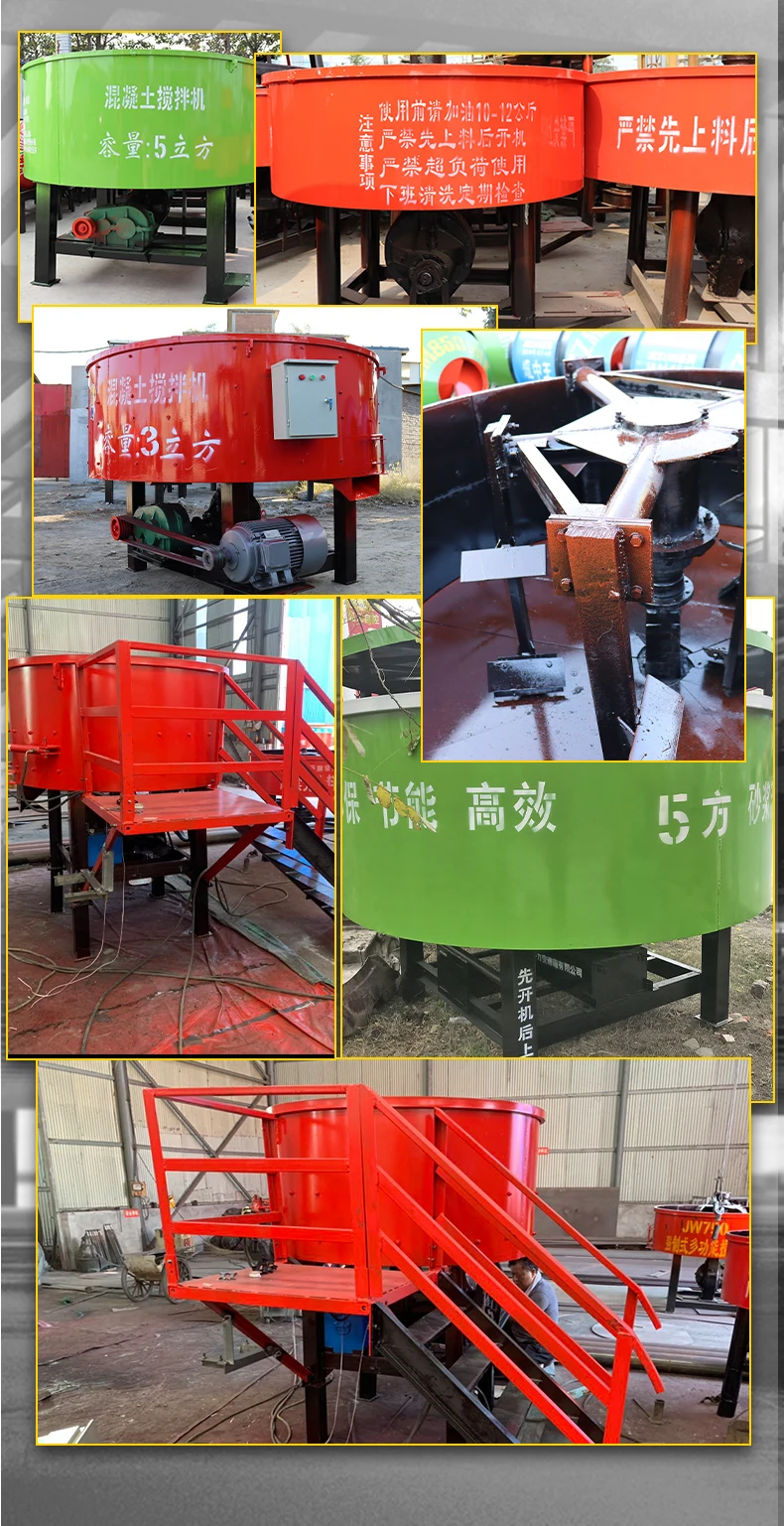

The mixing drum of the concrete pan mixer is driven by a ring gear. It rotates forward for mixing and reverse discharges during operation. It can mix plastic and semi-dry hard concrete. Combined with a batching machine, it can form a small and medium-sized mixing station. Time-saving and beautiful in appearance; high production efficiency.Concrete Pan Mixing

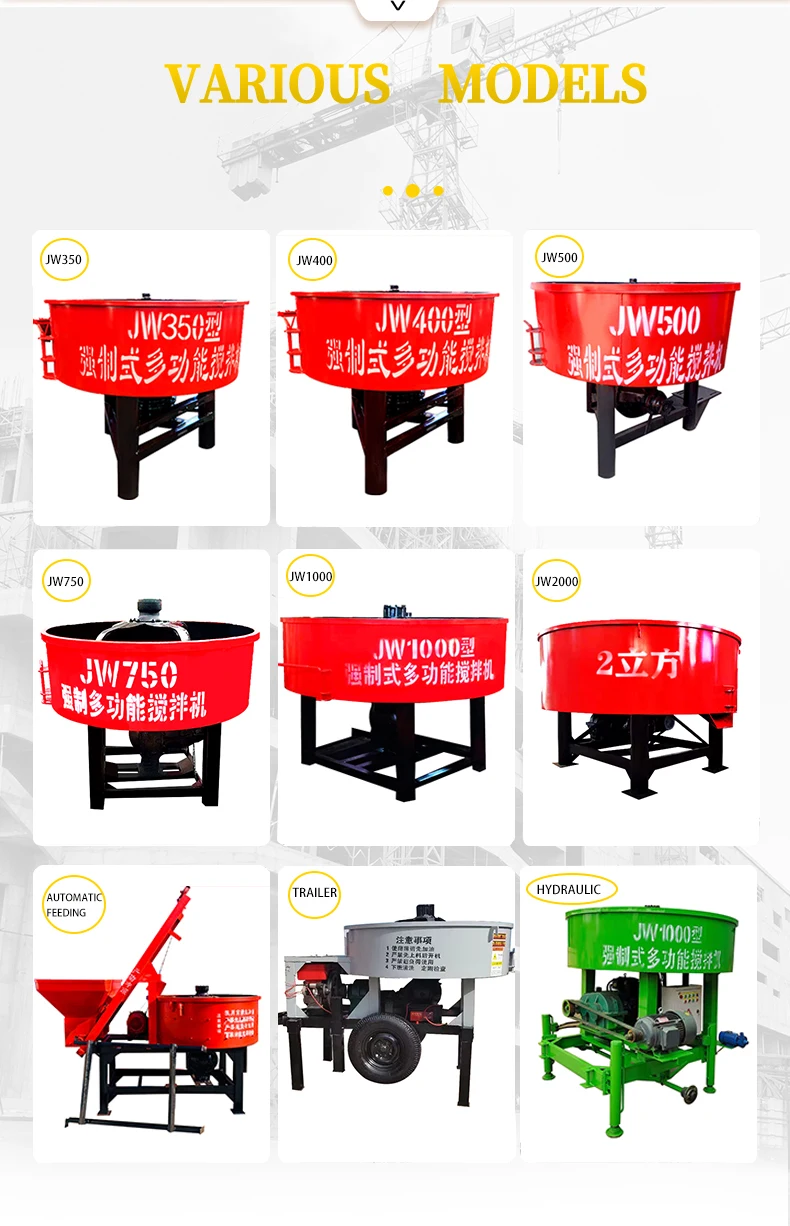

Model
JW300
JW400
JW500
JW1000
Volume
260L
380L
530L
1000L
Feeding Volume
240L
350L
460L
900L
Discharging Volume(L)
230L
340L
440L
890L
Maximum Aggregate Diameter(mm)
40
40
40
50
Dynamic Source

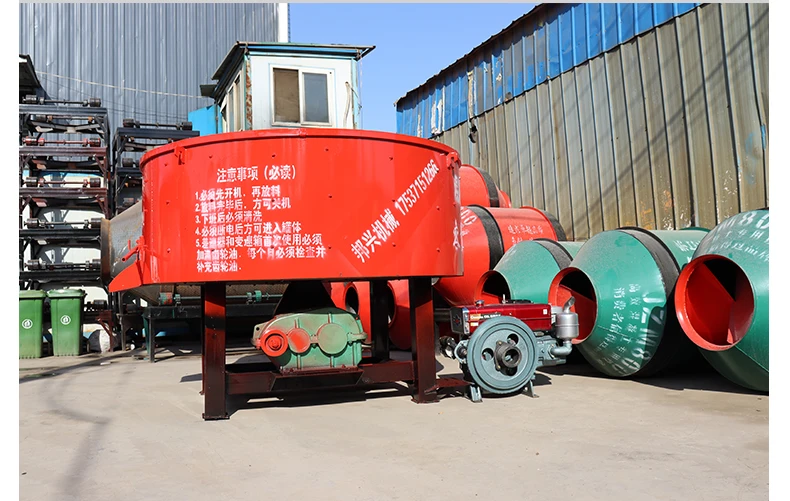

Electric /Diesel
Main Shaft Revolution (rpm)
21/35
21/35
35/45
35/45
Matched Power (KW)
4KW/5.5HP
5.5KW/7HP
7.5KW/11HP
15KW/22HP
Stirring Drum (M) (Diameter*H)
Φ0.9*0.4
Φ1.1*0.4
Φ1.3*0.4
Φ1.8*0.4
Assembly Weight (kg)
250
350
450
650
Wall thickness
4/6/8mm
4/6/8mm
4/6/8mm
6/8mm
Bottom thickness
6/8mm
6/8mm
8/10mm
10/12mm
Productivity
6-8m³/h
10/14m³/h
18/25m³/h
38/45m³/h










Packing & Delivery

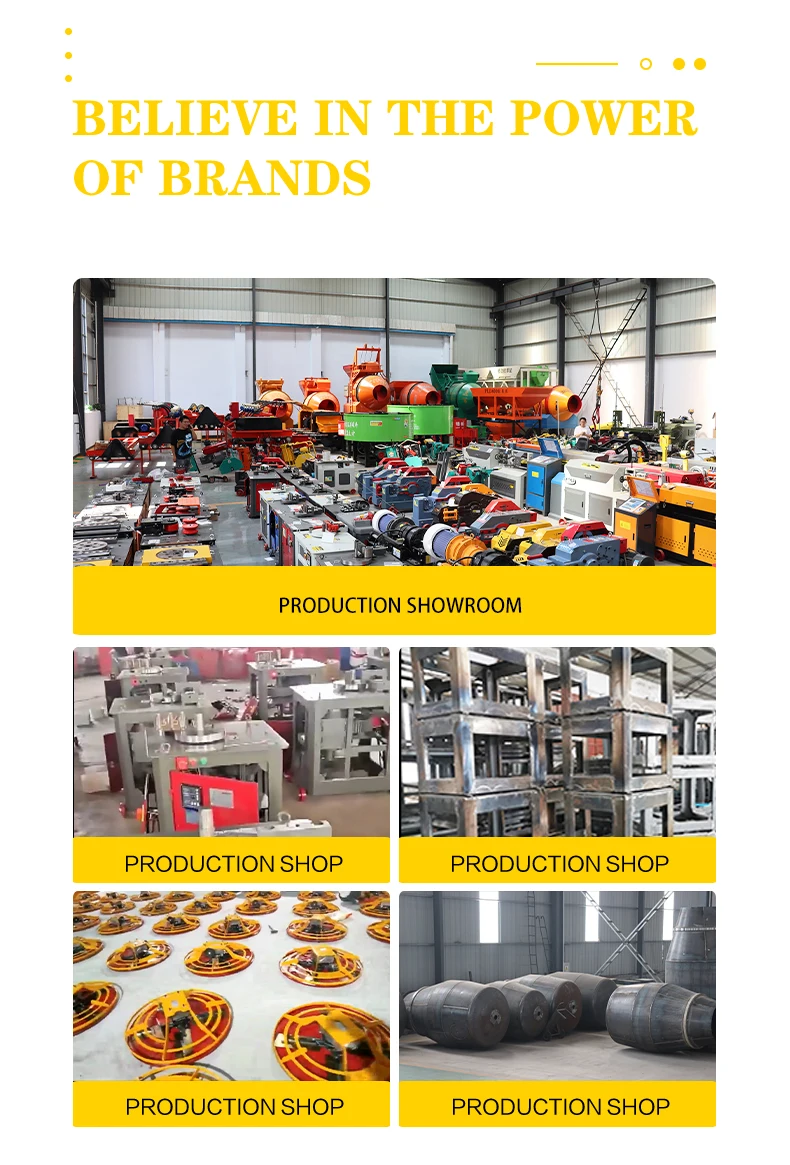

Company Profile














Client feedback




Our Services




FAQ


1. who are we?
We are based in Henan, China, start from 2005,sell to Domestic Market(40.00%),North America(15.00%),Southeast Asia(10.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Europe(3.00%),Mid East(2.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Concrete Mixer,Concrete Pump,Concrete Road Paver,Steel Bar Straightening and Cutting Machine,Steel Bar Bending Machine

4. why should you buy from us not from other suppliers?
Zhengzhou Yuandong Machinery Manufacturing Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
