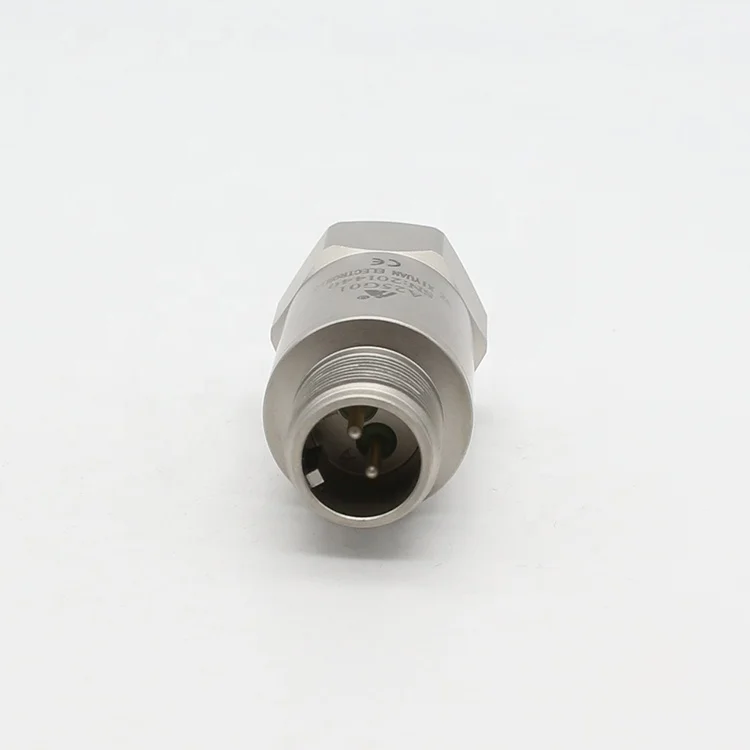

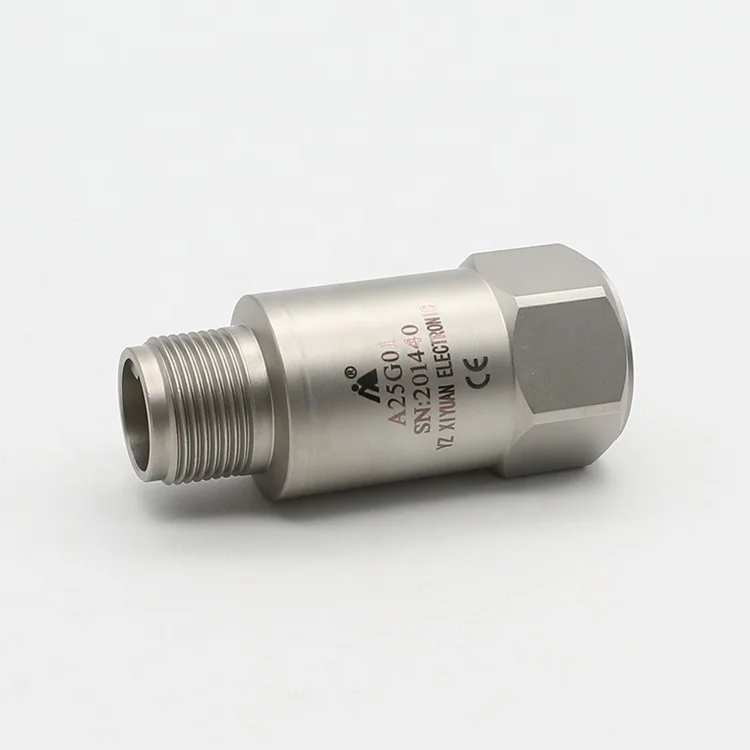

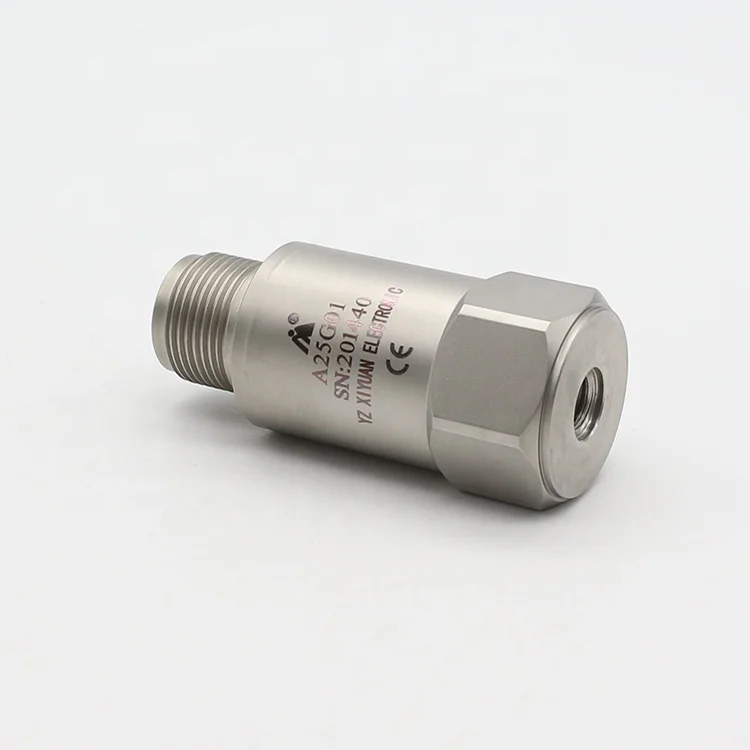

A25G01 IEPE Vibration Sensor High Sensitivity Piezoelectric Accelerometer with Built in IEPE Preamplifier
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600537948838):
Product Overview
Description
Product Description
Dynamic Properties | ||
Rang（peak） | ±5g | |
Sensitivity(25℃) | 1V/g (160Hz) | |
Frequency Response（±1dB) | 0.2-5,000Hz | |
Transverse Sensitivity Ratio | ≤5% | |
Electrical Properties | ||
Driving Voltage | 18VDC-28VDC (current source) | |
Constant current source excitation（mA） | 2-10mA | |
Output Impedance | ＜100 Ω | |
Full range output（peek） | ±5V | |
Bias voltage | +10-+14V | |
Environment Properties | ||
Operation Temp | -40℃～+120℃ | |
Shock Resistance(peak) | ±800g | |
Temperature Response | Attached Temperature Curve | |
Physics Properties | ||
Structural Style | Cutting | |
Shell Material | 304 Stainless Steel | |
Output Mode | 5/8-24 2 core socket | |
Installation | 1/4-28 | |
Piezoelectric Materials | PZT-5 | |
Weight | ～150g | |
Accessory | ||
Erection Bolt | 1/4-28 turn M6 | |
Cable | MIL Two-core connection cable x3m | |
Product Display
Size
Cable
Temperature Curve
Frequency Response Curve
PRODUCT DISPLAY
Q1:How about the MOQ?
A1:1PC for our own available designs
Q2:Can we customize the sensor?
A2:Yes,sure.Just offer the details you need, we will customize according to your requirements.
Q3:Can we get a sample?
A3:Sure,you have to pay the sample fee. You can get a refund after placing an order
Q4:How about the delivery date?
A4:Stock item,1-2 working days will arrange shipment.
A1:1PC for our own available designs
Q2:Can we customize the sensor?
A2:Yes,sure.Just offer the details you need, we will customize according to your requirements.
Q3:Can we get a sample?
A3:Sure,you have to pay the sample fee. You can get a refund after placing an order
Q4:How about the delivery date?
A4:Stock item,1-2 working days will arrange shipment.
Customize item,we need 15-20 working days. If bigger order,please check
us,thanks.
Q5:How about the label and the logo?
A5:Customize label and logo is workable
Q6:What kind of express do you send goods?
A5:We normally send goods by DHL,FEDEX,UPS or through our agent.It will be take 3-7 working days
us,thanks.
Q5:How about the label and the logo?
A5:Customize label and logo is workable
Q6:What kind of express do you send goods?
A5:We normally send goods by DHL,FEDEX,UPS or through our agent.It will be take 3-7 working days
