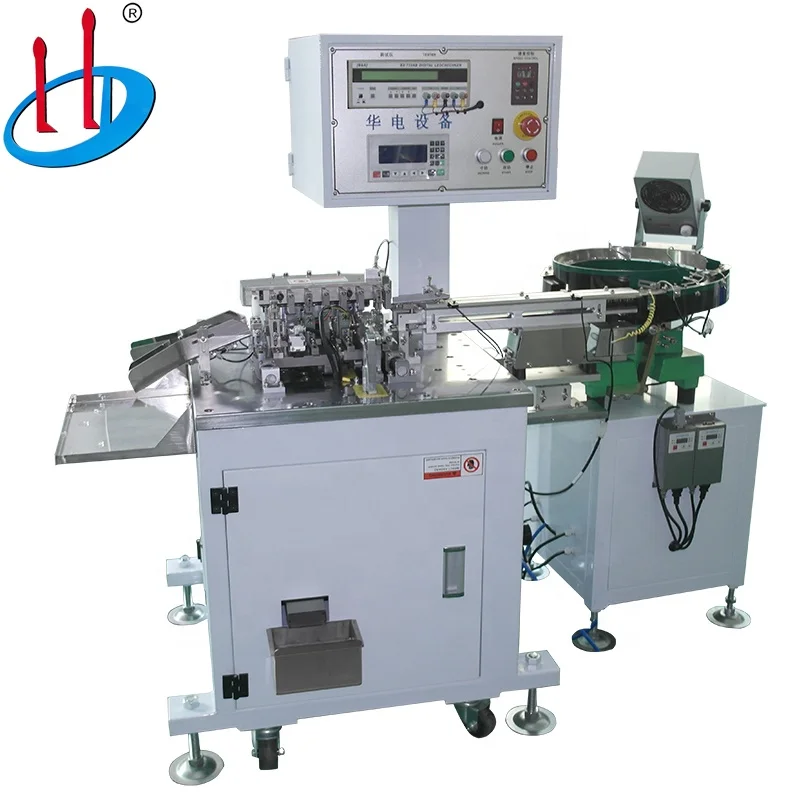

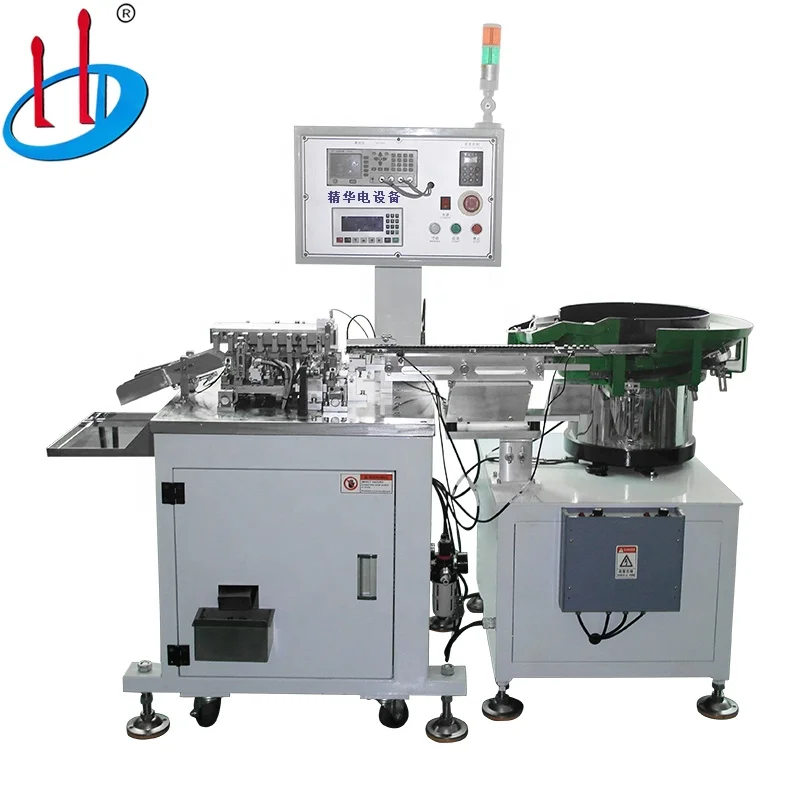

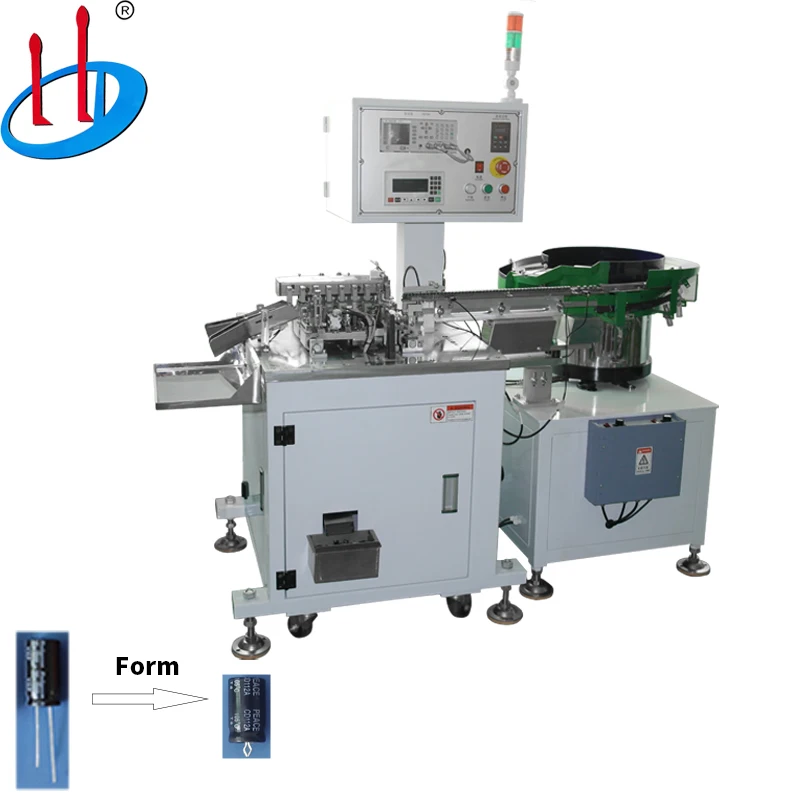

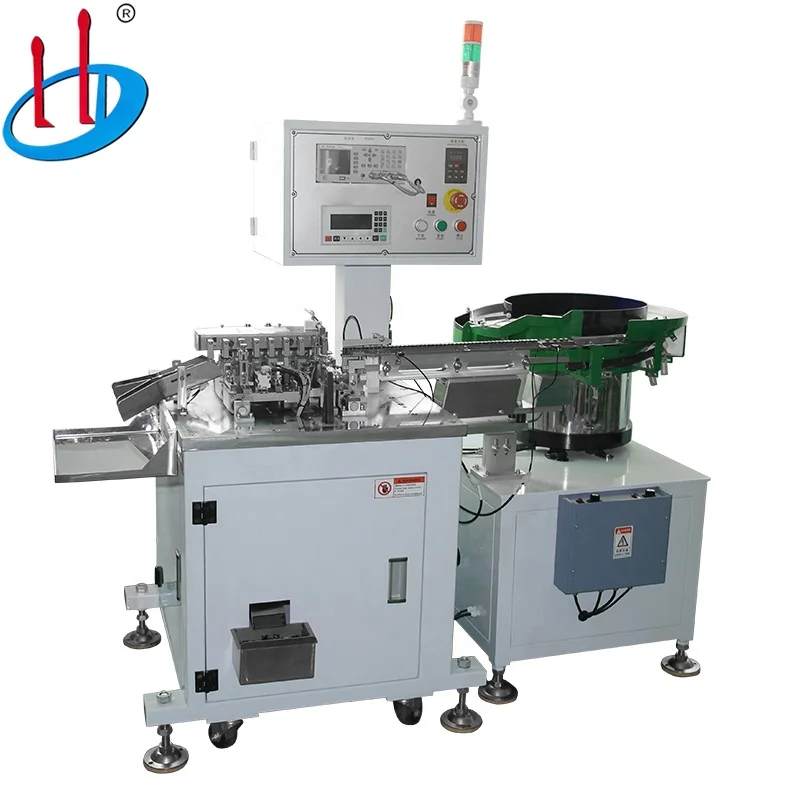

Automatic Radial Lead Forming Bending 90 Degree Machine for Bulk Component
- Category: >>>
- Supplier: Zhongshan Jinghuadian Automation Equipment Co. Ltd.
Share on (1600537954090):
Product Overview
Description
Product introduction:
1) It is for bulk radial electronic components to cut feet and shape new forms.

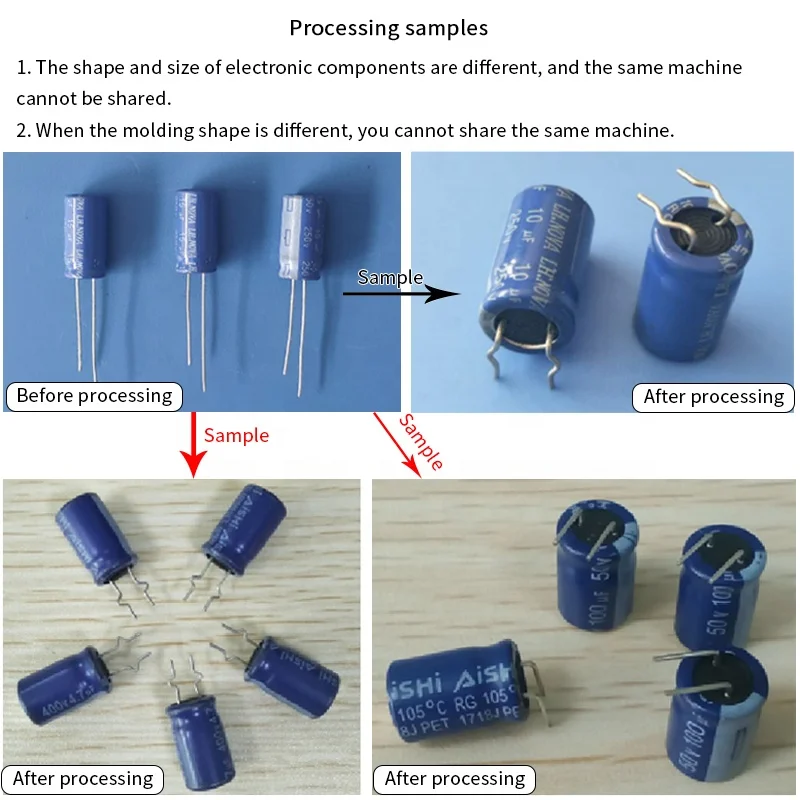

2) Applicable for: LED, electrolytic capacitor, capacitor, crystal oscillator, triode and other radial electronic components to cut feet and shape new forms. (When shapes and sizes of electronic components are different, it can’t share one machine.)

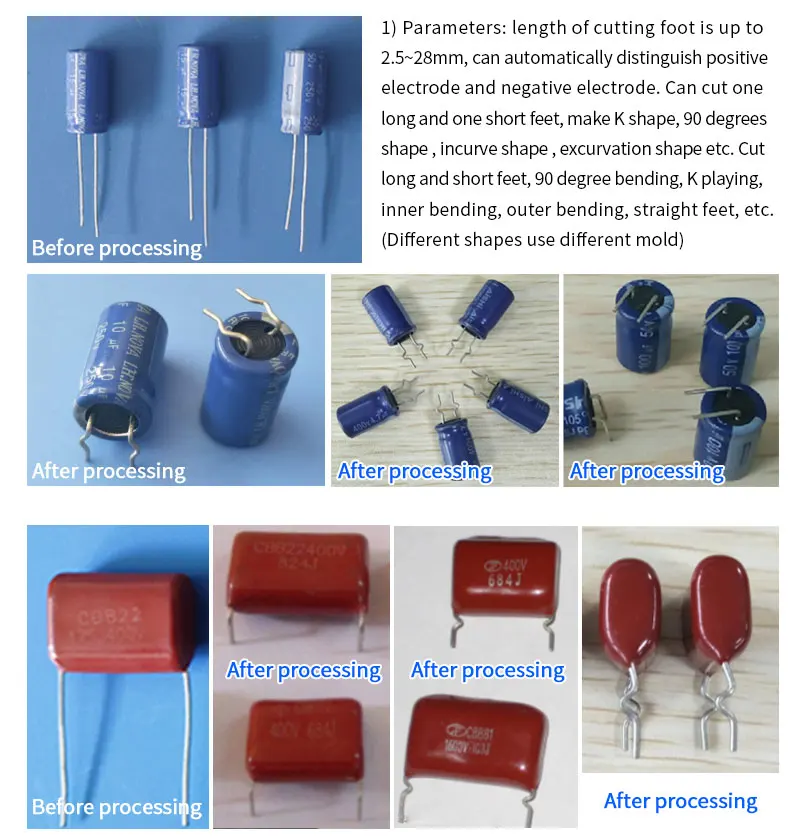

3) Parameters: The length of cutting foot is between 2.5 to 28mm. It can automatically distinguish positive electrode and negative electrode. Can cut one long and one short feet, make K shape, 90 degrees shape , incurve shape , excurvation shape etc. Cut long and short feet, 90 degree bending, K playing, inner bending, outer bending, straight feet, etc. (Different shapes use different mold)
4) Features: vibration feeding bowl, chuck, mold, etc, these can be customized according to different components. Function of machine is powerful. Rack-type chuck eliminates the possibility of damaging components during clamping, which is convenient for replacement; Φ4-Φ8 can share one jig, Φ8-Φ10 can share one jig.
5) Features: imported cam transmission, use Siemens PCL, which is accurate, stable, durable, low noise, touch screen operation, easy to learn, and convenient for data adjustment. Motors, electrical parts and steel products are all imported or domestic well-known brands.
1) It is for bulk radial electronic components to cut feet and shape new forms.
2) Applicable for: LED, electrolytic capacitor, capacitor, crystal oscillator, triode and other radial electronic components to cut feet and shape new forms. (When shapes and sizes of electronic components are different, it can’t share one machine.)
3) Parameters: The length of cutting foot is between 2.5 to 28mm. It can automatically distinguish positive electrode and negative electrode. Can cut one long and one short feet, make K shape, 90 degrees shape , incurve shape , excurvation shape etc. Cut long and short feet, 90 degree bending, K playing, inner bending, outer bending, straight feet, etc. (Different shapes use different mold)
4) Features: vibration feeding bowl, chuck, mold, etc, these can be customized according to different components. Function of machine is powerful. Rack-type chuck eliminates the possibility of damaging components during clamping, which is convenient for replacement; Φ4-Φ8 can share one jig, Φ8-Φ10 can share one jig.
5) Features: imported cam transmission, use Siemens PCL, which is accurate, stable, durable, low noise, touch screen operation, easy to learn, and convenient for data adjustment. Motors, electrical parts and steel products are all imported or domestic well-known brands.
Features: vibration feeding plate, chuck, mold etc, these can be customized according to different components. Φ4-Φ8 can share one jig, Φ8-Φ10 can share one jig.
Three standard type of 901A-W , because main parts will be different because of size of components:
1. Diameter: 3-10MM electrolytic capacitor.
2. Diameter: 10-16mm electrolytic capacitor.
3. Φ3 andΦ5 LED lights.
Three standard type of 901A-W , because main parts will be different because of size of components:
1. Diameter: 3-10MM electrolytic capacitor.
2. Diameter: 10-16mm electrolytic capacitor.
3. Φ3 andΦ5 LED lights.
