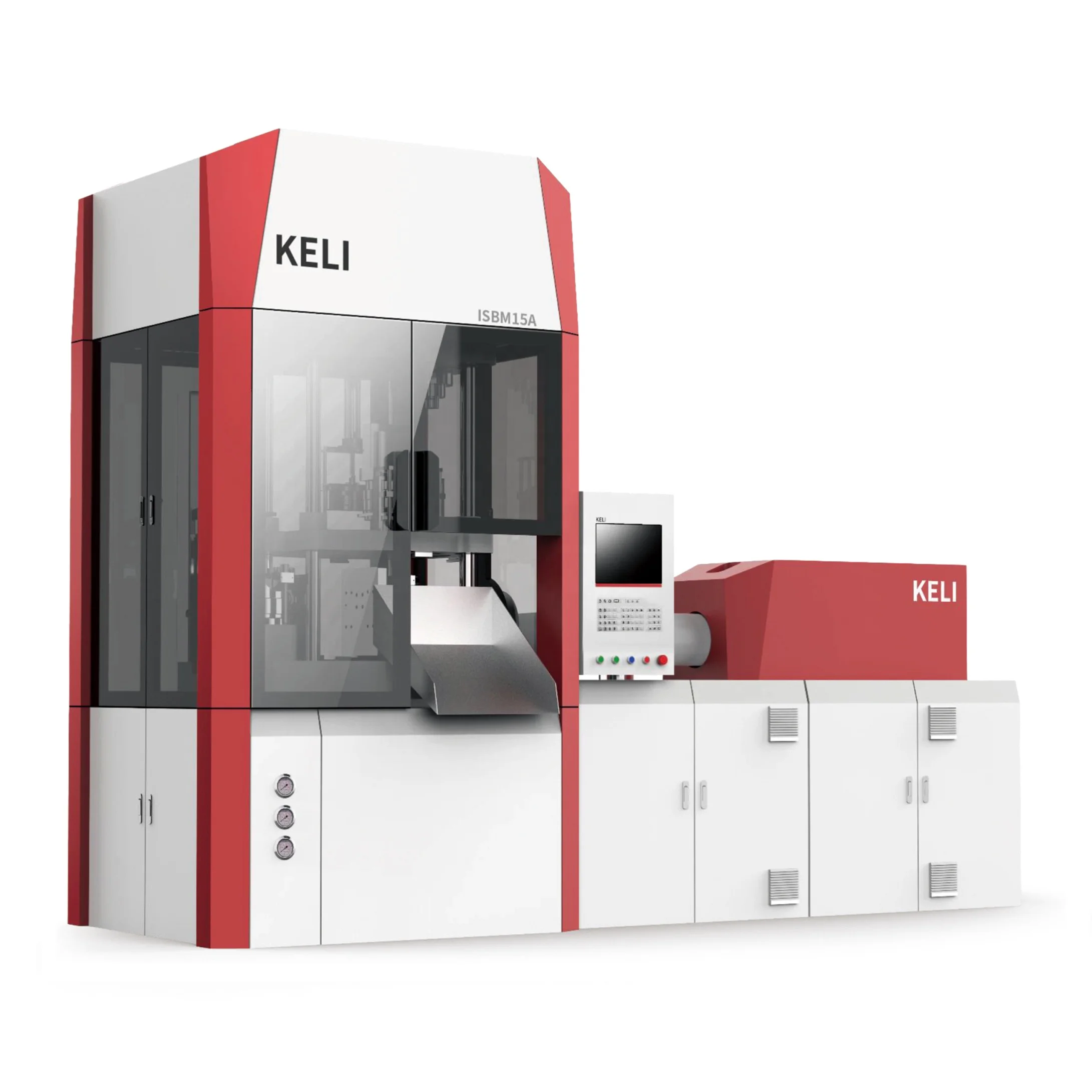

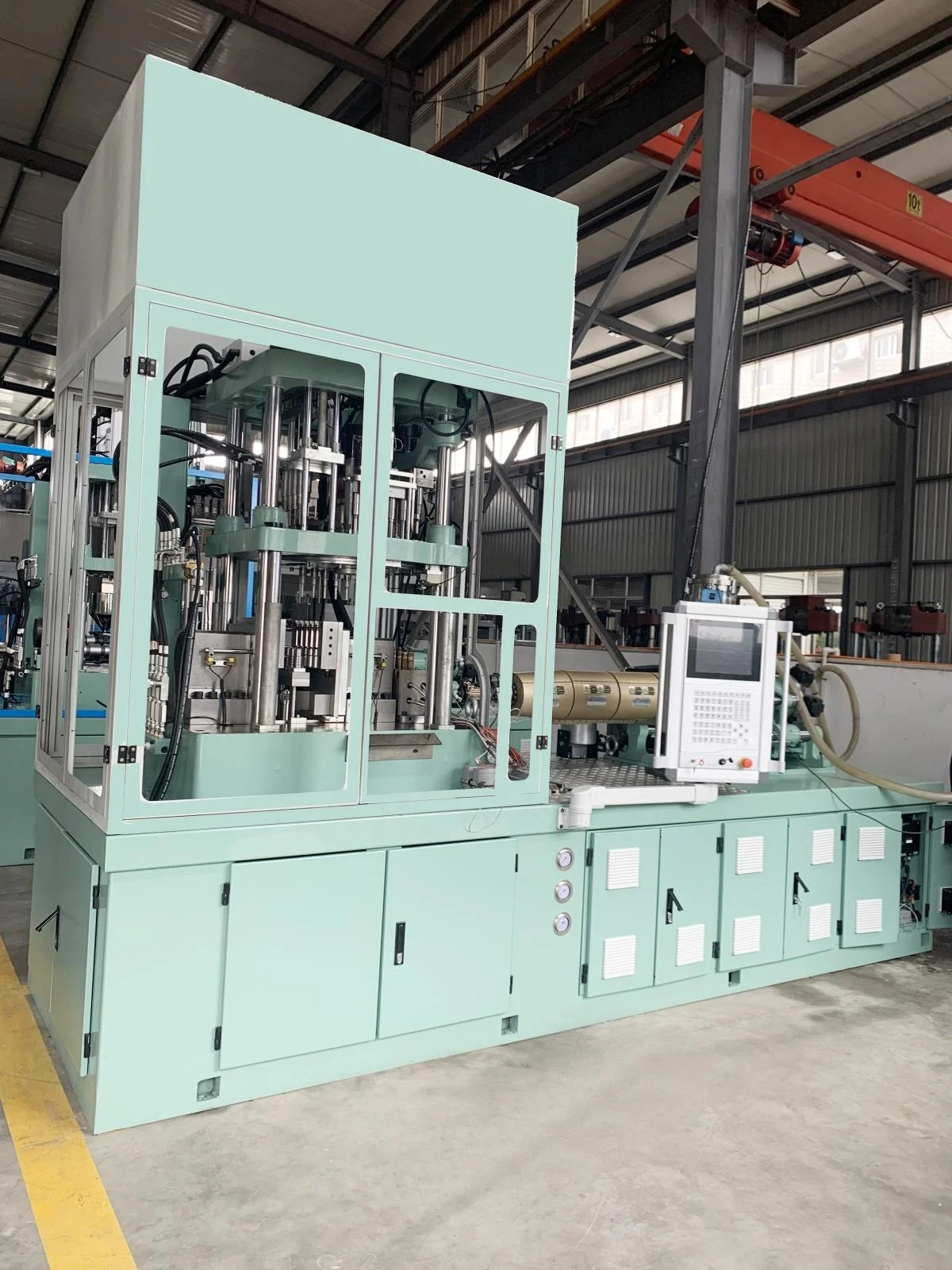

China manufacturer one step 4 station PET Bottle Blowing Machine Fully Automatic injection stretch blow molding
- Category: >>>
- Supplier: Zhejiang Keli Plastic Machinery Co. Ltd.
Share on (1600537956752):
Product Overview
Description
Unit | ISBM15 | ISBM50 | ISBM70 | |
Dia of screw | mm | 45 | 55 | 55 |
Screw L/D | 26:1 | 26:1 | 26:1 | |
Max theoretical shot volumn | cm3 | 240 | 400 | 400 |
injection clamping force | kn | 152 | 540 | 687 |
injection mold open/close stroke | mm | 460 | 630 | 435 |
max injection mold height | mm | 420 | 500 | 470 |
max blow mold thickness | mm | 160 | 210 | 260 |
hydraulic system electrical engine | kw | 22+18.5 | 29.1*2 | 30+25+11 |
plasticing driving engine | kw | 18 | 31.5 | 31.5 |
rotary table driving engine | kw | 2.1 | 4.7 | 6 |
production range volumn | ml | 10-2500 | 10-5000 | 10-10000 |
product range height | mm | <300 | <335 | <350 |
total electrical power | kw | 84.5 | 131.1 | 138.9 |
operation power | 30% | 15-30% | 15-30% | |
machine dimension | mm | 3945*1340*3098 | 5064*1790*3645 | 5640*1870*3450 |
