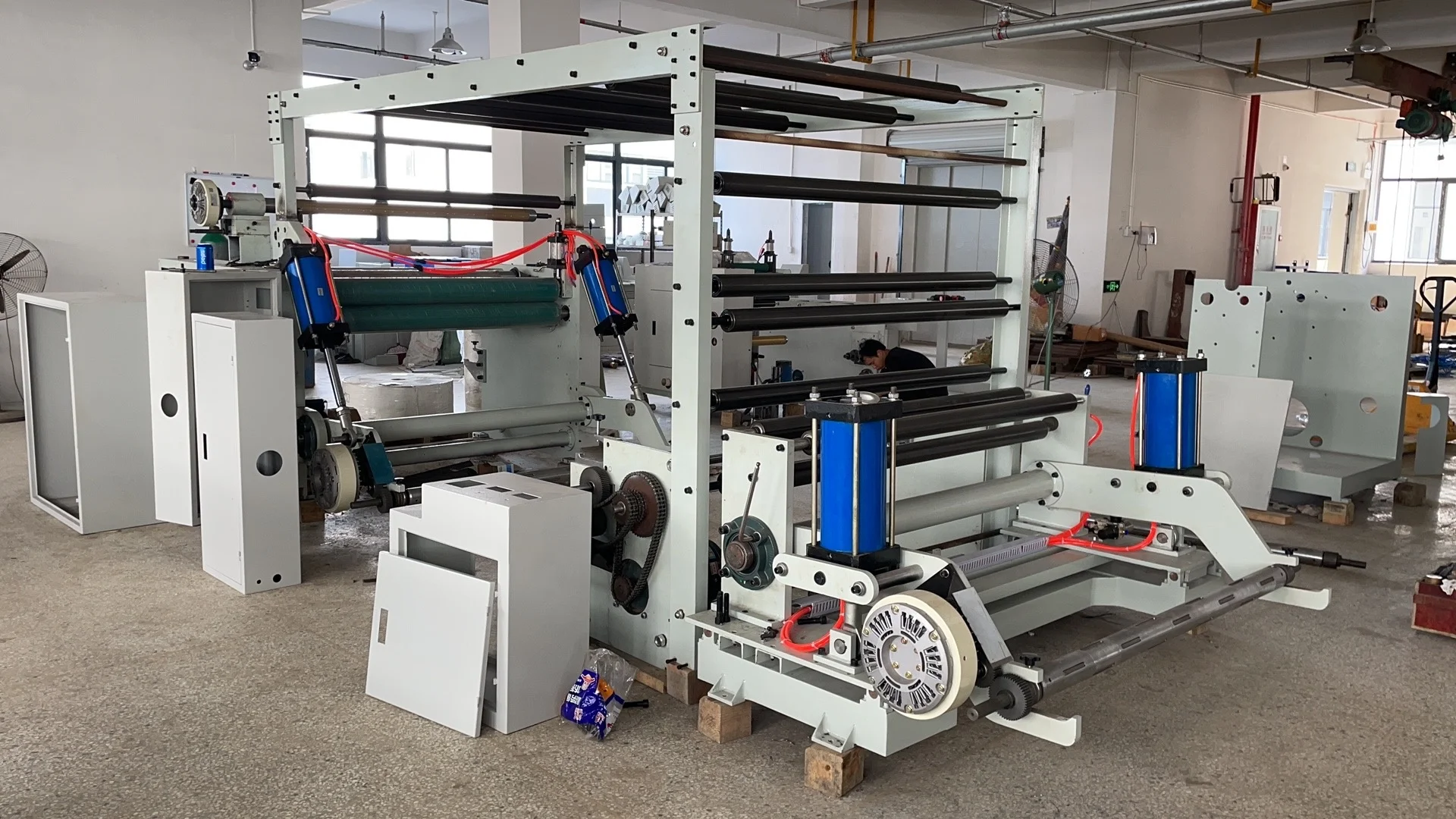

Automatic paper roll slitter rewinder machine and slit rewinding machines for the paper film non woven tape
- Category: >>>
- Supplier: Suzhou Deedo Machinery Co. Ltd.
Share on (1600537965140):
Product Overview
Description
Products Description
paper slitter machine is suitable for cutting big rolling packaging materials such as paper, paper board, kraft paper, culture
paper, printing paper, laser paper, aluminum foil paper, paper, label,sticker, copper foil, aluminum foil,film(OPP, PE, PVC,
PP,PC), Non-woven cloth,melt-blown fabric .etc. Widely used in paper industry and printing industry.
paper, printing paper, laser paper, aluminum foil paper, paper, label,sticker, copper foil, aluminum foil,film(OPP, PE, PVC,
PP,PC), Non-woven cloth,melt-blown fabric .etc. Widely used in paper industry and printing industry.
Stable Performance Paper Roll Slitting Machine with Belt Pulley
The slitter is the corollary equipment of automatic die cutting machine, which is suitable for slitting narrow paper web.
It has automatic meter count and number count, quantity and length preset and decelerate till stopping functions.
Auto Magnetic powder control for unwinding and rewinding.
Photoelectric eyes rectification for unwinding, synchronous belt to conveyor in internal structure.
Distinctive machine design will improve working efficiency and reduce operation labor intensity , which is the optimal choice for narrow material slitting.
The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
The slitter is the corollary equipment of automatic die cutting machine, which is suitable for slitting narrow paper web.
It has automatic meter count and number count, quantity and length preset and decelerate till stopping functions.
Auto Magnetic powder control for unwinding and rewinding.
Photoelectric eyes rectification for unwinding, synchronous belt to conveyor in internal structure.
Distinctive machine design will improve working efficiency and reduce operation labor intensity , which is the optimal choice for narrow material slitting.
The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Control Panel:
You can set slitting speed,running length,unwinding and rewinding tension on it. It is very easy for worker to operate the
machine.
Slitting Blades:
This machine is standard equipped with full sets of slitting blades, min sltting width is 9mm. if you want to slit smaller width,you can customize self-lock knives. It's easy to adjust the slitting width based on your products.
Edge / line Position Controller:
These photoelectric sensors are used to guide the rough material to make sure the slitting
rewinding effect is good.The photo sensors concentrate on the edge of the material. You can choose between a single sensor and two sensors.
You can set slitting speed,running length,unwinding and rewinding tension on it. It is very easy for worker to operate the
machine.
Slitting Blades:
This machine is standard equipped with full sets of slitting blades, min sltting width is 9mm. if you want to slit smaller width,you can customize self-lock knives. It's easy to adjust the slitting width based on your products.
Edge / line Position Controller:
These photoelectric sensors are used to guide the rough material to make sure the slitting
rewinding effect is good.The photo sensors concentrate on the edge of the material. You can choose between a single sensor and two sensors.
Product Paramenters
Model | SS 450 | SS 640 | SS1300 | SS1600 |
Slitting Speed | 80-120 m/min | 120 m/min | 200m/min | 200m/min |
Blades Number | According to customer cutting width | According to customer cutting width | According to customer cutting width | According to customer cutting width |
Rewinding Wallboard | Single side | Both sides | Both sides | Both sides |
Auto Loading Cylinder | 100*100 500kg | 100*100 500kg | 100*100 1000kg | 100*100 1000kg |
Max Width of Web | 450 mm | 640 mm | 1300mm | 1600mm |
Max Unwinding Diameter | 950 mm | 1000mm | 1000mm | 1000mm |
Max Rewinding Diameter | 550 mm | 550-600mm | 550-1000mm | 550-1000mm |
Min Cutting Width | 5 mm | 5 mm | 5mm | 5mm |
Max Cutting Width | 450 mm | 640mm | 1300mm | 1600mm |
Positioning Precision | ±0.10 mm | ±0.10 mm | ±0.10 mm | ±0.10 mm |
Main Motor Power | 2 KW | 4 KW | 11KW | 11KW |
The loading hydraulic quantity | 2pcs | 2pcs | 2pcs | 2pcs |
Upper tension | Include | Include | Include | Include |
Down tension | Include | Include | Include | Include |
Details Images

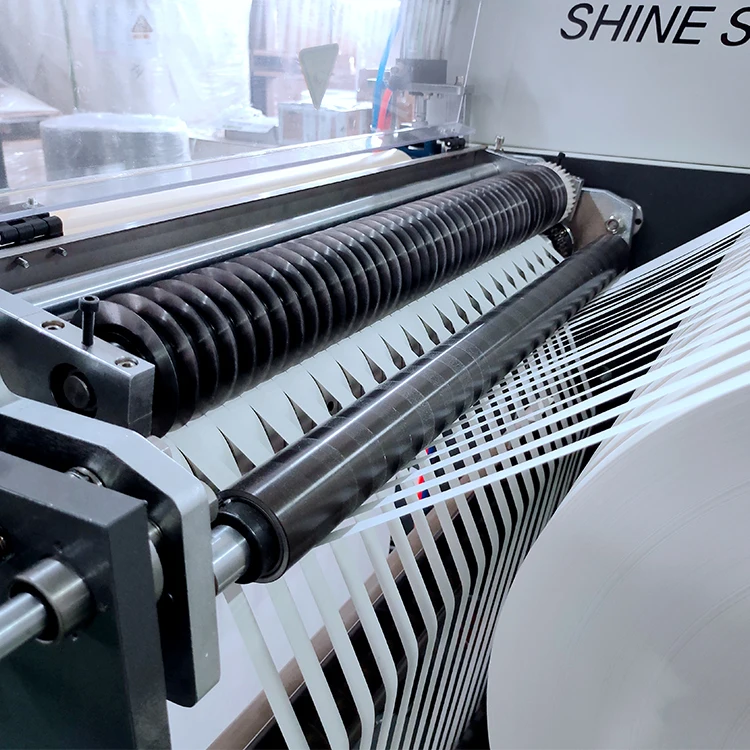

Slitting blade
Receiving air shaft

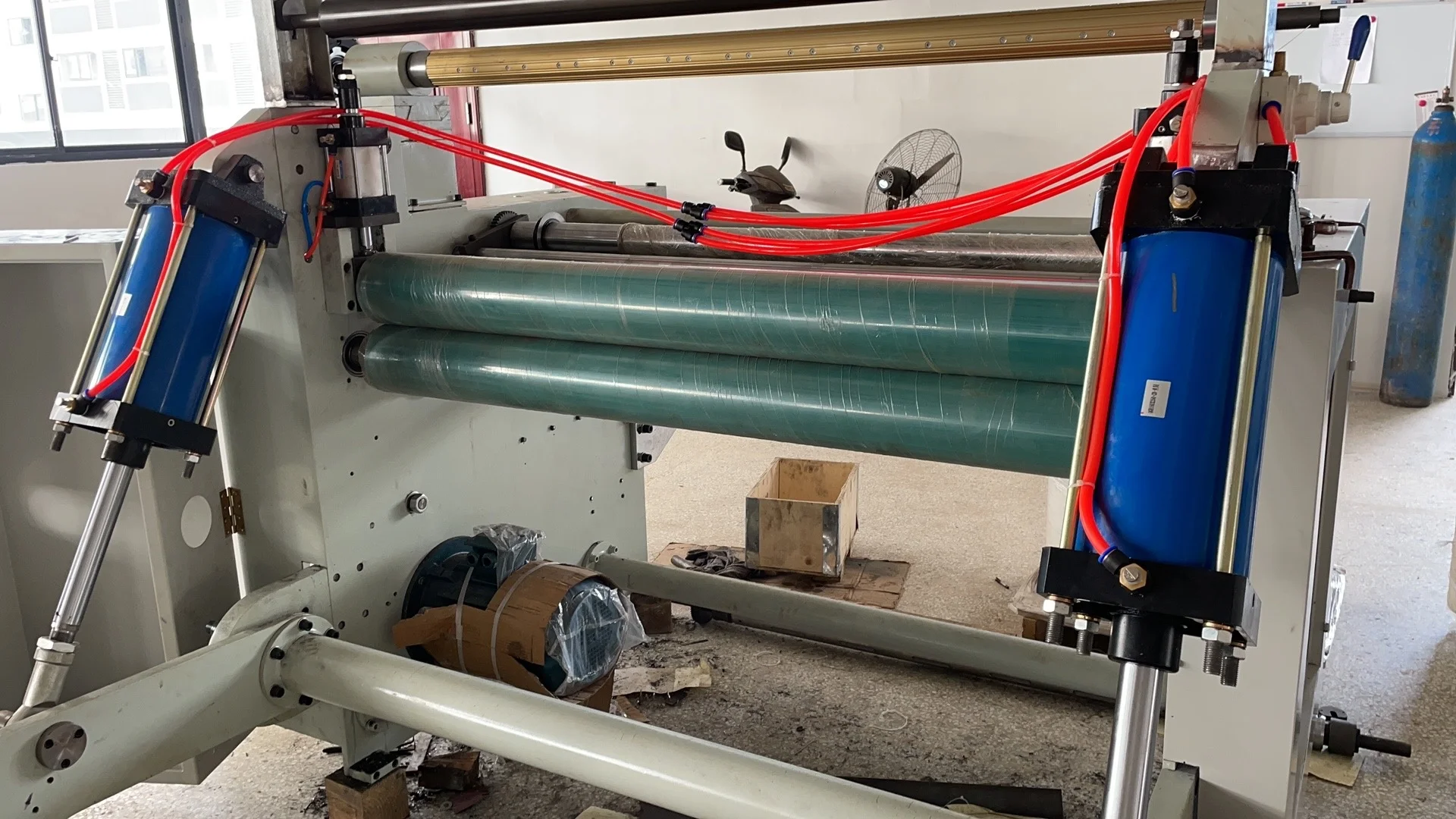

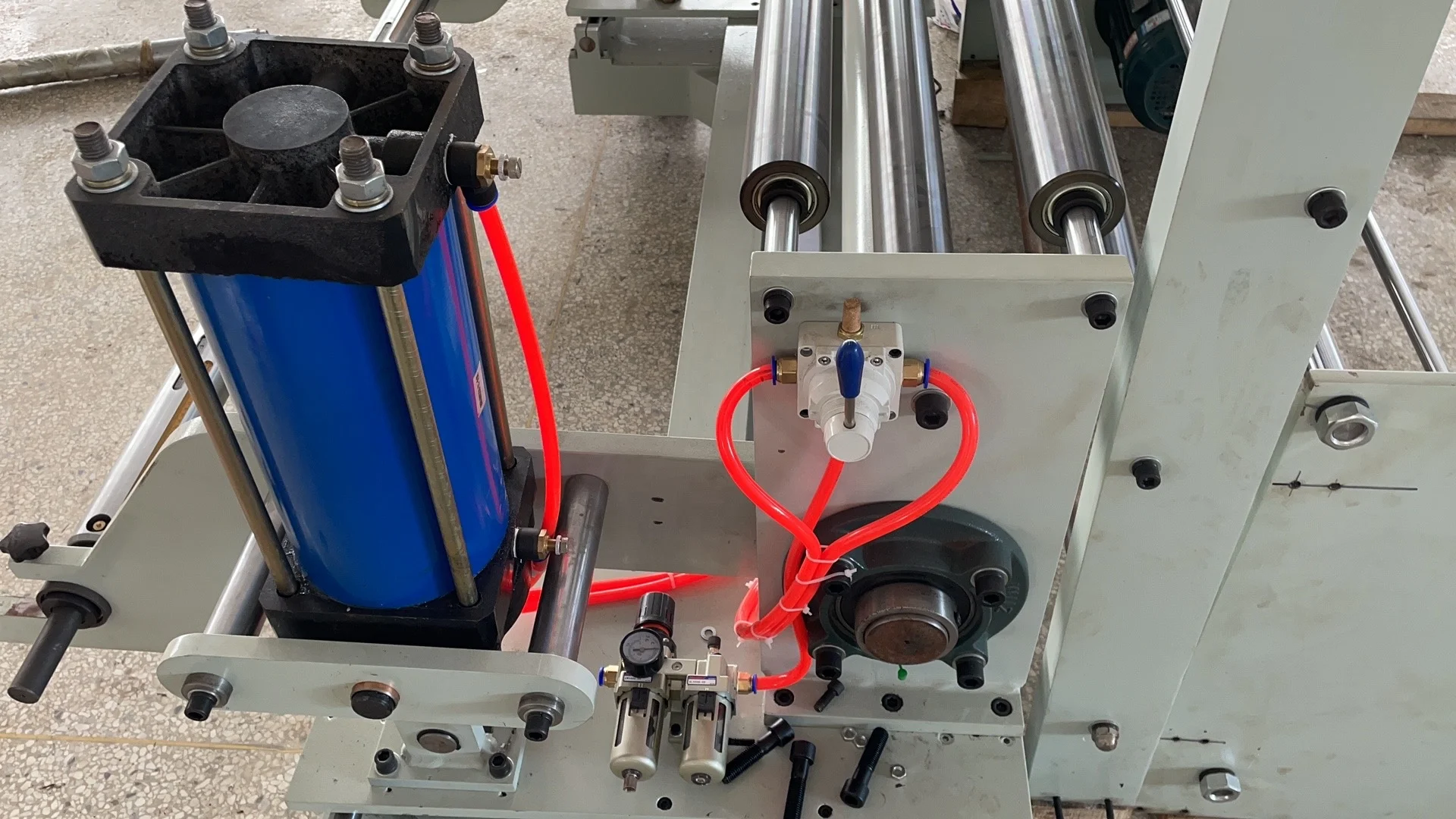

Automatic feeding cylinder
Cylinder roller
Slitting width
Knife adjustment system
Bottom knife

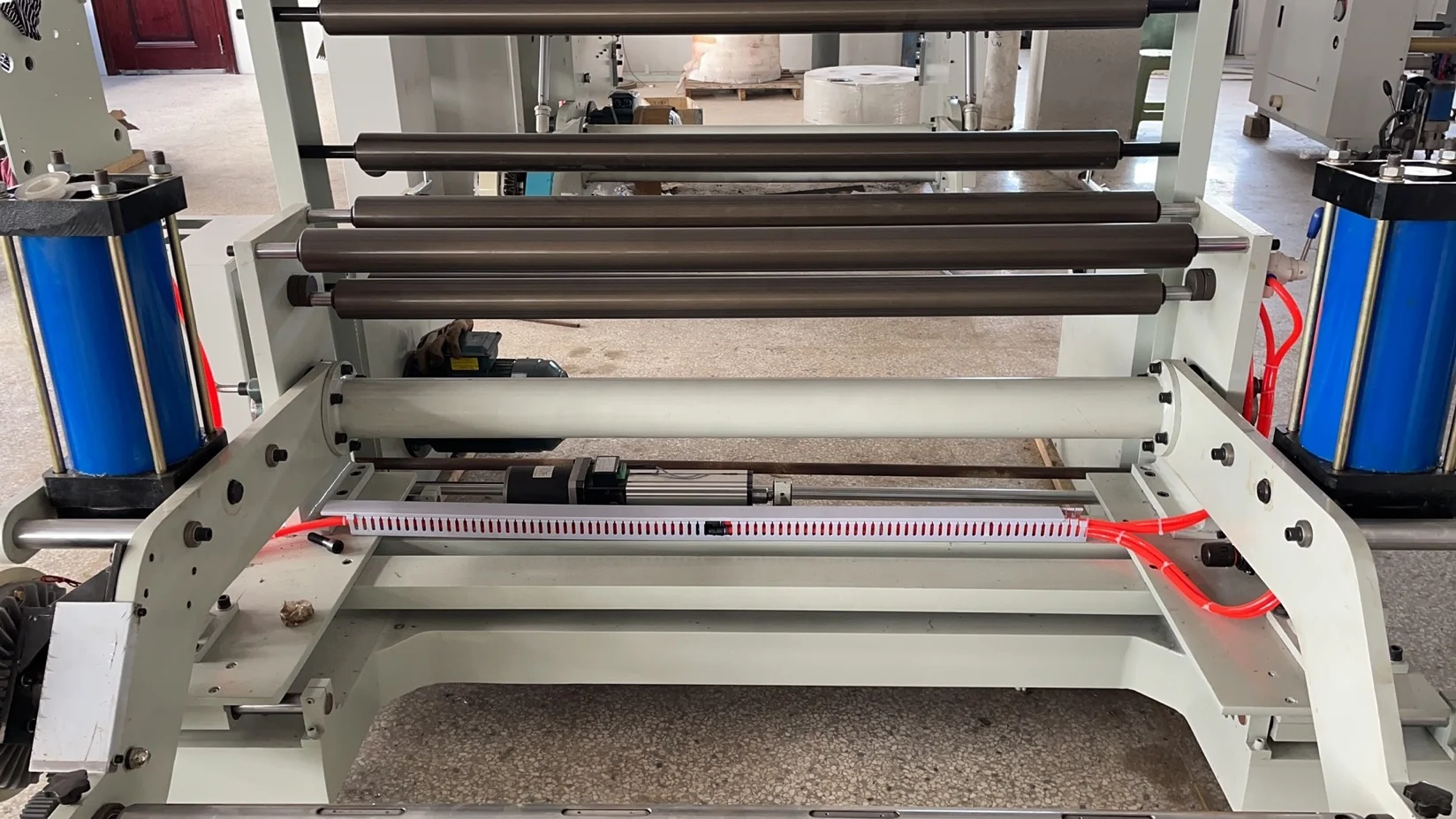

Correction system

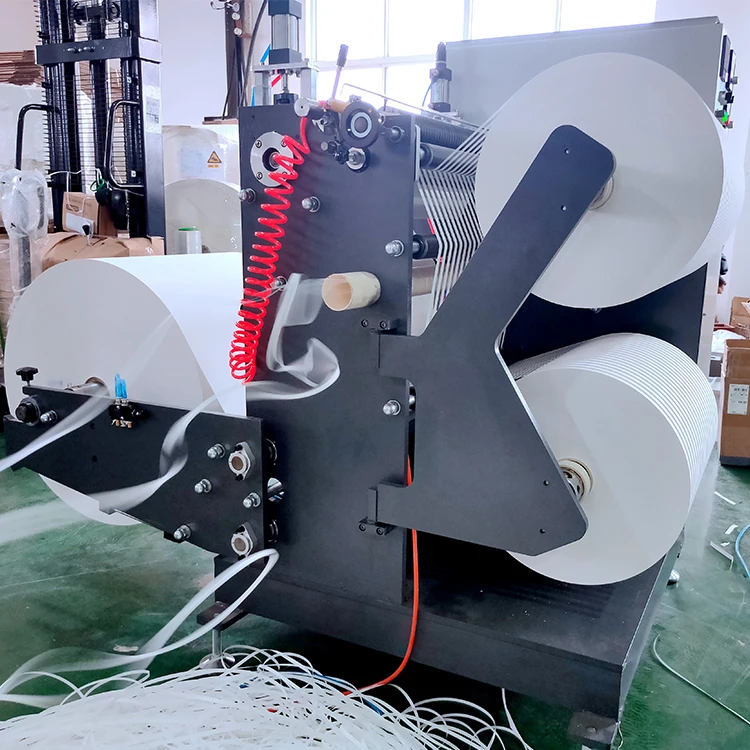

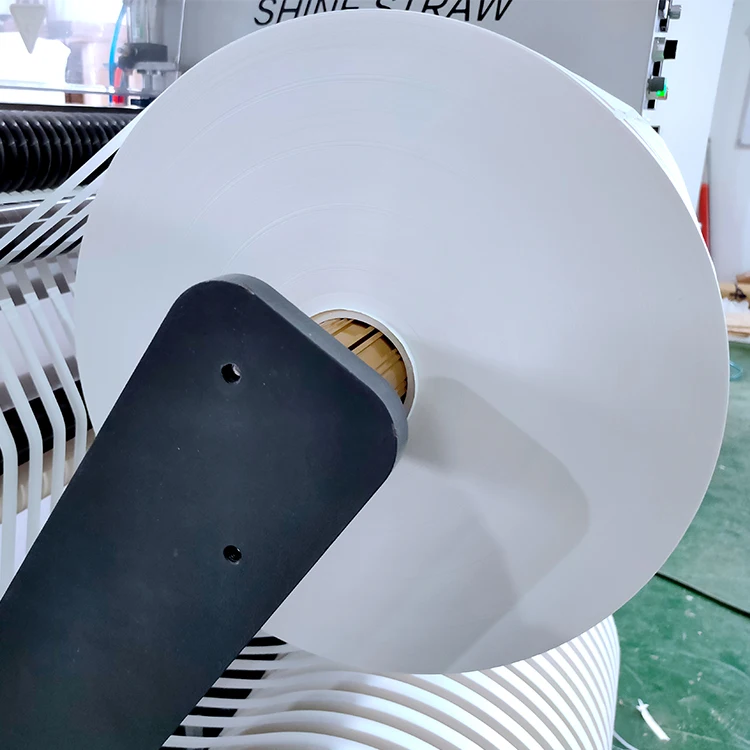

slitter rewinder machine paper roll

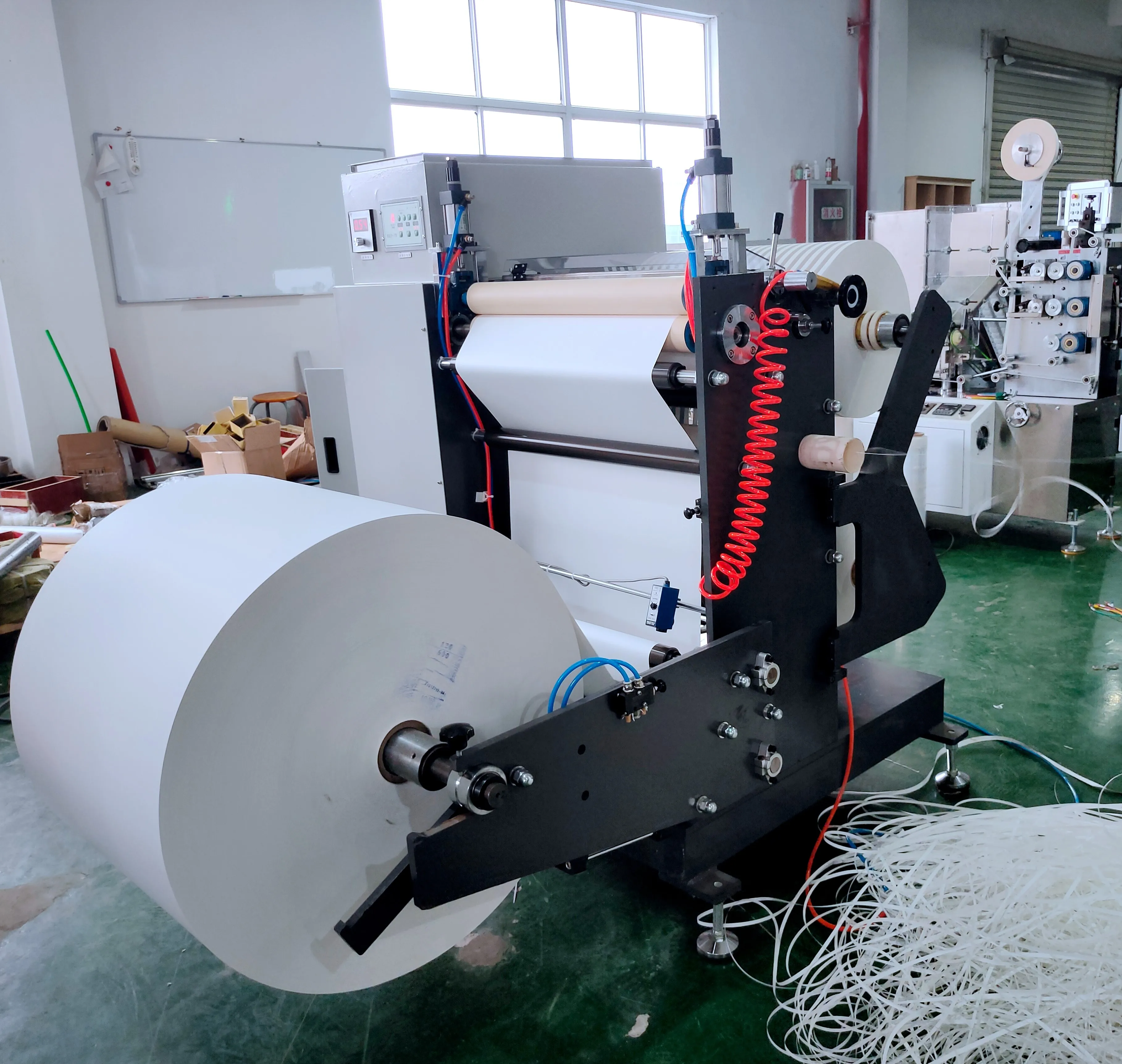

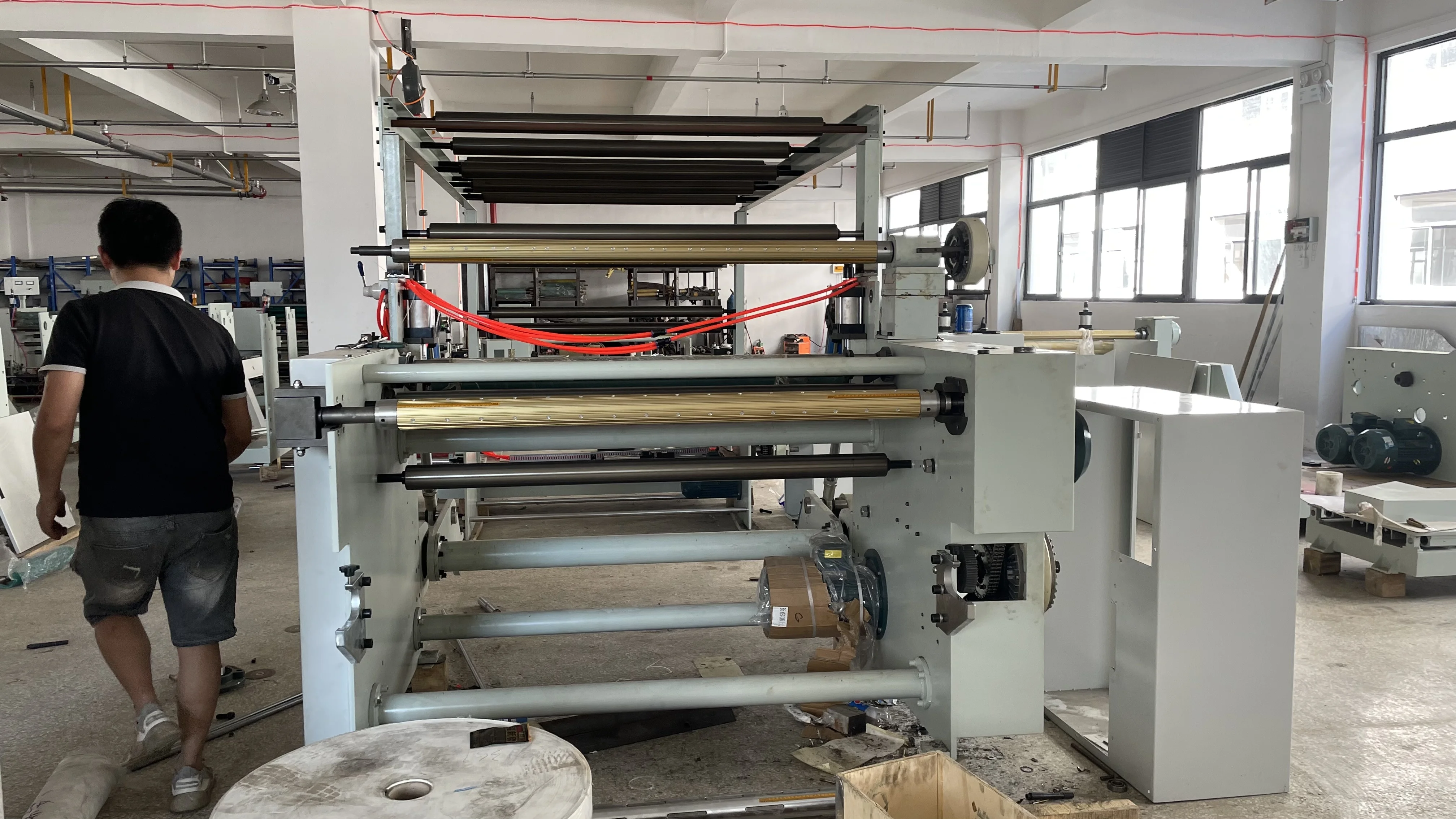

paper rewinder slitter machine
Main Features
1. Two winding shafts, more efficency;
2. Air expanding shaft, clamp more tighten, no slippage;
3. Magnetic powder control tension.Tension controllable and output torque balancing by magnetic powder brake actuator;
4. High speed waste material blowing fan;
5. Full rotary slitting blade can be adjusted.
6. Fast closing to knife device, locking upper knife shaft.Air cylinder control the pulling roller up and down.
7. Frequency motor to control speed.
8. 3 inch inflatable unwind shaft and 2 3 inch inflatable rewind shaft.
9.It has the functions of easy operation, high precision, good stability and low noise.
2. Air expanding shaft, clamp more tighten, no slippage;
3. Magnetic powder control tension.Tension controllable and output torque balancing by magnetic powder brake actuator;
4. High speed waste material blowing fan;
5. Full rotary slitting blade can be adjusted.
6. Fast closing to knife device, locking upper knife shaft.Air cylinder control the pulling roller up and down.
7. Frequency motor to control speed.
8. 3 inch inflatable unwind shaft and 2 3 inch inflatable rewind shaft.
9.It has the functions of easy operation, high precision, good stability and low noise.

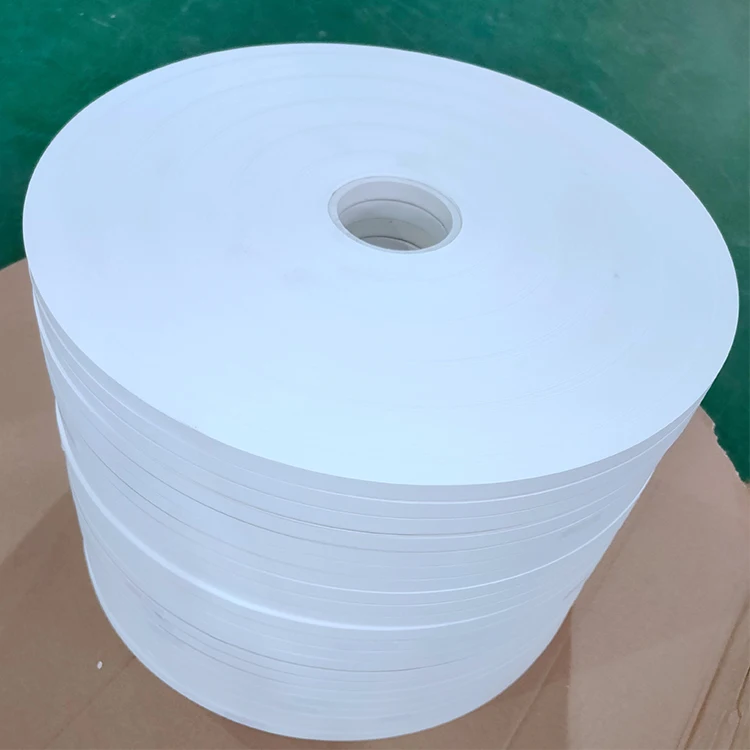

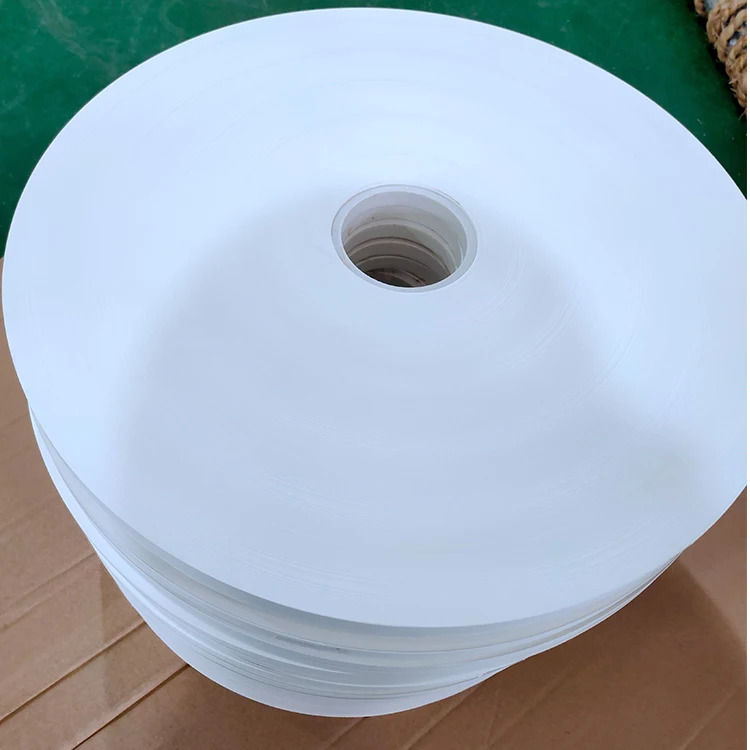

Final Product
Certifications
Software patent certificate
patent certificate
Company other certificates
Company Profile
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

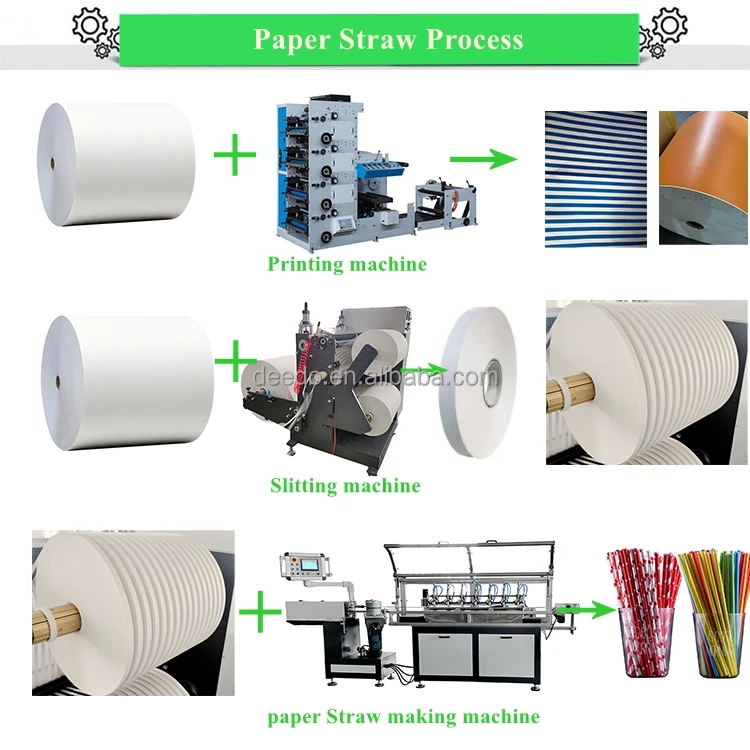

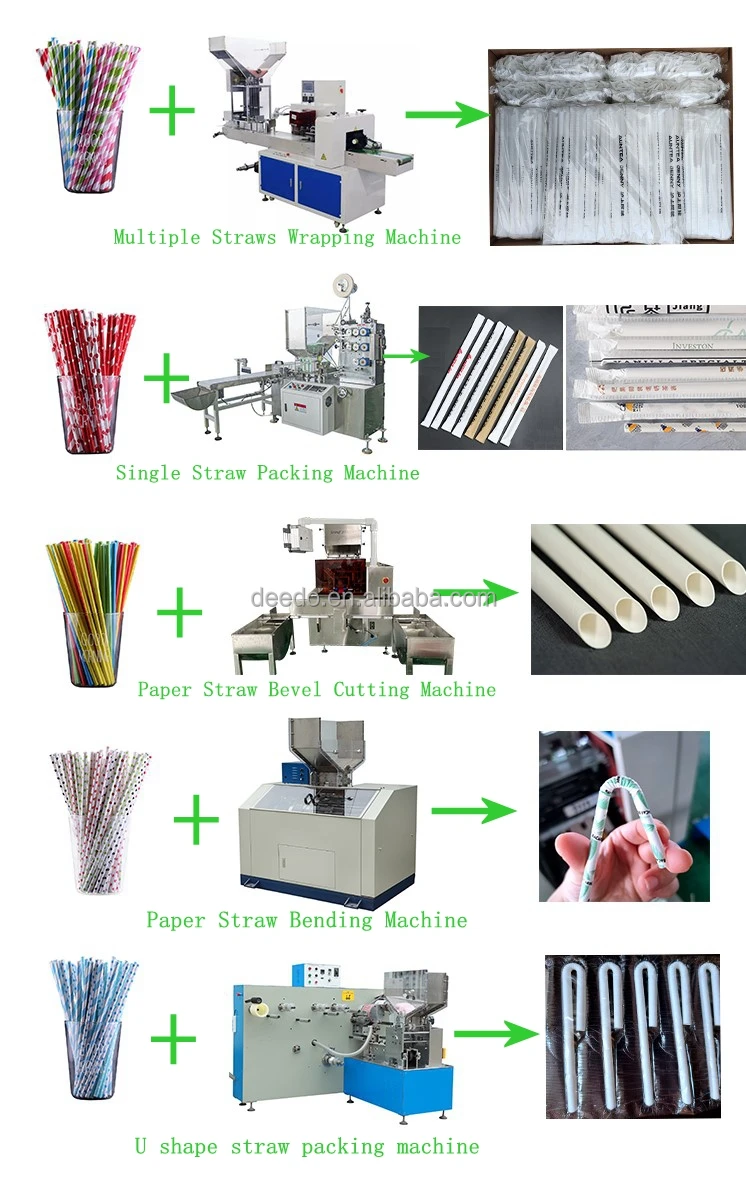

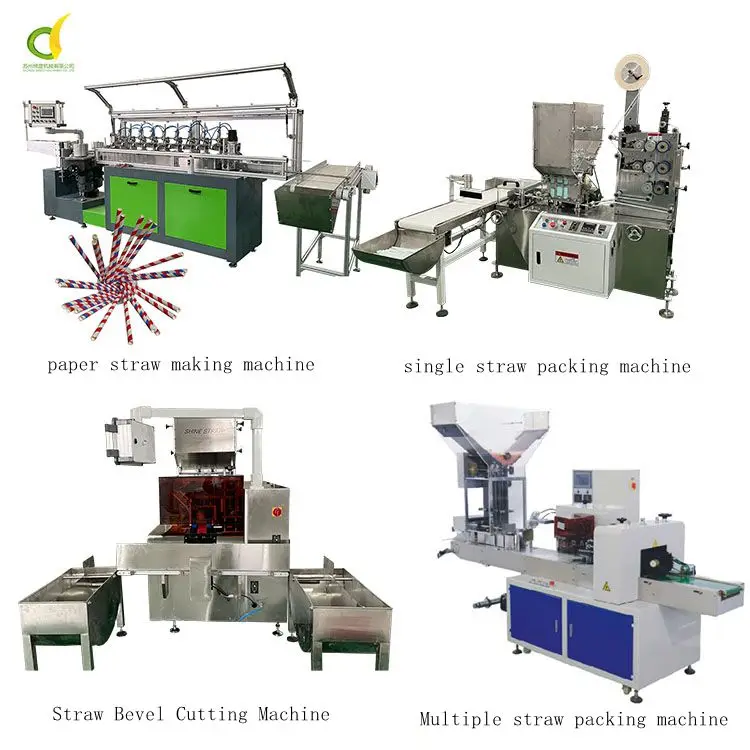

Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
