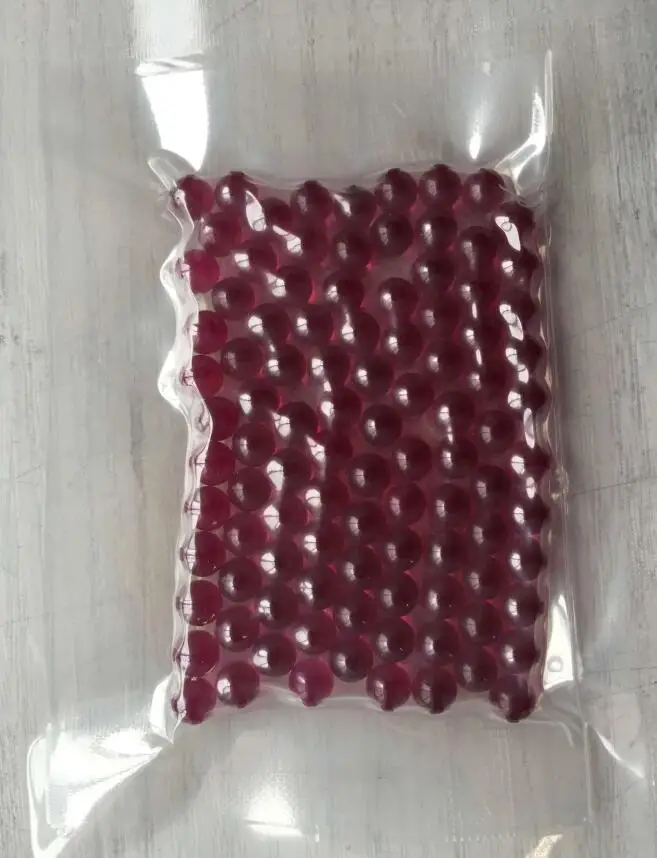

100 pcs/bag 2.5mm 3mm 4mm 6mm synthetic ruby sphere ball
- Category: >>>
- Supplier: Chongqing CYS Machinery Co. Ltd.
Share on (1600537967468):
Product Overview
Description
Products Description

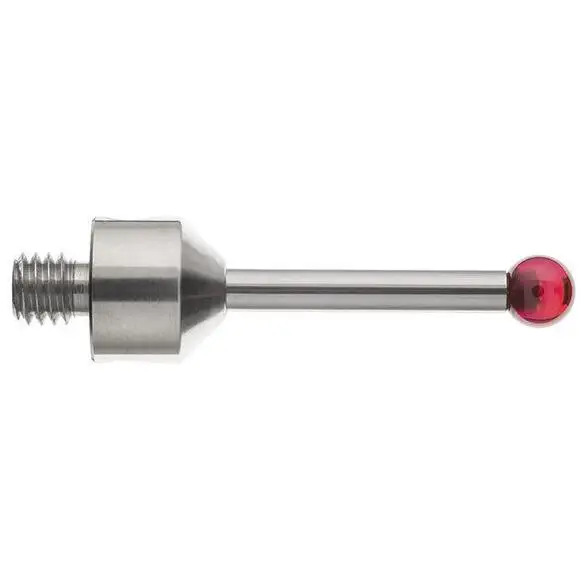

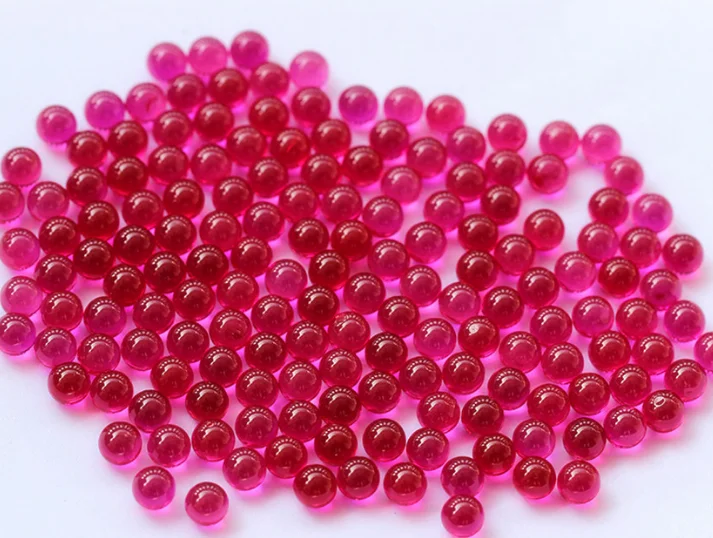

Balls & balls measuring head jewels are made of synthetic sapphire/ruby. They are largely used in heavily corrosive environment and optical fiber communication because of its anticorrosion, wearable and fine transmission characteristics. Balls measuring head jewels are used as insulated measure head on precise instruments.

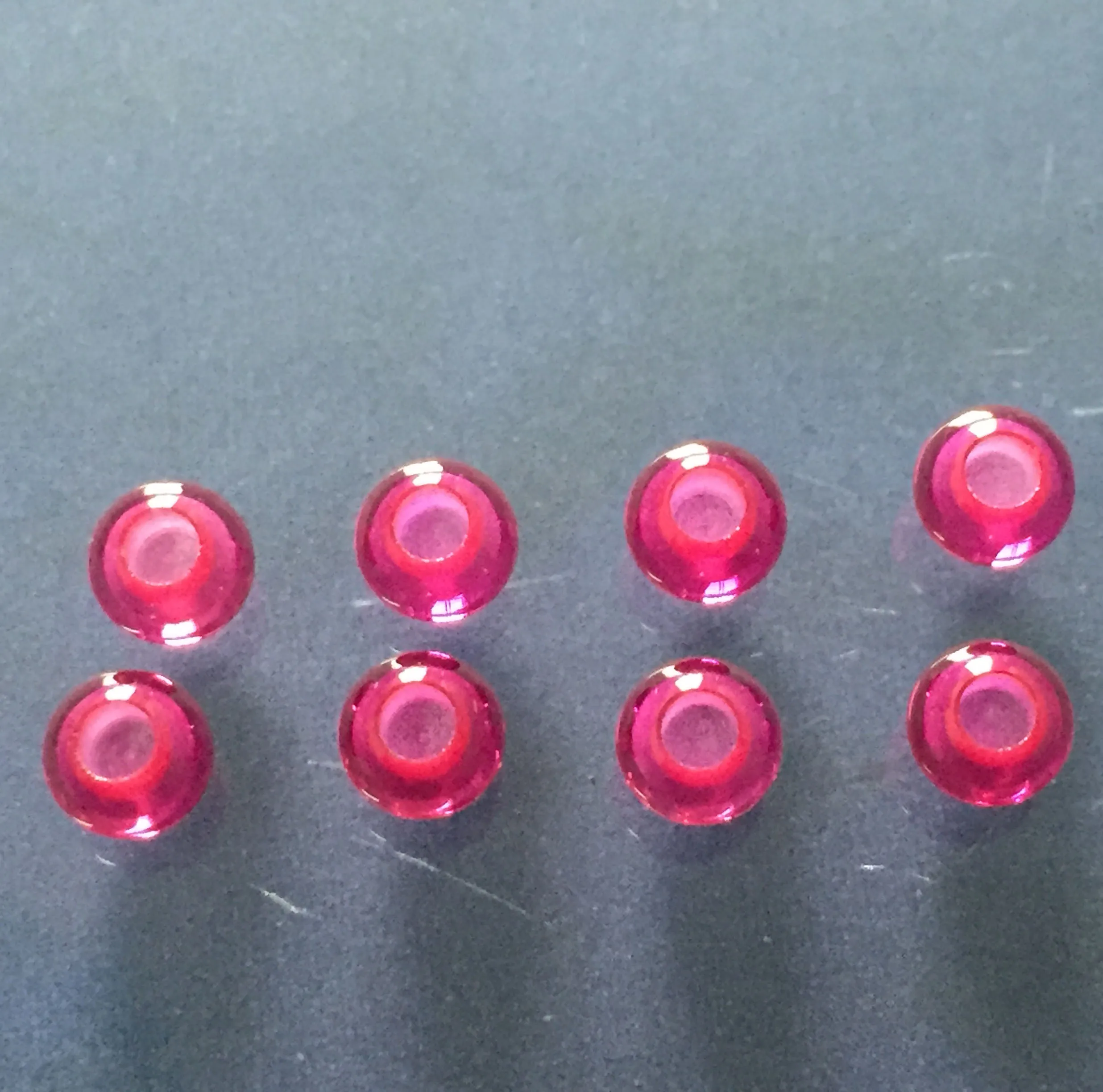

Cup jewels are chiefly applied to electronic meter, hot water meter, liquid measuring instrument and movement system of single-phase and three-phase KHW meter. These cup jewels contain four types: spherical bearing, conical bearings, double cups on one face bearing, and single cup on double surfaces bearing.
Specification
1. Outside Diameter: Φ0.80 ~ Φ25 ,h7 ~ h9
2. Height: 0.30 ~ 25, Tolerance: 0.01~ 0.10
3. Curvature radius: 0.10 ~ 150, Tolerance: +/-0.01 ~ +/-2.00
4. Cup depth: 0.05 ~ 12, Tolerance: +/-0.01~+/-0.10
5. Taper: 40°~ 160°, +/-5°
Surface roughness: Rz0.05~ Rz0.8
Material：Synthetic sapphire/ruby single crystal α-Al2O3, natural agate, crystallite glass and ceramic, etc.
Those parts are manufactured according to customer’s design and specifications
synthetic sapphire blank, cup bearing, stick, balls, windows, and other special parts according to customer's drawings or request
A.F.B.M.A Grade | Diameter tolerance per ball sphericity | Diameter tolerance per unit container | Basic Diameter tolerance | Marking increments | ||||||||
单粒圆球的圆度公差值 | 每包的平均圆度公差值 | 基本直径公差值 | 标记增量 | |||||||||
Grade/Unit | Inch | mm | Inch | mm | Inch | mm | Inch | mm | ||||
3 | 0.000003 | 0.0000762 | 0.000005 | 0.000127 | ±0.00003 | ±0.000762 | 0.000003 | 0.0000762 | ||||
5 | 0.000005 | 0.000127 | 0.00001 | 0.000254 | ±0.00005 | ±0.00127 | 0.000005 | 0.000127 | ||||
10 | 0.00001 | 0.000254 | 0.00002 | 0.000508 | ±0.0001 | ±0.00254 | 0.00001 | 0.000254 | ||||
15 | 0.000015 | 0.000381 | 0.00003 | 0.000762 | ±0.0001 | ±0.00254 | 0.000015 | 0.000381 | ||||
25 | 0.000025 | 0.000635 | 0.00005 | 0.00127 | ±0.0001 | ±0.00254 | 0.000025 | 0.000635 | ||||
50 | 0.00005 | 0.00127 | 0.001 | 0.0254 | ±0.0002 | ±0.00508 | 0.00005 | 0.00127 | ||||
100 | 0.0001 | 0.00254 | 0.002 | 0.0508 | ±0.0005 | ±0.0127 | 0.0001 | 0.00254 | ||||
200 | 0.0002 | 0.00508 | 0.004 | 0.1016 | ±0.0010 | ±0.0254 | 0.0002 | 0.00508 | ||||
Name | Technical data | ||||||||
Diameter（Ф2） | Max deviation | Roundness | Diameter of blind hole | Hight of blind hole | |||||
Ball jewel | 0.50-1.20 | ±0.00254 | 0.000635 | 0.40-0.80 | About SФ2 | ||||
1.20-8.00 | ±0.00254 | 0.000635 | 0.80-5.00 | ||||||
8.00-12.00 | ±0.00254 | 0.00127 | 3.00-7.00 | ||||||
Surface | Surface roughness:Rz0.1, Surface quality S/D:40/20 | ||||||||
Material
MAN MADE CORUNDUM PROPERTY | ||||
General | Chemical Formula | Al2O3 | ||
Crystal System | Trigonal | |||
Class | Hexagonal-scalenohedral | |||
Melting Temperature | 2030℃ | |||
Thermal | Thermal Expansion | Parallel to C-axis: 6.7× 10-6 | ||
Perpendicular to C-axis: 5.0×10-6 | ||||
Specific Heat | 0.18 Cal/gmoK（25℃） | |||
Mechanical | Density | 3.98 ~ 4.1g/cm3 | ||
Hardness | 9Moh’s Scale | |||
（Hv）≥1700kg/mm2 | ||||
Modulus Of Elasticity | 340-380Gpa | |||
Compressive Strength | 2.1Gpa | |||
Tensile Strength | 0.19Gpa | |||
Optical | Index of Refraction | Parallel to C-axis:1.769 | ||
Perpendicular to C-axis:1.76 | ||||
Index of IR Transmission | 85% | |||
Electrical | Electrical Resistance | 1016 Ω/cm(25°c) | ||
Dielectric Constant | 7.5-10 | |||
Chemical | Corrosion Resistance | Can not be corroded by acid or alkali at normal temperature, only can be corroded by HF at 300℃ | ||
Product Show
Recommend Products
Click the picture to view more
Packing and shipment

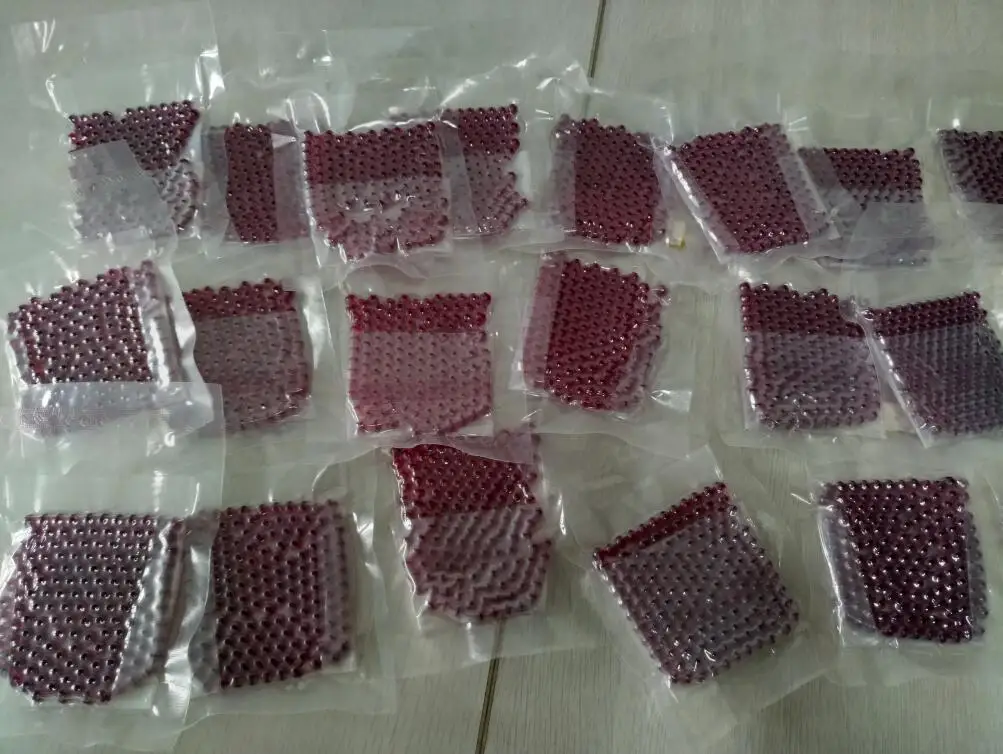

1. vaccum packaging
